Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ICS2492N-XXX

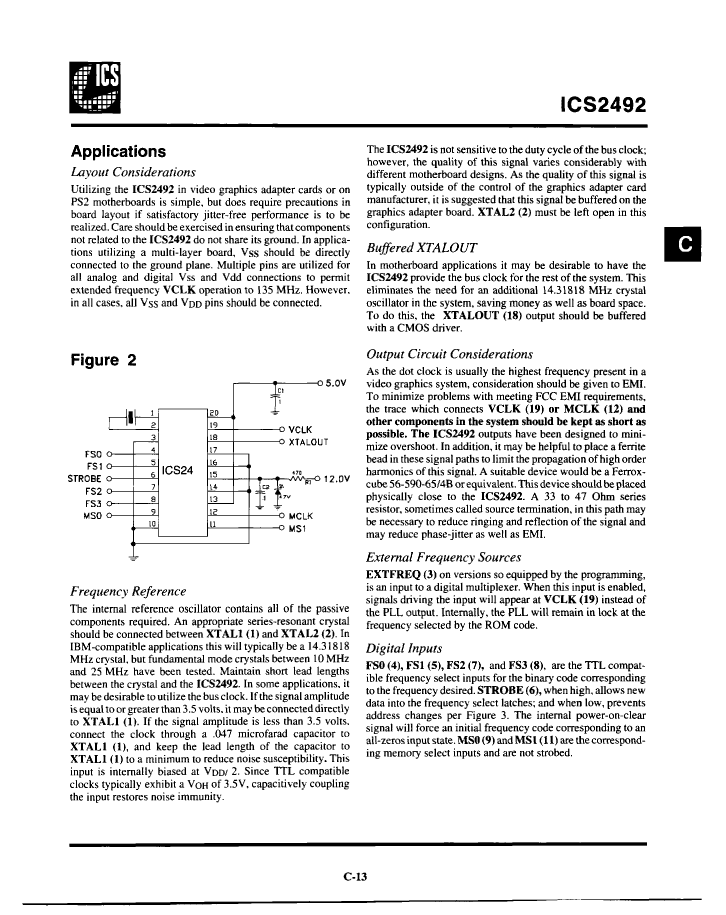

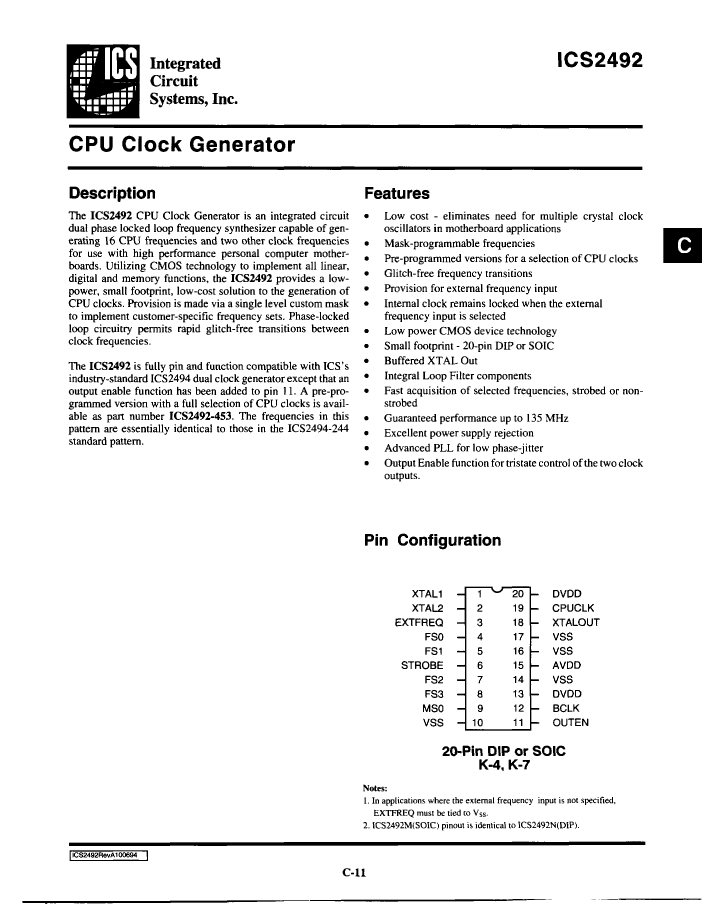

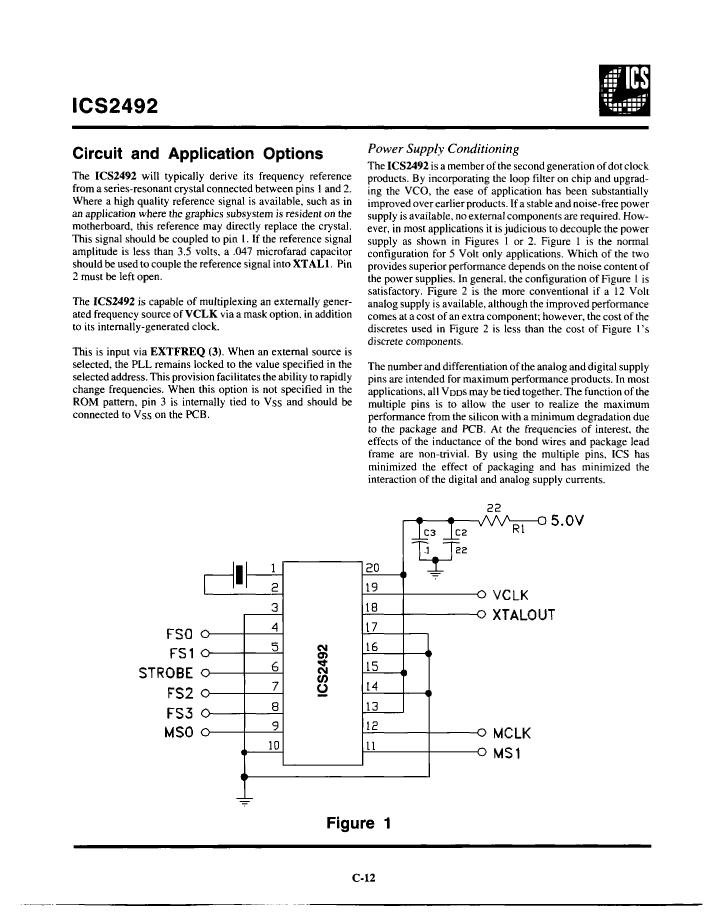

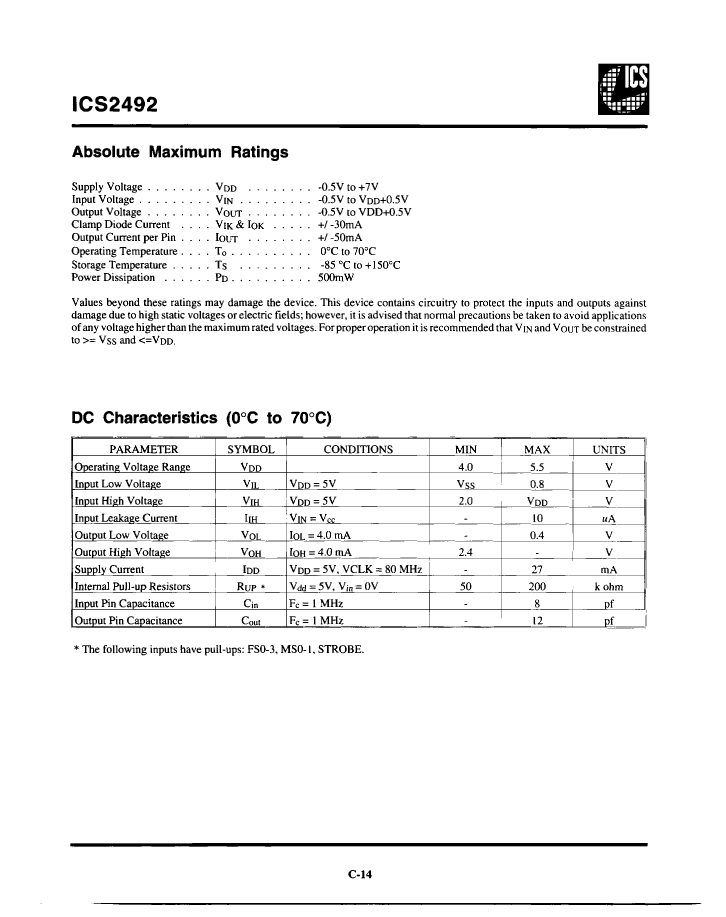

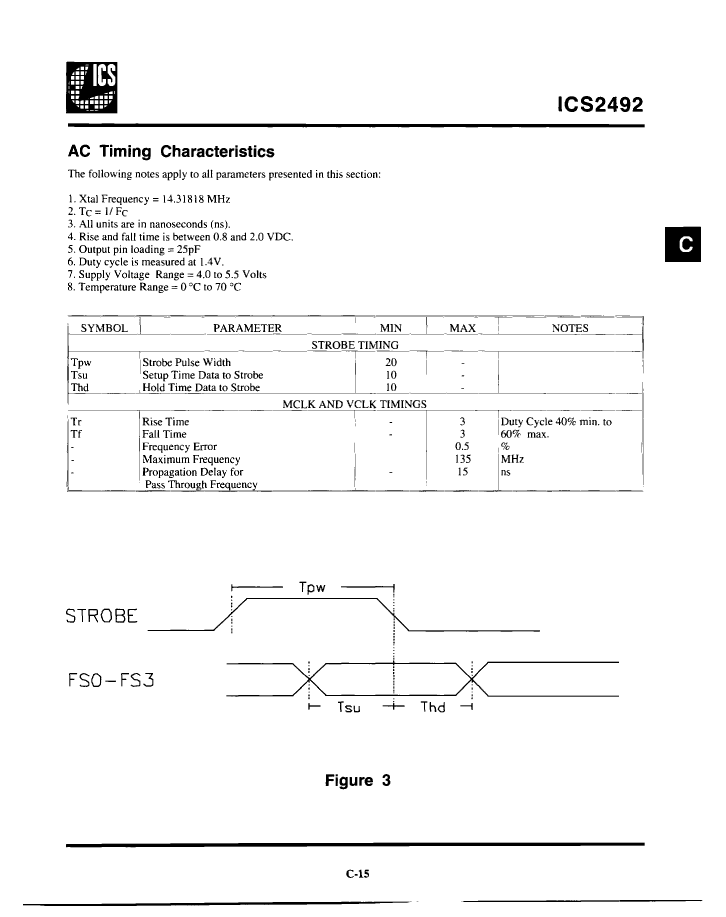

PDF
Preview

ICS2492N-XXX

Description
Processor Specific Clock Generator, 135MHz, CMOS, PDIP20, PLASTIC, DIP-20
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size199KB，6 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric Compare View All

ICS2492N-XXX Overview

Processor Specific Clock Generator, 135MHz, CMOS, PDIP20, PLASTIC, DIP-20

ICS2492N-XXX Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerIDT (Integrated Device Technology)
Parts packaging codeDIP
package instructionDIP,
Contacts20
Reach Compliance Codecompliant
ECCN codeEAR99
JESD-30 codeR-PDIP-T20
JESD-609 codee0
length26.035 mm
Number of terminals20
Maximum operating temperature70 °C
Minimum operating temperature
Maximum output clock frequency135 MHz
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Master clock/crystal nominal frequency14.31818 MHz
Certification statusNot Qualified
Maximum supply voltage5.5 V
Minimum supply voltage4 V
Nominal supply voltage5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
uPs/uCs/peripheral integrated circuit typeCLOCK GENERATOR, PROCESSOR SPECIFIC
Base Number Matches1

Preview

Download Datasheet

ICS2492N-XXX Related Products

ICS2492N-XXX ICS2492N-XXX-LF ICS2492M-453 ICS2492M-XXX ICS2492N-453 ICS2492N-453LF ICS2492M-XXX-LF
Description Processor Specific Clock Generator, 135MHz, CMOS, PDIP20, PLASTIC, DIP-20 Processor Specific Clock Generator, 135MHz, CMOS, PDIP20, PLASTIC, DIP-20 Processor Specific Clock Generator, 135MHz, CMOS, PDSO20, SOIC-20 Processor Specific Clock Generator, 135MHz, CMOS, PDSO20, SOIC-20 Processor Specific Clock Generator, 135MHz, CMOS, PDIP20, PLASTIC, DIP-20 Processor Specific Clock Generator, 135MHz, CMOS, PDIP20, PLASTIC, DIP-20 Processor Specific Clock Generator, 135MHz, CMOS, PDSO20, SOIC-20
Is it Rohs certified? incompatible conform to incompatible incompatible incompatible conform to conform to
Maker IDT (Integrated Device Technology) IDT (Integrated Device Technology) IDT (Integrated Device Technology) IDT (Integrated Device Technology) IDT (Integrated Device Technology) IDT (Integrated Device Technology) IDT (Integrated Device Technology)
Parts packaging code DIP DIP SOIC SOIC DIP DIP SOIC
package instruction DIP, PLASTIC, DIP-20 SOP, SOP20,.4 SOIC-20 DIP, PLASTIC, DIP-20 SOIC-20
Contacts 20 20 20 20 20 20 20
Reach Compliance Code compliant compliant unknown compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
JESD-30 code R-PDIP-T20 R-PDIP-T20 R-PDSO-G20 R-PDSO-G20 R-PDIP-T20 R-PDIP-T20 R-PDSO-G20
JESD-609 code e0 e3 e0 e0 e0 e3 e3
length 26.035 mm 26.035 mm 12.8 mm 12.8 mm 26.035 mm 26.035 mm 12.8 mm
Number of terminals 20 20 20 20 20 20 20
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C
Maximum output clock frequency 135 MHz 135 MHz 135 MHz 135 MHz 135 MHz 135 MHz 135 MHz
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP DIP SOP SOP DIP DIP SOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE SMALL OUTLINE SMALL OUTLINE IN-LINE IN-LINE SMALL OUTLINE
Master clock/crystal nominal frequency 14.31818 MHz 14.31818 MHz 14.31818 MHz 14.31818 MHz 14.31818 MHz 14.31818 MHz 14.31818 MHz
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum supply voltage 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage 4 V 4 V 4 V 4 V 4 V 4 V 4 V
Nominal supply voltage 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount NO NO YES YES NO NO YES
technology CMOS CMOS CMOS CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface TIN LEAD MATTE TIN Tin/Lead (Sn/Pb) TIN LEAD TIN LEAD MATTE TIN MATTE TIN
Terminal form THROUGH-HOLE THROUGH-HOLE GULL WING GULL WING THROUGH-HOLE THROUGH-HOLE GULL WING
Terminal pitch 2.54 mm 2.54 mm 1.27 mm 1.27 mm 2.54 mm 2.54 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL
width 7.62 mm 7.62 mm 7.3406 mm 7.3406 mm 7.62 mm 7.62 mm 7.3406 mm
uPs/uCs/peripheral integrated circuit type CLOCK GENERATOR, PROCESSOR SPECIFIC CLOCK GENERATOR, PROCESSOR SPECIFIC CLOCK GENERATOR, PROCESSOR SPECIFIC CLOCK GENERATOR, PROCESSOR SPECIFIC CLOCK GENERATOR, PROCESSOR SPECIFIC CLOCK GENERATOR, PROCESSOR SPECIFIC CLOCK GENERATOR, PROCESSOR SPECIFIC
Is it lead-free? Contains lead Lead free - Contains lead Contains lead Lead free Lead free
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED 260 NOT SPECIFIED
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED 30 NOT SPECIFIED
Base Number Matches 1 1 1 1 - - -
Maximum slew rate - 27 mA 27 mA 27 mA - - 27 mA
