MPD7D137S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MPD7D137S

MPD7D137S: Descriptionnon-isolated DC/DC converters 3.3V 24a 80w; CategoryPower/power management The power supply circuit; File Size72KB，4 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

MPD7D137S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MPD7D137S	-	-	View	Buy Now

MPD7D137S Overview

non-isolated DC/DC converters 3.3V 24a 80w

MPD7D137S Parametric

Parameter Name	Attribute value
Maker	Murata
Parts packaging code	MODULE
package instruction	,
Contacts	34
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-X34
length	45 mm
Number of functions	1
Output times	1
Number of terminals	34
Maximum output voltage	3.465 V
Minimum output voltage	3.201 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum total power output	79.2 W
Fine-tuning/adjustable output	NO
width	42.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

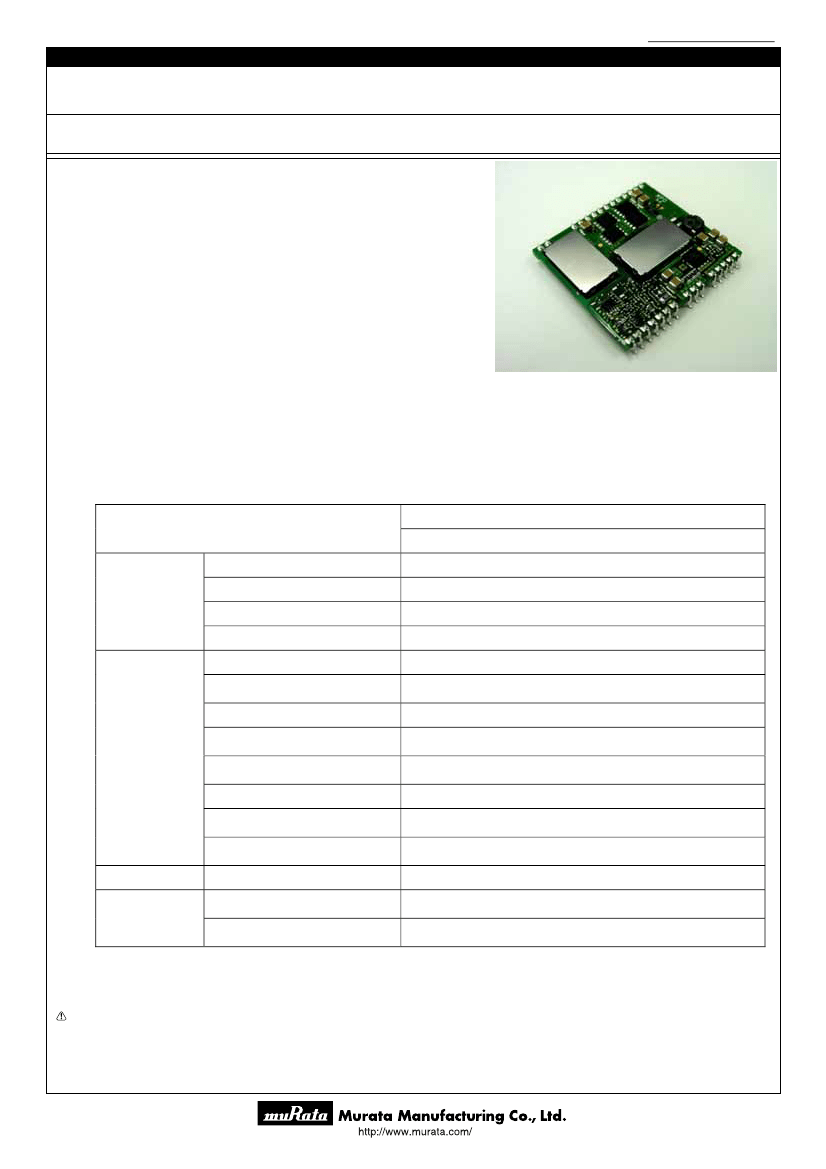

MPD7D12*S Short Form

DC-DC Converter Short Form

MPD7D12*S

(Isolated DC-DC Converter)

■

Features

・

100W Power, Ultra Low Profile,

Small size 45.0×45.0×8.0

mm typ. SMD

Wide Input Voltage Range (36 to 75V)

Parallel Operation is available

Wide operational temperature ( -40ºC to +85ºC )

(See the Thermal Derating)

Input-Output Isolation Voltage (1.5kVdc)

Over Current Limit Inception

Low Voltage Protection

Over Voltage Protection

Remote ON/OFF

Synchronizes start and halt

Alarm Output

EMI in accordance with VCCI,Class A (Needs External Filter Circuit)

Recognized UL60950, CE Marking

■

GENERAL SPECIFICATIONS

MPD7D***S

128

Input

Nominal Input Voltage

Input Voltage Range

Turn-on Input Voltage

Turn-on/off Hysteresis

Output

Output Voltage

Output Voltage Tolerance

Output Current *1

Over Current Limit Inception

(min.)

Low Voltage Protection

(max.)

Efficiency(typ.) *2

Output Ripple Noise Voltage

(max.), BW=100MHz

Remote ON/OFF

Isolation

Environment

Input – Output (min.)

Operating Temperature &

Humidity Range

Storage Temperature &

Humidity Range

48V

36~75V

32~36V

2V min.

5.0V

-3%,+5%

Vin:36~75V, Output Current & Temperature:*1

20A

21A

4.5V

92.5%

125mVpp

ON :RC pin connected to –Vin or open

OFF :RC pin connected to +Vin

1500Vdc

-40~85 ºC, 20~85%RH (No dew)

-40~85 ºC, 10~90%RH (No dew)

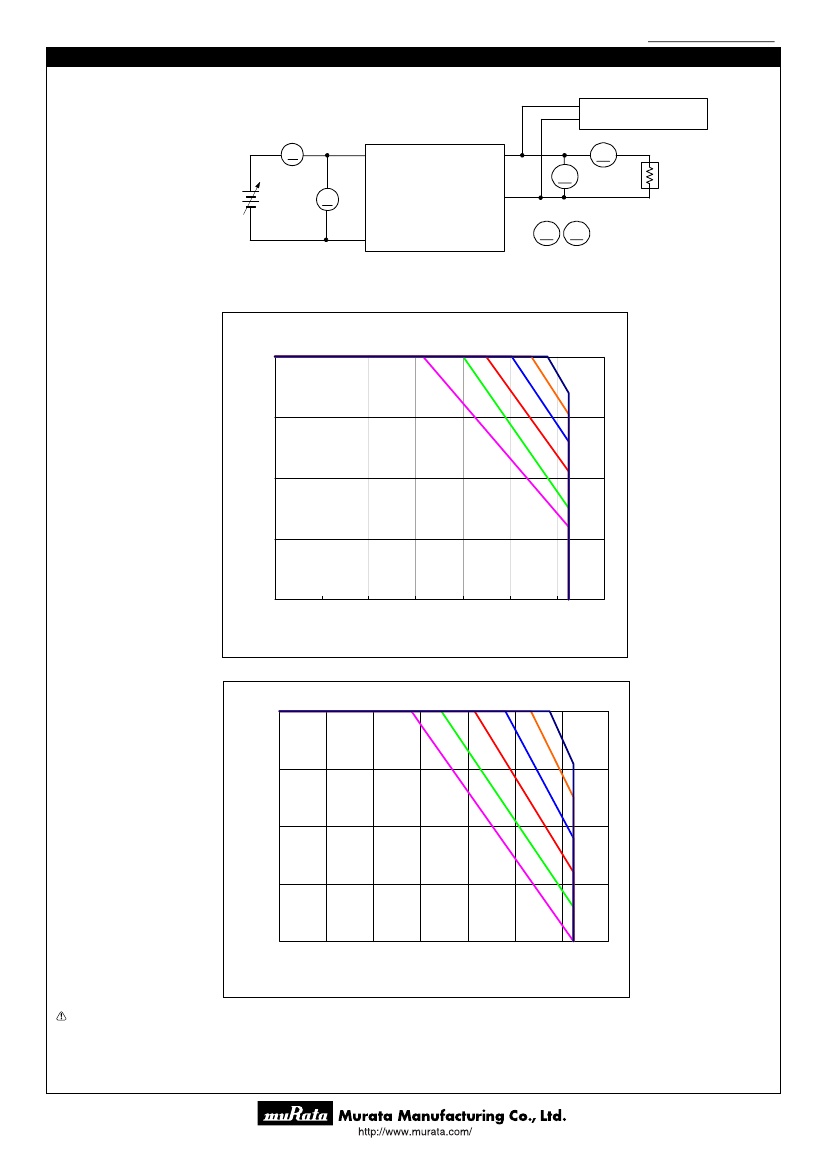

*1 Please refer the Thermal Derating.

*2 Vin=48V, Io=max., 1.0m/s air flow, Ta=25 ºC

Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our

products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product

specifications or transact the approval sheet for product specifications before ordering.

2009.8.19

MPD7D137S Related Products

	MPD7D137S	MPD7D128S	MPD7D138S
Description	non-isolated DC/DC converters 3.3V 24a 80w	non-isolated DC/DC converters 5V 20a 100w	non-isolated DC/DC converters 5V 16a 80w
Parts packaging code	MODULE	MODULE	MODULE
Contacts	34	34	34
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V	75 V	75 V
Minimum input voltage	36 V	36 V	36 V
Nominal input voltage	48 V	48 V	48 V
JESD-30 code	R-XDMA-X34	R-XDMA-X34	R-XDMA-X34
length	45 mm	45 mm	45 mm
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	34	34	34
Maximum output voltage	3.465 V	5.25 V	5.25 V
Minimum output voltage	3.201 V	4.85 V	4.85 V
Nominal output voltage	3.3 V	5 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	DUAL	DUAL	DUAL
Maximum total power output	79.2 W	100 W	80 W
Fine-tuning/adjustable output	NO	NO	NO
width	42.4 mm	42.4 mm	42.4 mm
Maker	Murata	-	Murata
Base Number Matches	1	1	-
