SW003A5F94-SRZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> SW003A5F94-SRZ

SW003A5F94-SRZ: Descriptionisolated DC/DC converters 3.3V 3.5A 6-pin; Categorysemiconductor Power management; File Size408KB，24 Pages; ManufacturerGE Sensing ( Amphenol Advanced Sensors ); Websitehttp://www.vishay.com/; Environmental Compliance

Download Datasheet Compare View All

SW003A5F94-SRZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SW003A5F94-SRZ	-	-	View	Buy Now

SW003A5F94-SRZ Overview

isolated DC/DC converters 3.3V 3.5A 6-pin

Preview

Download Datasheet

View All

Data Sheet

October 5, 2009

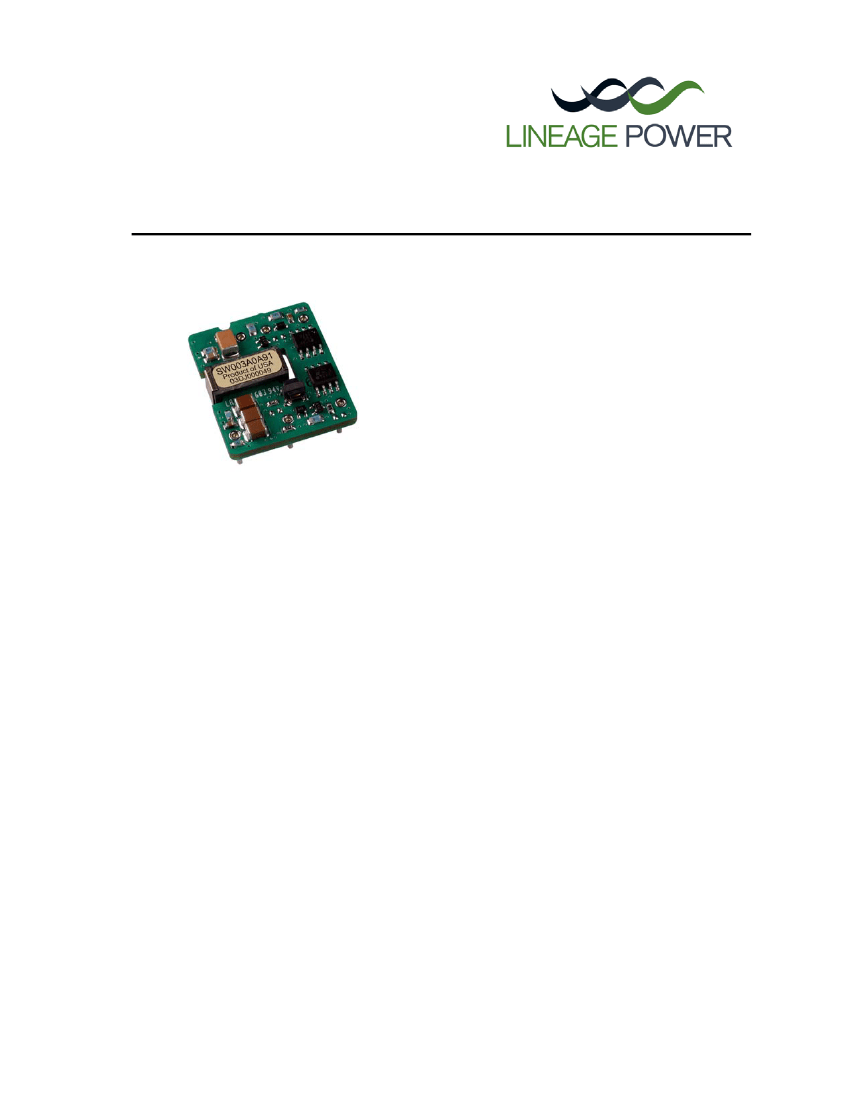

SW/SC001/003 Series DC-DC Converter Power Modules:

18-36V & 36-75Vdc Input; 3.3V-15Vdc Output; 1-3.5A Output Current

RoHS Compliant

Features

Compliant to RoHS EU Directive 2002/95/EC (-Z

versions)

Compliant to ROHS EU Directive 2002/95/EC with

lead solder exemption (non-Z versions)

Delivers up to 3.5A Output current

15V (1A), 12V (1.25A), 5.0V (3A) and 3.3V (3.5A)

High efficiency – 86% at 5.0V full load (V

=54 Vdc)

Low output ripple and noise

Small Size and low profile

Applications

Wireless Networks

Distributed power architectures

Optical and Access Network Equipment

Enterprise Networks

Latest generation IC’s (DSP, FPGA, ASIC)

and Microprocessor powered applications

27.94mm x 24.38mm x 8.5mm

(1.10 x 0.96 x 0.335 in)

Industry Standard pin-out:

TH version is LW series compatible

Surface mount (SMT) or Through hole (TH)

Remote On/Off (optional pin on TH version)

Output overcurrent/voltage protection

Single Tightly regulated output

Output voltage adjustment trim

±10%

Wide operating temperature range (-40°C to 85°C)

Meets the voltage insulation requirements for ETSI

300-132-2 and complies with and is Licensed for

Basic Insulation rating per EN 60950

CE mark meets the 2006/95/EC directive

†

Options

Remote On/Off logic (positive or negative), pin

optional for TH version (Suffix 1 or 4)

Output voltage adjustment-Trim, pin optional

for TH version (Suffix 9)

Surface Mount/Tape and Reel (-SR Suffix)

UL*

60950-1Recognized,

CSA

C22.2 No. 60950-1-

‡

03 Certified, and

VDE

0805: (IEC60950, 3

Edition) Licensed

ISO** 9001 and ISO 14001 certified manufacturing

facilities

Approved for Basic Insulation

Description

The SW/SC series power modules are isolated dc-dc converters that operate over a wide range of input voltage (V

= 18 - 36Vdc for SC modules and V

= 36 – 75Vdc for SW modules) and provide a single precisely regulated

output. This series is a low cost, smaller size alternative to the existing LW/LAW/LC with enhanced performance

parameters. The output is fully isolated from the input, allowing versatile polarity configurations and grounding

connections. The modules exhibit high efficiency, typical efficiency of 86% for 5.0V/3A. Built-in filtering for both

input and output minimizes the need for external filtering.

§ This product is intended for integration into end-use equipment. All of the required procedures of end-use equipment should be followed.

is a registered trademark of Underwriters Laboratories, Inc.

†

CSA

is a registered trademark of Canadian Standards Association.

‡

VDE

is a trademark of Verband Deutscher Elektrotechniker e.V.

** ISO is a registered trademark of the International Organization of Standards

Document No: DS03-086 ver. 1.91

PDF name: sw001-002-003_series.pdf
