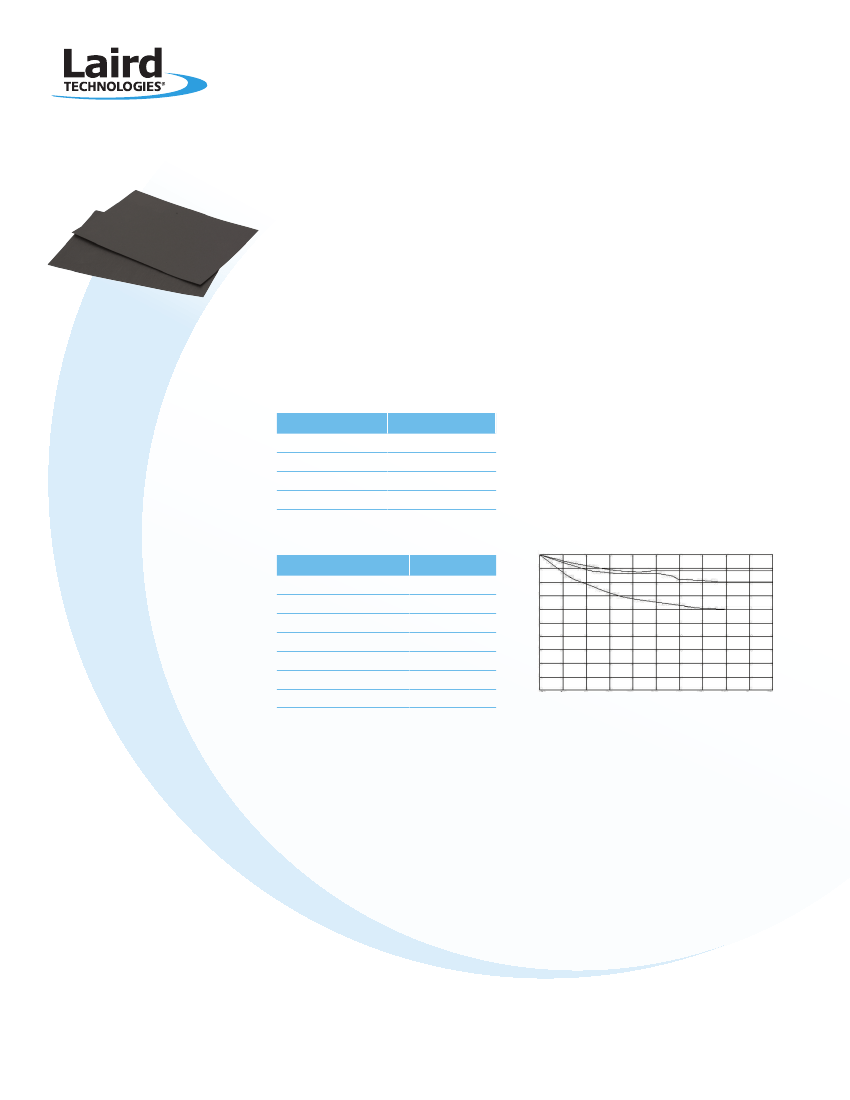

EMI Absorber
Innovative
Technology
for a
Connected
World
CA19 SERIES
PN 3535, 3536
CA19 is a product having a high volume percentage of shaped magnetic particles in a halogen-free and
lead-free polymeric binder, having better magnetic properties than conventional products. It provides excellent
EMI reduction at low frequencies.
FEATURES
• Halogen-free, Lead-free
• Flame-resistance UL94 V-0
• Absorption performance from 50 MHz to 3 GHz
• Available sheet ranging .006” and .020” thickness
• High flexibility and applicable for any optional shape
• Pressure sensitive adhesive for ease of application
• Can be die-cut to specific shapes
PART NO.
3535
3535-S
3536
3536-S
DIMENSIONS
.020” x 12” x 13”
.020” x 4” x 6”
.020” x 12” x 13”
.020” x 4”x 6”
SPECIFICATIONS
EVALUATION ITEM
Permeability μ’ (1MHz)
Electrical resistivity (Ω /
□)
Specific gravity
Tensile strength (MPa)
Hardness (DurometerA)
Thermal conductivity (W / mk)
Flammability
Return Loss
CA19
37
6 x 10
10
3.1
1.9
70 ± 10%
1.0
UL94 V-0
0
-0.5
-1.0
Thickness
0.15mm
0.25mm
0.50mm
R Loss (dB)
-1.5
-2.0
-2.5
-3.0
-3.5
-4.0
-4.5
-5.0
0.05
0.35
0.64
0.94
1.23
1.53
1.82
2.12
2.41
2.71
3.00
Frequency (GHz)
global
solutions:
local
support
USA: +1.866.928.8181
Europe: +49.0.8031.2460.0
Asia: +86.755.2714.1166
TM
EMI-DS-PN-3535-3536 1210
