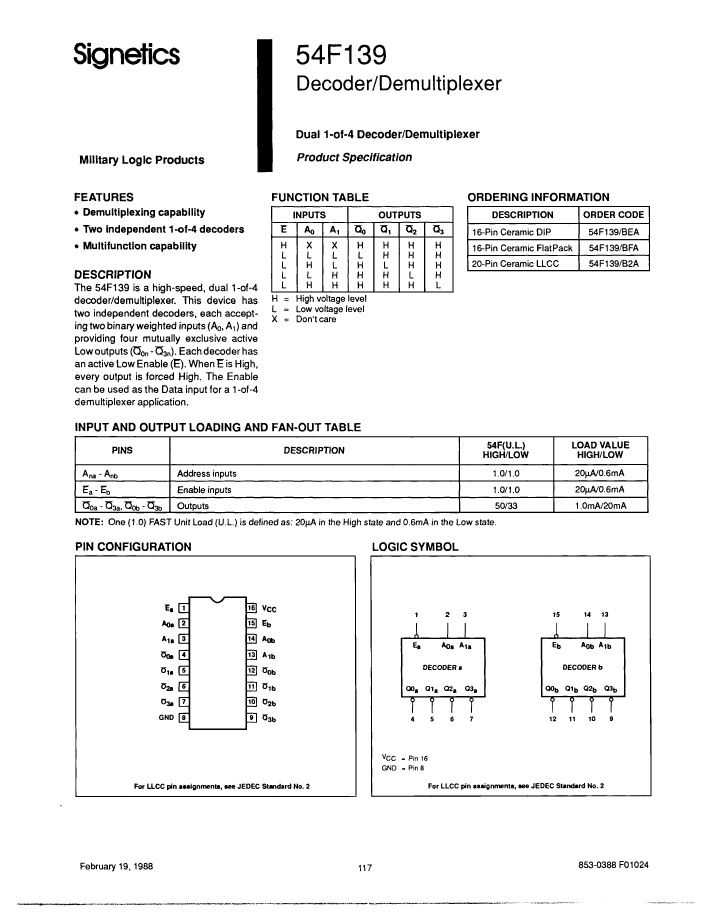

54F139/BEA datasheet, PDF - EEWORLD Datasheet

54F139/BEA: DescriptionDecoder/Driver, F/FAST Series, Inverted Output, TTL, CDIP16; Categorylogic logic; File Size138KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

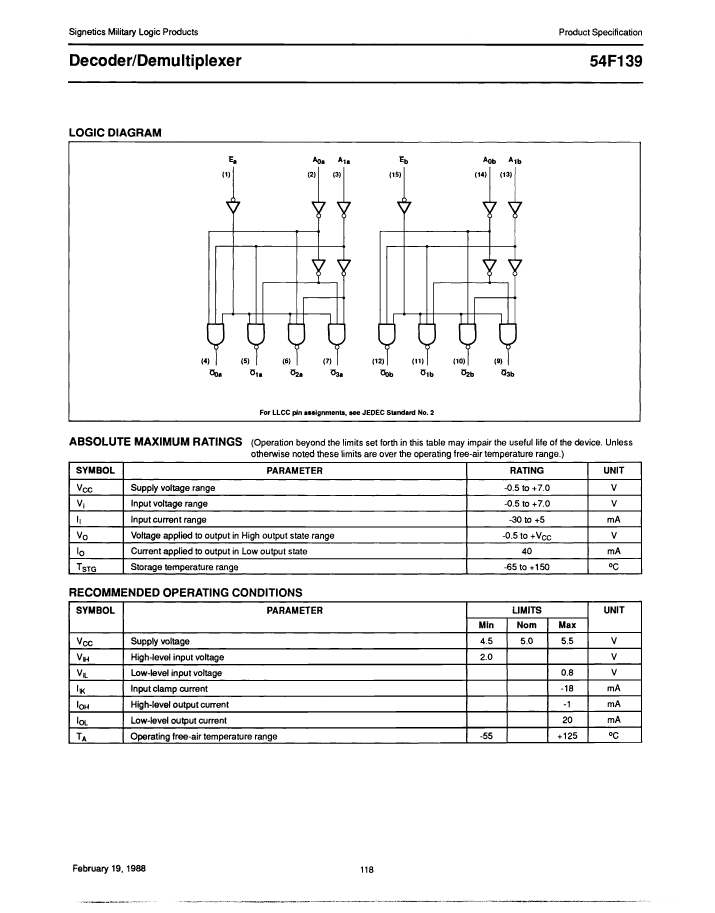

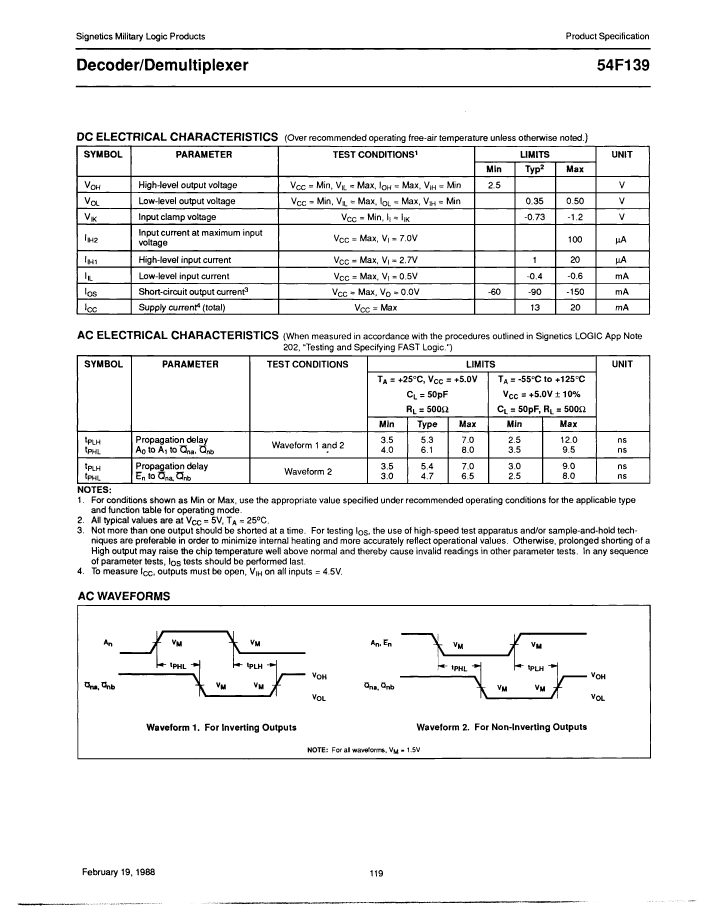

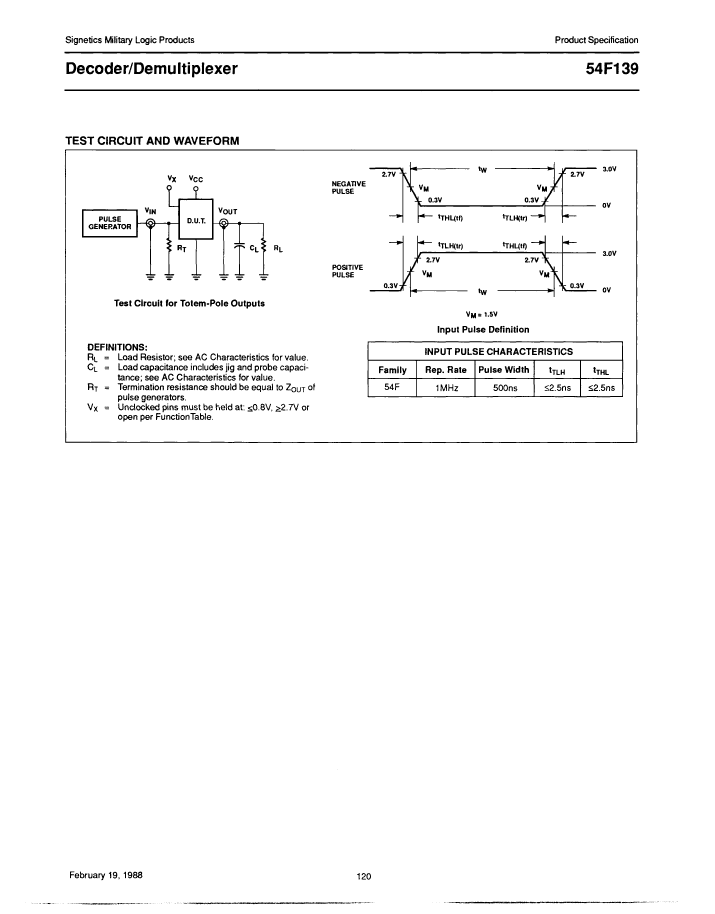

54F139/BEA Overview

Decoder/Driver, F/FAST Series, Inverted Output, TTL, CDIP16

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
series	F/FAST
JESD-30 code	R-CDIP-T16
Load capacitance (CL)	50 pF
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	20 mA
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	54F139/BEA	54F139/B2A	54F139/BFA
Description	Decoder/Driver, F/FAST Series, Inverted Output, TTL, CDIP16	Decoder/Driver, F/FAST Series, Inverted Output, TTL, CQCC20	Decoder/Driver, F/FAST Series, Inverted Output, TTL, CDFP16
Maker	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDIP-T16	S-CQCC-N20	R-CDFP-F16
Load capacitance (CL)	50 pF	50 pF	50 pF
Number of functions	2	2	2
Number of terminals	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK
Maximum supply current (ICC)	20 mA	20 mA	20 mA
propagation delay (tpd)	9.5 ns	9.5 ns	9.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal location	DUAL	QUAD	DUAL
Base Number Matches	1	1	1
