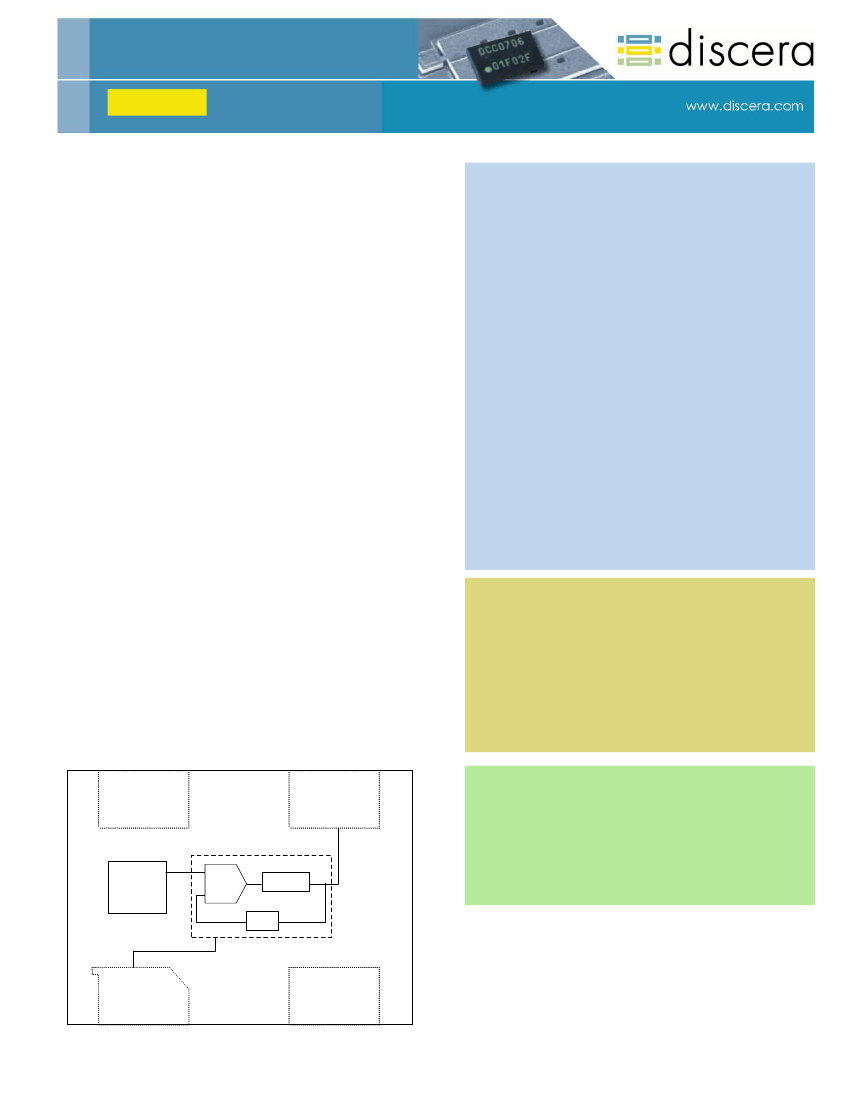

DSC1004
1.8~3.3V
Low-Power Precision CMOS Oscillator
General Description
The DSC1004 is a silicon MEMS based
CMOS oscillator offering excellent jitter and
stability performance over a wide range of
supply voltages and temperatures.
The
device operates from 1 to 150MHz with
supply voltages between 1.8 to 3.3 Volts
and extended temperatures from -40ºC to
105ºC. The DSC1004 has the same
functionality and performance as the
DSC1001 but with greater output drive
(C
L
< 40pf).
The DSC1004 incorporates an all silicon
resonator that is extremely robust and
nearly immune to stress related fractures,
common to crystal based oscillators.
Without sacrificing the performance and
stability required of today’s systems, a
crystal-less design allows for a higher level
of reliability, making the DSC1004 ideal for
rugged,
industrial,
and
portable
applications where stress, shock, and
vibration can damage quartz crystal based
systems.
Available in industry standard packages,
the DSC1004 can be “dropped-in” to the
same PCB footprint as standard crystal
oscillators.
Features
Frequency Range: 1 to 150MHz
Exceptional Stability over Temperature
o
±10 PPM , ±25 PPM, ±50 PPM
Operating voltage
o
1.7 to 3.6V
Operating Temperature Range
o
Ext. Industrial -40ºC to 105ºC
o
Industrial -40ºC to 85ºC
o
Ext. Commercial -20ºC to 70ºC
o
Commercial 0ºC to 70ºC
Low Operating and Standby Current
o
8mA Operating (40MHz)
o
15uA Standby
Ultra Miniature Footprint
o
2.5 x 2.0 x 0.85 mm
o
3.2 x 2.5 x 0.85 mm
o
5.0 x 3.2 x 0.85 mm
o
7.0 x 5.0 x 0.85 mm
Excellent Shock and Vibration
Resistance
Lead Free, RoHS & Reach SVHC
Compliant
Benefits
Pin for pin “drop in” replacement for
industry standard oscillators
Semiconductor level reliability,
significantly higher than quartz
Short mass production lead-times
Longer Battery Life / Reduced Power
Compact Plastic package
Cost Effective
Block Diagram
V
DD
Output
Applications
Mobile Applications
Consumer Electronics
Portable Electronics
CCD Clock for VTR Cameras
Low Profile Applications
Industrial
Resonator
PFD
VCO
Frac-N
PLL
Standby#
(pin1)
GND
_____________________________________________________________________________________________________________________________ _________________
DSC1004
Page 1
MK-Q-B-P-D-083010-02-5
DSC1004
1.8~3.3V
Low-Power Precision Oscillator
Absolute Maximum Ratings
1
Item
Input Voltage
Junction Temp
Storage Temp
Soldering Temp
ESD
HBM
MM
CDM
Min.
-0.3
-
-55
-
-
4000
200
1500
Max
VDD+0.3
+150
+150
+260
Unit
V
°C
°C
°C
V
40 sec max.
Condition
Ordering Code
DSC1004
Family
Package, Temp
& Stability
Output Freq
1.0 to 150MHz
Tape/
Reel
CE1
-
032.0000
T
* See Ordering Information for details
Recommended Operating Conditions
Parameter
Supply Voltage
Output Load
Operating Temperature
Option 1
Option 2
Option 3
Option 4
Symbol
V
DD
Z
L
Range
1.7 – 3.6V
R>10KΩ, C≤40pF
-40 to +105 °C
-40 to +85 °C
-20 to +70 °C
0 to +70 °C
T
Specifications
Parameter
Frequency
(VDD = 1.8 to 3.3v) T
A
=85
0
C unless otherwise specified
Symbol
f
0
Δf
Δf
I
DD
t
SU
t
DA
SYM
V
IH
V
IL
45
0.75*V
DD
-
Condition
Single Frequency
Includes frequency
variations due to initial
tolerance, temperature
and power supply voltage
1 year @25°C
T=25°C
T=25°C
1.0
20
Min
1
Typ
Max
150
±10,±25,±50
±5
15
1.3
100
55
-
0.25* V
DD
Unit
MHz
ppm
ppm
uA
ms
ns
%
Volts
Frequency Tolerance
Aging
Supply Current, standby
Output Startup Time
2
Output Disable Time
Output Duty Cycle
Input Logic Levels
Input logic high
Input logic low
Notes:
1.
Absolute maximum ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be
operated beyond these limits.
2.
t
SU
is time to stable output frequency after V
DD
is applied. t
SU
and t
EN
(after EN is asserted) are identical values.
3.
Measured over 50k clock cycles.
_____________________________________________________________________________________________________________________________ _________________
DSC1004
Page 2
MK-Q-B-P-D-083010-02-5
DSC1004
1.8~3.3V
Low-Power Precision Oscillator
Board Layout (recommended)
Solder Reflow Profile
Se
cM
ax
260
°
C
Temperature (°C)
.
20-40
Sec
217
°
C
200
°
C
.
ax
60-150
Sec
150
°
C
3C
/Se
60-180
Sec
cM
Reflow
Pre heat
8 min max
Cool
Time
25
°
C
MSL 1 @ 260°C refer to JSTD-020C
Ramp-Up Rate (200°C to Peak Temp) 3°C/Sec Max.
Preheat Time 150°C to 200°C
60-180 Sec
Time maintained above 217°C
60-150 Sec
255-260°C
Peak Temperature
Time within 5°C of actual Peak
20-40 Sec
6°C/Sec Max.
Ramp-Down Rate
Time 25°C to Peak Temperature
8 min Max.
3C
/
