4432-2-46-0: DescriptionBoard Connector, 46 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size164KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

4432-2-46-0 Overview

Board Connector, 46 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Latch & Eject, Receptacle

4432-2-46-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.236 inch
body length	2.354 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	4432
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	46
Base Number Matches	1

Preview

Download Datasheet

View All

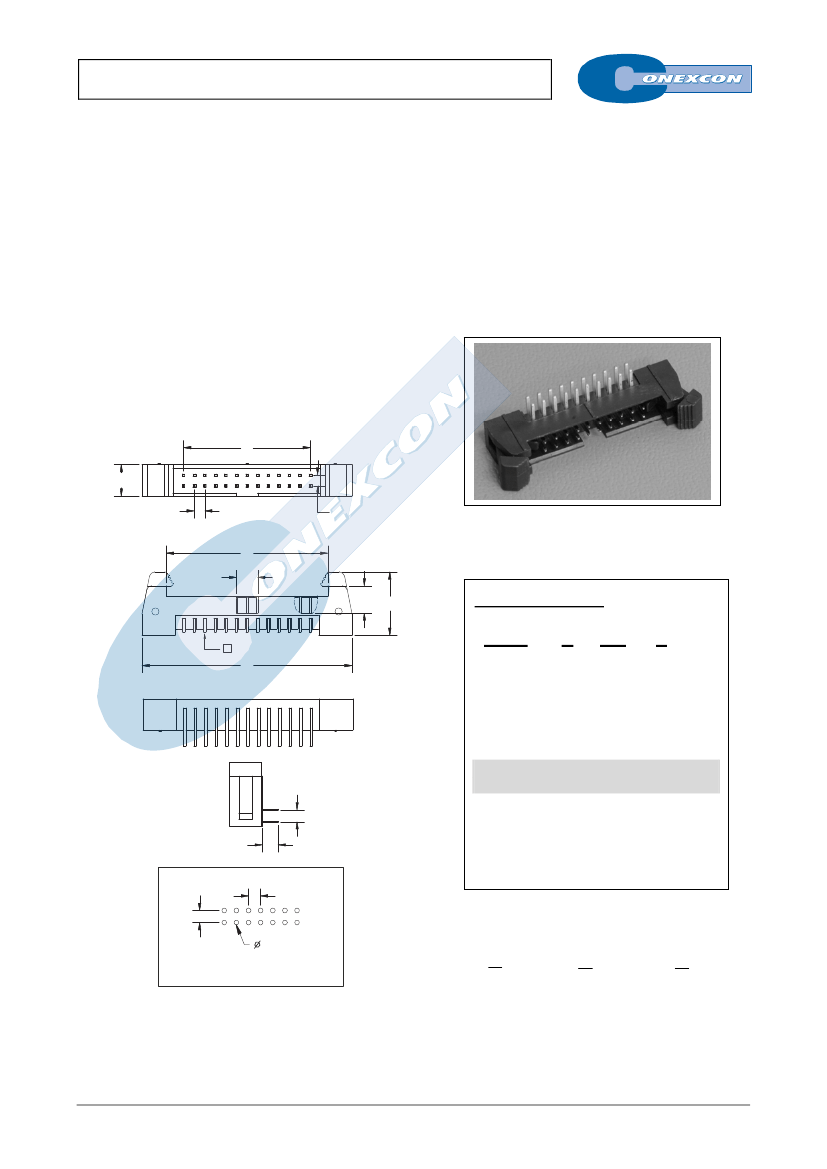

D/ ROW SIDE ENTRY HEADER LOW PROFILE

4432 SERIES.

2.00 x 2.00 mm. (0.079 x 0.079”) pitch. With eject latch levers.

General Features

Electrical Features



Available in 10, 12, 14, 16, 20, 22, 24, 26, 30, 34, 40, 44

and 50 circuits

Mates with IDC connectors 2051 series

Gold plated 0.50 mm square pin

Fully shrouded with polarized slot



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: Nylon 66, glass reinforced, rated UL 94V-0

Terminal: Brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features

Durability: 50 Cycles

Dimension Information

A

6.0

2.0

B

4.0

5.2

12.0

Ordering Information:

0.5x0.5

C

4432 -

1

T-

2

XX-

3

0

4

1. Connector Series

2. (T) Contact Plating



2.0

T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel



3.0

3. (XX) Number of circuits



2.0

Available in 10 through 50 circuits

0.81±0.05

RECOMMENDED HOLE PATTERN

Dimensions:

(In mm.)



XX





A

½

2.00



2



1









XX





B

½

2.00



2

 

4.60







XX





C

½

2.00



2

 

13.80





(XX) = Number of circuits

A-XX
