MEMS Oscillators: 4M Series
INTERFACE & CONNECTIVITY
|
TIMING & SYNCHRONIZATION
|
MEMORY & LOGIC
|
DATA CONVERSION
5032
Packa
ges
!
< 1 ps
Phase
Jitter!
•
•
•
•
BENEFITS / FEATURES
• Short lead times
– Enables Just-In-Time
inventory management
Low Jitter
Low Cost
Fast Lead Times
Standard Packages

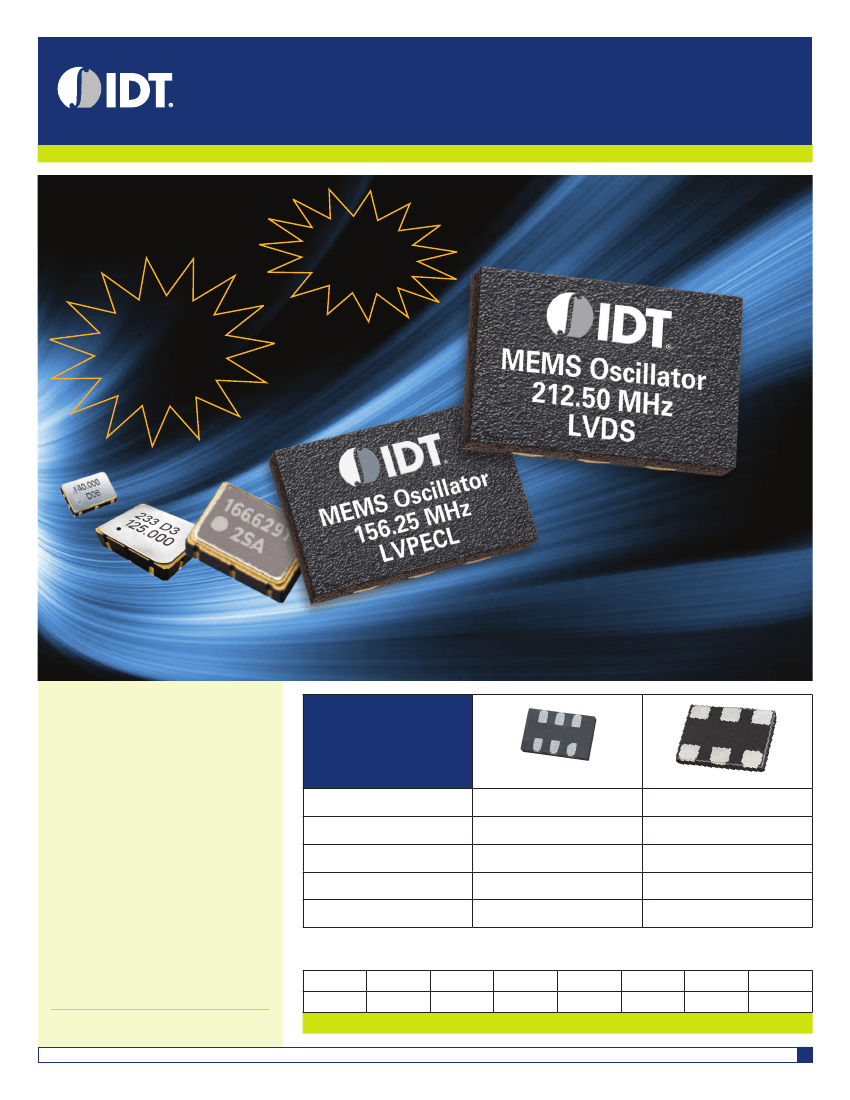

LVDS
LVPECL
5032
Package Size
Supply Voltage
Frequency Range
Frequency Stability
Temperature Range
5.0 x 3.2 mm
2.5 or 3.3 V
50 MHz ~ 625 MHz
± 50 ppm
-40 to +85˚C
7050
7.0 x 5.0 mm
2.5 or 3.3 V
50 MHz ~ 625 MHz
± 50 ppm
-40 to +85˚C
• Standard differential outputs
– LVDS, LVPECL
• Standard package sizes
• Low Phase Jitter
– < 1.0 ps rms
(12 kHz to 20 MHz )
• ± 50 ppm Frequency Stability
• Shock and vibration resistant
• Up to 40x higher reliability
than Quartz
Standard Frequencies (MHz)
100
159.375
106.25
160
125
161.133
133.33
187.5
148.5
200
150
212.5
155.52
250
156.25
312.5
www.idt.com/go/MEMS
IDT
|
THE ANALOG + DIGITAL COMPANY
ADDITIONAL CUSTOM FREQUENCIES AVAILABLE UPON REQUEST
4M SERIES MEMS PRODUCT BRIEF
1
MEMS Oscillators: 4M Series
POWER MANAGEMENT
Integrated Device
|
Technology
ANALOG & RF
The Analog and Digital Company
™
|
INTERFACE & CONNECTIVITY
|
TIMING & SYNCHRONIZATION
|
MEMORY & LOGIC
|
DATA CONVERSION
PART ORDERING GUIDELINE
PACKAGE OUTLINE AND DIMENSIONS
5.0 x 3.2 mm
7.0 x 5.0 mm
MEMS OSCILLATOR EVALUATION BOARD
FEATURES
• Differential SMA output
• Standard banana plug power connectors
• Available in standard 5032 and 7050
size packages
• Selectable output termination for both
LVDS and LVPECL
• Switch control for Output Enable (OE)
The MEMS Oscillator Evaluation Board is designed
to provide a convenient platform to quickly evaluate
the performance and operation of IDT’s family of
MEMS oscillators. The board includes provisions
for LVPECL and LVDS termination and can also be
configured to terminate directly into a 50
oscil-
loscope. For VTT terminated LVPECL, a separate bias
voltage (VDD - 2V) is also generated onboard for
measurement convenience.
TECHNICAL SUPPORT
EMAIL: MEMS_Support@idt.com
WEBSITE: www.idt.com/go/MEMS
