325541008-50 Overview

board mount pressure sensors

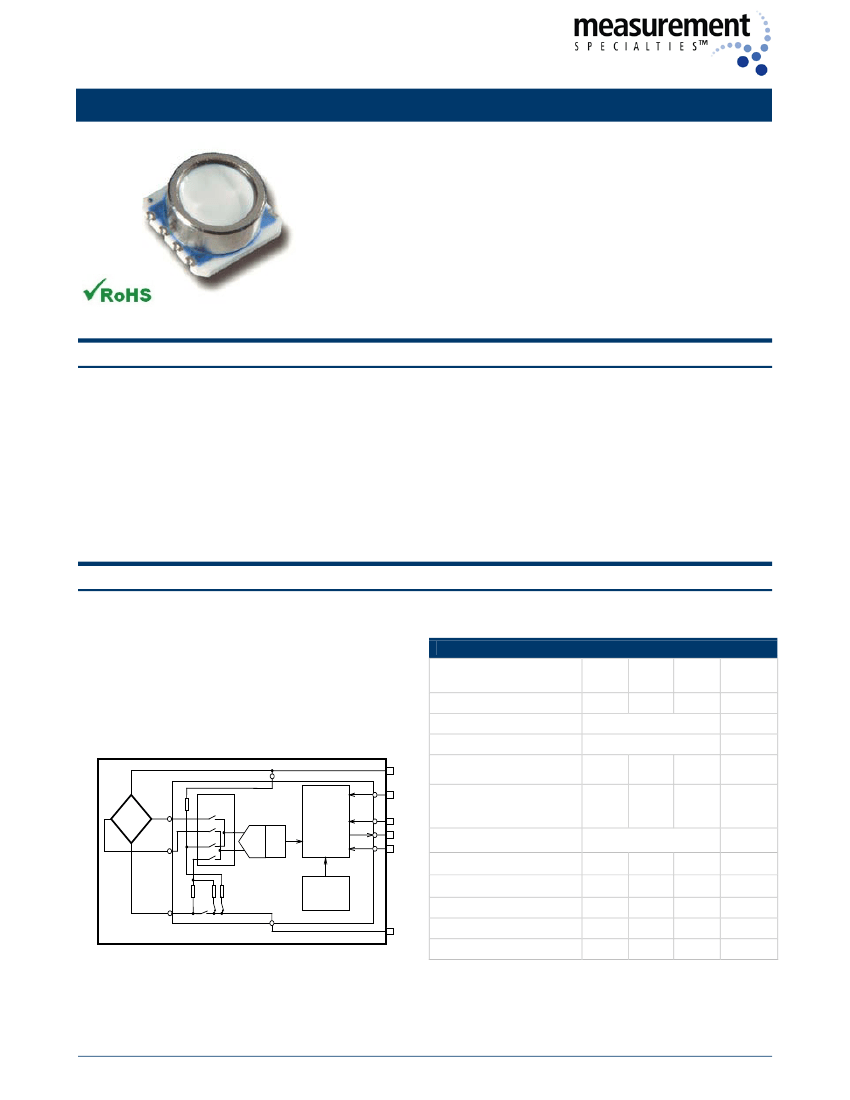

MS5541C
Miniature 14 bar Module
0 – 14 bar absolute pressure range
6 coefficients for software compensation stored on-chip
Piezoresistive silicon micromachined sensor
Integrated miniature pressure sensor 6.2 x 6.4 mm
16 Bit ADC
3-wire serial interface
1 system clock line (32.768 kHz)
Low voltage and low power consumption
High Endurance (HM version)
DESCRIPTION
The MS5541C is the miniature version of MS5535C pressure sensor module. The MS5541-HM is the high
endurance pad technology version of MS5541C pressure sensor module. It contains a precision piezoresistive
pressure sensor and an improved version of the 16 Bit Micropower Sensor interface IC known from the
MS5535C. Compared to the previous version the ESD sensitivity has been improved to 4kV on all pins. In
addition to this the MS5541C is from its outer dimensions compatible to the MS54xx series of pressure sensors.
It uses an antimagnetic polished stainless steel ring for sealing with O-ring. The sensor provides 16 Bit pressure
and temperature data via a 3 wire serial interface that can be easily interfaced with 4 Bit low power
microcontrollers. 64 Bit of factory programmed PROM provides calibration data for a highly accurate pressure
and temperature calculation. The MS5541C is fully software compatible to the MS5535C and previous versions
of MS5541.
FEATURES
FIELD OF APPLICATION
Diving computers and watches
Mobile water depth and measurement systems
High endurance pad technology (HM version)
TECHNICAL DATA
Sensor Performances (V
DD
= 3 V)
Pressure
Range
ADC
Min
0
16
1.2
-50
-60
35
20
Min
-40
0.005
-0.8
Typ
Max
+85
0.015
+0.8
+20
+180
Typ
Max
14
Unit
bar
bit
mbar
mbar
mbar
ms
mbar/yr
Unit
°C
°C
°C
FUNCTIONAL BLOCK DIAGRAM
VDD
MCLK
Input MUX
SENSOR
+IN
dig.
Filter
Digital
Interface
ADC
DIN
DOUT
SCLK
Resolution
Accuracy 0°C to +40°C,
0 to 10 bar
Accuracy -40°C to
+85°C
0 to 10 bar
Response time
Long term stability
-IN
Sensor
Interface IC
SGND
Memory
(PROM)
64 bits
Temperature
Range
GND
Resolution
Accuracy
DA5541C_009
0005541C1194 ECN2178
www.meas-spec.com
1/20
Apr. 01, 2014
