3-435167-1 datasheet, PDF - EEWORLD Datasheet

3-435167-1: DescriptionTHUMBWHEEL SWITCH,HEX,16,PC TAIL TERMINAL,THUMBWHEEL,5; CategoryMechanical and electronic products switch; File Size154KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

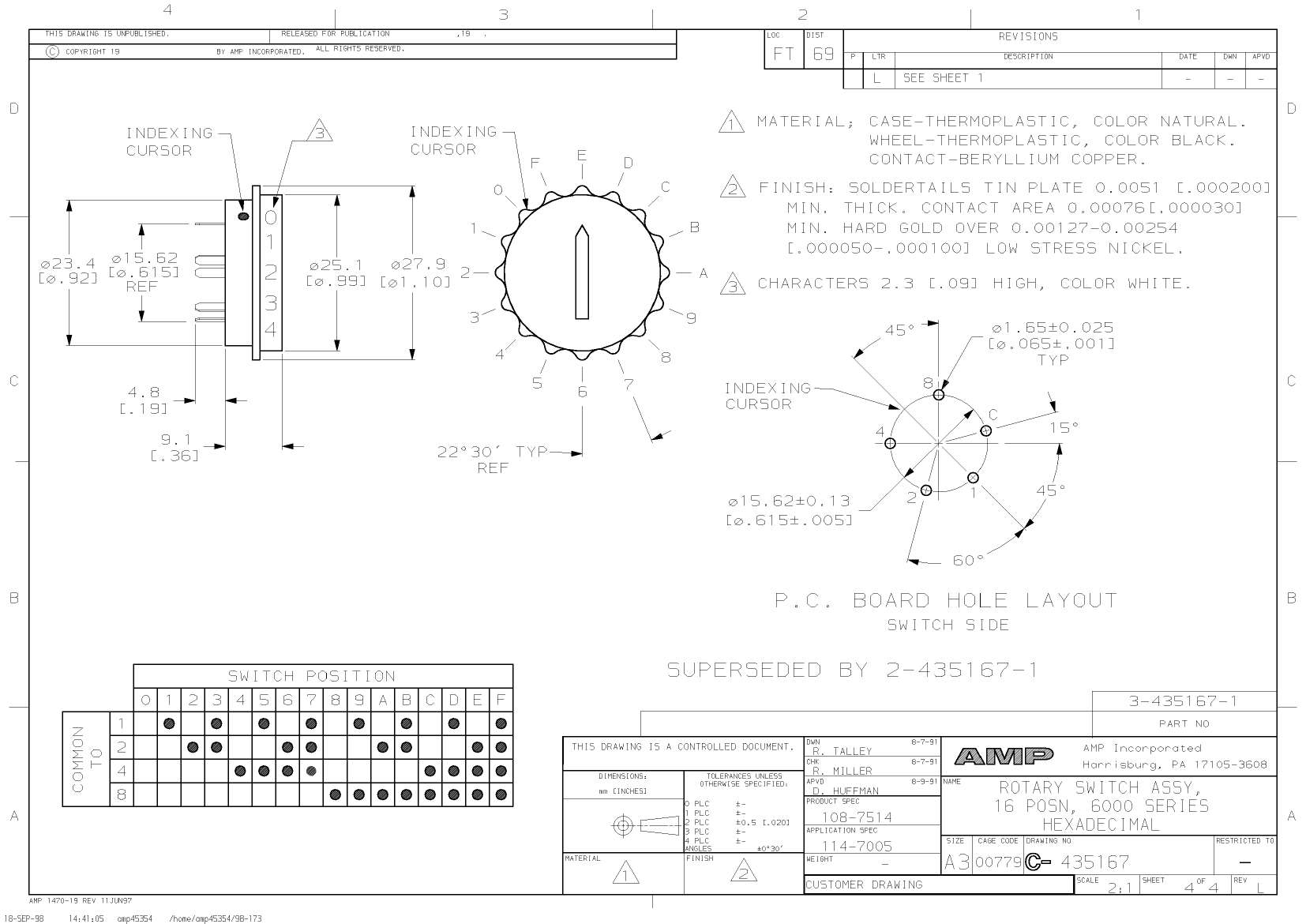

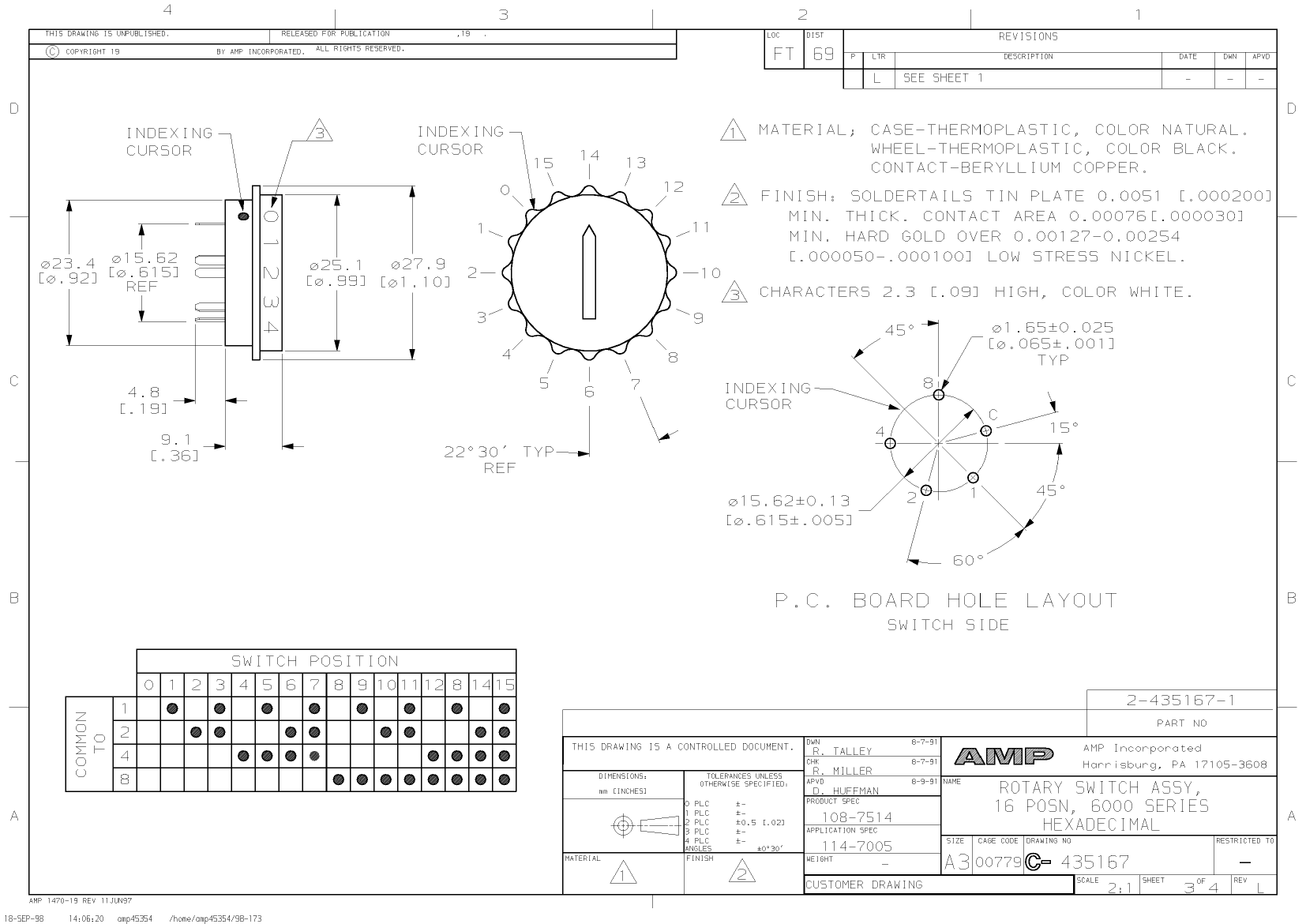

3-435167-1 Overview

THUMBWHEEL SWITCH,HEX,16,PC TAIL TERMINAL,THUMBWHEEL,5

Parameter Name	Attribute value
Reach Compliance Code	unknown
Actuator angle	22.5 deg
Actuator length
Actuator type	THUMBWHEEL
body height	9.144 mm
Body length or diameter	27.94 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL
Contact resistance	0.025 mΩ
Dielectric withstand voltage	500VDC V
Electrical life	1000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	GOLD OVER NICKEL
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	6000
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	16
Maximum operating temperature	88 °C
Minimum operating temperature	-18 °C
PCB hole count	5
Solderability	HAND
surface mount	NO
Switch action	CIRCULAR
switch function	HEXADECIMAL
Switch type	THUMB/PUSHWHEEL SWITCH
Terminal length	0.19 inch
Terminal material	BERYLLIUM COPPER
Termination type	SOLDER
Base Number Matches	1

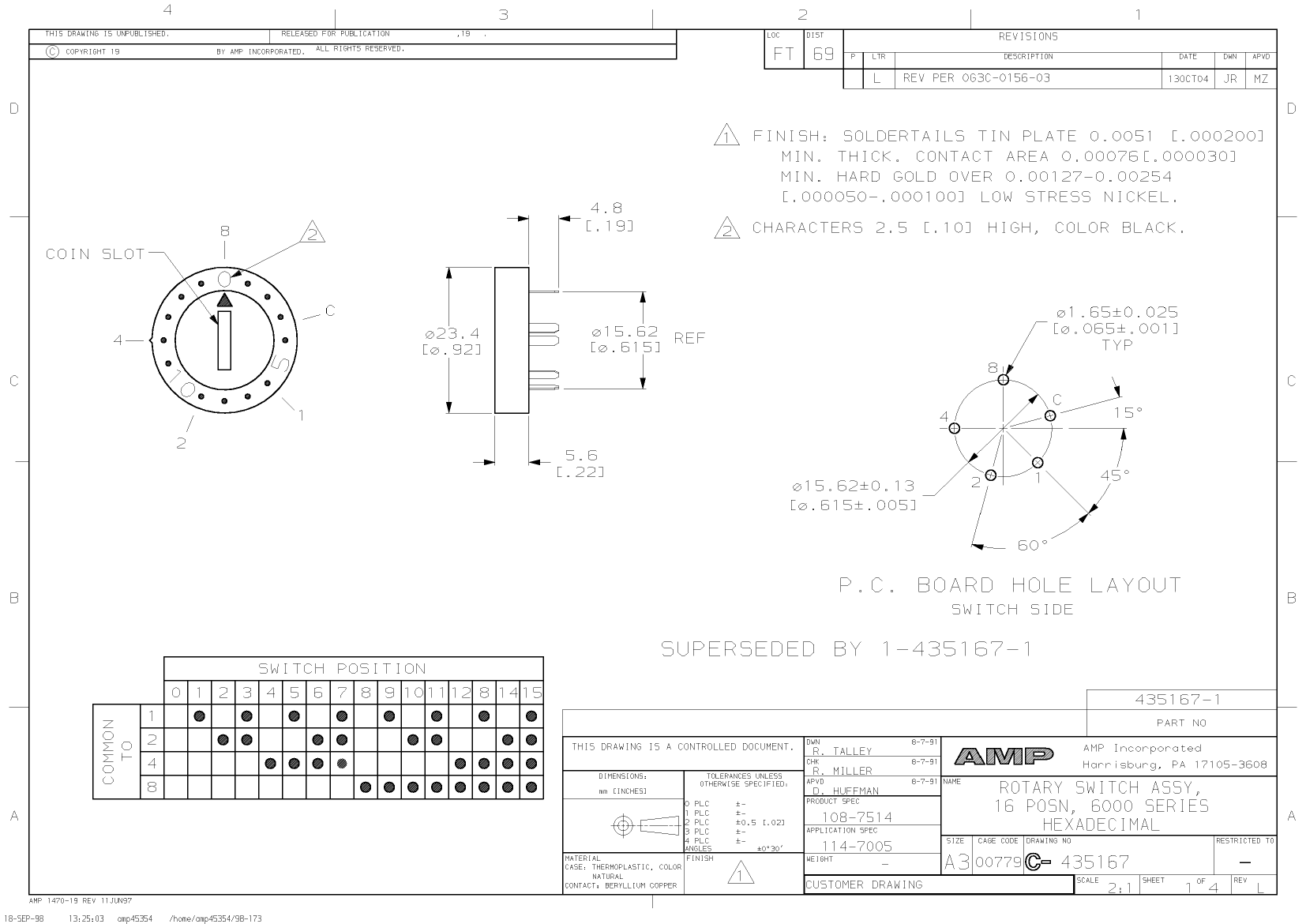

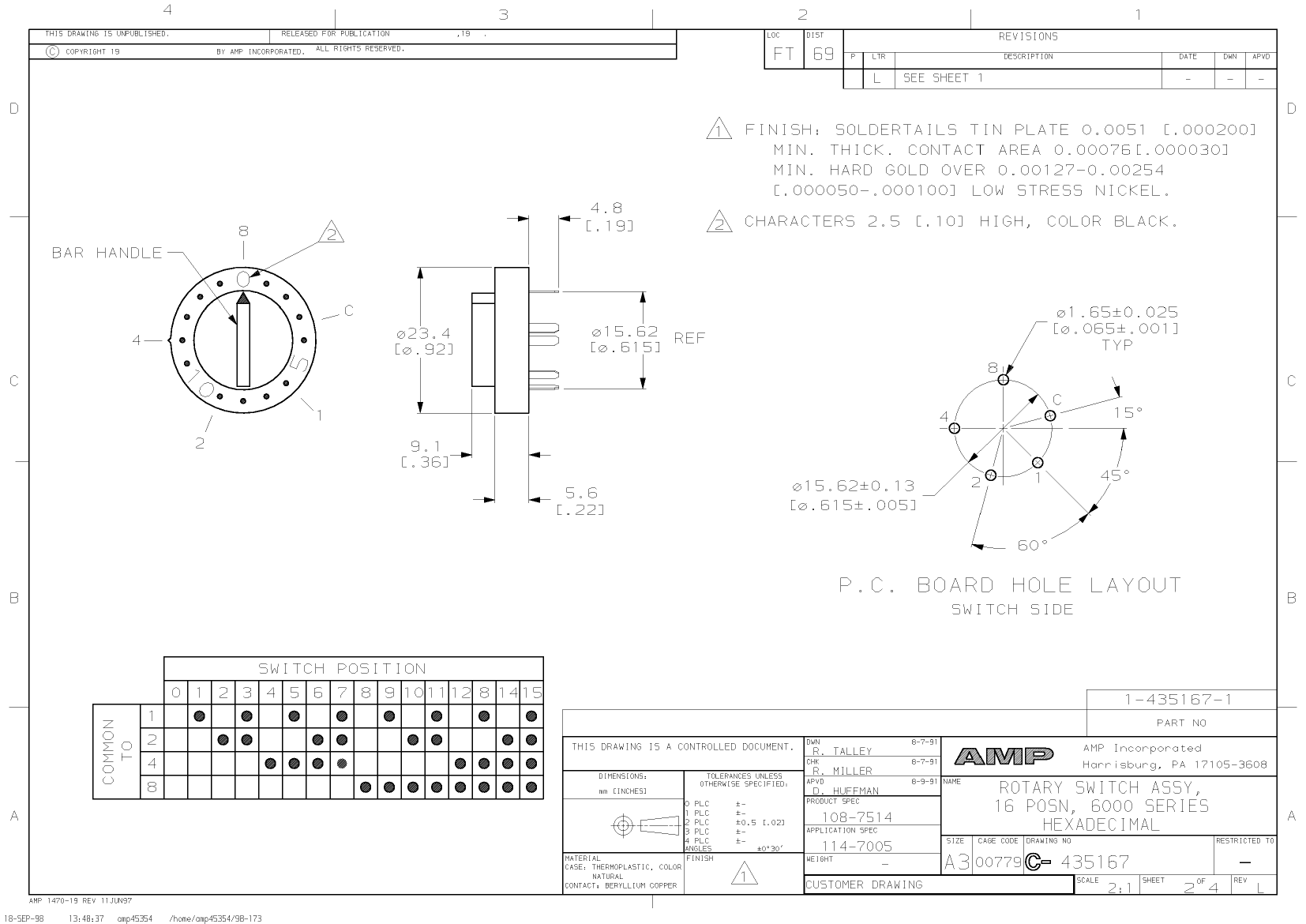

	3-435167-1	435167-1
Description	THUMBWHEEL SWITCH,HEX,16,PC TAIL TERMINAL,THUMBWHEEL,5	ROTARY SWITCH,STRAIGHT,HEX,16,PC TAIL TERMINAL,ROTARY SCREW,5
Reach Compliance Code	unknown	unknown
Actuator type	THUMBWHEEL	ROTARY SCREW
body height	9.144 mm	5.588 mm
Body length or diameter	27.94 mm	23.368 mm
center contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact resistance	0.025 mΩ	0.025 mΩ
Dielectric withstand voltage	500VDC V	500VDC V
Electrical life	1000 Cycle(s)	1000 Cycle(s)
End contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL
Insulation resistance	100000000 Ω	100000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of positions	16	16
Maximum operating temperature	88 °C	88 °C
Minimum operating temperature	-18 °C	-18 °C
PCB hole count	5	5
Solderability	HAND	HAND
surface mount	NO	NO
Switch action	CIRCULAR	CIRCULAR
switch function	HEXADECIMAL	HEXADECIMAL
Switch type	THUMB/PUSHWHEEL SWITCH	ROTARY CODED SWITCH
Terminal length	0.19 inch	0.19 inch
Terminal material	BERYLLIUM COPPER	BERYLLIUM COPPER
Termination type	SOLDER	SOLDER
