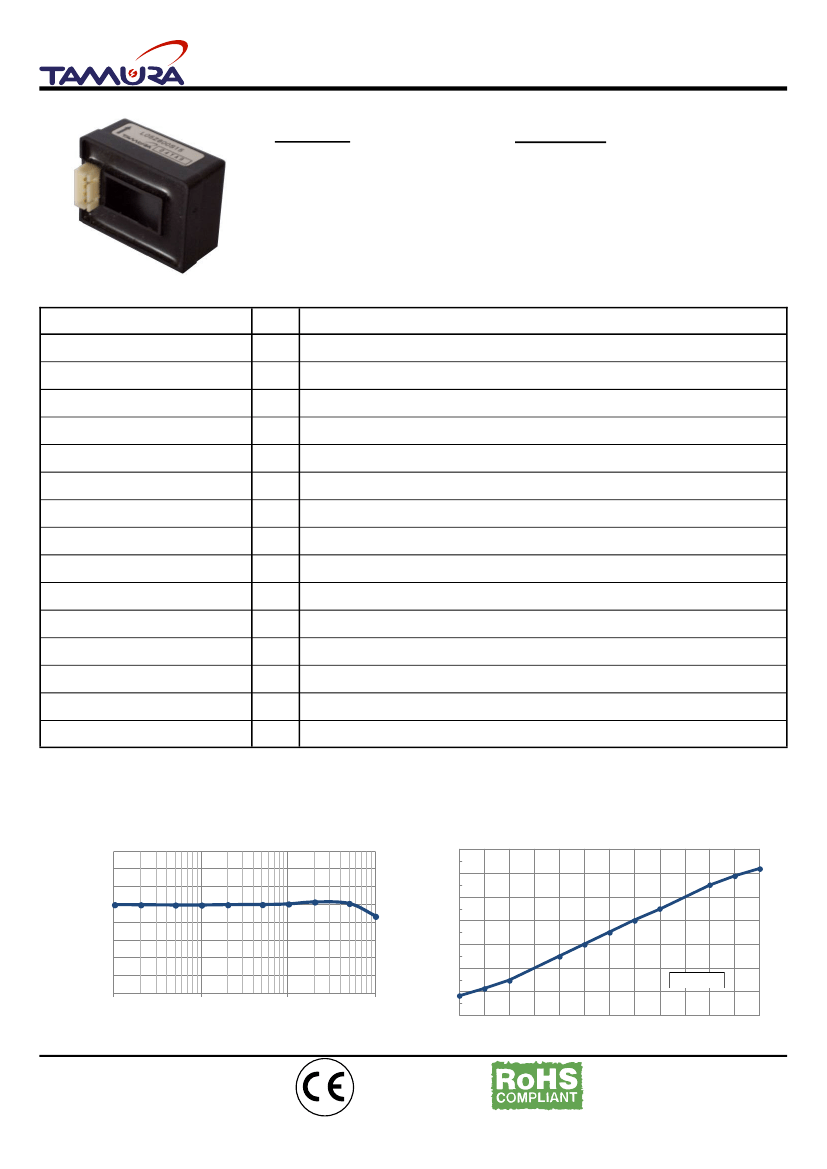

Issued by Module Components Div, TAMURA CORPORATION
Hall Effect Current Sensor L05Z800S15
Features:
Open Loop type
Panel mounting
Unipolar power supply
Industrial temperature range
JST connector
Insulated plastic case according to
UL94V0
Advantage:
Excellent accuracy and linearity
Low temperature drift
Wide frequency bandwidth
No insertion loss
High Immunity to external Interference
Current overload capability
Regulated offset voltage
T
A
=25ºC, V
CC
=+15V, R
L
=10kΩ
Specifications
Parameters
Primary nominal current
Saturation current
Rated output voltage
Offset voltage
1
Output linearity
2
(0A½If)
Power supply voltage
Consumption current
Response time
3
Thermal drift of gain
4
Thermal drift of offset
Hysteresis allowance
Insulation voltage
Insulation resistance
Ambient operation temperature
Ambient storage temperature
1
Symbol
I
f
I
fmax
V
o
V
of
ε
L
V
CC
Icc
t
r
TcVo
TcVof
V
OH
V
d
R
IS
T
A
T
S
L05Z800S15
800AT
≥ ± 900AT
11V±0.110V(at If)
+ 7.0V ± 0.050V(at If=0A)
≤ ± 1%
(at
If)
+ 15V ±5 %
≤ 20mA
≤ 10μs (at di/dt = 100A / μs)
≤ ± 0.1%/℃
≤ ± 1.0mV/℃
≤ 20mV (at If=0A→If→0A)
AC2500V, for 1minute (sensing current 0.5mA), inside of through hole
terminal
≥ 500MΩ (at DC500V), inside of through hole
terminal
-40°C~+85°C
-40°C~+85°C
V
of
is fixed (independent of V
CC
)
.
After removal of core hysteresis—
2
Without offset —
3
Time between 90% input current full scale and 90% of
sensor output full scale—
4
Without Thermal drift of offset
Electrical Performances
6
4
Frequency characteristic
14
Saturation characteristic
12
Output voltage (V)
10
Attenuation (dB)
2
0
-2
-4
8
6
4
T
A
=25ºC
Pulsed
-6
-8
-10
2
0.1
1
10
100
Frequency characteristic(kHz)
@ If=45AT
0
-1200 -1000 -800 -600 -400 -200
0
200 400 600 800 1000 1200
Input current (A)
L05Z800S15revD, March 2012
Tamura reserve the right to modify its products in order to improve them without prior notice
Issued by Module Components Div, TAMURA CORPORATION
Hall Effect Current Sensor L05Z800S15

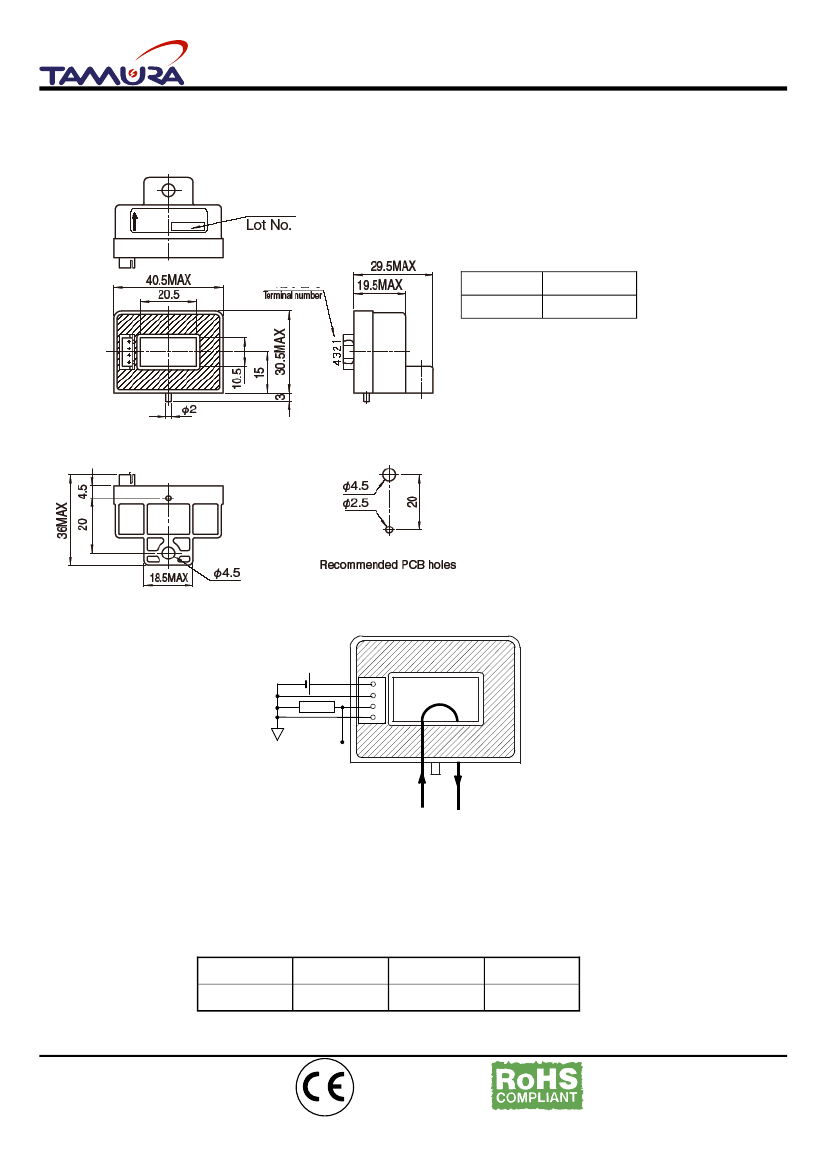

Mechanical dimensions
NOTES
1. Unit is mm
2. Tolerance is 0.5mm
Connector
Manufacturer
JST
Part Number
B4B-XH-A-G
(Gold plated terminal)
Terminal number:
1. +V
CC
(+15V)
2. GND
3. V
OUT
4. GND
Electrical connection diagram
+V
CC
1
2
3
4
GND
V
OUT
R
L
= 10kΩ
+I
f
-I
f
Package & Weight Information
Weight
50g
Pcs/box
20
Pcs/carton
200
Pcs/pallet
3600
L05Z800S15revD, March 2012
Tamura reserve the right to modify its products in order to improve them without prior notice
