IPT 02 Y

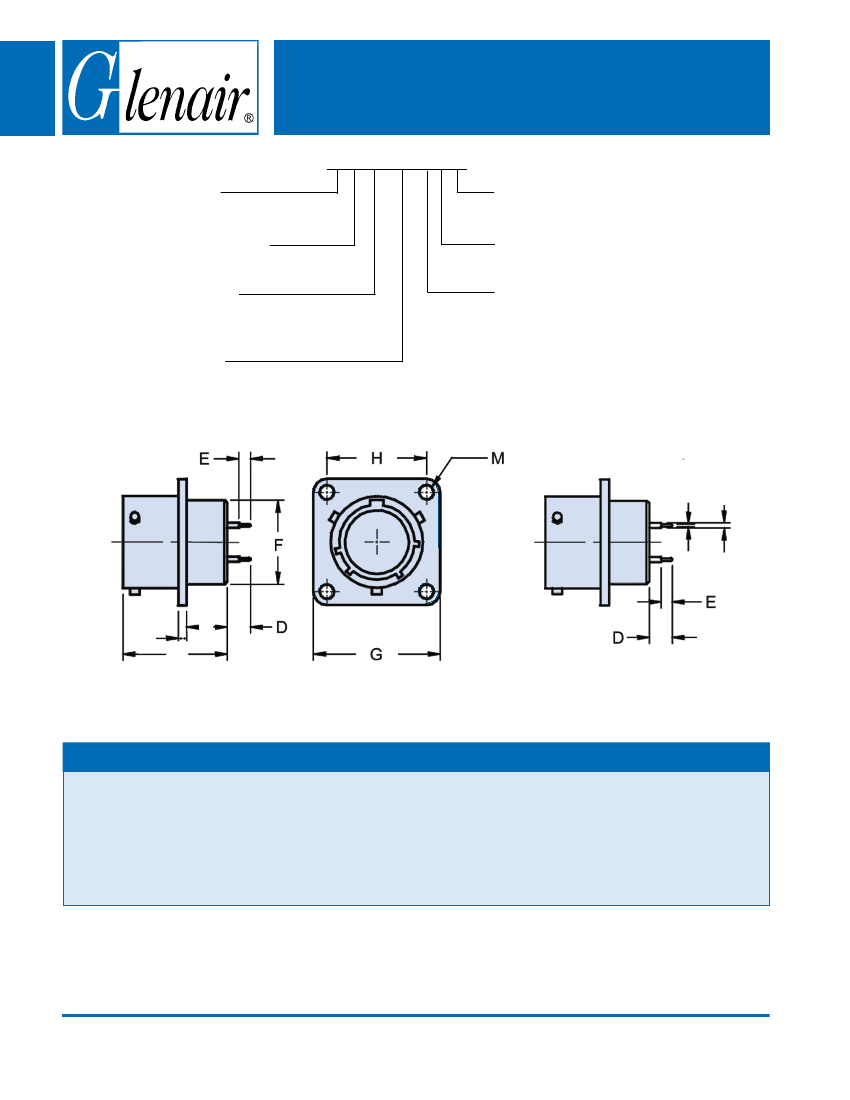

Rear Box Mount Square Flange Receptacle
with Printed Circuit Board Terminations
0.7
C
A
L
APPLICATION NOTES
1. Rear box mount square flange receptacle with PCB tails and no accessory threads. Printed circuit board terminations.
Contact factory for custom tail lengths.
2. Connector Class “Y” –– Receptacle with PCB tails.
3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.
4. Standard contact material consists of copper alloy with gold plating over nickel.
5. Standard insert is high insulation synthetic rubber.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-64
1.8
IPT Series
Bayonet Lock
Connectors
IPT 02 Y 18-11 S Z XX
MIL-C-26482
Series l Type
02 - Front Box Mount
Square Flange Receptacle
Connector Class
Y - PCB Tails
No Accessory Threads
Shell Size and
Insert Arrangements
Mod Code Options
See Table II
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal
Contact Gender
P - Pin
S - Socket
with Printed Circuit Board Terminations
TABLE I: DIMENSIONS
Shell size
A
+0
-0.2
6.2
6.2
6.2
6.2
6.2
6.2
7.5
7.5
7.5
C
±0.1
1.6
1.6
1.6
1.6
1.6
1.6
2.4
2.4
2.4
F
Max.
11.40
14.55
17.75
20.90
24.10
27.25
30.45
33.60
36.80
G
±0.4
20.6
23.8
26.2
28.6
31.0
33.3
36.5
39.7
42.9
H
±0.1
15.10
18.25
20.60
23.00
24.60
27.00
29.35
31.75
34.90
L
Max.
19.5
19.5
19.5
19.5
19.5
19.5
24.5
24.5
25.5
M
±0.12
3.04
3.04
3.04
3.04
3.04
3.04
3.04
3.04
3.73
8
10
12
14
16
18
20
22
24
TABLE I: DIMENSIONS (Continued from Above)
Shell
Size
8
10
12
14
16
18
20
22
24
Y
D
±0.4
8.0
8.0
8.0
8.0
8.0
8.0
7.8
7.8
6.7
E
±0.2
3.6
3.6
3.6
3.6
3.6
3.6
3.6
3.6
3.6
D
±0.4
7.4
7.4
7.4
7.4
7.4
7.4
7.6
7.6
6.5
Y1
E
±0.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
D
±0.4
7.8
7.8
7.8
7.8
7.8
7.8
-
-
-
Y2
E
±0.2
4.8
4.8
4.8
4.8
4.8
4.8
-
-
-
D
±0.4
5.8
5.8
5.8
5.8
5.8
5.8
7.5
7.5
6.4
YS
E
±0.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
D
±0.4
10.9
10.9
10.9
10.9
10.9
10.9
9.3
9.3
8.2
YL
E
±0.2
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
D
±0.4
12.4
12.4
12.4
12.4
12.4
12.4
-
-
-
YM
E
±0.2
7.2
7.2
7.2
7.2
7.2
7.2
-
-
-
D
±0.4
8.9
8.9
8.9
8.9
8.9
8.9
8.1
8.1
8.1
YK
E
±0.2
7.1
7.1
7.1
7.1
7.1
7.1
7.1
7.1
7.1
TABLE II: MODIFICATION CODES
Shell Finish
(Omit for Standard Cad/Olive Drab Finish)
F2
- Bright Nickel Plating (RoHs)
F6
- Black Electrodeposited Paint (RoHs)
F7
- Black Zn-Co Plating (RoHs)
F8
- Olive Drab Zn-Co Plating
STANDARD FINISHES (For QQ-A-591 Aluminum Shells)
Requirements
IAW RoHS
F2 Electrolytic Nickel F6 Black Non Conductive F7 Black Conductive
Thermal Shock
Salt Spray After
Thermal Shock
Electical Conductivity
Abrasion Resistance
© 2008 Glenair, Inc.
-40°C + 100°C
24 hour
Very Good
Very Good
-55°C + 125°C
500 hour
NO
Very Good
-55°C + 125°C
500 hour
Very Good
Good
Not IAW RoHS
G3 Cadmium with Olive F8 Zinc Cobalt with
Drab Passivation
Olive Drab Passivation
-55°C + 125°C
500 hour
Very Good
Very Good
-40°C + 100°C
200 hour
Good
Good
Printed in U.S.A.
Assembly with Accessories
(Omit for Standard Version)
Key Polarization (Omit for
N
version)
W, X, Y, Z
= Alternates
NXXX
ConnectorDesigned Connector
N0
- - Custom Less Backshell
GXXX
- Custom Designed Connector
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-65
IPT Series
Bayonet Lock
Connectors
IPT 02 Y
Rear Box Mount Square Flange Receptacle
Analogue and Mixed Signal
