10000
C
LEANING
Impulse

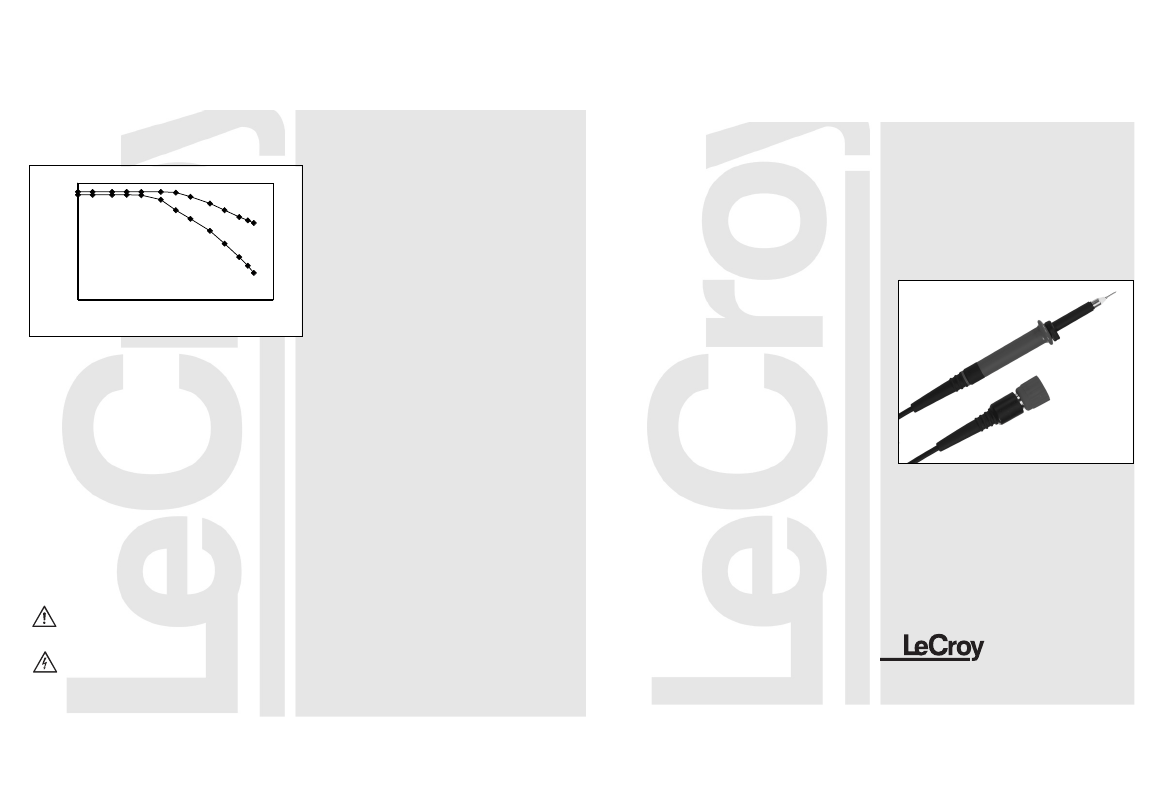

Voltage [V]
1000
The exterior of the probe only should be
cleaned with a soft cloth moistened with
either water or isopropyl alcohol.
H
IGH
V
OLTAGE
PPE 5 kV
100
DC + peak AC
U
SING AND
M
AINTENANCE
1000
10
0,1
1
10
Frequency [MHz]
100
S
AFETY
I
NFORMATION
The probe is designed to be safe under the
following conditions:
Indoor use
Altitude to 2000 m
Temperature range from 0 °C to 50 °C
Maximum relative humidity 80 % for tem-
peratures up to 31 °C, decreasing linearly
to 40 % relative humidity at 50 °C
The probe user should note that the protection
provided by the equipment may be impaired,
if the equipment is used in a manner not
specified by the manufacturer.
To guarantee accurate performance
characteristics, machanical shocks should be
avoided, as well as damage to the cable
through excessive bending. Handle with care,
especially when the extra thin spring-tip is
fitted. All maintenance should be referred to
qualified personnel.
S
ALES
& S
ERVICE
L
E
C
ROY
Corporate Headquarters
U.S.A.: Chestnut Ridge
Phone (1) 914 578 6020
Fax (1) 914 578 5985
European Headquarters
Germany: Heidelberg
Phone (49) 6221 827 00
Fax (49) 6221 834 655
E
LECTRICAL
C
HARACTERISTICS
System attenuation:
100:1
System input resistance:
50 MΩ
Input capacitance:
< 6 pF
Compensation range:
10 pF to 50 pF
System BW (-3 dB):
400 MHz typical
Max. non-destructive input voltage:
5 kV
See voltage derating curve
G
ENERAL
C
HARACTERISTICS
Operating temperature:
0 °C to 50 °C
Cable length:
2 m
Weight of probe + accessories:
70 gr
Coupling:
1 MΩ DC/AC
Warranty:
One year
Overvoltage category:
CAT I
Pollution degree:
1
W
ARNING
Do not disassemble or disconnect probes while
they are connected to a voltage source. Use only
grounded oscilloscopes.
Attention: Refer to this manual before
using the probe.
Danger. High Voltage.
LF P
ROBE
A
DJUSTMENT
(100:1)
Connect the probe to a 1 kHz square wave
signal. Adjust compensation trimmer in the
BNC-box for optimum square wave response.
HF P
ROBE
A
DJUSTMENT
The probe can be adjusted for high frequency if
necessary. Remove boot and isolation from
BNC-box. Connect the probe to 1 MHz square
wave signal. Turn the PCB in the BNC-box by 180 °
and adjust this trimmer for optimum square wave
response. Then replace all parts again in their
previous position.
2
1
5
11
10
6
7
8
9
3
4
Undershoot
S
TANDARD ACCESSORIES SUPPLIED
WITH THE PROBE
Accessories
1. Trimming tool
2. Sprung hook
3. IC Insulating tip (red)
4. Insulating tip (red)
5. Ground lead (22 cm)
6. BNC Adapter
7. Straight tip (0.8 mm)
8. Spring contact tip (0.8 mm)
9. Crocodile clip
10. Flexible 4 mm security adapter
11. Security ground lead
Quantities
1
1
1
1
1
1
1
1
1
1
1
O
PTIONAL
P
ROBE
K
IT
P
K
103
Same as standard accessories supplied with
probe, except for:
Straight tip (5 pieces)
Spring contact tip (5 pieces)
Undershoot
Correct
Correct
Overshoot
The following accessories are rated up to:
Sprung hook
1000 V
BNC Adapter
100 V
Crocodile clip
1000 V
Flexible 4 mm security adapter
1000 V
Overshoot
