54F38/BDA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F38/BDA

54F38/BDA: DescriptionIC F/FAST SERIES, QUAD 2-INPUT NAND GATE, CDFP14, Gate; Categorylogic logic; File Size76KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F38/BDA Overview

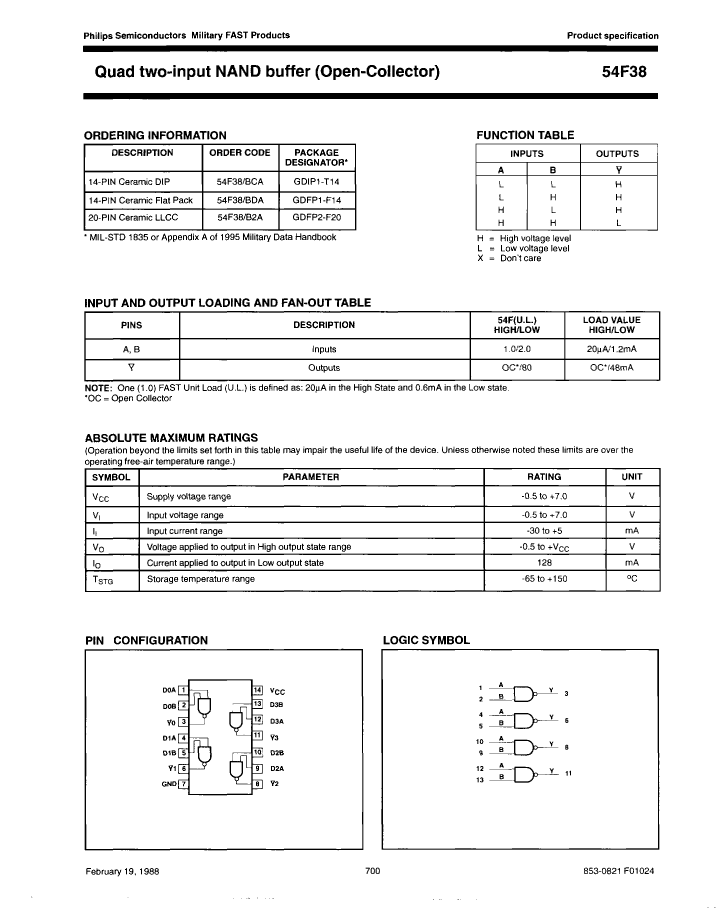

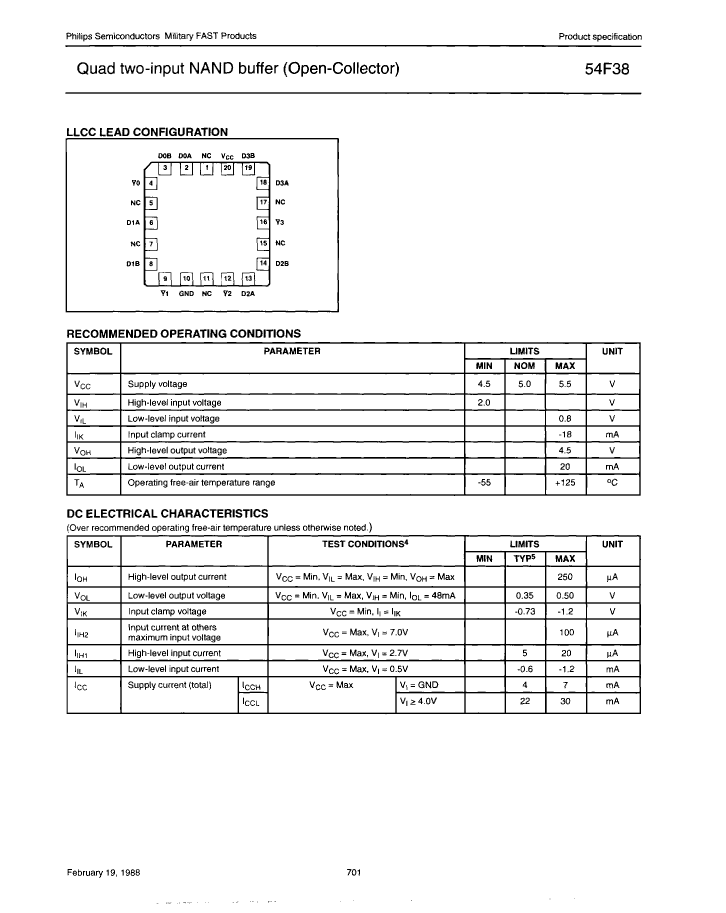

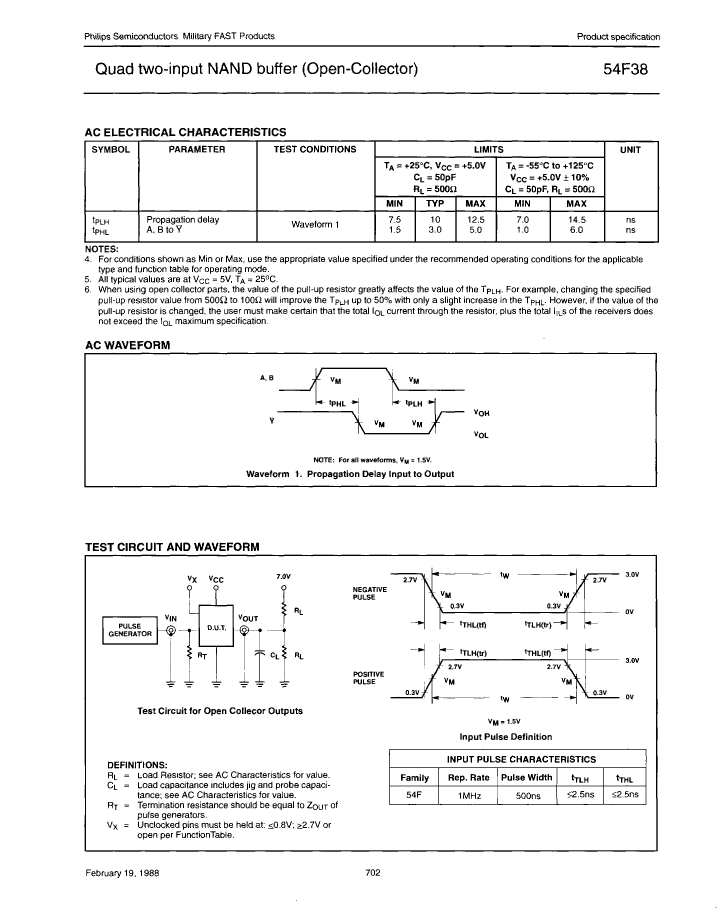

IC F/FAST SERIES, QUAD 2-INPUT NAND GATE, CDFP14, Gate

54F38/BDA Parametric

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-CDFP-F14
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	30 mA
propagation delay (tpd)	6 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

54F38/BDA Related Products

	54F38/BDA	54F38/BCA	54F38/B2A	N54F38/BDA	N54F38/B2A
Description	IC F/FAST SERIES, QUAD 2-INPUT NAND GATE, CDFP14, Gate	IC F/FAST SERIES, QUAD 2-INPUT NAND GATE, CDIP14, Gate	IC F/FAST SERIES, QUAD 2-INPUT NAND GATE, CQCC20, Gate	IC F/FAST SERIES, QUAD 2-INPUT NAND GATE, CDFP14, CERAMIC, DFP-14, Gate	IC F/FAST SERIES, QUAD 2-INPUT NAND GATE, CQCC20, CERAMIC, LLCC-20, Gate
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F14	R-GDIP-T14	S-CQCC-N20	R-CDFP-F14	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4	4	4
Number of entries	2	2	2	2	2
Number of terminals	14	14	20	14	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	QCCN	DFP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	30 mA	30 mA	30 mA	30 mA	30 mA
propagation delay (tpd)	6 ns	6 ns	6 ns	6 ns	6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	FLAT	NO LEAD
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD
Base Number Matches	1	1	1	1	1
package instruction	DFP,	DIP,	-	DFP,	CERAMIC, LLCC-20
Maker	-	NXP	NXP	-	NXP
Maximum seat height	-	5.08 mm	-	2.159 mm	1.905 mm
Terminal pitch	-	2.54 mm	-	1.27 mm	1.27 mm
width	-	7.62 mm	-	6.2865 mm	8.89 mm
