4-1542005-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 4-1542005-9

4-1542005-9: DescriptionHTS516-U=40MM HS ASSY ULTEM CL; CategoryThe connector; File Size21KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

4-1542005-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4-1542005-9	-	-	View	Buy Now

4-1542005-9 Overview

HTS516-U=40MM HS ASSY ULTEM CL

4-1542005-9 Parametric

Parameter Name	Attribute value
Device type	BGA
Attachment type	clamp
Number of heat sinks	2
Power (W)	5, 10, 15
Heat sink type	Radial
Plating materials	black anodized
Material	aluminum
UL flammability rating	UL 94V-0
Wind speed (LFM)	0, 200, 400, 600
Comment	Installing the clamps does not increase the overall radiator height. , the radiator assembly includes a four-leg standard clamp, part number 1542357-1

Preview

Download Datasheet

View All

LTR

REVISION(S)

DESCRIPTION

ECN: 0S60-0252-04

ECR-06-014978

INIT

APP'D

E.T 10/20/04 B.P 11/12/04

E.T 6/23/06 V.K 6/26/06

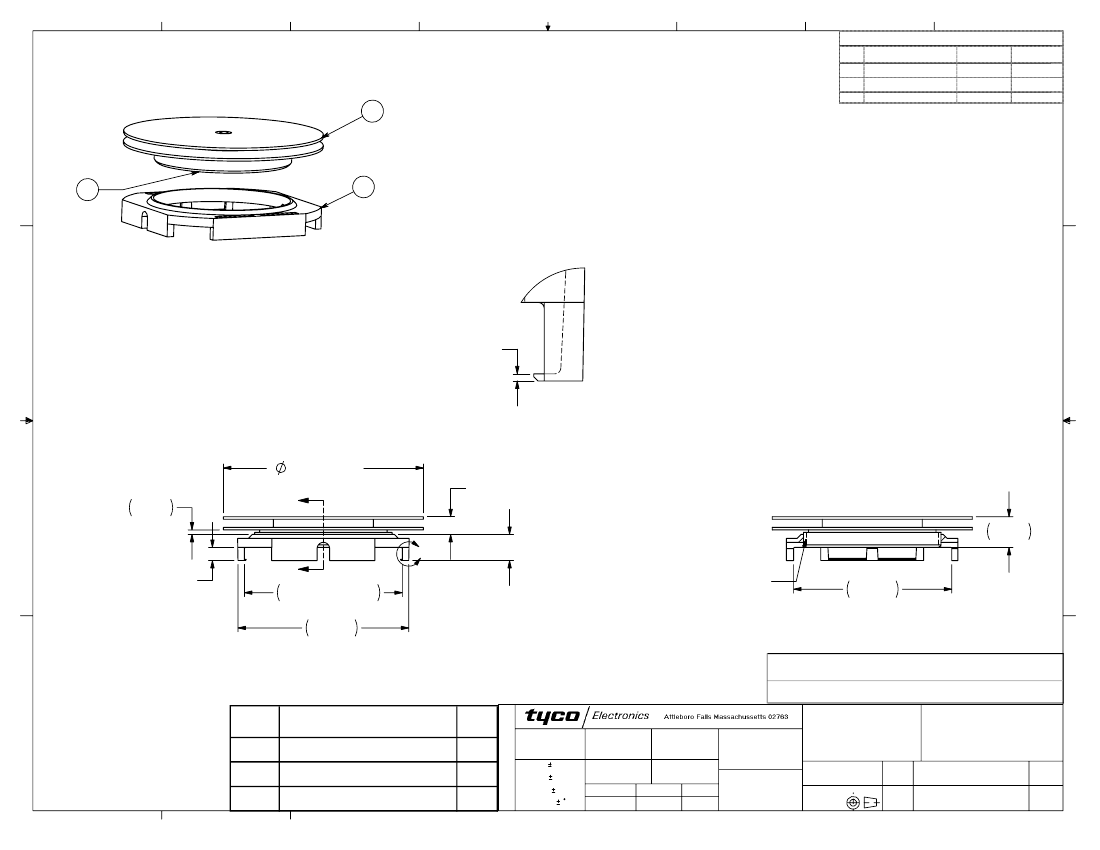

2-FIN HS:

2.000 DIA.

0.307 HT.

1. MATERIAL:

HEAT SINK: ALUM. (BLACK ANODIZE)

CLIP:

BLACK PEI (UL94-VO)

4-LEGS CLIP SIZE: 40mm

2. BEFORE THE HEATSINK APPLICATION, THE USER SHOULD

IDENTIFY THE SPECIFICATION OF MAXIMUM LOAD ON

THE BGA PACKAGE.

HEATSINK TORQUE SPECIFICATIONS CONVERTED TO FORCE.

BARE DIE PACKAGE:

2.5 POUND-FORCE INCH TORQUE = 7.8 POUND-FORCE

(0.28 NEWTON METER TORQUE = 347.70 NEWTON)

3.0 POUND-FORCE INCH TORQUE = 9.4 POUND-FORCE

(0.34 NEWTON METER TORQUE = 41.81 NEWTON)

FULL SIZE LID PACKAGE:

.012±.002

2.5 POUND-FORCE INCH TORQUE = 6.3 POUND-FORCE

(0.28 NEWTON METER TORQUE = 28.02 NEWTON)

3.0 POUND-FORCE INCH TORQUE = 7.6 POUND-FORCE

(0.34 NEWTON METER TORQUE = 33.81 NEWTON)

DETAIL A

SCALE =6X

2.000±.020

3. REMOVE CLIP WITH REMOVAL TOOL P/N: 1542616-1.

4. RoHS COMPLIANT AND CERTIFIED.

.045

.177 MAX

.131±.005

1.579 LIP LEG

1.707

.261±.005

1 3/8 - 27 UNS -2A

THREAD

1.581

SECTION B-B

.307

CUSTOMER DRAWING

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

ITEM

DESCRIPTION

MOUNTING CLIP

HEAT SINK

INTERFACE

QTY

DO NOT SCALE

UNLESS OTHERWISE

SPECIFIED

TOLERANCES ARE:

.XX

.XXX

.XXXX

ANGLES

DRAWN BY:

DATE

MATERIAL:

10/11/04

SEE NOTE

FINISH:

E.TAO

ENGINEER:

DATE

CONFIDENTIAL PROPERTY OF TYCO

ELECTRONICS. NOT TO BE DISCLOSED

TO OTHERS. REPRODUCED OR USED FOR

ANY PURPOSES EXCEPT AS AUTHORIZED

IN WRITING BY AN AUTHORIZED OFFICIAL

OF TYCO. MUST BE RETURNED TO TYCO

ON DEMAND, ON COMPLETION OF ORDERS

OR OTHER PURPOSES FOR WHICH LENT.

DIMENSONS ARE IN:

TITLE:

40mm HEATSINK

ASSEMBLY

(HTS516-U)

PART NO:

B.PETROCELLI

FILENAME

PROJECT

11/12/04

SYSTEM

INCHES

SEE NOTE

TNIRD ANGLE

PROJECTION

SCALE:

1:1

SIZE:

4-1542005-9

SHEET:

1 OF 1

REV:

DWG. NO.

C-4-1542005-9
