Instruction Sheet
Extraction Tools
318813-1 and 318813-3
408-4374
16 FEB 15
Rev B
Plastic Handle
Spring-Loaded
Metal Tip

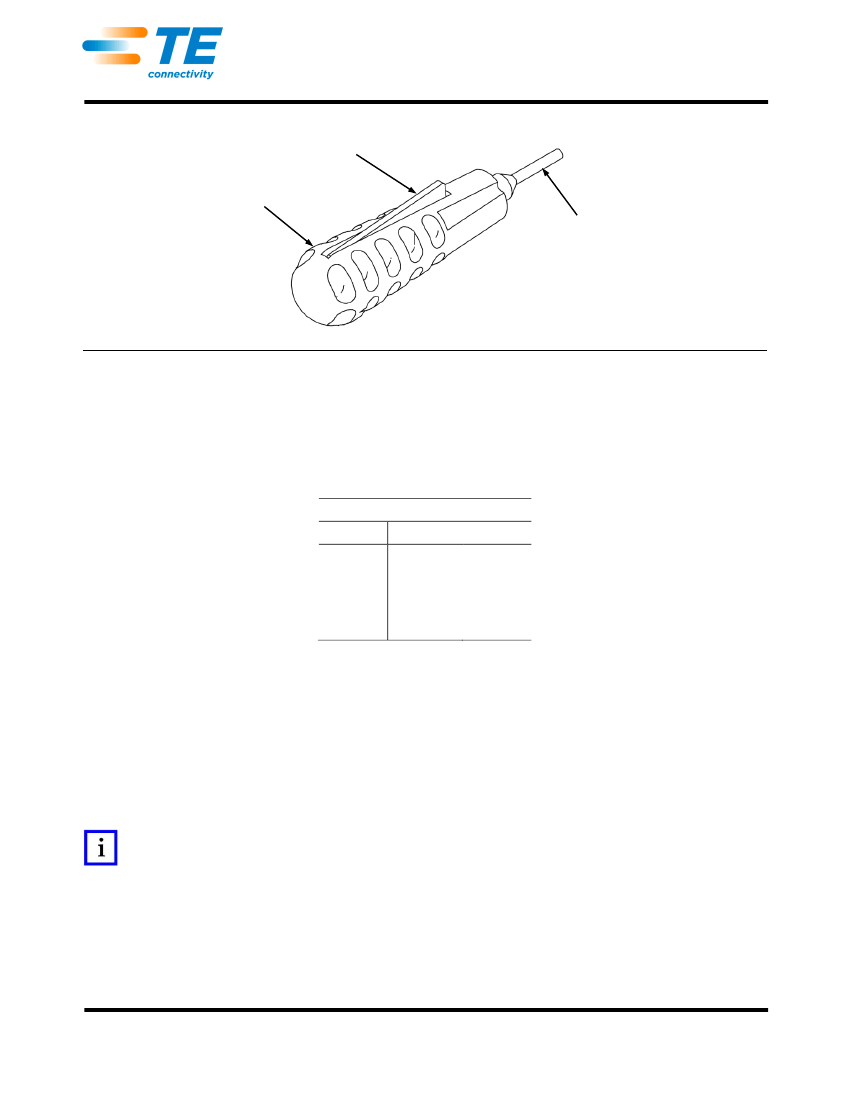

Figure 1
1. INTRODUCTION
Extraction Tool 318813-1, shown in Figure 1, is designed to remove the Size 8 straight and right-angle coaxial
contacts and AMPLIMITE* power contacts and .125 POWERBAND* contacts listed in Figure 2 from connector
housings. Read these instructions thoroughly before attempting to remove any contacts. Tool 318813-3 is
designed for the
Extended
POWERBAND Pin contacts.
CONTACT BASE PART NUMBER
COAXIAL
228596-1
228604-1
228618-1
POWER
211159-1
211159-2
211161-1
211161-2
212007-1
212008-1
Figure 2
212013-1
212014-1
213841-1
213843-1
213845-1
213847-1
2. DESCRIPTION
(Figure 1)
The extraction tool consists of a spring-loaded metal tip with an integral plunger mounted to a plastic handle
with an interlock lever. When the interlock lever is depressed, the plunger is held until the contact locking
lances are depressed by the tip.
After the lever is released, the plunger is released, permitting the contact to be pushed out the rear of the
housing.
3. EXTRACTION PROCEDURE
(Figure 3)
NOTE
Before extracting coaxial contacts, use a small, sharp tool to remove the nylon alignment ring from the front of the contact.
1. Determine the contact to be removed and grasp the wire attached to that contact.
2. Move the contact forward as far as possible by pushing the wire toward the housing.
3. Depress the extraction tool interlock lever and insert the tip of the tool into the contact cavity in the
mating face of the housing. Make sure that the tip is completely bottomed in the cavity.
4. While holding the tool in position, release the interlock lever, then push the handle until the contact
backs out of the rear of the housing. The wire and contact should pull out of the housing.
© 2015 TE Connectivity family of companies
All Rights Reserved
*Trademark
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.te.com.
1
of 2
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
ORIGINAL INSTRUCTIONS
Interlock Lever
408-4374
Wire
Interlock Lever
Depressed
Mating Face of
Housing (Ref)

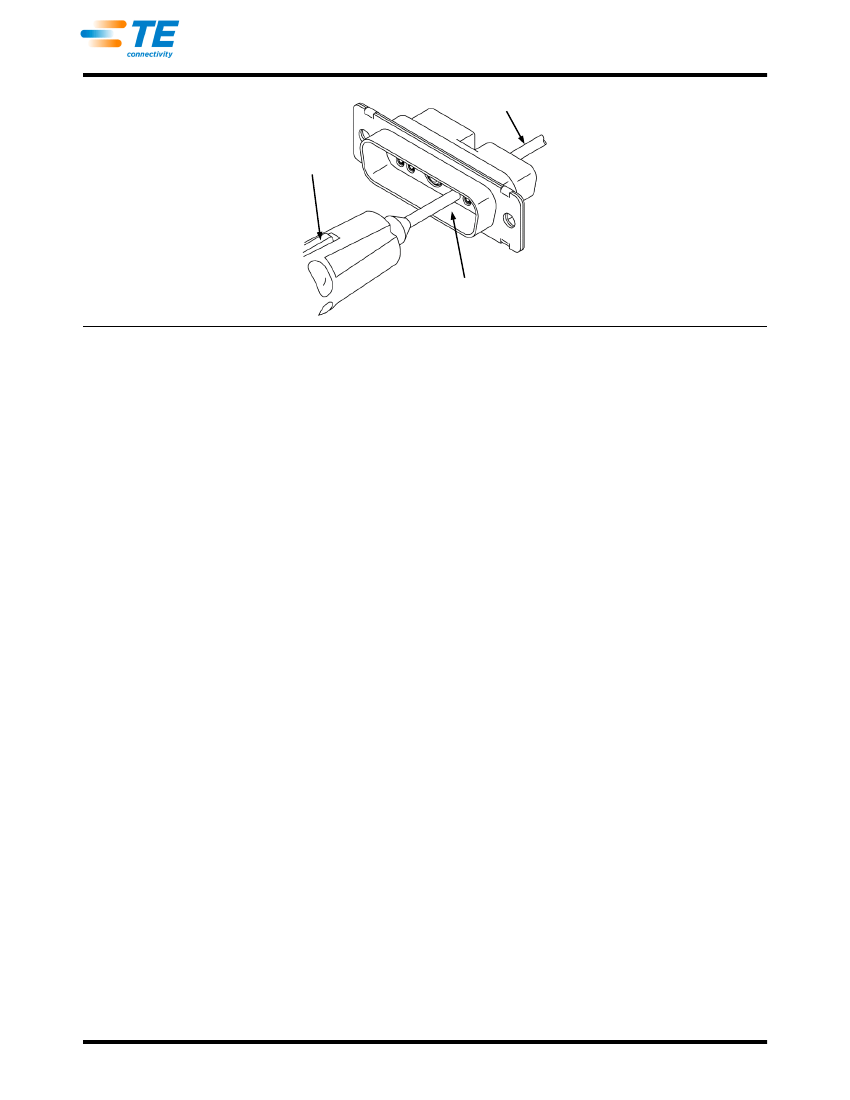

Figure 3
4. TOOL MAINTENANCE
It is recommended that the tool be inspected when you receive it and at regularly scheduled intervals. The tool
is not repairable and should be replaced when it is worn or damaged. Store the extraction tool in a clean, dry
place and clean the extraction tool with a soft, lint-free cloth.
Additional tools can be purchased from:
CUSTOMER SERVICE (038-035)
TYCO ELECTRONICS CORPORATION
PO BOX 3608
HARRISBURG PA 17105-3608
5. REVISION SUMMARY
Added new -3 tool and related information
Rev B
2
of 2
