setting height is inscribed on the side of the gauge.
Select the gauge end with the same marking
selected in step one. From the chart on page one,
determine the appropriate shut height gauge
setting for the connector style and press that you
are using.
2. Place the shut height gauge on the base of the
press and lightly bring down the shaft of the press
onto the surface of the shut height gauge. Adjust
the shaft length by turning the adjusting knob on
the top of the shaft (3640) or the adjusting collar
on the lower portion of the shaft of the press
(3335) so that the press handle comes completely
down with only a small amount of pressure from
the press shaft on the shut height gauge. On the
3335 only, tighten the locking collar. The shut
height distance is now set.
3. Place the 3442-126 platen on the end of the press
shaft and lock it in place by sliding the holding
clamp on the platen into the groove on the press
shaft. Your assembly press is now set up.

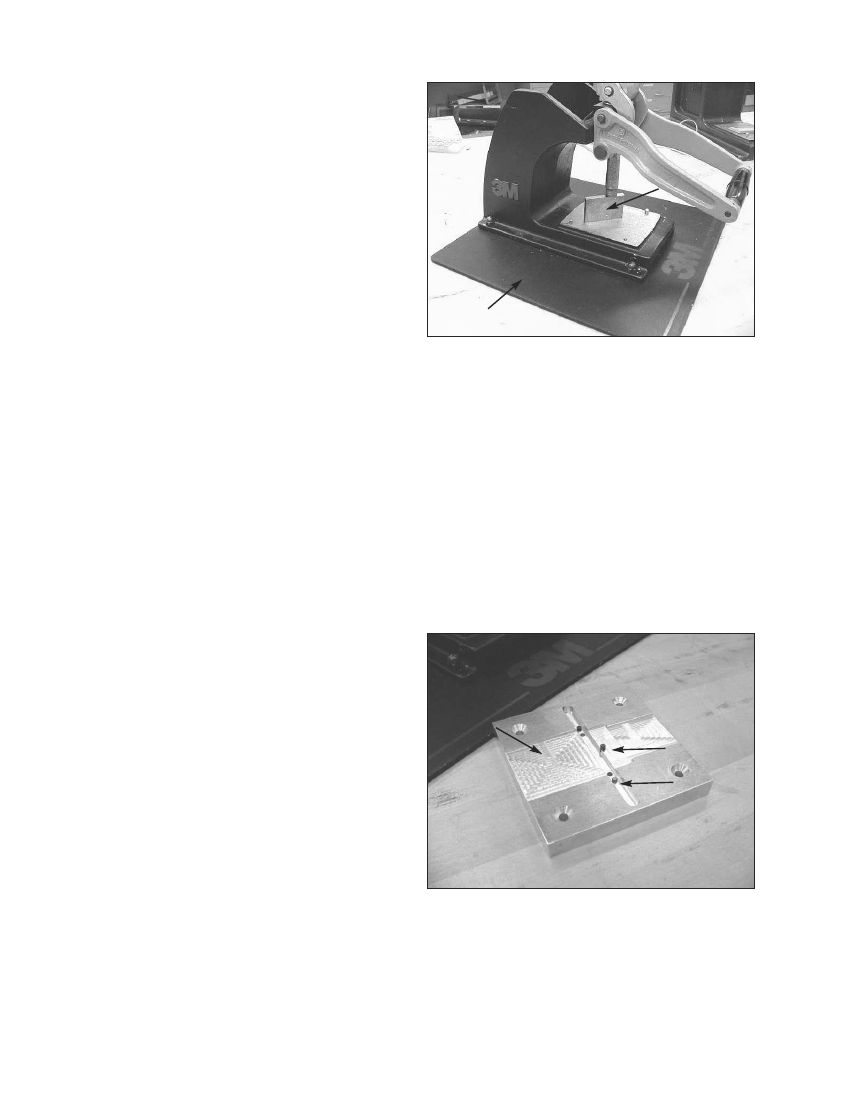

Note: The 3M
™
3640 Assembly Press in the picture
is shown with the separately purchased 3M
™
3771
Base Plate which adds stabilization to the press. Its
use is optional. The 3M
™
3335 Heavy Duty Press is
also applicable, but not shown.
Shut Height
Gage 3436-XX
3771 Base Plate
Assembly Press Setup
Locator Plate Setup
1. Determine if you will be terminating the cable at its
end or along the length of the cable (daisy-chain).
2. For end terminations, place the cable stop into the
hole in the locator plate as shown. For daisy-chain
terminations, do not put the cable stop in place.
3. Place the two cover location stops into position on
the locator plate as shown. The position toward
the outside edge is for the higher pin count
connector. The position toward the center is for
the lower pin count connector.
4. The locator plate can now be positioned on the
press base under the platen. Some operators
prefer to place the locator plate into the press after
they have prepped the cable and connector for
termination. If you prefer this method, be sure
that the cable and connector do not move when
you place the locator plate into place on the press.
Cable
Location
Area
Cable Stop
Cover
Location
stops
Locator Plate Setup
78-8133-3480-8-B
2
Connector Assembly
Note: For clarity, the pictures show the cable and
connectors being positioned on the locator plate while it is
on the table top. This can also be done while the plate is in
position on the press.

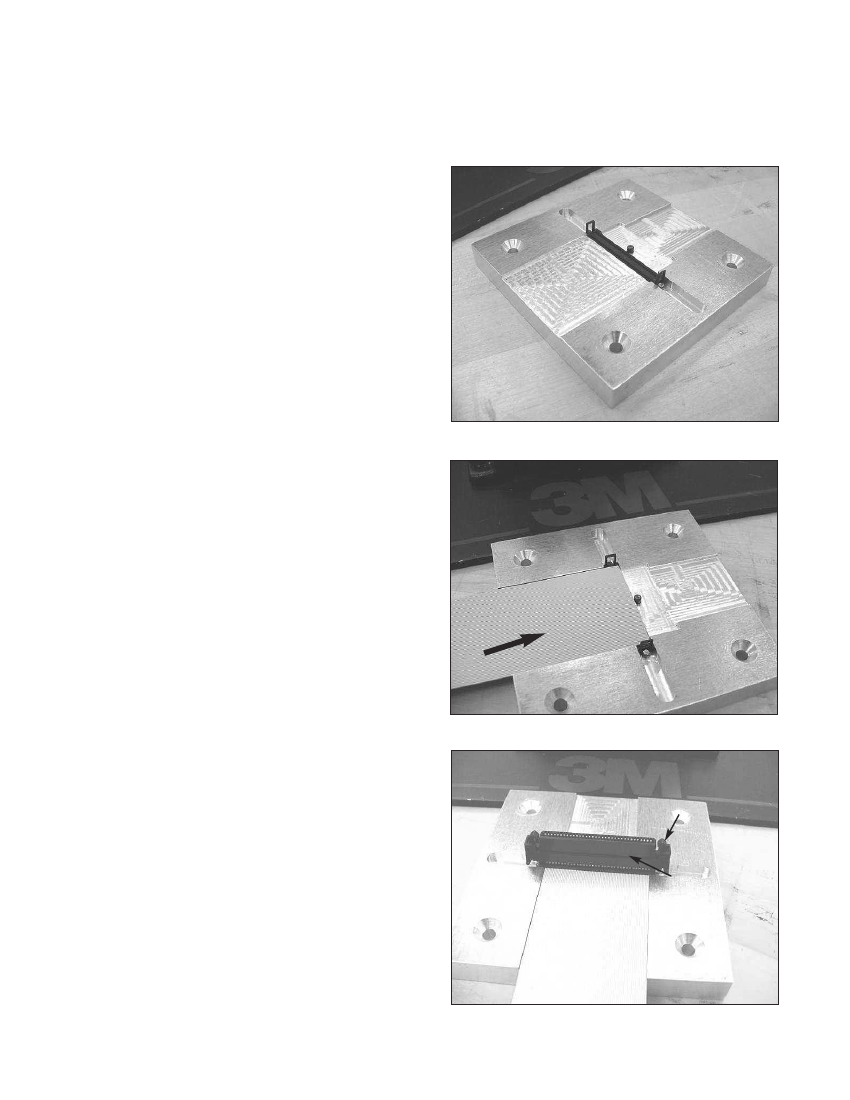

1. Place the cover in the groove on the locator plate
and between the two cover stops.
Cover Stop
Cover Stop
Connector Assembly Step 1
2. Place the cable in the cable track, on top of the
cover and up against the cable stop (end
termination). Maintain pressure on the cable with
your hand to keep the cable in position.
Step 2
Connector Assembly Step 2
3. Make sure that the tips of the ejector latch on the
connector are pushed in toward the center of the
connector.
4. Place the connector body on top of the cable
engaging the protruding cover latches with the
appropriate slots on the connector body. The
connector may be pressed down by hand for an
initial placement. You will hear a clicking sound
when the connector has been pressed down an
appropriate distance.
5. If you did the assembly on the table top, place the
locator plate and cable and connector together onto
the base of the assembly press. Be sure that the
cable does not move and that the connector does
not slip out of the groove on the locator plate.
3
Ejector Latch
Connector
Placement
Connector Assembly Steps 3, 4, 5
78-8133-3480-8-B
6. To complete the assembly, push the assembly press
handle down until the press handle stops against the
press frame. This will press the connector onto the
cable permanently.
7. Lift the press handle and remove the terminated
connector and cable from the locator plate.
8. Inspect the finished assembly to assure that the
cover latches are latched fully. If the cover latches
are not completely latched, a minor shut height
adjustment may be required.

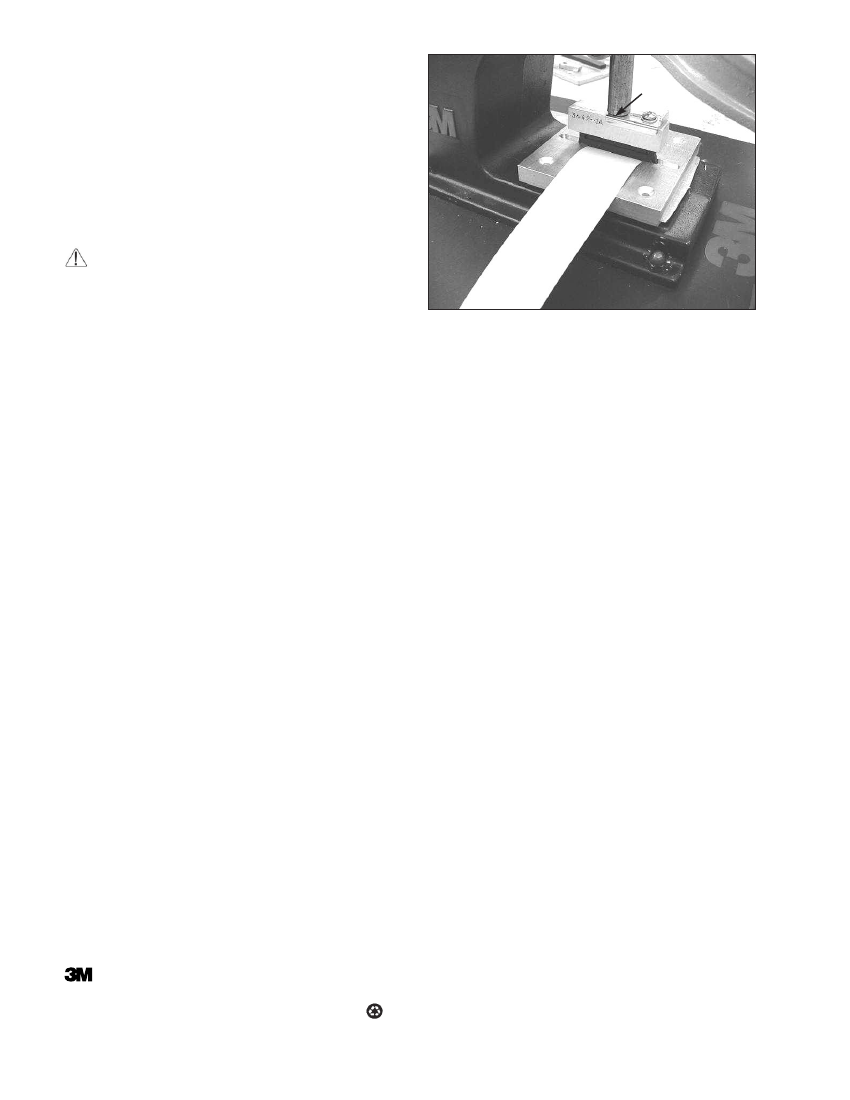

Caution: Do not over terminate!
3442-126 Platen
Connector Assembly Step 6
