HC4D-AC100V-R: DescriptionPower/Signal Relay, 4PDT, Momentary, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size462KB，11 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

HC4D-AC100V-R Overview

Power/Signal Relay, 4PDT, Momentary, Panel Mount, ROHS COMPLIANT

HC4D-AC100V-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	21 mm
body height	52.3 mm
Body length or diameter	27.4 mm
Maximum coil voltage (AC)	110 V
Manufacturer's serial number	HC
Installation features	PANEL MOUNT
Maximum operating temperature	60 °C
Minimum operating temperature	-50 °C
method of packing	BOX
physical size	27.4mm x 21mm x 52.3mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	4PDT
Relay type	POWER/SIGNAL RELAY
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

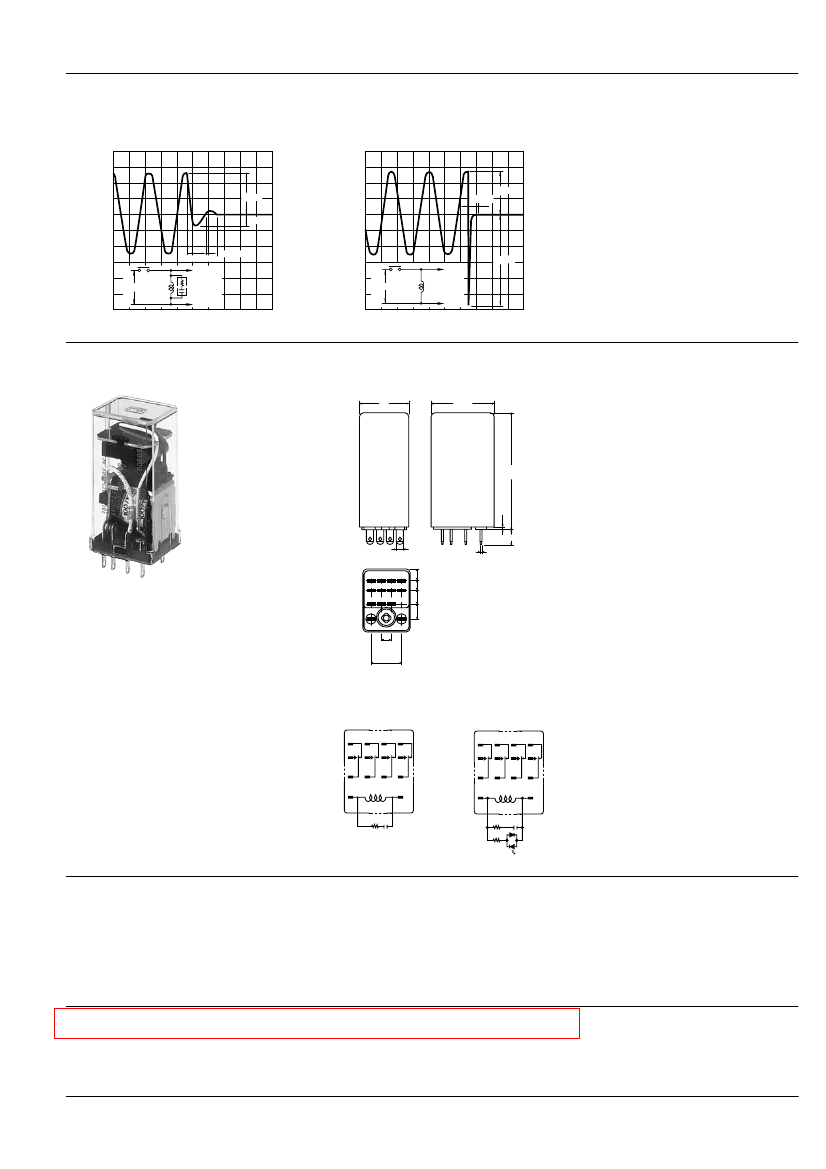

Able to absorb surge voltage

in AC speciﬁcation

CR circuit is built-in

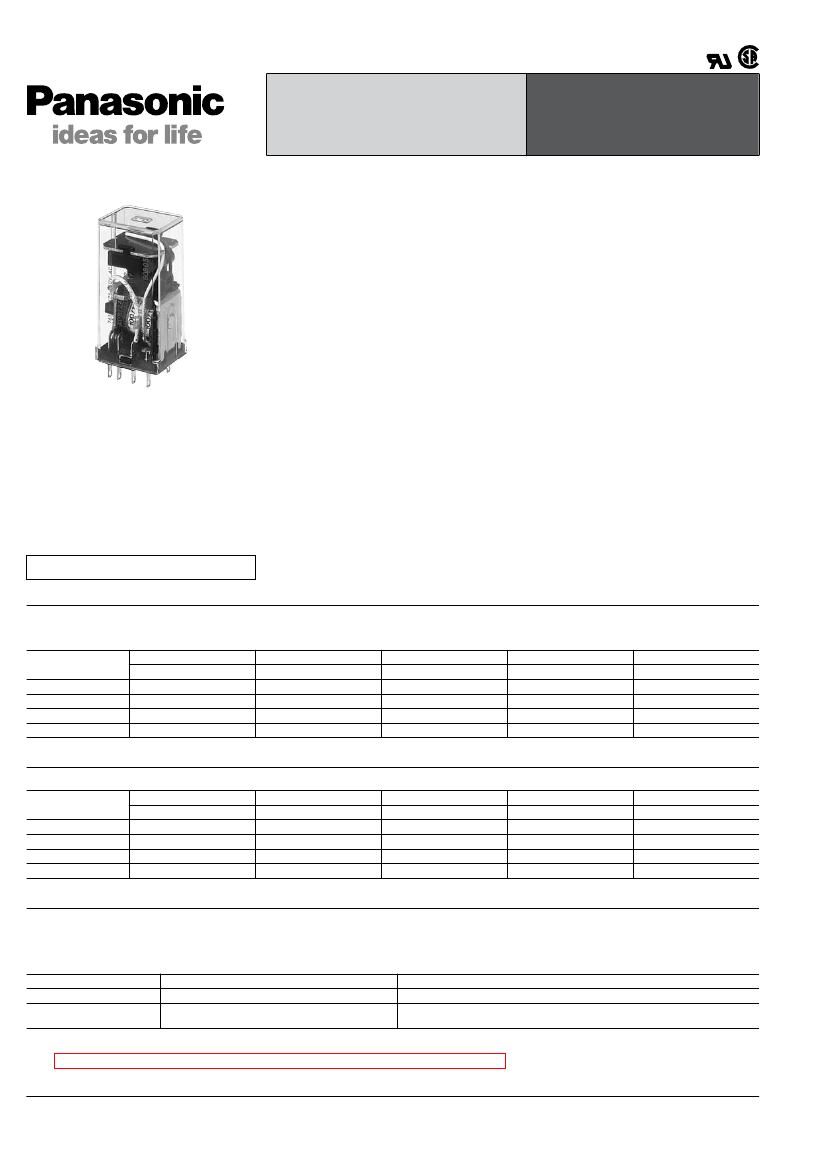

HC RELAYS WITH

CR CIRCUIT

About Cd-free contacts

We have introduced Cadmium free type

products to reduce Environmental

Hazardous Substances. (The sufﬁx “F”

should be added to the part number. The

Sufﬁx “F” is required only for 1 Form C,

2 Form C, 3 Form C contact type. The

4 Form C and 4 Form C bifurcated (twin)

contact type is originally cadmium-free,

the sufﬁx “F” is not required.)

Please replace parts containing

Cadmium with Cadmium-free products

and evaluate them with your actual

application before use because the life of

a relay depends on the contact material

and load.

FEATURES

1. With CR circuits built in, surge

voltage arising in the AC type when

the coil goes to the off state is

absorbed.

2. HC relay with LED indication type

also available

3. UL, CSA approval is standard

Compliance also with Japanese

Electrical Appliance and Material Control

Law.

TYPICAL APPLICATIONS

Suitable for factory automation

equipment and automotive devices

1. Control panels, power supply

equipment, molding equipment,

machine tools, welding equipment,

agricultural equipment, etc.

2. Ofﬁce equipment, automatic

vending machines,

telecommunications equipment,

disaster prevention equipment,

copiers, measuring devices, medical

equipment, amusement devices, etc.

Compliance with RoHS Directive

TYPES

1) Plug-in type

Coil voltage

100/110V AC

110/120V AC

200/220V AC

220/240V AC

1 Form C

Part No.

HC1-AC100V-R-F

HC1-AC120V-R-F

HC1-AC200V-R-F

HC1-AC240V-R-F

2 Form C

Part No.

HC2-AC100V-R-F

HC2-AC120V-R-F

HC2-AC200V-R-F

HC2-AC240V-R-F

3 Form C

Part No.

HC3-AC100V-R-F

HC3-AC120V-R-F

HC3-AC200V-R-F

HC3-AC240V-R-F

4 Form C

Part No.

HC4-AC100V-R

HC4-AC120V-R

HC4-AC200V-R

HC4-AC240V-R

4 Form C (twin)

Part No.

HC4D-AC100V-R

HC4D-AC120V-R

HC4D-AC200V-R

HC4D-AC240V-R

Standard packing: Carton: 20 pcs.; Case: 200 pcs.

2) Plug-in type (with LED indication)

Coil voltage

100/110V AC

110/120V AC

200/220V AC

220/240V AC

1 Form C

Part No.

HC1-L-AC100V-R-F

HC1-L-AC120V-R-F

HC1-L-AC200V-R-F

HC1-L-AC240V-R-F

2 Form C

Part No.

HC2-L-AC100V-R-F

HC2-L-AC120V-R-F

HC2-L-AC200V-R-F

HC2-L-AC240V-R-F

3 Form C

Part No.

HC3-L-AC100V-R-F

HC3-L-AC120V-R-F

HC3-L-AC200V-R-F

HC3-L-AC240V-R-F

4 Form C

Part No.

HC4-L-AC100V-R

HC4-L-AC120V-R

HC4-L-AC200V-R

HC4-L-AC240V-R

4 Form C (twin)

Part No.

HC4D-L-AC100V-R

HC4D-L-AC120V-R

HC4D-L-AC200V-R

HC4D-L-AC240V-R

Standard packing: Carton: 20 pcs.; Case: 200 pcs.

RATING

1. Coil data (Common for standard AC coil types)

2. Speciﬁcations

Characteristics

Electrical characteristics

Conditions

Item

Temperature rise

Conditions for operation, transport and storage*

Speciﬁcations

Max. 90°C (By resistive method, nominal voltage, rated current at 60°C)

Ambient temperature: –50°C to +60°C

–58°F to +140°F

Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)

Notes: Other speciﬁcations are same as standard types.

* The upper operation ambient temperature limit is the maximum temperature that can satisfy the coil temperature rise value.

Refer to 6. Conditions for operation, transport and storage mentioned in AMBIENT ENVIRONMENT.
