1-3640-601-5212 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1-3640-601-5212

1-3640-601-5212: DescriptionInterconnection Device,; CategoryThe connector The connector; File Size424KB，2 Pages; ManufacturerCarlisle Interconnect Components

Download Datasheet Parametric View All

1-3640-601-5212 Overview

Interconnection Device,

1-3640-601-5212 Parametric

Parameter Name	Attribute value
Maker	Carlisle Interconnect Components
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

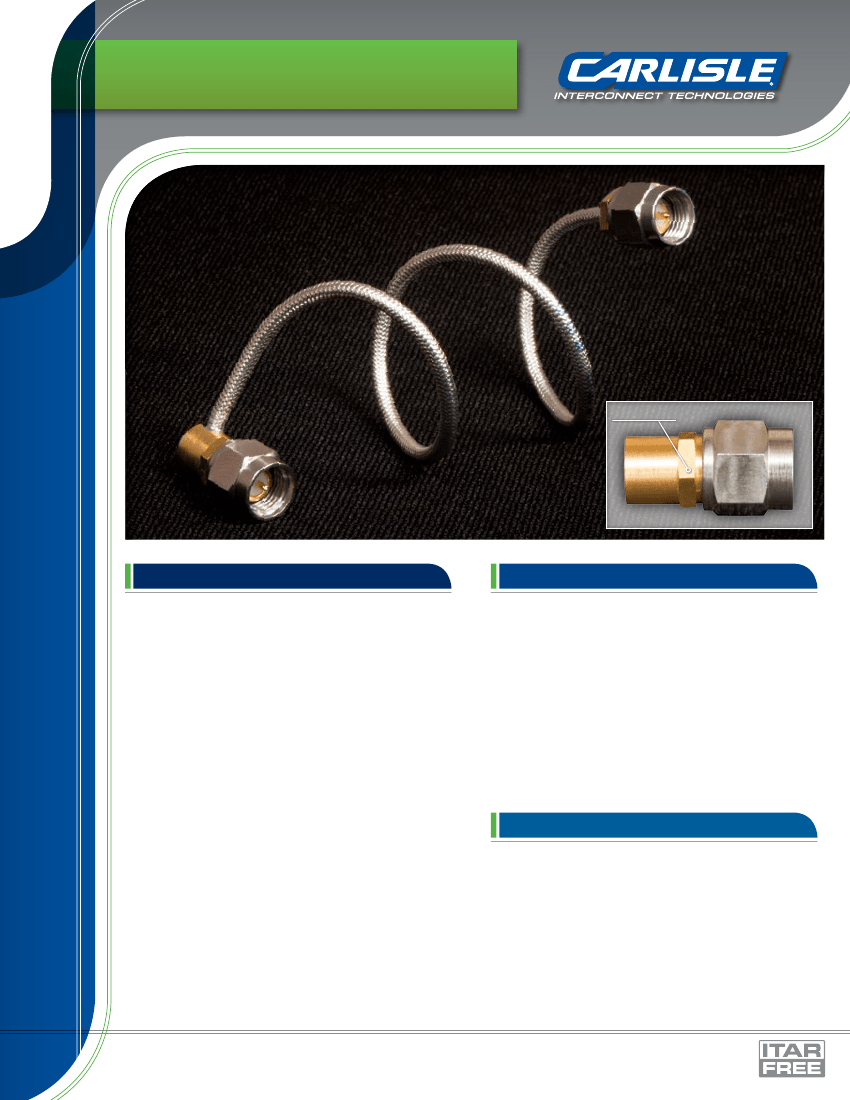

Semi-Flex

Cable Assemblies

DC - 40 GHz

Anti-Torque Design

Semi-Flex Cable Assembly

INTRODUCTION

Semi-Flex® coaxial cable assemblies are a tried and

proven alternative to traditional Semi-Rigid Coaxial

Cables. These cables provide comparable electrical

performance to semi-rigid cables, while simultaneously

allowing simple formation for use within RF/Microwave

systems, as well as, for making external connections to

other equipment. The outer conductor is comprised of a

tin filled copper wire braid, which enables easy forming

and re-forming by hand without the need for bending

tools. With a Copper/Poly Foil inner layer along with Semi-

Rigid style dielectric and center conductor, our Semi-Flex

cables provide enhanced shielding and performance that

exceeds traditional conformable cables.

There is no significant electrical performance degradation

when the Semi-Flex cables are formed into position. The

conformable property of the cable allows it to retain its

shape making field installations fast and simple. The

malleable nature of the outer jacket eliminates solder

joint failures and allows bends immediately behind

the fillet. These features, along with CarlisleIT’s Anti-

Torque connector designs (see inset) remarkably extend

the assemblies’ working life even after many connect/

disconnect cycles.

CarlisleIT’s Semi-Flex cable assemblies allow you to meet

deadlines, reduce cost, eliminate tooling and drafting

needs, and simplify manufacturing processes all at once.

FEATURES

» Hand-formable without the need for bending tools

» Excellent electrical performance; comparable to

semi-rigid cables

» 100% Shielded with two metal outer conductors

for reduced leakage

» Improved flexibility and bending radius compared

to semi-rigid

» Quick and Easy Assembly; available in various

lengths and connector options

» 1 Week Lead Time

CUSTOM SOLUTIONS

In addition to our standard offering, CarlisleIT has also

built a vast library of modified designs from the myriad

of custom solutions we have delivered to our customers.

We offer a variety of customized options for these semi-

flex cables, which include different connector options,

higher frequency coverage, extended environmental

testing, etc. Our team of dedicated Engineers can help

develop the right solution for your application needs.

Carlisle Interconnect Technologies

/ 12900 Alondra Blvd., Cerritos, CA 90703

Toll Free - 866.282.4708 / Fax - 562.494.0955 /

CarlisleIT.com
