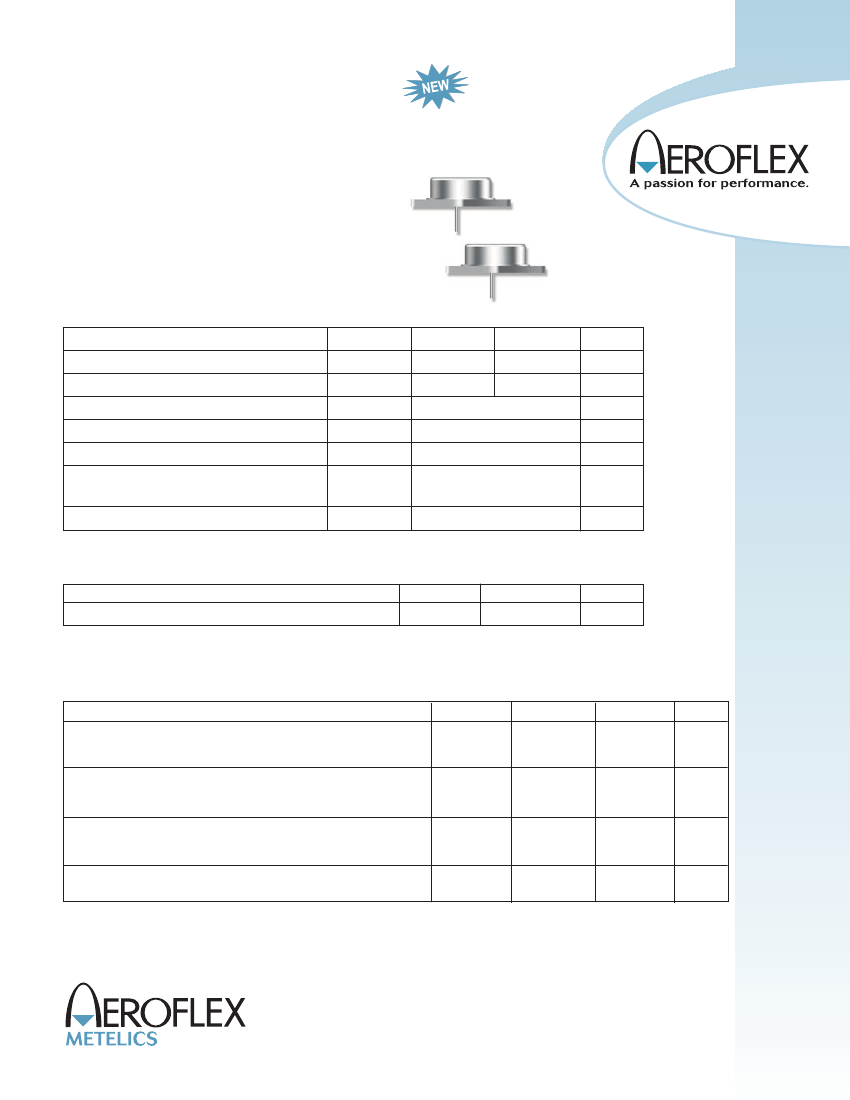

NPN Darlington Power
Silicon Transistor
2N6283 & 2N6284
Features
•
•
Available in JAN, JANTX, and JANTXV
per MIL-PRF-19500/504
TO-3 (TO-204AA) Package
Maximum Ratings
Ratings
Collector - Emitter Voltage
Collector - Base Voltage
Emitter - Base Voltage
Base Current
Collector Current
Total Power Dissipation @ TA = +25 °C (1)
@ TA = +100 °C
Operating & Storage Temperature Range
Symbol
VCEO
VCBO
VEBO
IB
IC
PT
Top, Tstg
2N6283
80
80
7.0
0.5
20
175
87.5
-65 to +200°C
2N6284
100
100
Units
Vdc
Vdc
Vdc
Adc
Adc
W
W
Thermal Characteristics
Characteristics
Thermal Resistance, Junction-to-Case
1) Derate linearly @ 1.0 mW/°C for TA > +25°C
Symbol
R
θJC
Maximum
0.857
Units
°C/W
Electrical Characteristics
OFF Characteristics
Collector - Emitter Breakdown Voltage
IC = 100 mAdc
2N6283
2N6284
Collector - Emitter Cutoff Current
VCE = 40 Vdc
VCE = 50 Vdc
Collector - Emitter Cutoff Current
VCE = 80 Vdc, VBE = -1.5 Vdc
VCE = 100 Vdc, VBE = -1.5 Vdc
Emitter - Base Cutoff Current
VEB = 7.0 Vdc
2N6283
2N6284
2N6283
2N6284
Symbol
V(BR)CEO
Mimimum
80
100
---
Maximum
---
Units
Vdc
ICEO
1.0
1.0
0.01
0.01
2.5
mAdc
ICEX
---
mAdc
IEBO
---
mAdc
Revision Date: 11/6/2014
1
2N6283 & 2N6284
Electrical Characteristics -con’t
ON Characteristics (2)
Forward Current Transfer Ratio
IC = 1.0 Adc, VCE = 3.0 Vdc
IC = 10.0 Adc, VCE = 3.0 Vdc
IC = 20.0 Adc, VCE = 3.0 Vdc
Collector - Emitter Saturation Voltage
IC = 20.0 Adc, IB = 200 mAdc
IC = 10.0 Adc, IB = 40 mAdc
Base - Emitter Saturation Voltage
IC = 20.0 Adc, IB = 200 mAdc
Base - Emitter Voltage
IC = 10.0 Adc, IB = 3.0 Vdc
HFE
Symbol
Minimum
Maximum
Unit
1,500
1,250
500
VCE(sat)
---
3.0
2.0
VBE(sat)
VBE
---
---
4.0
2.8
Vdc
Vdc
Vdc
18,000
DYNAMIC Characteristic
Magnitude of Common Emitter Small-Signal Short-Circuit
Forward Current Transfer Ratio
IC = 10.0 Adc, VCE = 3.0 Vdc, f = 1.0 kHz
Small-Signal Short-Circuit Forward Current Transfer Ratio
IC = 10.0 Adc, VCE = 3.0 Vdc, f = 1.0 kHz
Output Capacitance
VCB = 10 Vdc, IE = 0, 100 kHz
≤
f
≤
1.0 MHz
| hfe |
hfe
Cobo
8.0
700
---
80
---
350
pF
Switching Characteristic
Turn-On Time
VCC = 30 Vdc;
Turn-Off Time
VCC = 30 Vdc;
IC = 10.0 Adc; IB = 40 mAdc
IC = 10.0 Adc; IB1 = IB2 = 40 mAdc
ton
toff
---
---
2.0
10.0
μs
μs
SAFE OPERATING AREA
DC Tests:
Test 1:
Test 2:
Test 3:
TC = +25 °C, 1 Cycle, t = 1.0 s
VCE = 8.75 Vdc, IC = 20 Adc
VCE = 30 Vdc, IC = 5.8 Adc
VCE = 80 Vdc, IC = 100 mAdc
VCE = 100 Vdc, IC = 100 mAdc
(2) Pulse Test: Pulse Width = 300
μs,
Duty Cycle
≤2.0%.
2
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Revision Date: 11/6/2014
2N6283 & 2N6284

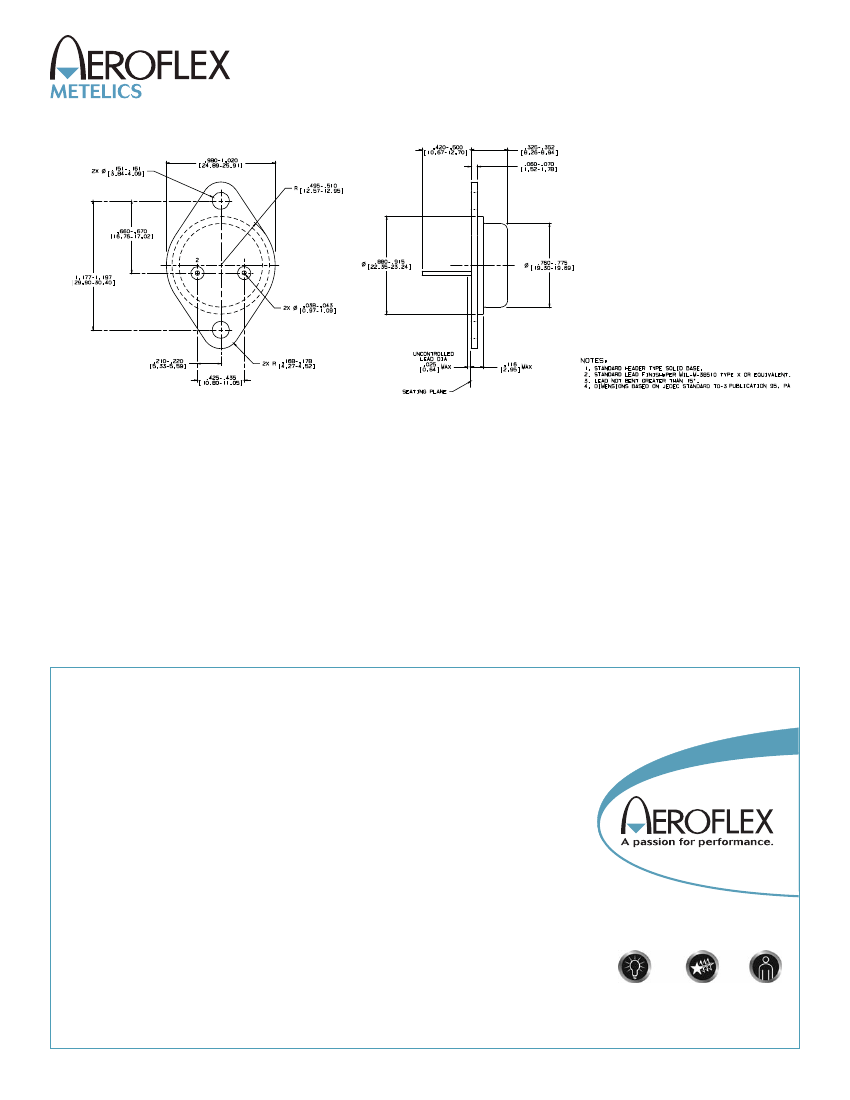

Outline Drawing
