Housing - HC-D 50-SMQ-81/O1M25 - 1604908
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

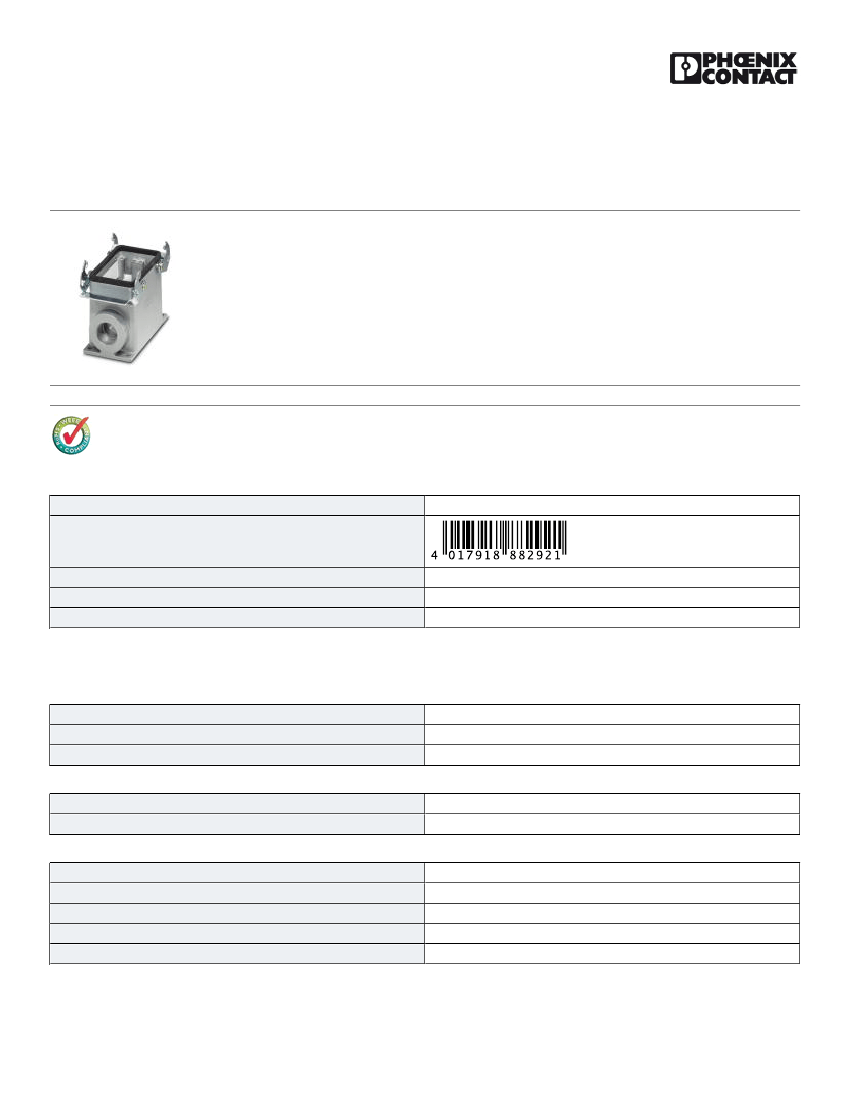

HEAVYCON box mounting base D50, with double locking latch, height 81 mm, with support 1xM25
Key commercial data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
599.5 GRM
85389099
Germany
1 PCE
Technical data
Dimensions
Height
Width
Length
81 mm
59 mm
106 mm
Ambient conditions
Degree of protection of housing (IP)
Ambient temperature (operation)
IP65
-40 °C ... 125 °C
General
Note
Design
Housing type
Locking type
No. of cable exits
For contact inserts HC-D25, A16/A32
D50
Box mounting bases
With double locking latch
1
12/6/13 Page 1 / 4
https://www.phoenixcontact.com/us/products/1604908
Housing - HC-D 50-SMQ-81/O1M25 - 1604908
Technical data
General
Cable exit
Screw connection
Type of the screw connection
Housing material
Housing surface material
Seal material
Material lock
Lateral
None
1x M25
Aluminum die-cast
Powder-coated, gray
NBR
Steel, galvanized
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140816
27140816
27143424
27143424
27143424
27440209
27440209
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000437
EC000437
EC000437
EC000437
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261502
31261502
31261502
31261502
31261502
Approvals
Approvals
Approvals
GOST
12/6/13 Page 2 / 4
https://www.phoenixcontact.com/us/products/1604908
Housing - HC-D 50-SMQ-81/O1M25 - 1604908
Approvals
Ex Approvals
Approvals submitted
Approval details
GOST
Accessories
Accessories

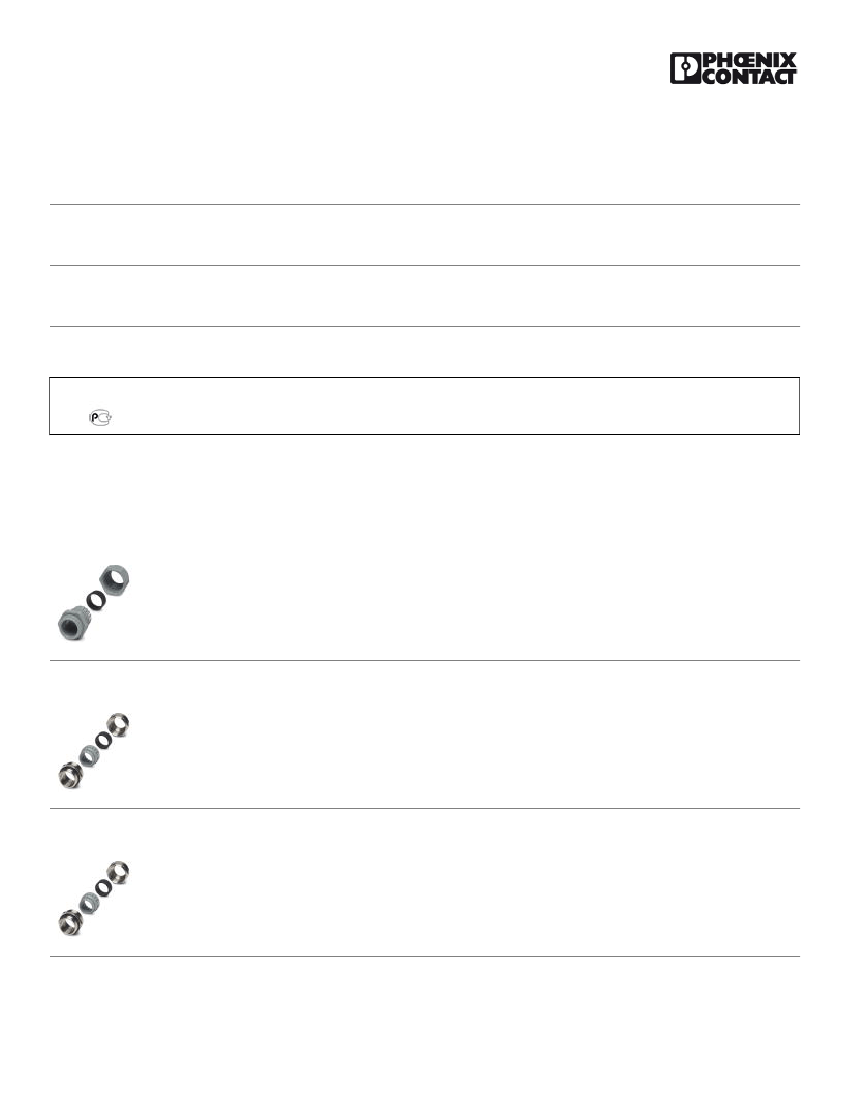

Full screw connection
Cable gland - HC-K-KV-M25(11-17) - 1690639
Plastic screw connection up to 5 bar, thread length: 8 mm, cable diameter: 11 - 17 mm, WAF 29, screw connection: M25
Cable gland - HC-M-KV-M25(11-16) - 1690574
Metal screw connection up to 5 bar, thread length: 7 mm, cable diameter: 11 - 16 mm, WAF 27, screw connection: M25
Cable gland - HC-M-KV-M25(14-21) - 1646007
Metal screw connection up to 5 bar, thread length: 7 mm, cable diameter: 14 - 21 mm, WAF 34, screw connection: M25
12/6/13 Page 3 / 4
https://www.phoenixcontact.com/us/products/1604908
Housing - HC-D 50-SMQ-81/O1M25 - 1604908
Accessories
Cable gland - HC-M-KV-M25(1ASI) - 1584020
Metal screw connection for an AS-Interface flat-ribbon conductor, thread type M25
Multiple screw connection
Cable gland - HC-M-KV-M25(1X10/1X11) - 1580228
Special cable screw connection M25, brass nickel-plated, grommet with 10 mm and 11 mm holes
Drawings

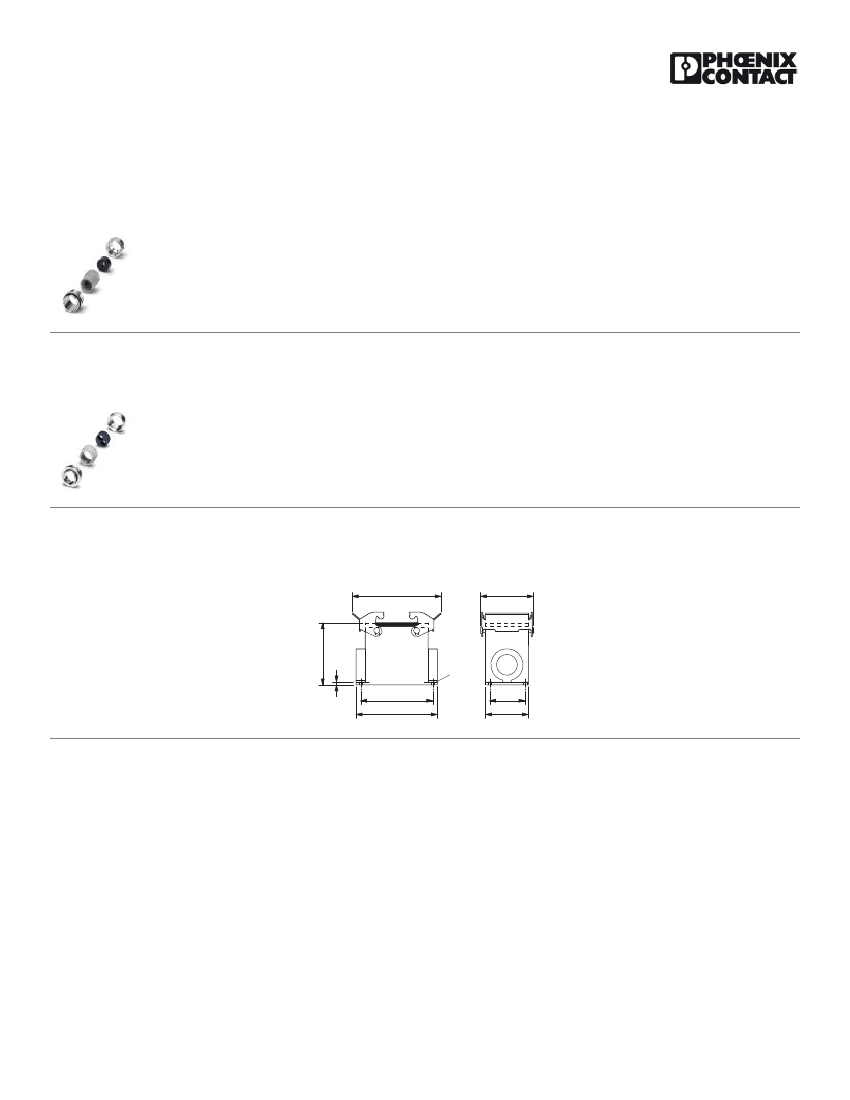

Dimensioned drawing
128
70
h
4
Ø4,5
94
106
46
59
