DS12887
Real Time Clock
www.dalsemi.com
FEATURES
§
§
§
§
§
§
§
§
§
§
§
Drop–in replacement for IBM AT computer
clock/calendar
Pin-compatible with the MC146818B and
DS1287
Totally nonvolatile with over 10 years of
operation in the absence of power
Self–contained subsystem includes lithium,
quartz, and support circuitry
Counts seconds, minutes, hours, days, day of
the week, date, month, and year with leap
year compensation valid up to 2100
Binary or BCD representation of time,
calendar, and alarm
12– or 24–hour clock with AM and PM in
12–hour mode
Daylight Savings Time option
Selectable between Motorola and Intel bus
timing
Multiplex bus for pin efficiency
Interfaced with software as 128 RAM
locations
– 14 bytes of clock and control registers
– 114 bytes of general purpose RAM
Programmable square wave output signal
Bus–compatible interrupt signals (
IRQ
)
Three interrupts are separately software–
maskable and testable
– Time–of–day alarm once/second to
once/day
– Periodic rates from 122 ms to 500 ms
– End of clock update cycle

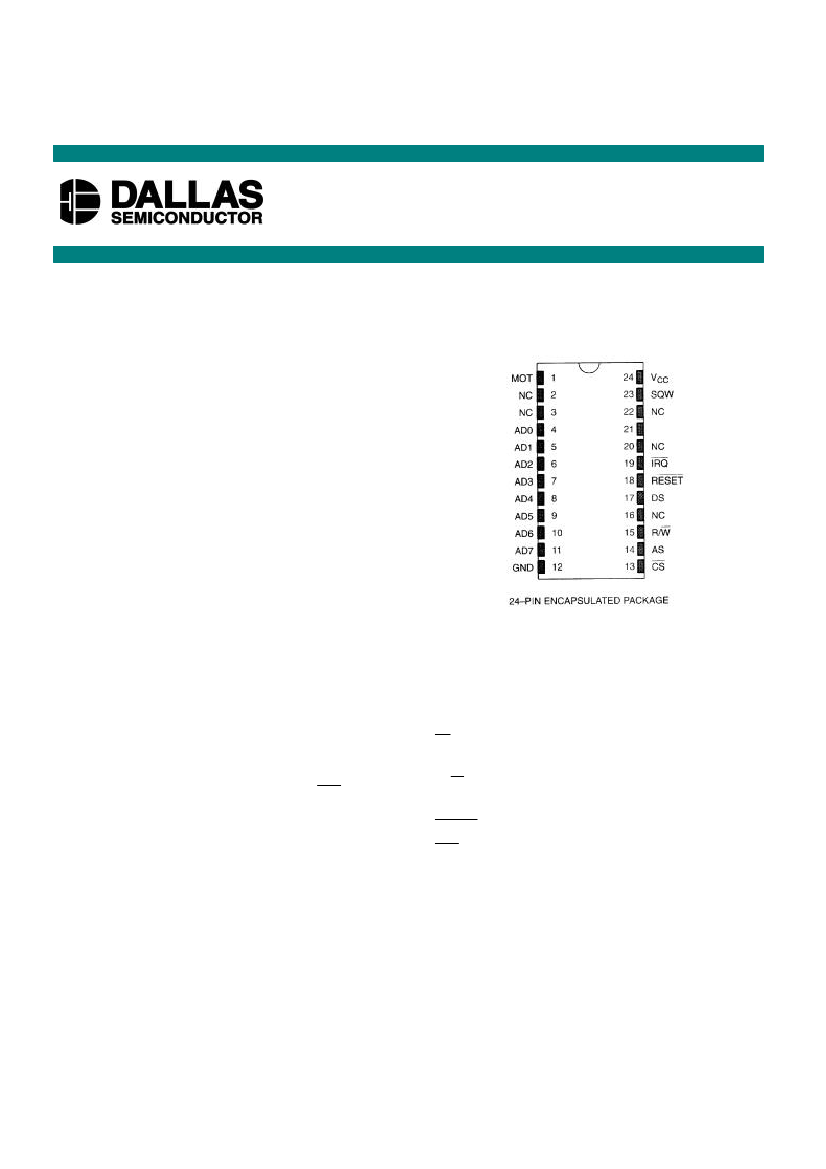

PIN ASSIGNMENT
NC
PIN DESCRIPTION
AD0–AD7
NC
MOT
CS
§
§
§
AS
R/
W
DS
RESET
IRQ
SQW
V
CC
GND
– Multiplexed Address/Data Bus
– No Connection
– Bus Type Selection
– Chip Select
– Address Strobe
– Read/Write Input
– Data Strobe
– Reset Input
– Interrupt Request Output
– Square Wave Output
– +5 Volt Supply
– Ground
DESCRIPTION
The DS12887 Real Time Clock plus RAM is designed to be a direct replacement for the DS1287. The
DS12887 is identical in form, fit, and function to the DS1287, and has an additional 64 bytes of general
purpose RAM. Access to this additional RAM space is determined by the logic level presented on AD6
during the address portion of an access cycle. A lithium energy source, quartz crystal, and write–
protection circuitry are contained within a 24–pin dual in-line package. As such, the DS12887 is a
complete subsystem replacing 16 components in a typical application. The functions include a nonvolatile
time–of–day clock, an alarm, a one-hundred–year calendar, programmable interrupt, square wave
1 of 19
110899
DS12887
generator, and 114 bytes of nonvolatile static RAM. The real time clock is distinctive in that time–of–day
and memory are maintained even in the absence of power.
OPERATION
The block diagram in Figure 1 shows the pin connections with the major internal functions of the
DS12887. The following paragraphs describe the function of each pin.

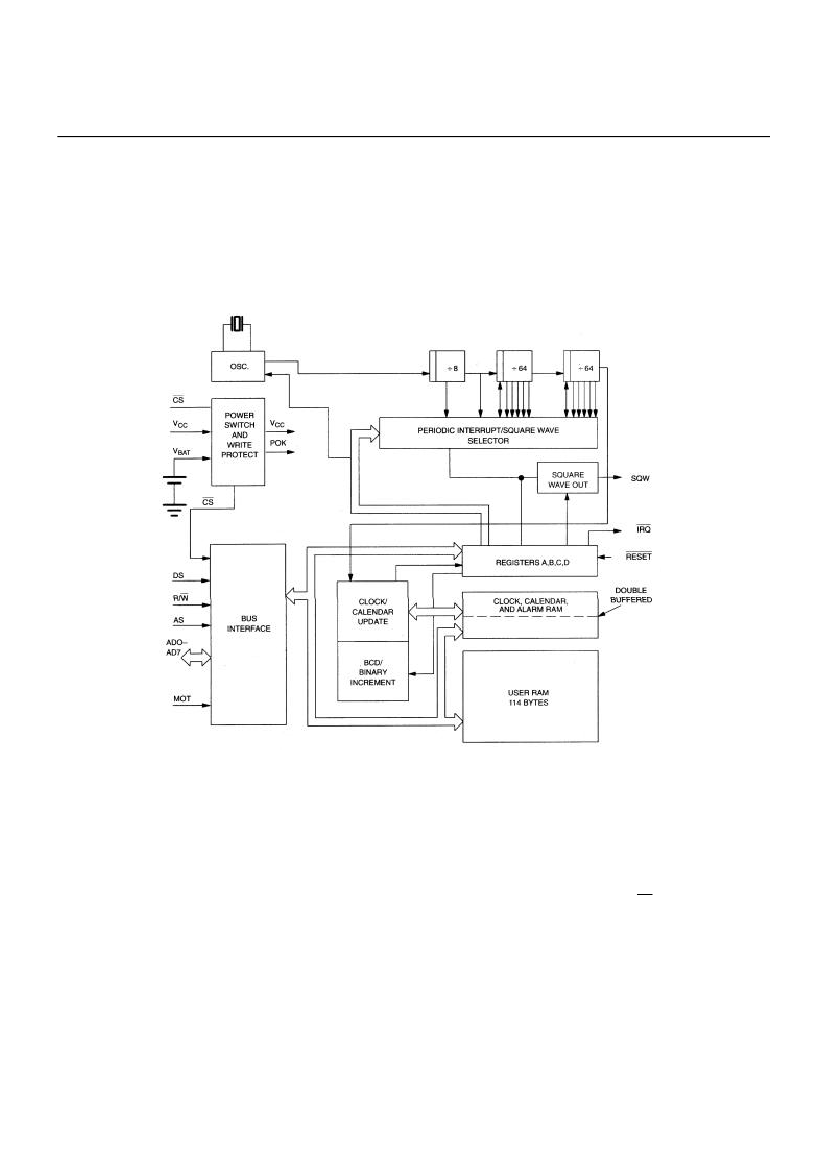

BLOCK DIAGRAM DS12887
Figure 1
POWER–DOWN/POWER–UP CONSIDERATIONS
The Real Time Clock function will continue to operate and all of the RAM, time, calendar, and alarm
memory locations remain nonvolatile regardless of the level of the V
CC
input. When V
CC
is applied to the
DS12887 and reaches a level of greater than 4.25 volts, the device becomes accessible after 200 ms,
provided that the oscillator is running and the oscillator countdown chain is not in reset (see Register A).
This time period allows the system to stabilize after power is applied. When V
CC
falls below 4.25 volts,
the chip select input is internally forced to an inactive level regardless of the value of
CS
at the input pin.
The DS12887 is, therefore, write–protected. When the DS12887 is in a write–protected state, all inputs
are ignored and all outputs are in a high impedance state. When V
CC
falls below a level of approximately
3 volts, the external V
CC
supply is switched off and an internal lithium energy source supplies power to
the Real Time Clock and the RAM memory.
SIGNAL DESCRIPTIONS
GND, V
CC
– DC power is provided to the device on these pins. V
CC
is the +5 volt input. When 5 volts are
applied within normal limits, the device is fully accessible and data can be written and read. When V
CC
is
below 4.25 volts typical, reads and writes are inhibited. However, the timekeeping function continues
2 of 19
DS12887
unaffected by the lower input voltage. As V
CC
falls below 3 volts typical, the RAM and timekeeper are
switched over to an internal lithium energy source. The timekeeping function maintains an accuracy of
±1
minute per month at 25°C regardless of the voltage input on the V
CC
pin.
MOT (Mode Select) –
The MOT pin offers the flexibility to choose between two bus types. When
connected to V
CC
, Motorola bus timing is selected. When connected to GND or left disconnected, Intel
bus timing is selected. The pin has an internal pulldown resistance of approximately 20 kΩ.
SQW (Square Wave Output) –
The SQW pin can output a signal from one of 13 taps provided by the
15 internal divider stages of the Real Time Clock. The frequency of the SQW pin can be changed by
programming Register A as shown in Table 1. The SQW signal can be turned on and off using the SQWE
bit in Register B. The SQW signal is not available when V
CC
is less than 4.25 volts, typically.
PERIODIC INTERRUPT RATE AND SQUARE
WAVE OUTPUT FREQUENCY
Table 1
SELECT BITS REGISTER A
RS3
RS2
RS1
RS0
0
0
0
0
0
0
0
1
0
0
1
0
0
0
1
1
0
1
0
0
0
1
0
1
0
1
1
0
0
1
1
1
1
0
0
0
1
0
0
1
1
0
1
0
1
0
1
1
1
1
0
0
1
1
0
1
1
1
1
0
1
1
1
1
t
PI
PERIODIC
INTERRUPT RATE
None
3.90625 ms
7.8125 ms
122.070
µs
244.141
µs
488.281
µs
976.5625
µs
1.953125 ms
3.90625 ms
7.8125 ms
15.625 ms
31.25 ms
62.5 ms
125 ms
250 ms
500 ms
SQW OUTPUT
FREQUENCY
None
256 Hz
128 Hz
8.192 kHz
4.096 kHz
2.048 kHz
1.024 kHz
512 Hz
256 Hz
128 Hz
64 Hz
32 Hz
16 Hz
8 Hz
4 Hz
2 Hz
AD0–AD7 (Multiplexed Bidirectional Address/Data Bus)
– Multiplexed buses save pins because
address information and data information time-share the same signal paths. The addresses are present
during the first portion of the bus cycle and the same pins and signal paths are used for data in the second
portion of the cycle. Address/data multiplexing does not slow the access time of the DS12887 since the
bus change from address to data occurs during the internal RAM access time. Addresses must be valid
prior to the falling edge of AS/ ALE, at which time the DS12887 latches the address from AD0 to AD6.
Valid write data must be present and held stable during the latter portion of the DS or
WR
pulses. In a
read cycle the DS12887 outputs 8 bits of data during the latter portion of the DS or
RD
pulses. The read
cycle is terminated and the bus returns to a high impedance state as DS transitions low in the case of
Motorola timing or as
RD
transitions high in the case of Intel timing.
AS (Address Strobe Input)
– A positive-going address strobe pulse serves to demultiplex the bus. The
falling edge of AS/ALE causes the address to be latched within the DS12887. The next rising edge that
3 of 19
DS12887
occurs on the AS bus will clear the address regardless of whether
CS
is asserted. Access commands
should be sent in pairs.
DS (Data Strobe or Read Input)
– The DS/
RD
pin has two modes of operation depending on the level
of the MOT pin. When the MOT pin is connected to V
CC
, Motorola bus timing is selected. In this mode
DS is a positive pulse during the latter portion of the bus cycle and is called Data Strobe. During read
cycles, DS signifies the time that the DS12887 is to drive the bidirectional bus. In write cycles the trailing
edge of DS causes the DS12887 to latch the written data. When the MOT pin is connected to GND, Intel
bus timing is selected. In this mode the DS pin is called Read (
RD
).
RD
identifies the time period when
the DS12887 drives the bus with read data. The
RD
signal is the same definition as the Output Enable
(
OE
) signal on a typical memory.
R/
W
(Read/Write Input)
– The R/
W
pin also has two modes of operation. When the MOT pin is
connected to V
CC
for Motorola timing, R/
W
is at a level which indicates whether the current cycle is a
read or write. A read cycle is indicated with a high level on R/
W
while DS is high. A write cycle is
indicated when R/
W
is low during DS.
When the MOT pin is connected to GND for Intel timing, the R/
W
signal is an active low signal called
WR. In this mode the R/
W
pin has the same meaning as the Write Enable signal (
WE
) on generic RAMs.
CS
(Chip Select Input)
– The Chip Select signal must be asserted low for a bus cycle in the DS12887 to
be accessed.
CS
must be kept in the active state during DS and AS for Motorola timing and during
RD
and
WR
for Intel timing. Bus cycles which take place without asserting
CS
will latch addresses but no
access will occur. When V is below 4.25 volts, the DS12887 internally inhibits access cycles by
CC
internally disabling the
CS
input. This action protects both the real time clock data and RAM data during
power outages.
IRQ
(Interrupt Request Output)
– The
IRQ
pin is an active low output of the DS12887 that can be
used as an interrupt input to a processor. The
IRQ
output remains low as long as the status bit causing the
interrupt is present and the corresponding interrupt–enable bit is set. To clear the
IRQ
pin the processor
program normally reads the C register. The
RESET
pin also clears pending interrupts.
When no interrupt conditions are present, the
IRQ
level is in the high impedance state. Multiple
interrupting devices can be connected to an
IRQ
bus. The
IRQ
bus is an open drain output and requires an
external pullup resistor.
RESET
(Reset Input) –
The
RESET
pin has no effect on the clock, calendar, or RAM. On power–up the
RESET
pin can be held low for a time in order to allow the power supply to stabilize. The amount of time
that
RESET
is held low is dependent on the application. However, if
RESET
is used on power–up, the
time
RESET
is low should exceed 200 ms to make sure that the internal timer that controls the DS12887
on power-up has timed out. When
RESET
is low and V
CC
is above 4.25 volts, the following occurs:
4 of 19
DS12887
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
Periodic Interrupt Enable (PEI) bit is cleared to 0.
Alarm Interrupt Enable (AIE) bit is cleared to 0.
Update Ended Interrupt Flag (UF) bit is cleared to 0.
Interrupt Request Status Flag (IRQF) bit is cleared to 0.
Periodic Interrupt Flag (PF) bit is cleared to 0.
The device is not accessible until
RESET
is returned high.
Alarm Interrupt Flag (AF) bit is cleared to 0.
IRQ
pin is in the high impedance state.
Square Wave Output Enable (
SQWE
) bit is cleared to 0.
Update Ended Interrupt Enable (UIE) is cleared to 0.
In a typical application
RESET
can be connected to V
CC
. This connection will allow the DS12887 to go in
and out of power fail without affecting any of the control registers.
ADDRESS MAP
The address map of the DS12887 is shown in Figure 2. The address map consists of 114 bytes of user
RAM, 10 bytes of RAM that contain the RTC time, calendar, and alarm data, and 4 bytes which are used
for control and status. All 128 bytes can be directly written or read except for the following:
1. Registers C and D are read–only.
2. Bit 7 of Register A is read–only.
3. The high order bit of the seconds byte is read–only.
The contents of four registers (A,B,C, and D) are described in the “Registers” section.

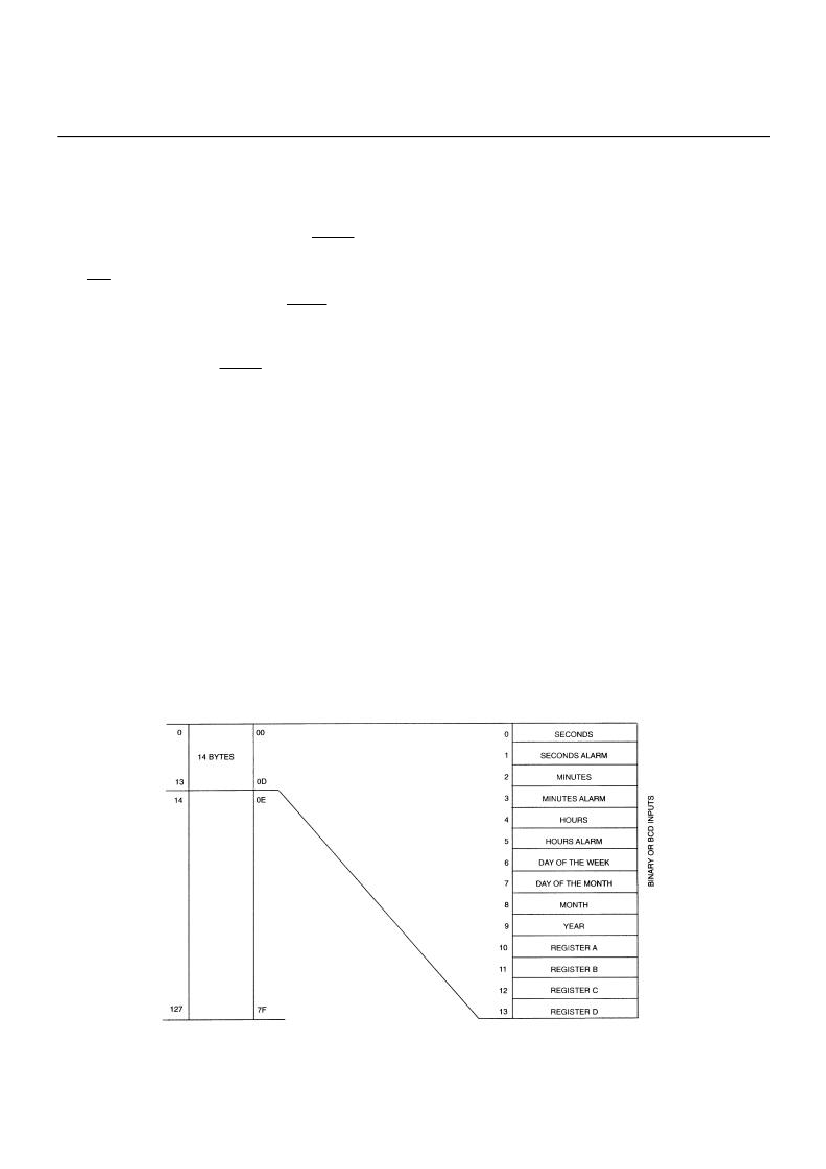

ADDRESS MAP DS12887
Figure 2
5 of 19
MCU
