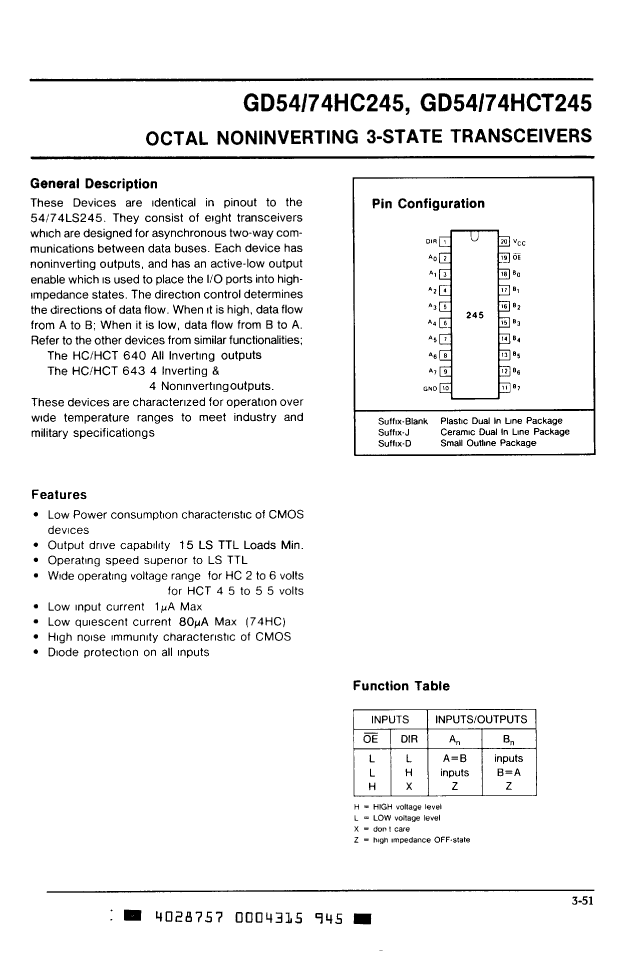

GD74HC245 Overview

Bus Transceiver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, DIP-20

Parameter Name	Attribute value
Maker	MagnaChip
package instruction	DIP,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDIP-T20
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

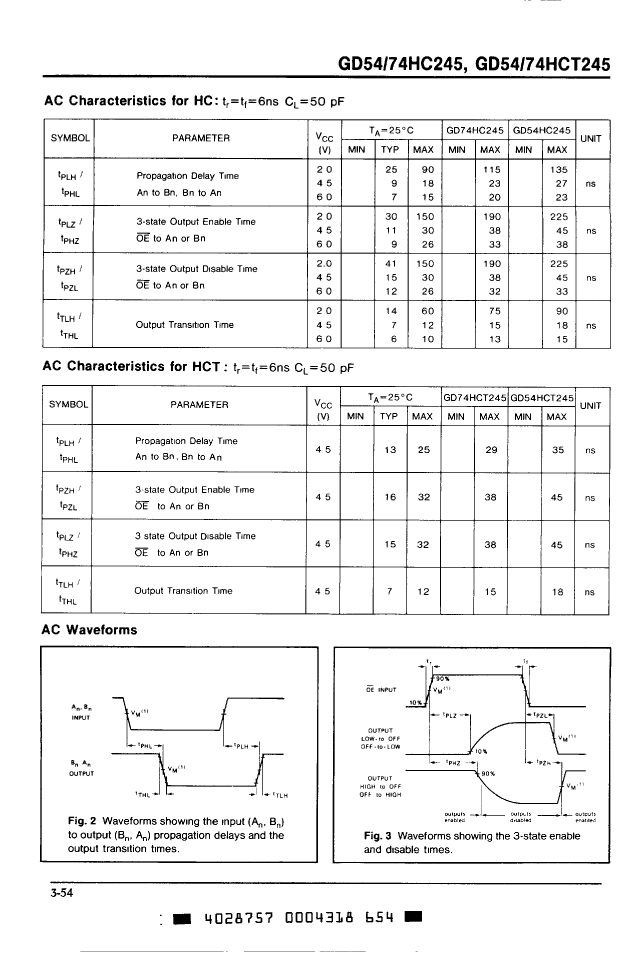

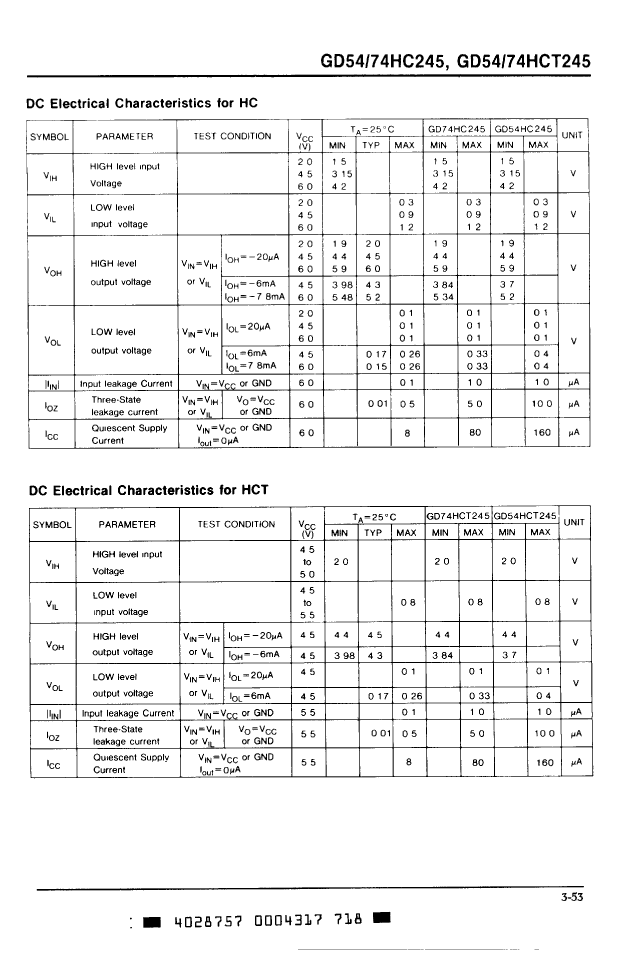

propagation delay (tpd)	115 ns

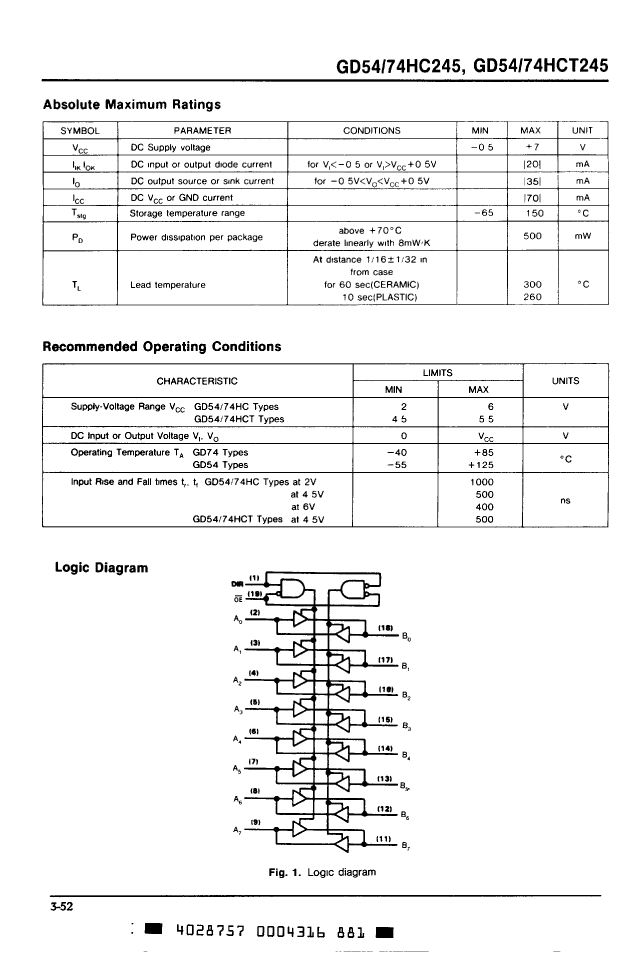

Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	GD74HC245	GD74HCT245D	GD74HCT245	GD74HC245D
Description	Bus Transceiver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20, DIP-20	Bus Driver/Transceiver	Bus Driver/Transceiver	Bus Transceiver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, SOP-20
Maker	MagnaChip	MagnaChip	MagnaChip	MagnaChip
Reach Compliance Code	unknown	unknown	unknown	unknown
