47215LCR

Description
Slide Switch, SPDT, Latched, 0.5A, 125VDC, Solder Terminal, Panel Mount,
CategoryMechanical and electronic products    switch
File Size140KB,4 Pages
ManufacturerSwitchcraft
Download Datasheet Parametric View All

47215LCR Overview

Slide Switch, SPDT, Latched, 0.5A, 125VDC, Solder Terminal, Panel Mount,

47215LCR Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator typeKNOB TYPE
Contact (AC) maximum rated R load3A@125VAC
Maximum contact current (AC)3 A
Maximum contact current (DC)0.5 A
Contact (DC) maximum rated R load.5A@125VDC
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)125 V
JESD-609 codee4
Manufacturer's serial number47200R
Installation featuresPANEL MOUNT
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
surface mountNO
Switch actionLATCHED
switch functionSPDT
Switch typeSLIDE SWITCH
Terminal surfaceSILVER
Termination typeSOLDER
Base Number Matches1
Switchcraft
Page 1 of 4
Previous Page
|
Return to Index
|
Next Page

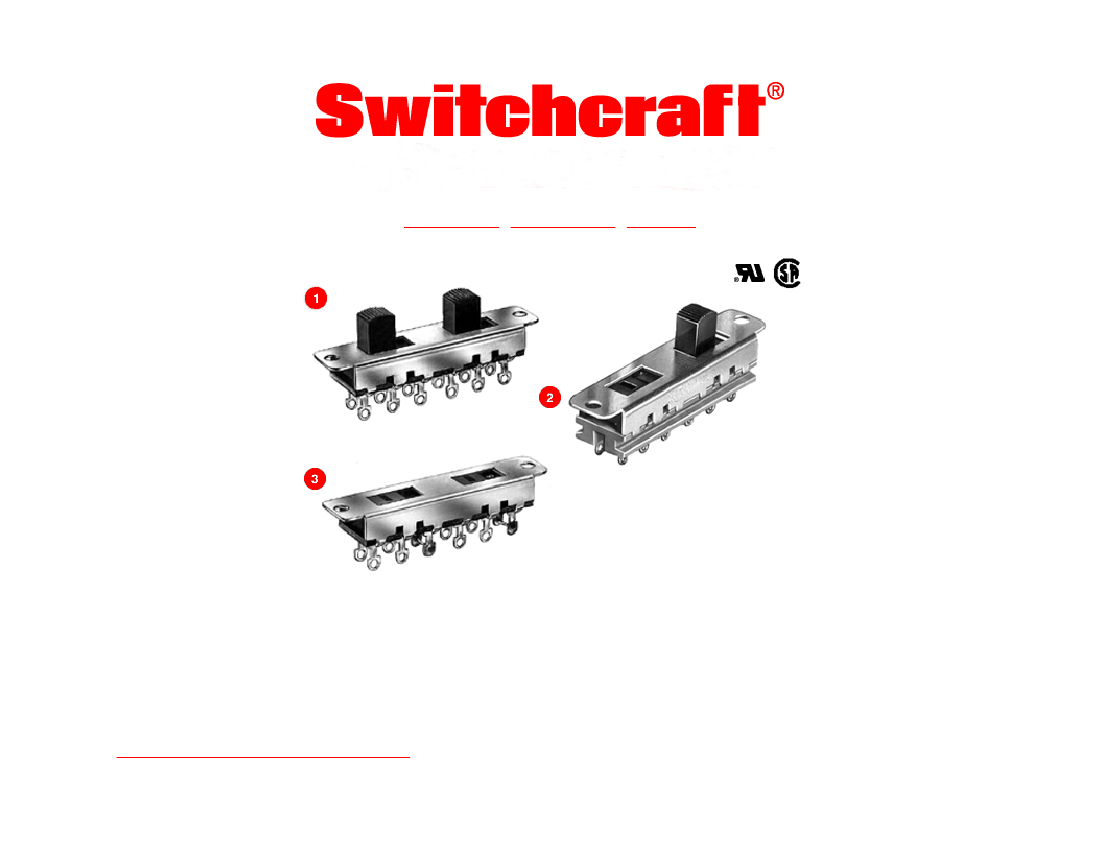

GENERAL PURPOSE SLIDE SWITCHES - TANDEM
SERIES 47200E, 47200R - 2 POSITION
1.
47206LR
2.
47206LCE
3.
47227LFR
click here to download a schematic drawing
http://www.switchcraft.com/products/switch-289.html
12/14/2007
