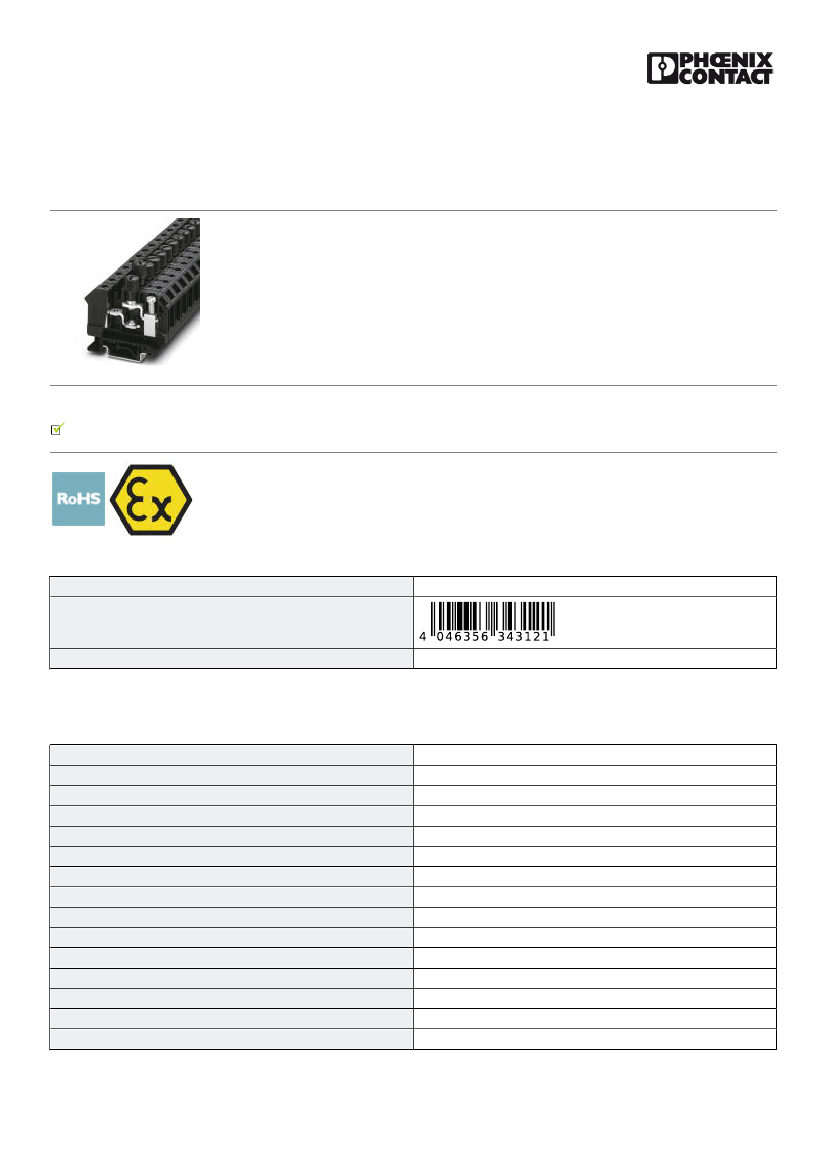

Fuse modular terminal block - UK 10-DREHSI-EX (5X20) - 3073953
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Fuse terminal block for cartridge fuse insert, cross section: 0.5 - 16 mm², AWG: 24 - 6, width: 12 mm, color:
black
Why buy this product
Can be bridged with FBI ... fixed bridge
Key Commercial Data
Packing unit
GTIN
GTIN
4046356343121
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum power dissipation for nominal condition
Fuse
Fuse type
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Connection in acc. with standard
Maximum load current
1
2
16 mm²
black
PA
V2
2.43 W
G / 5 x 20
Glass / ceramics / ...
4 kV
3
III
I
IEC 60947-7-3
10 A
09/30/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3073953
Fuse modular terminal block - UK 10-DREHSI-EX (5X20) - 3073953
Technical data
General
Nominal current I
N
Nominal voltage U
N
Open side panel
10 A
500 V (As a fuse terminal block)
800 V (As a disconnect terminal block)
No
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
12 mm
62 mm
57.2 mm
64.7 mm
62.2 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
0.5 mm²
16 mm²
0.5 mm²
16 mm²
20
6
0.5 mm²
0.5 mm²
10 mm²
10 mm²
10 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
10 mm²
10 mm²
10 mm²
Screw connection
11 mm
B6
M4
09/30/2018 Page 2 / 4
Conductor cross section flexible, with ferrule without plastic sleeve max. 10 mm²
https://www.phoenixcontact.com/pi/products/3073953
Fuse modular terminal block - UK 10-DREHSI-EX (5X20) - 3073953
Technical data
Connection data
Tightening torque, min
Tightening torque max
1.5 Nm
1.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-3
V2
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Approvals
Approvals
Approvals
EAC
Ex Approvals
IECEx / ATEX
Approval details
EAC
EAC-Zulassung
09/30/2018 Page 3 / 4
