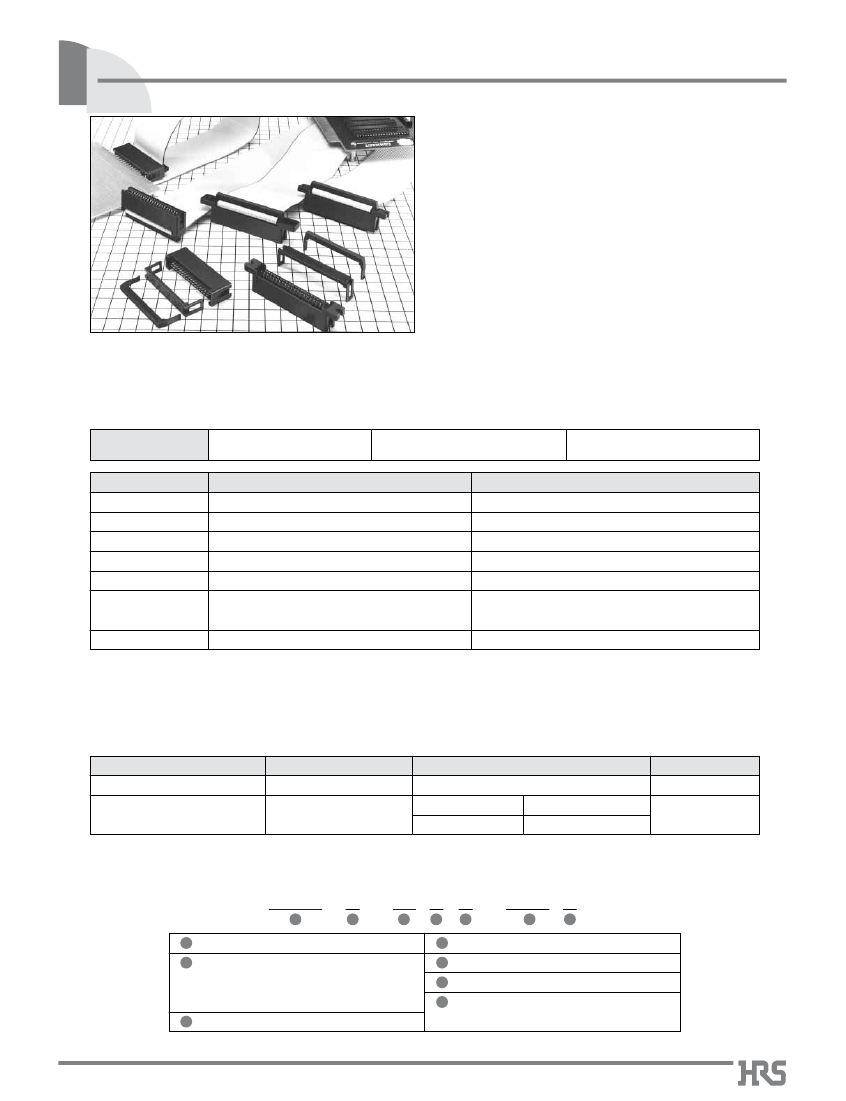

Card Edge Type Ribbon Cable Connector
HIF5 Series
■
Features
1. Product Variation
The area to install the connector body is classified into three types according to full
hole mounting area, semi-mounting area and non-mounting area.
2. Mounting Density Enhancement
This connector is designed so that the ribbon cable can turn
back within the connector molding range. The connector can be
installed without coming out of the insulator.
3. Applicable Cable
The applicable cable is a <UL2651>AWG
#
28 flat cable
(7 pcs./0.127mm, jacket dia.: 0.8~1.0mm).
■
Applications
Computers, FDD, various kinds of electronic equipment.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(–65ç: 30 minutes
➝
15 to 35ç: 5 minutes max.
125ç: 30 minutes
➝
15 to 35ç: 5 minutes max.) 5 cycles
500 cycles
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and
specifications for a specific part number shown.
■
Material
Part
Insulator
Contact
Material
PBT
Copper alloy
Contact area
Connection area
Finish
Black
Gold plated over nickel underplated
Nickel plated
Remarks
UL94V-0
---------------
■
Ordering Information
HIF5
1
1
Series Name: HIF5
B -
*
D A - 2.54 R
2
3
4
5
6
7
4
Contact alignment: D : Double
5
Plating type: A : Selective gold plated
6
Contact Pitch: 2.54mm
7
Connection type: R : Ribbon cable
2
Mold type B: With full mounting hole
C: With half mounting hole
D: Without mounting hole
3
Number of contacts: 20, 26, 34, 40, 50, 60
B59
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Type
be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

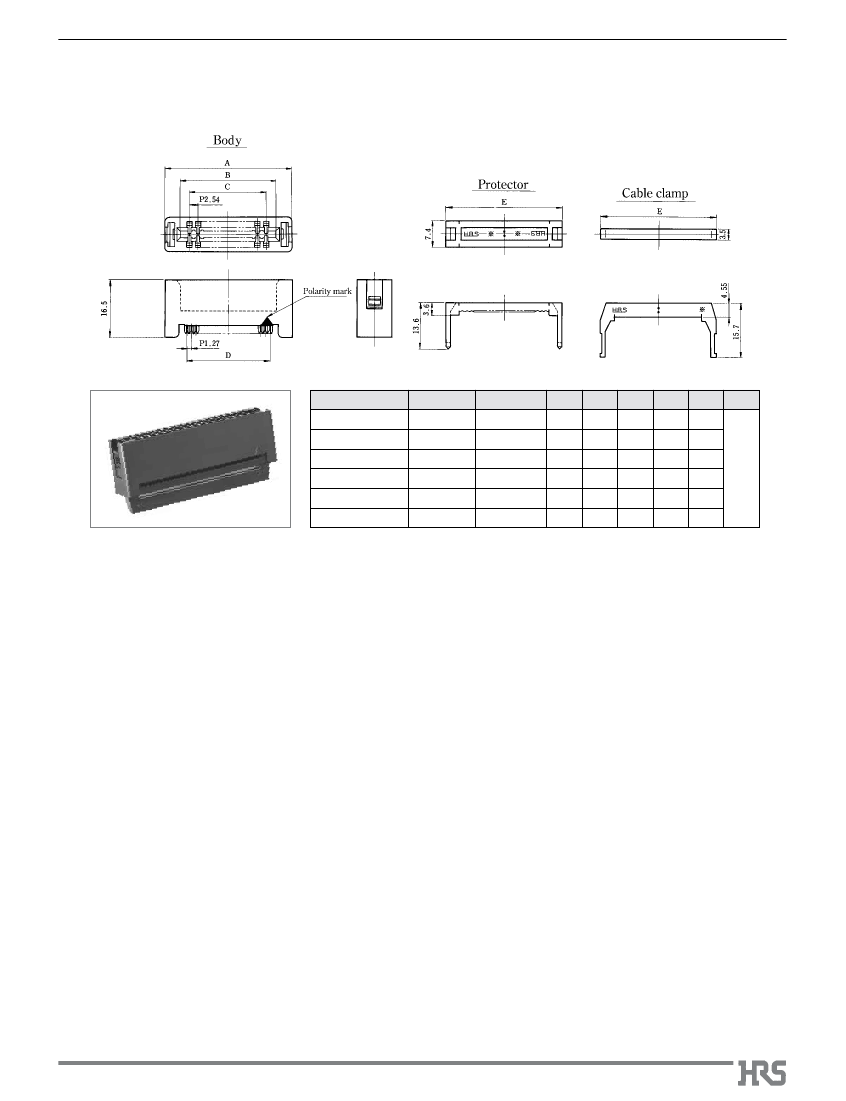

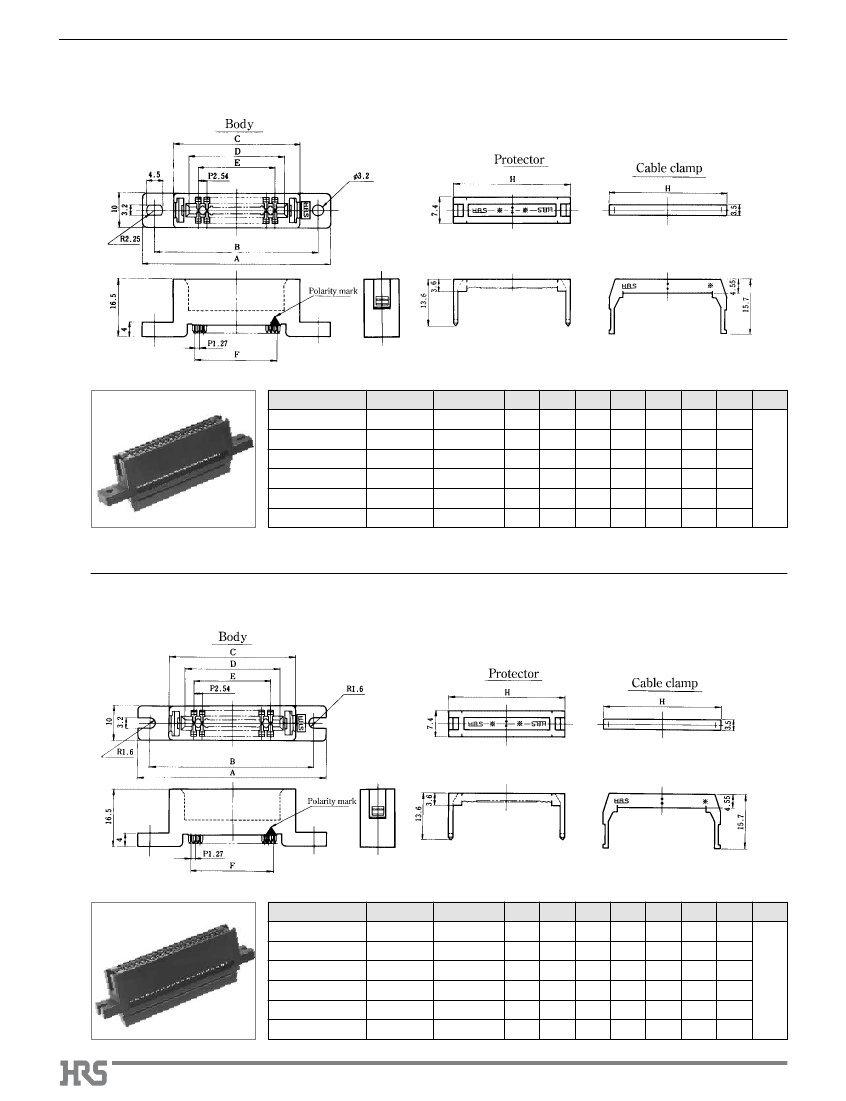

HIF5 Series●Card Edge
or will
Ribbon Cable Connector
■
With Mounting Full Hole
Part Number
CL No.
Number of Contacts
20
26
34
40
50
60
A
56
B
C
D
E
F
H
RoHS
HIF5B-20DA-2.54R(71) 564-0014-5-71
HIF5B-26DA-2.54R(71) 564-0015-8-71
HIF5B-34DA-2.54R(71) 564-0016-0-71
HIF5B-40DA-2.54R(71) 564-0017-3-71
HIF5B-50DA-2.54R(71) 564-0018-6-71
HIF5B-60DA-2.54R(71) 564-0019-9-71
48.26 36.04 28.04 22.86 24.13 33.54
63.62 55.88 43.66 35.66 30.48 31.75 41.16
73.78 66.04 53.82 45.82 40.64 41.91 51.32
81.40 73.66 61.44 53.44 48.26 49.53 58.94
94.10 86.36 74.14 66.14 60.96 62.23 71.64
106.8 99.06 86.84 78.84 73.66 74.93 84.34
YES
■
With Mounting Half hole
Part Number
CL No.
Number of Contacts
20
26
34
40
50
60
A
B
C
D
E
F
H
RoHS
HIF5C-20DA-2.54R(71) 564-0020-8-71
HIF5C-26DA-2.54R(71) 564-0021-0-71
HIF5C-34DA-2.54R(71) 564-0022-3-71
HIF5C-40DA-2.54R(71) 564-0023-6-71
HIF5C-50DA-2.54R(71) 564-0024-9-71
HIF5C-60DA-2.54R(71) 564-0025-1-71
50.80 45.72 36.04 28.04 22.86 24.13 33.54
58.42 53.34 43.66 35.66 30.48 31.75 41.16
68.58 63.50 53.82 45.82 40.64 41.91 51.32
76.20 71.12 61.44 53.44 48.26 49.53 58.94
88.90 83.82 74.14 66.14 60.96 62.23 71.64
101.6 96.52 86.84 78.84 73.66 74.93 84.34
YES
B60
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or
Ribbon Cable Connector
HIF5 Series●Card Edge Type
contact your Hirose sales representative.
■
Without Mounting Hole
Part Number
CL No.
Number of Contacts
20
26
34
40
50
60
A
B
C
D
E
RoHS
HIF5D-20DA-2.54R(71) 564-0026-4-71
HIF5D-26DA-2.54R(71) 564-0027-7-71
HIF5D-34DA-2.54R(71) 564-0028-0-71
HIF5D-40DA-2.54R(71) 564-0029-2-71
HIF5D-50DA-2.54R(71) 564-0030-1-71
HIF5D-60DA-2.54R(71) 564-0031-4-71
36.04 28.04 22.86 24.13 33.54
43.66 35.66 30.48 31.75 41.16
53.82 45.82 40.64 41.91 51.32
61.44 53.44 48.26 49.53 58.94
74.14 66.14 60.96 62.23 71.64
86.84 78.84 73.66 74.93 84.34
YES
B61
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Type
be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF5 Series●Card Edge
or will
Ribbon Cable Connector

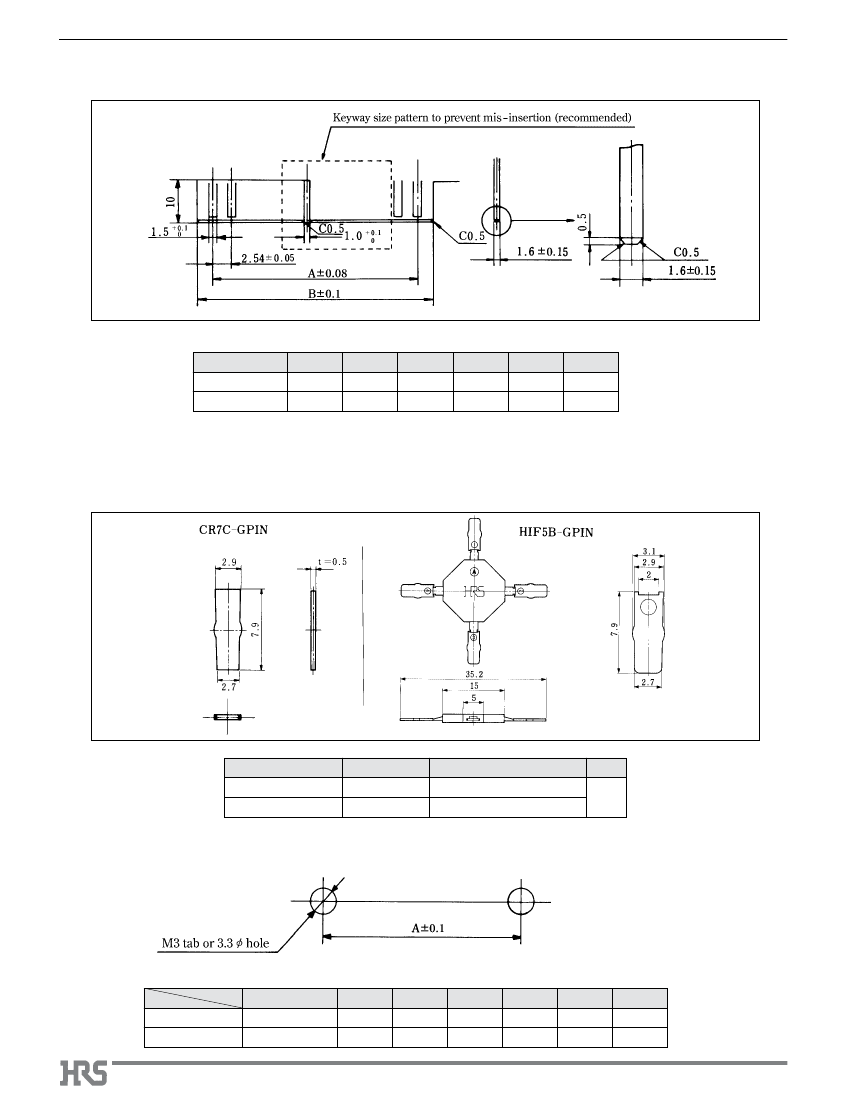

BPCB
Dimensions
Number of Contacts
A
B
20
22.86
27.84
26
30.48
35.46
34
40.64
45.62
40
48.26
53.24
50
60.96
65.94
60
73.66
78.64
Note. Using the polarizing key prevents mis-insertion in the printed board.
For use, insert the polarizing key so as to hit the mold bottom.
BPolarizing
Key
Part Number
CR7C-GPIN
HIF5B-GPIN
CL No.
507-0055-8
564-0052-4
Material
Poly acetal resin, white
PBT, beige
RoHS
YES
BPanel
Cutouts
Unit: mm
Number of Contacts
mounting Half hole
mounting Full hole
size A
size A
20
45.72
48.26
26
53.34
55.88
34
63.50
66.04
40
71.12
73.66
50
83.82
86.36
60
96.52
99.06
B62
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or
Ribbon Cable Connector
HIF5 Series●Card Edge Type
contact your Hirose sales representative.

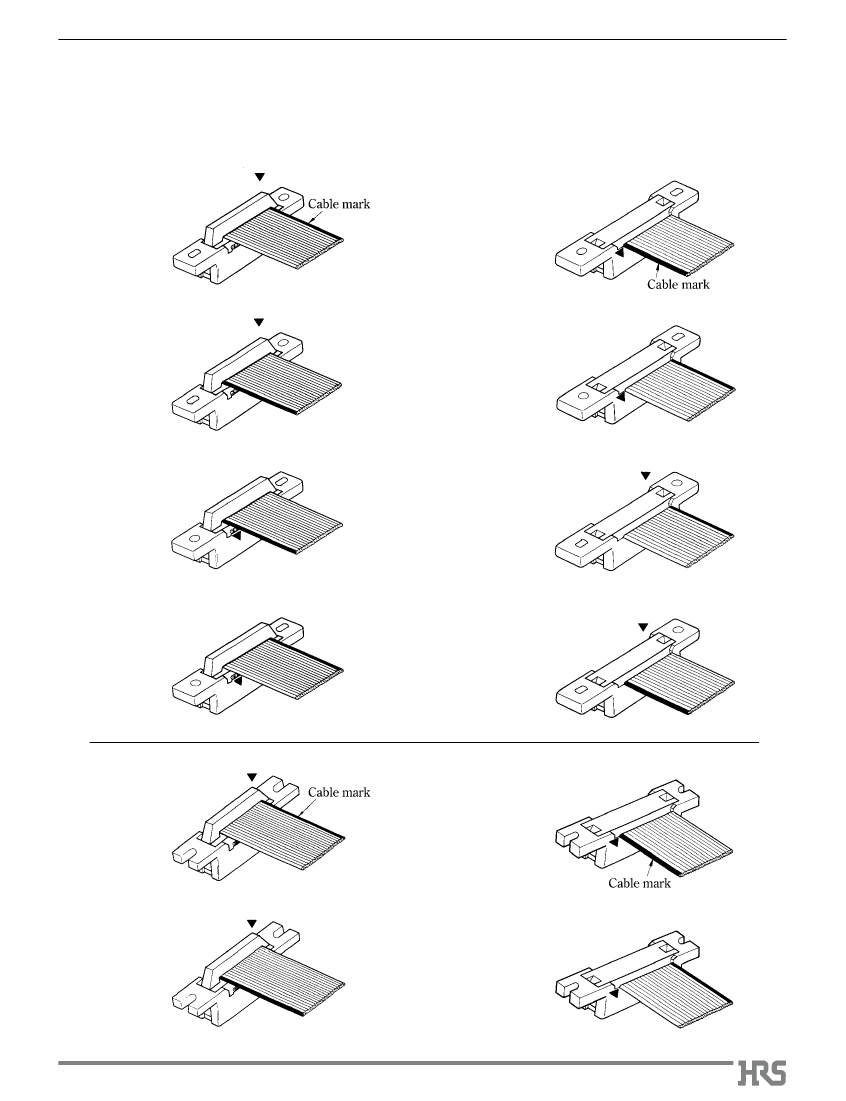

BConnection
Procedures
Note 1. Cable length tolerance Less than 500
+
100
(mm)
More than 500 pcs.
%
+3
0
Note 2. When a cable such as a twist cable or a slit
