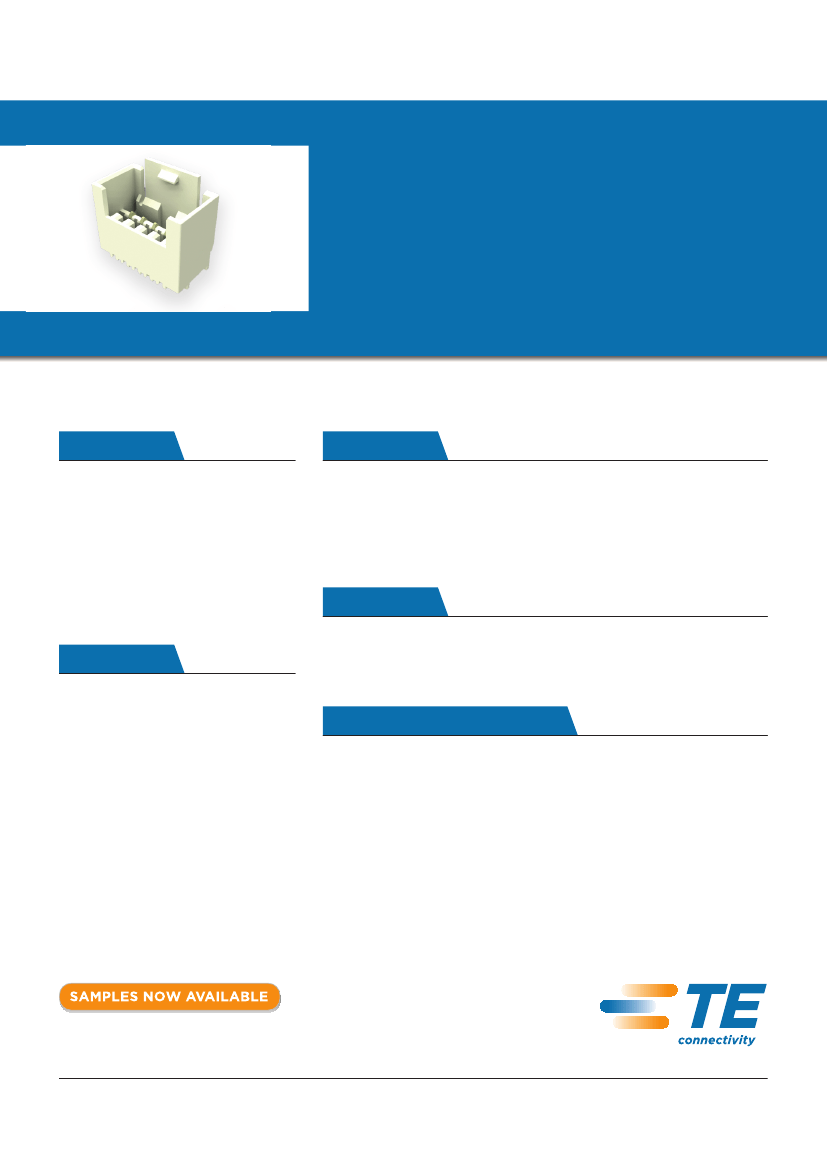

Introducing
PCB Connector that Meets
RAST 2.5 Standard
PCB Connector that Meets RAST 2.5 Standard with Vertical Through Hole
Technology, available with tin or silver plating, external or internal locking.
KEY FEATURES
•
Designed to the RAST 2.5 Standard
•
Tin / Silver plating
•
3-15 positions
•
Available in multiple colors
•
Internal and external locking
•
UL/VDE/CQC approval
•
Meets UL 94 V0 & GWT 750°C w/o flame
ELECTRICAL
•
Rated Current: 2A for Tin plated version; 6A for silver plated version
•
Rated Voltage: 50V for fully loaded version; 250V for selectively loaded version
•
Insulation Resistance: 5000M
Ω
•
Dielectric Strength: 1500V/m
MATERIALS
•
Housing: Meets Thermoplastic UL 94 V0 and IEC 60335-1
•
Contact: Copper Alloy, Tin or Silver plating over Nickel
APPLICATIONS
•
Front-loading washing machine
•
Dishwasher
•
Microwave oven
•
Refrigerator
STANDARDS AND SPECIFICATIONS
•
According to RAST 2.5 Specification
•
Product Specification: 108-106079
te.com/products/RAST25t
© 2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company. All Rights Reserved.
TE Connectivity and the TE connectivity (logo) are trademarks. Other logos, product and/or
7-1773465-3 CS 11/2012
company names might be trademarks of their respective owners.
USA: 1-800-522-6752
Canada: +1-905-475-6222
Mexico: +52 (0) 55-1106-0800
Latin/S. America: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
TE Connectivity
PRODUCT OFFERING
RAST 2.5 Tab Header
Part Number Ordering: Example for X-1971817-Y
-3
Substitute dash number listed for “Y”, therefore a -3 signifies PN 1971817-3.
1- -3
Substitue first number for “X” and second number listed for “Y”, therefore a
1- -3 signifies PN 1-1971817-3.
External Locking - Fully Loaded
TIN PLATED
No. of Pos.
1- -3
2- -3
3- -3
4- -3
5- -3
6- -3
7- -3
3
8- -3
9- -3
-3
4
1- -4
2- -4
3- -4
4- -4
5- -4
6- -4
5
1- -5
2- -5
3- -5
4- -5
6
1- -6
2- -6
3- -6
4- -6
7
1- -7
2- -7
3- -7
4- -7
5- -7
6- -7
7- -7
8
1- -8
2- -8
3- -8
* Follow same numbering scheme throughout for other part numbers listed.
X-1971817-Y
9
1- -9
2- -9
3- -9
4- -9
5- -9
6- -9
10
1- -0
2- -0
3- -0
X-1971818-Y
11
1- -1
2- -1
12
1- -2
2- -2
13
1- -3
14
1- -4
15
1- -5
2- -5
3- -5
Ag PLATED
No. of Pos.
1- -3
2- -3
3- -3
4- -3
5- -3
6- -3
7- -3
3
8- -3
9- -3
-3
4
1- -4
2- -4
3- -4
4- -4
5- -4
6- -4
5
1- -5
2- -5
3- -5
4- -5
6
1- -6
2- -6
3- -6
4- -6
7
1- -7
2- -7
3- -7
4- -7
5- -7
6- -7
7- -7
8
1- -8
2- -8
3- -8
9
1- -9
2- -9
3- -9
4- -9
5- -9
6- -9
10
1- -0
2- -0
3- -0
X-1971838-Y
11
1- -1
2- -1
12
1- -2
2- -2
13
1- -3
14
1- -4
15
1- -5
2- -5
3- -5
X-1971837-Y
External Locking - Selectively Loaded
TIN PLATED
No. of Pos.
1- -3
2- -3
3- -3
4- -3
5- -3
6- -3
7- -3
3
8- -3
9- -3
-3
4
5
1- -5
2- -5
3- -5
4- -5
5- -5
6
7
1- -7
2- -7
3- -7
4- -7
5- -7
6- -7
8
9
1- -9
2- -9
3- -9
4- -9
5- -9
10
11
1- -1
2- -1
X-1971922-Y
12
13
1- -3
14
15
1- -5
2- -5
3- -5
X-1971921-Y
SILVER PLATED
No. of Pos.
1- -3
2- -3
3- -3
4- -3
5- -3
6- -3
7- -3
3
8- -3
9- -3
-3
4
5
1- -5
2- -5
3- -5
4- -5
5- -5
6
7
1- -7
2- -7
3- -7
4- -7
5- -7
6- -7
8
9
1- -9
2- -9
3- -9
4- -9
5- -9
10
11
1- -1
2- -1
X-1971924-Y
12
13
1- -3
14
15
1- -5
2- -5
3- -5
X-1971923-Y
Internal Locking - Fully Loaded
TIN PLATED
No. of Pos.
1- -3
2- -3
3- -3
4- -3
5- -3
6- -3
7- -3
3
8- -3
9- -3
-3
4
1- -4
2- -4
3- -4
4- -4
5- -4
5
1- -5
2- -5
3- -5
4- -5
6
1- -6
2- -6
3- -6
4- -6
7
1- -7
2- -7
3- -7
4- -7
5- -7
6- -7
8
1- -8
2- -8
3- -8
9
1- -9
2- -9
3- -9
4- -9
5- -9
10
1- -0
2- -0
3- -0
X-1971820-Y
11
1- -1
2- -1
12
1- -2
13
1- -3
14
1- -4
15
1- -5
2- -5
3- -5
X-1971819-Y
SILVER PLATED
No. of Pos.
1- -3
2- -3
3- -3
4- -3
5- -3
6- -3
7- -3
3
8- -3
9- -3
-3
4
1- -4
2- -4
3- -4
4- -4
5- -4
5
1- -5
2- -5
3- -5
4- -5
6
1- -6
2- -6
3- -6
4- -6
7
1- -7
2- -7
3- -7
4- -7
5- -7
6- -7
8
1- -8
2- -8
3- -8
9
1- -9
2- -9
3- -9
4- -9
5- -9
10
1- -0
2- -0
3- -0
X-1971840-Y
11
1- -1
2- -1
12
1- -2
13
1- -3
14
1- -4
15
1- -5
2- -5
3- -5
X-1971839-Y
While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or
guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims
all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog
are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications.
te.com/products/RAST25t
© 2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company. All Rights Reserved.
TE Connectivity and the TE connectivity (logo) are trademarks. Other logos, product and/or
7-1773465-3 CS 11/2012
