0040.5001.2 Overview

AC power entry modules power entry modul 10a

0040.5001.2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, QUICK CONNECT
Body/casing type	SOCKET
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	6/10A, 250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

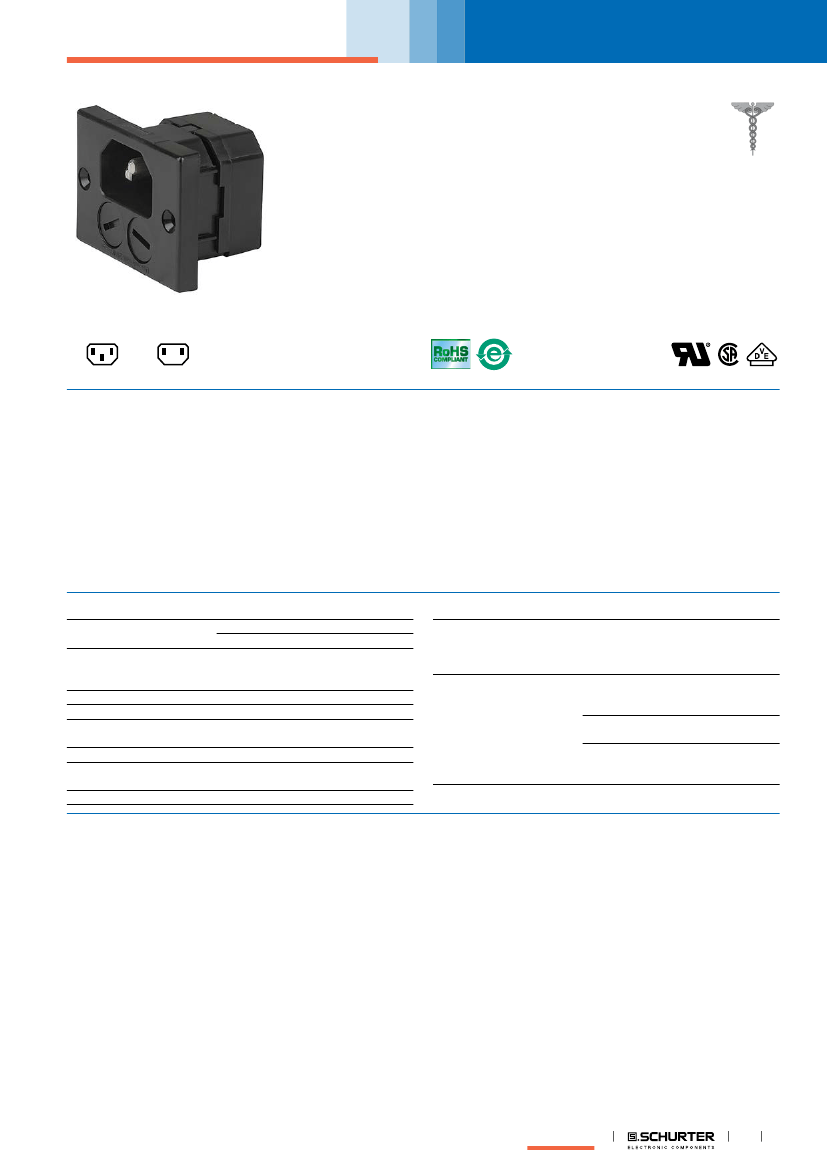

Power entry modules without line filter

www.schurter.com/PG05

IEC Appliance Inlet C14 with Fuseholder 2-pole

8842/8843

Plug removal necessary for fuse

replacement

C14

70° C

C18

70° C

Description

- Panel Mount:

Screw-on mounting from front side

- 2 Functions:

Appliance Inlet protection class I or II, Fuseholder for fuse-links

5 x 20 mm, 1- or 2-pole

- Quick connect terminals 4.8 x 0.8 mm

Characteristics

- All single elements are already wired

- With slotted screw type fuseholder

Fuseholder meets requirements of medical standard IEC/EN 60601-1

The fuseholder can only be opened with the aid of a tool

The fuseholder is accessible from the equipment front

- Suitable for use in equipment according to IEC/UL 60950

Approvals

References

Weblinks

- VDE Certificate Number: 77560

- UL File Number: E93617

- CSA File Number: 70111

We recommend for new applications the new type

4707

pdf-datasheet, html-datasheet, General Product Information, Approvals,

CE declaration of conformity, RoHS, CHINA-RoHS, REACH, Mating

Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-Stock-

Check, CAD-Drawings, Accessories, Detailed request for product

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

10 A / 250 VAC; 50 Hz

6 A / 250 VAC; 60 Hz

> 2 kVAC between L-N

> 4 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class I or II acc. to IEC 61140

Quick connect terminals 4.8 x 0.8 mm

Screw: max 6 mm

Mounting screw torque max 0.5 Nm

Thermoplastic, black, UL 94V-0

Appliance Inlet

C14 / C18 acc. to IEC 60320,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class I or II

1 or 2 pole, Shocksafe category PC2

acc. to IEC 60127-6,

for fuse-links 5 x 20 mm

5 x 20: 1.6 W (1 pole)/ 1,2 W (2-pole)

per pole

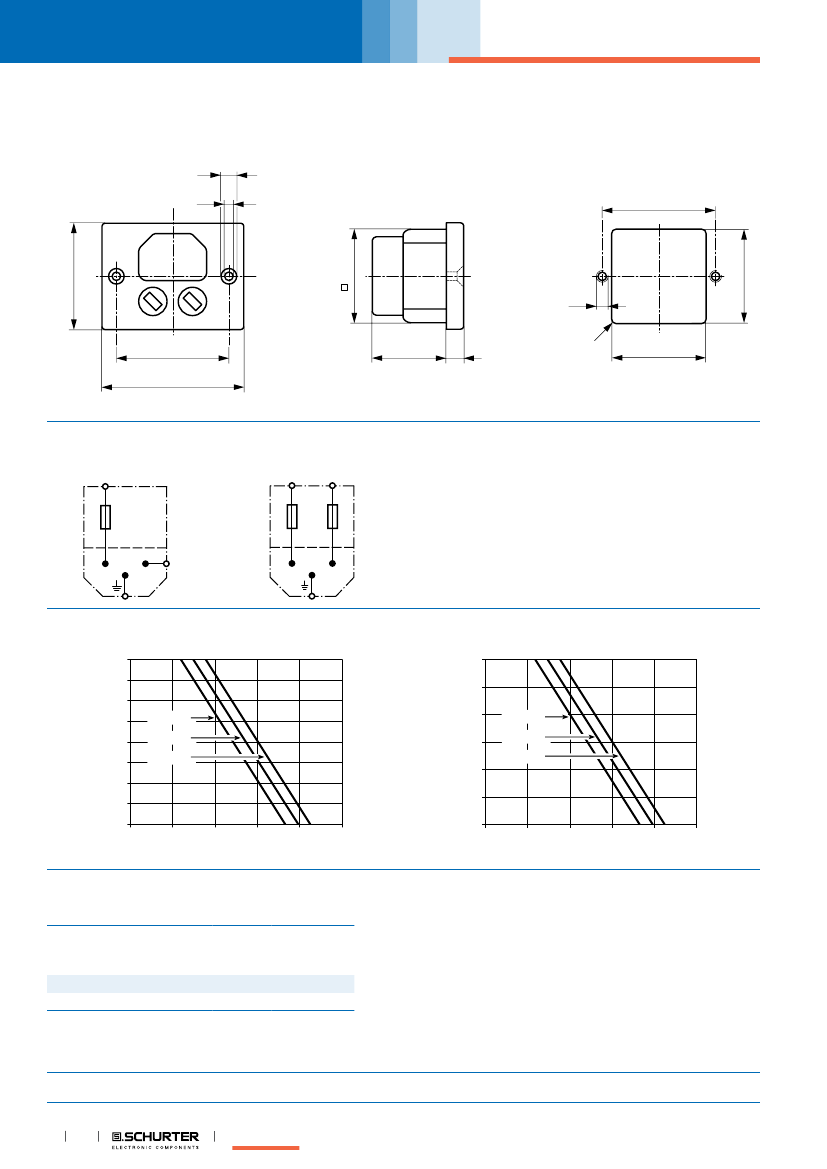

Admissible power acceptance at higher

ambient temperature see derating cur-

ves

Fuseholder

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

Rated Power Acceptance @

Ta 23 °C

Power Acceptance @ Ta >

23°C

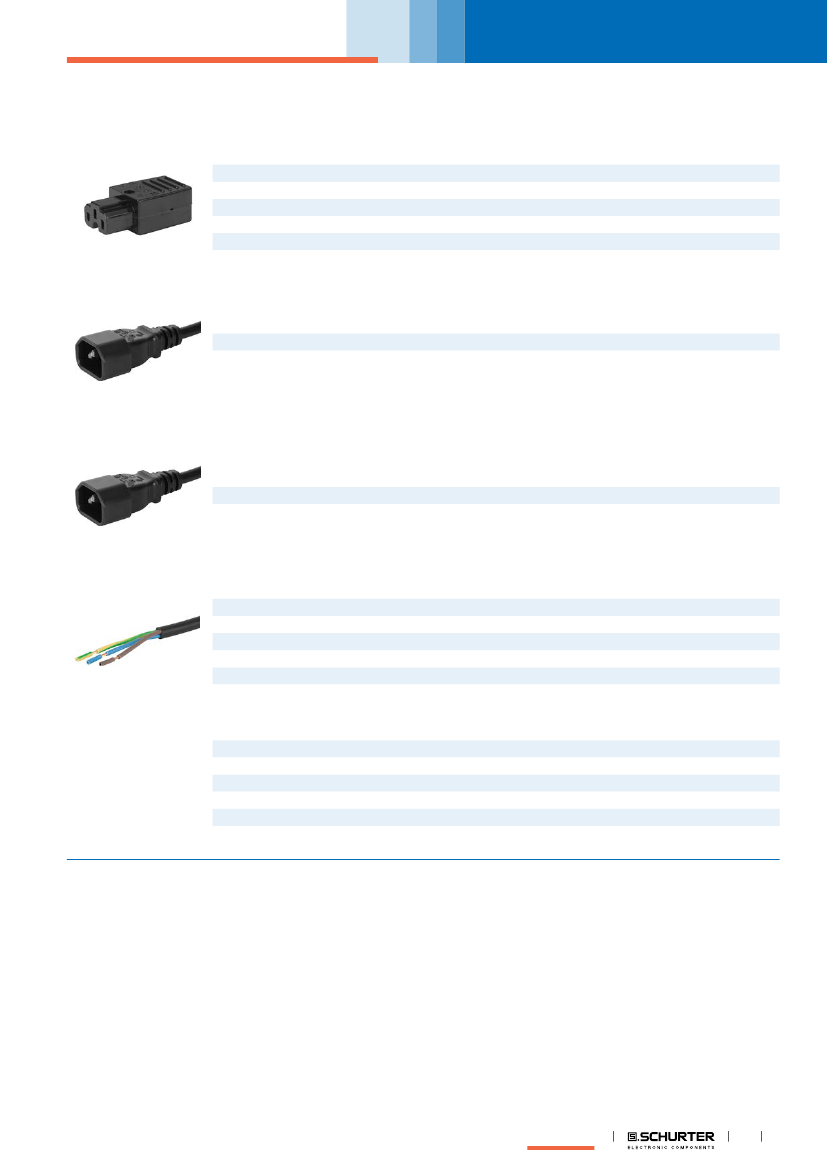

Connectors

0040.5001.2 Related Products

	0040.5001.2	8843.4861	8843.4461	8843.0461	8843.0351	8843.4451	8843.0363	8843.0453	8843.0361	8843.0463
Description	AC power entry modules power entry modul 10a	AC power entry modules 8843 pwr entry modul 10a	AC power entry modules 8843 pwr entry modul 10a	AC power entry modules 8843 pwr entry modul 10a	AC power entry modules 8843 pwr entry modul 10a	AC power entry modules 8843 pwr entry modul 10a	AC power entry modules 8843 pwr entry modul 10a	AC power entry modules 1 pole snap IN	AC power entry modules 8843 pwr entry modul 10a	AC power entry modules 8843 pwr entry modul 10a
Reach Compliance Code	compliant	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Other features	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, QUICK CONNECT	STANDARDS: UL 498; CSA C22.2/182.3; DIN/VDE 0625; SEMKO 9320; IEC 320/C14; EN 60320	STANDARDS: UL 498; CSA C22.2/182.3; DIN/VDE 0625; SEMKO 9320; IEC 320/C14; EN 60320	STANDARDS: EN 60320-1; IEC 60320-1/C14; DIN VDE 0625; SEMKO 9320; CSA C22.2/182.3; UL 498	STANDARDS: EN 60320-1; IEC 60320-1/C14; DIN VDE 0625; SEMKO 9320; CSA C22.2/182.3; UL 498	STANDARDS: UL 498; CSA C22.2/182.3; DIN/VDE 0625; SEMKO 9320; IEC 320/C14; EN 60320	STANDARDS: EN 60320-1; IEC 60320-1/C14; DIN VDE 0625; SEMKO 9320; CSA C22.2/182.3; UL 498	STANDARDS: EN 60320-1; IEC 60320-1/C14; DIN VDE 0625; SEMKO 9320; CSA C22.2/182.3; UL 498	STANDARDS: EN 60320-1; IEC 60320-1/C14; DIN VDE 0625; SEMKO 9320; CSA C22.2/182.3; UL 498	STANDARDS: EN 60320-1; IEC 60320-1/C14; DIN VDE 0625; SEMKO 9320; CSA C22.2/182.3; UL 498
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	YES	YES	YES	YES	YES	YES	YES	YES	YES
IEC compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Power Connector Ratings	6/10A, 250VAC	10A, 250V	10A, 250V	10A, 250V	10A, 250V	10A, 250V	10A, 250V	10A, 250V	10A, 250V	10A, 250V
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYETHYLENE	POLYESTER	POLYESTER	PLASTIC	PLASTIC	POLYESTER	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	3	3	3	3	3	3	3	3	3
Maker	SCHURTER	SCHURTER	SCHURTER	-	SCHURTER	-	SCHURTER	-	-	SCHURTER
Body/casing type	SOCKET	-	-	SOCKET	SOCKET	-	SOCKET	SOCKET	SOCKET	SOCKET
Base Number Matches	1	1	-	1	-	1	1	1	1	1
Manufacturer's serial number	-	-	8843	8843	8843	8843	8843	8843	-	8843
