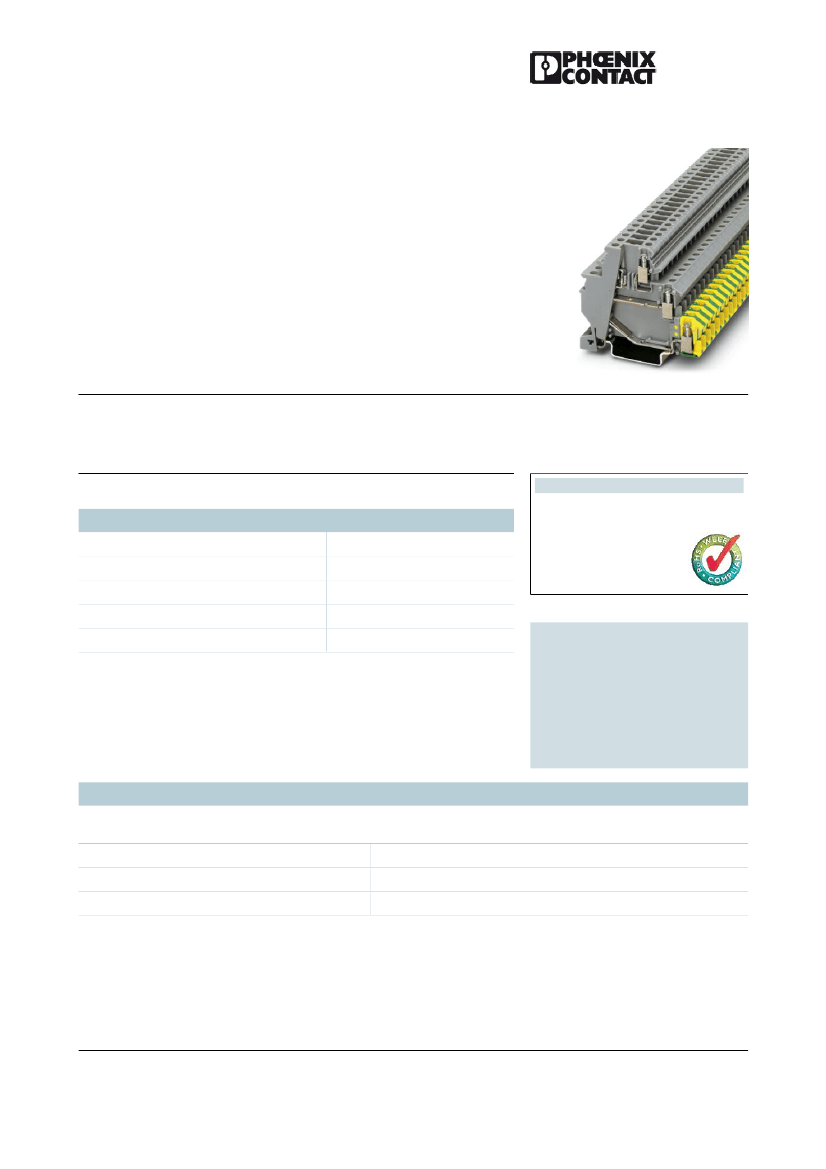

Extract from the online
catalog
DOKD 1,5-TG
Order No.: 3011054
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3011054
Sensor/actuator terminal block, Cross section: 0.2 mm² - 4 mm²,
AWG: 24 - 12, Connection type: Screw connection, Width: 6.2 mm,
Color: gray, Mounting type: NS 35/7,5, NS 35/15
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918091910
50 pcs.
85369010
0.01868 KG
Page 365 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
General
Number of levels
Number of connections
Color
3
5
gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Mar 24, 2010
DOKD 1,5-TG
Order No.: 3011054
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3011054
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
PA
V2
6.2 mm
63 mm
54.5 mm
62 mm
4 kV
3
III
I
IEC 60947-7-1 / IEC 60947-7-2
24 A
250 V (the voltage is determined by the component used)
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.2 mm²
1 mm²
0.2 mm²
1 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Mar 24, 2010
DOKD 1,5-TG
Order No.: 3011054
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3011054
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Cross-section with insertion bridge, solid max.
Cross-section with insertion bridge, stranded max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
0.25 mm²
1 mm²
0.5 mm²
1 mm²
4 mm²
2.5 mm²
Screw connection
8 mm
A3
M3
0.5 Nm
0.6 Nm
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CSA, CUL, GOST, UL
300 V
15 A
28-14
300 V
10 A
30-14
300 V
10 A
30-14
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Mar 24, 2010
DOKD 1,5-TG
Order No.: 3011054
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3011054
Accessories
Item
Assembly
1413285
3022218
ATP-DIKD 1,5
CLIPFIX 35
Partition plate, Length: 83 mm, Width: 2 mm, Height: 60 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End brackets, for supporting the ends of double-level and three-
level terminal blocks, width: 10 mm, color: gray
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
Designation
Description
1201413
0801762
0801733
0801681
1201895
1201730
1201714
E/UK 1
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
Bridges
2716680
2715937
2716774
2715940
2715953
2715788
Marking
1007222
0804374
SBS 6:UNBEDRUCKT
SK 6,2/3,8:FORTL.ZAHLEN
Marker cards for modular terminal blocks, color: white
Marker card, printed horizontally, self-adhesive, 12 identical
decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for
120 terminal blocks
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
EB 10- DIK BU
EB 10- DIK GY
EB 10- DIK RD
EB 80- DIK BU
EB 80- DIK RD
EB 80- DIK WH
Cross connector/bridge, Number of positions: 10, Color: blue
Cross connector/bridge, Number of positions: 10, Color: gray
Cross connector/bridge, Number of positions: 10, Color: red
Cross connector/bridge, Number of positions: 80, Color: blue
Cross connector/bridge, Number of positions: 80, Color: red
Cross connector/bridge, Number of positions: 80, Color: white
1050499
ZB 6:SO/CMS
Plug/Adapter
0920287
ST-SILA250
Fuse plug, Length: 45.4 mm, Width: 9.9 mm, Color: black
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 6
Mar 24, 2010
DOKD 1,5-TG
Order No.: 3011054
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3011054
0921053
0921024
0921037
0921040
ST-SILA250-UK 4
ST-SILED 12-UK 4
ST-SILED 24-UK 4
ST-SILED 60-UK 4
Fuse plug, Color: black
Fuse plug, Color: black
Fuse plug, Nominal current: 6.3 A, Length: 42.5 mm, Height: 26.5
mm, Color: black
Fuse plug, Color: black
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 6
Mar 24, 2010
