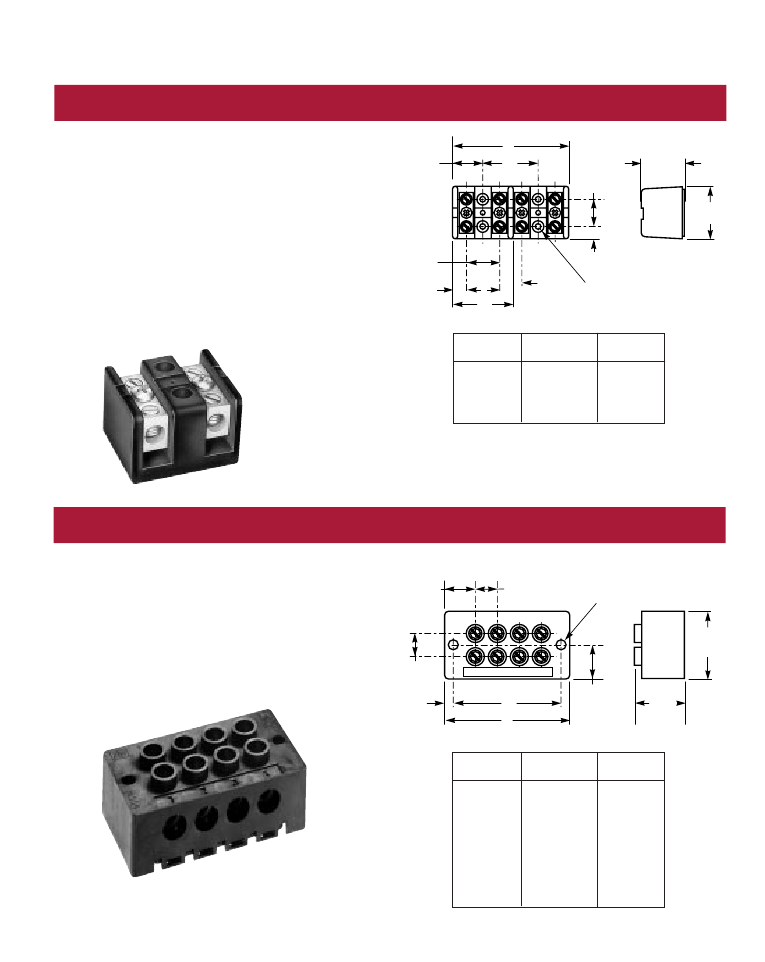

Barrier & Dead Front Terminal Blocks
Series 14002 & 14004
Barrier Terminal Blocks
Series 14002
SPECIFICATIONS
Ratings:
115A, 600V; UL/CSA
Poles:
2 to 6 poles
Wire sizes:
#2 – #14 CU/#8 AL
Operating temperature:
150°C
Marking:
Marking strip optional, consult factory.
Options:
CP = Pressure plate, rated 60A, 600V
Q = Quick-Connect, rated 50A, 600V
To order options, enter letter code
in front of Part No.:
ie; CP14002-2
Agency approvals:
UL E62622; CSA LR15364;
CE Pending
.87
(22.09)
A
B
.75
(19.05)
1.25
(31.75)
Inches (Millimeters)
1.50
(38.10)
.96
(24.38)
.39
(9.90)
A*
Part
Number
14002-2
14002-3
14002-4
14002-5
14002-6
.62
(15.74)
.37
(9.39)
.17 (4.31) dia. holes
with .34 (8.63) dia. x
.75 (19.05) deep c'bore
A
1.75
2.37
3.34
3.96
4.59
B
–
–
1.59
2.21
2.84
Note: “A” dimension for 14002-2 & 14002-3 only.
(14002-2 & 14002-3 have only two mounting holes.)
14002-2
Dead Front Terminal Blocks
Series 14004
SPECIFICATIONS
Ratings:
90A, 600V; UL/CSA
Poles:
2 to 12 poles
Wire sizes:
#4 – #14 CU/#8AL
Operating temperature:
75°C
Marking:
Marking strip optional, consult factory.
Agency approvals:
UL E62622; CSA LR15364
.65
(16.51)
.50
(12.70)
Inches (Millimeters)
.21 (5.33)
dia. holes
1.50
(38.10)
.50
(12.70)
.18
(4.57)
B
A
.75
(19.05)
1.12
(28.44)
Part
Number
14004-2
14004-3
14004-4
14004-5
14004-6
14004-7
14004-8
14004-9
14004-10
14004-11
14004-12
A
1.81
2.31
2.81
3.31
3.81
4.31
4.81
5.31
5.81
6.31
6.81
B
1.43
1.93
2.43
2.93
3.43
3.93
4.93
4.93
5.43
5.93
6.43
14004-4
