54F138/BEA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F138/BEA

54F138/BEA: DescriptionIC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, Decoder/Driver; Categorylogic logic; File Size116KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F138/BEA Overview

IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, Decoder/Driver

54F138/BEA Parametric

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	3 ENABLE INPUTS
series	F/FAST
JESD-30 code	R-GDIP-T16
Load capacitance (CL)	50 pF
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	20 mA
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

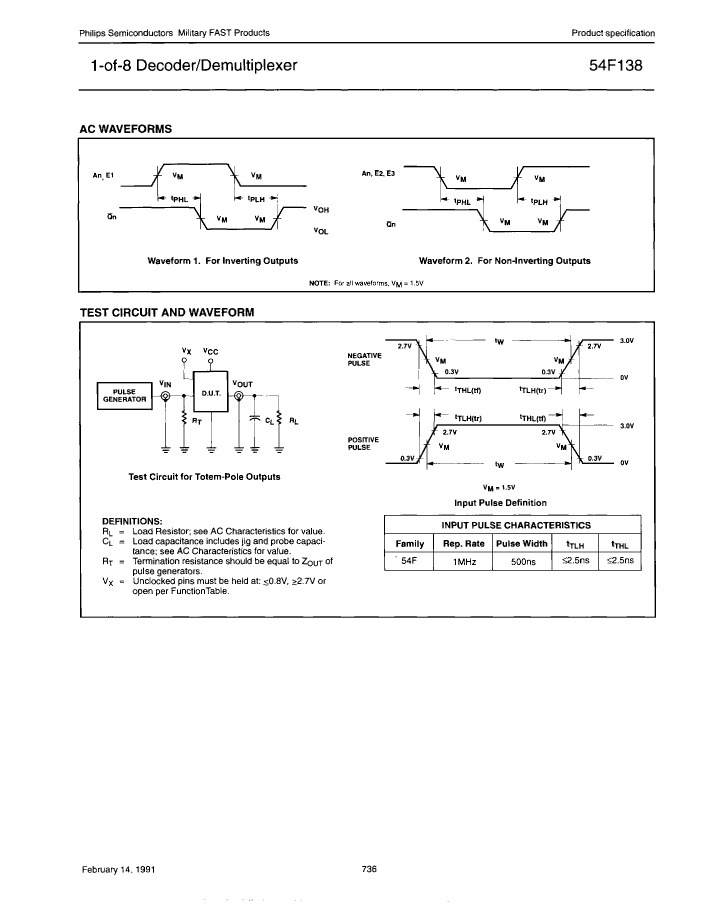

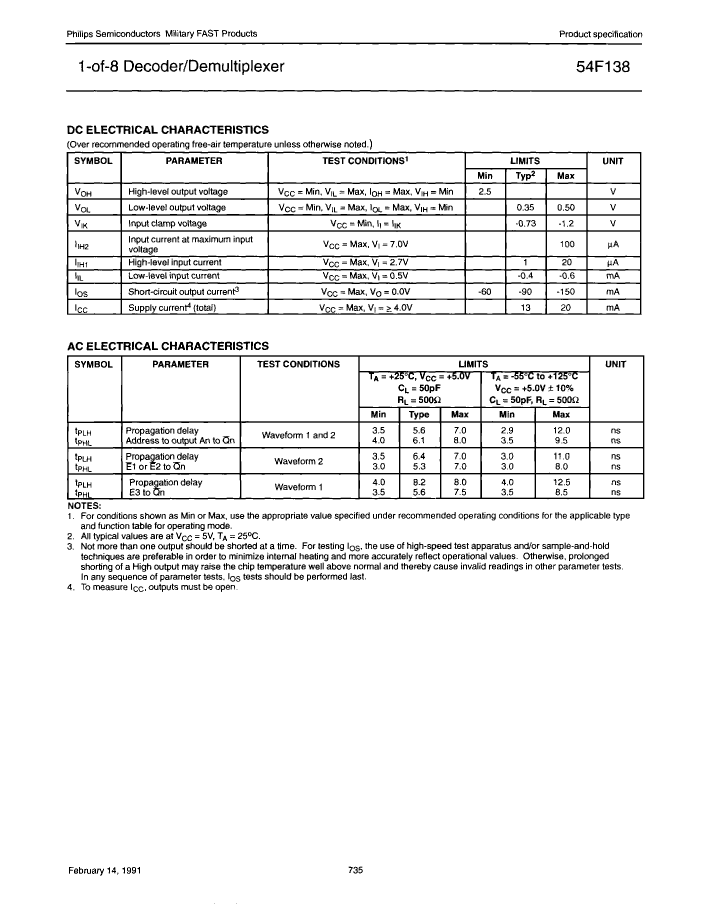

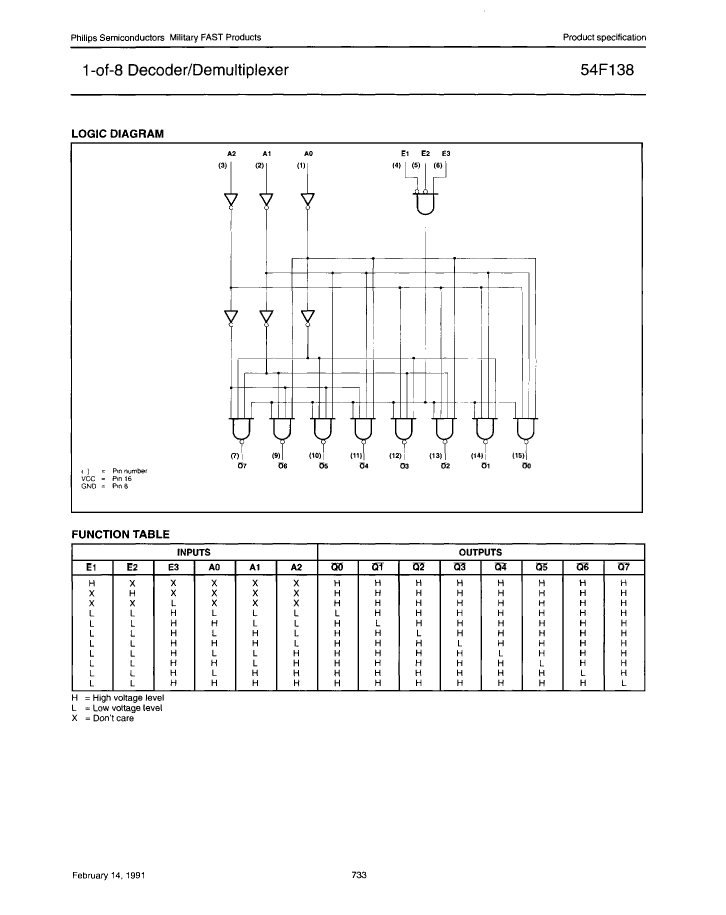

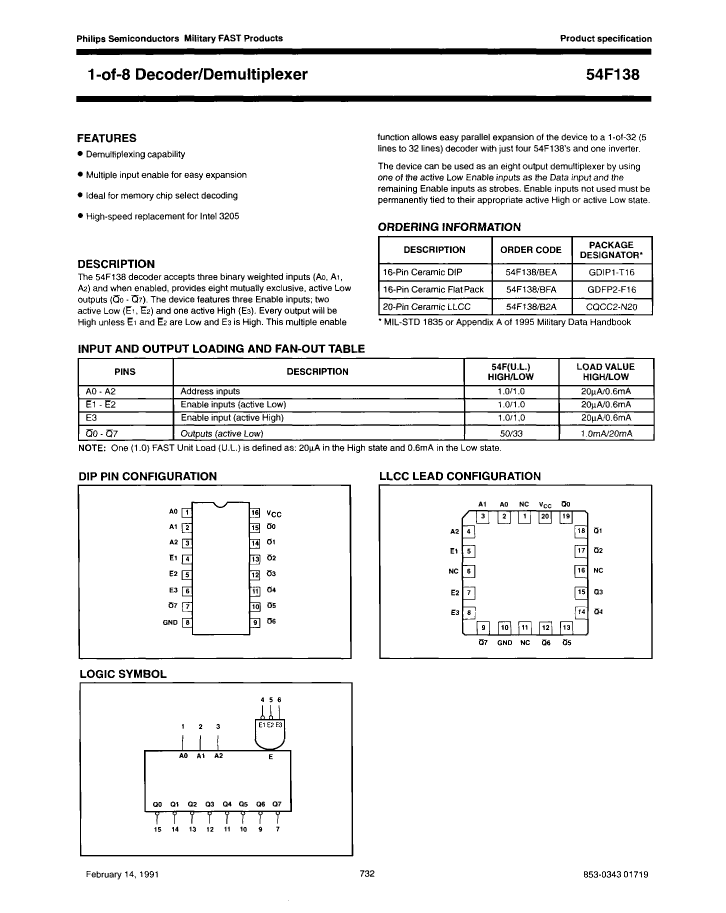

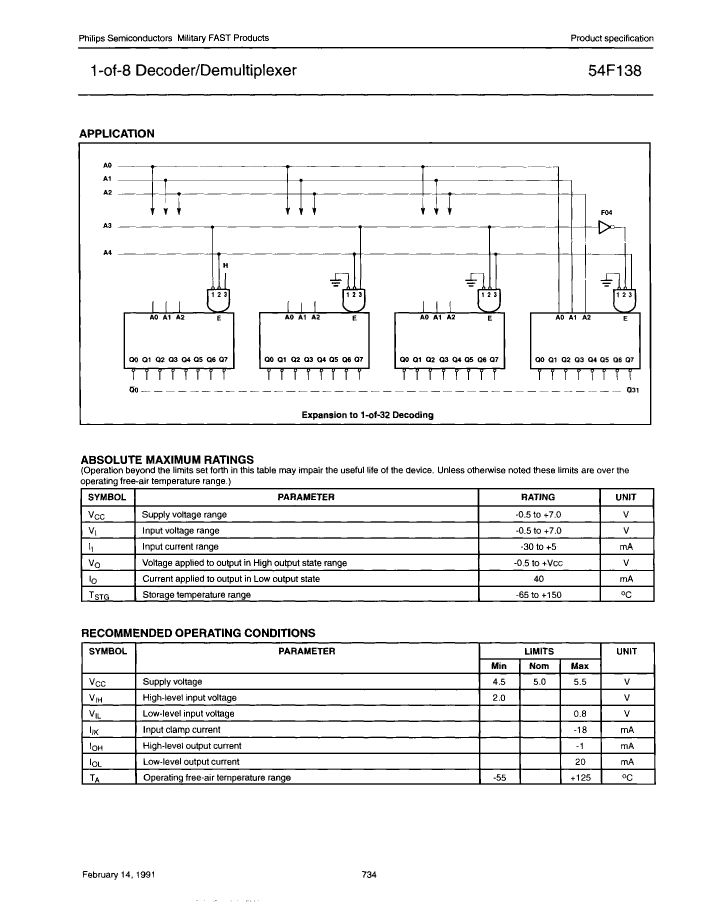

Preview

Download Datasheet

View All

54F138/BEA Related Products

	54F138/BEA	54F138/BFA	N54F138/B2A	N54F138/BFA	54F138/B2A
Description	IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, Decoder/Driver	IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP16, Decoder/Driver	IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LLCC-20, Decoder/Driver	IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP16, CERAMIC, DFP-16, Decoder/Driver	IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CQCC20, Decoder/Driver
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T16	R-CDFP-F16	S-CQCC-N20	R-CDFP-F16	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Number of functions	1	1	1	1	1
Number of terminals	16	16	20	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	QCCN	DFP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	20 mA	20 mA	20 mA	20 mA	20 mA
propagation delay (tpd)	9.5 ns	9.5 ns	9.5 ns	9.5 ns	9.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD	FLAT	NO LEAD
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD
Base Number Matches	1	1	1	1	1
Maker	NXP	NXP	-	NXP	-
Maximum seat height	5.08 mm	-	1.905 mm	2.159 mm	-
Terminal pitch	2.54 mm	-	1.27 mm	1.27 mm	-
width	7.62 mm	-	8.89 mm	6.731 mm	-
package instruction	-	-	QCCN,	CERAMIC, DFP-16	QCCN,
