FC-23139112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> FC-23139112

FC-23139112: DescriptionSplitter/Coupler, 1270nm Min, 1350nm Max, 1X2 Port, 50/50 Ratio, FC/PC Connector; CategoryWireless rf/communication Optical fiber; File Size168KB，2 Pages; ManufacturerLaser Components USA Inc.; Environmental Compliance

Download Datasheet Parametric View All

FC-23139112 Overview

Splitter/Coupler, 1270nm Min, 1350nm Max, 1X2 Port, 50/50 Ratio, FC/PC Connector

FC-23139112 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Laser Components USA Inc.
Reach Compliance Code	unknown
Connection Type	FC/PC CONNECTOR
Fiber optic equipment types	SPLITTER/COUPLER
Fiber type	SMF-28
Maximum insertion loss	3.6 dB
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Maximum operating wavelength	1350 nm
Minimum operating wavelength	1270 nm
Nominal operating wavelength	1310 nm
Port configuration	1X2
minimum return loss	55 dB
Split ratio/coupling ratio	50/50
Base Number Matches	1

Preview

Download Datasheet

View All

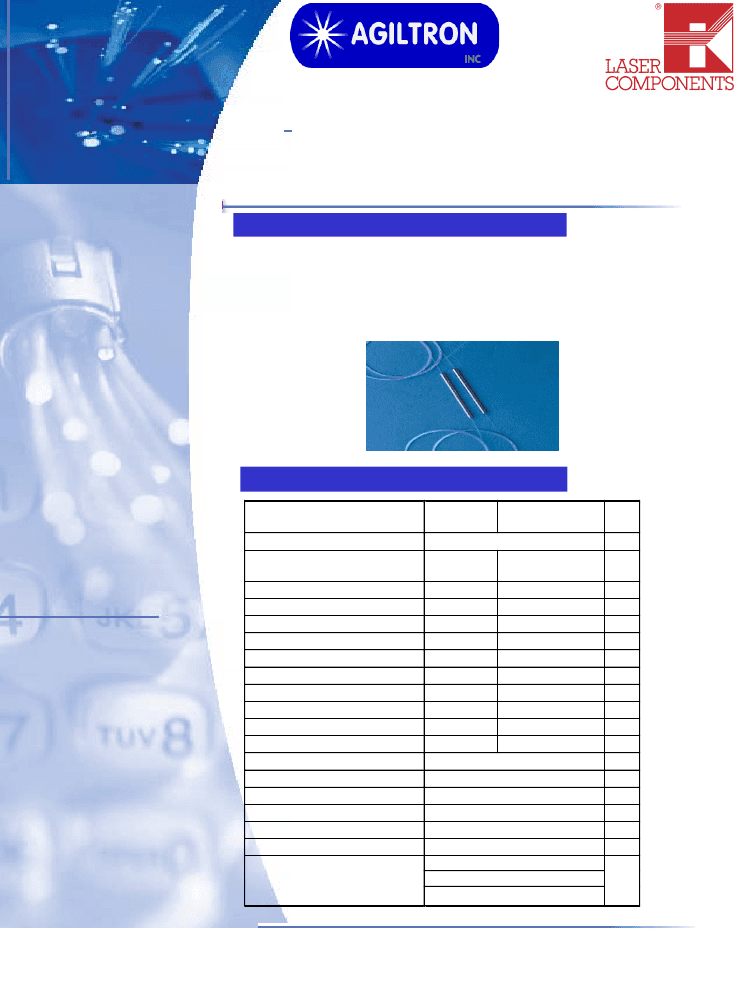

FiberOptic Coupler/Splitter

1310

1550nm Single Mode

(patents pending)

Product Description

The FC Series fiber optic coupler is based on Agiltron’s fused biconical

taper technology and compact packaging structure. It features good

uniformity, low excess loss and very low polarization sensitivity. The

device is ideal for splitting or combining light with exceptional

performance over a wide wavelength range

Features

•

Wavelength Independent

•

Ultra Low Excess Loss

•

Low Polarization

Sensitivity

•

Highly Stable & Reliable

•

Ultra Low Cost

Performance Specifications

FC Series

Coupling Ratio

Single

Window

Dual Window

Unit

Applications

•

Telecommunications

CATV

Local Access Network (LAN)

Fiberoptic Instrumentation

1/99 to 50/50

1270~1350 or 1270~1350 and

Operation Wavelength

1510~1590 1510~1590

Excess Loss

< 0.1

Insertion Loss Split Ratio:50/50 < 3.3

< 3.6

Split Ratio:40/60 < 4.4/2.5

< 4.7/2.7

Split Ratio:30/70 < 5.6/1.8

< 6.0/1.9

Split Ratio:20/80 < 7.4/1.1

< 7.9/1.2

plit Ratio:10/90 < 11.0/0.60

< 11.3/0.65

Split Ratio: 5/95 < 13.8/0.45

< 15.2/0.4

Split Ratio: 1/99 < 19-21/0.2

< 23.5/0.3

Uniformity (50/50)

< 0.5

< 0.8

Polarization Dependent Loss

< 0.10

< 0.15

Temperature Sensitivity

dB/

< 0.002

Directivity

> 55

Return Loss

> 55

Optical Power Handling

Operating Temperature

-10~70

Storage Temperature

-40~85

250um&900um fiber: (φ)3x(L)54

Mini: (φ)3x(L)25 special fiber

Package Dimension *

3mm Cable: (L)98x(W)14x(H)8.5

Other package options available on request

LASER COMPONENTS GmbH

Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
