3HSR43-C-25.000: DescriptionSine Output Oscillator,; CategoryPassive components oscillator; File Size152KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/

Download Datasheet Parametric Compare View All

3HSR43-C-25.000 Overview

Sine Output Oscillator,

3HSR43-C-25.000 Parametric

Parameter Name	Attribute value
Maker	Euroquartz
Reach Compliance Code	compliant
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	SINE
Output impedance	10000 Ω
Output level	1 V
physical size	11.4mm x 9.6mm x 3.0mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

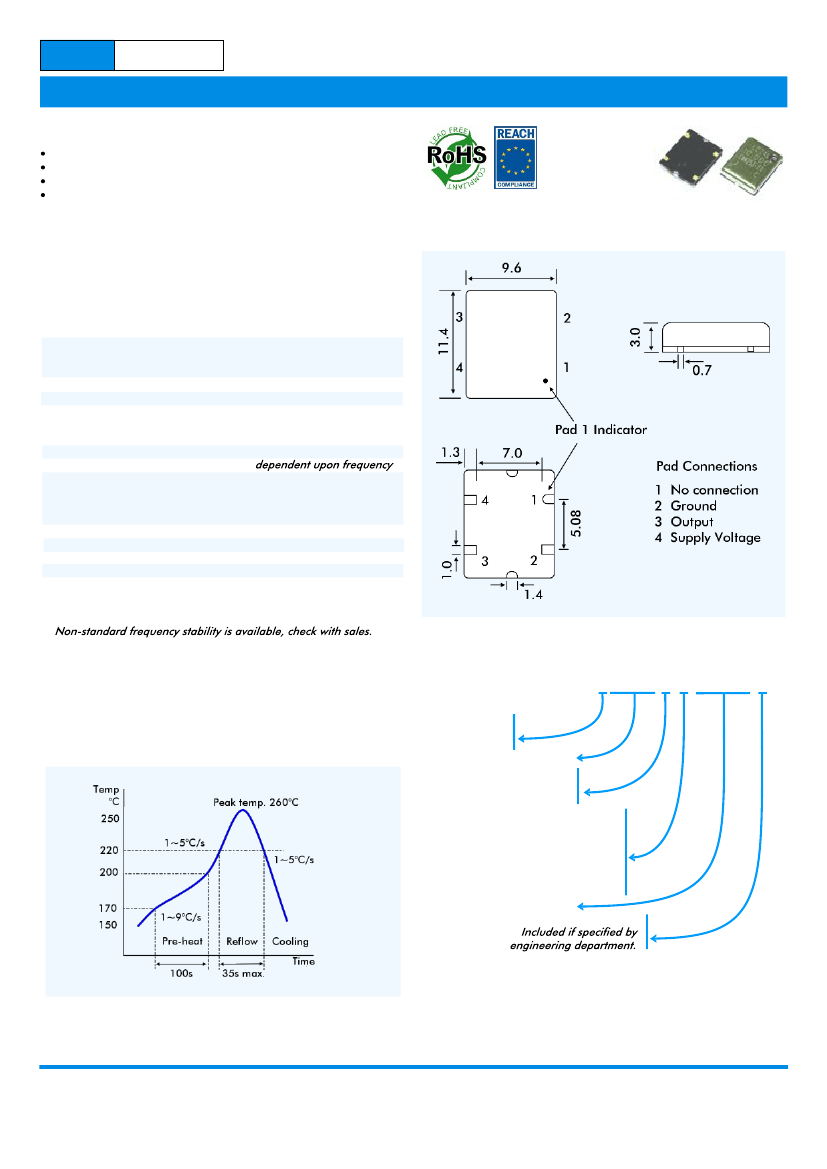

11.4 x 9.6 x 3.0mm SMD

FEATURES

Sine Wave output in standard 11.4 x 9.6 x 2.5mm package

High purity and low total harmonic distortion

Ideal for audio modulation applications

Supply Voltage 2.8V, 3.3V or 5.0V

DESCRIPTION

HSR42 sine wave clock oscillators provide a true sine wave output.

Packaged in the standard, 11.4 x 9.6 x 3.0mm SMD package, the

oscillator is capable of being produced with close tolerances.

HSR43 Sine Wave Oscillators

10.0MHz to 30.0MHz

OUTLINE & DIMENSIONS

SPECIFICATION

Frequency Range:

Input Voltage:

Output Wave Form:

Load:

Frequency Stability

0°~70°C:

-40° ~+85°C:

Output Level:

Harmonics:

Current Consumption

At 2.8V:

At 3.3V:

At 5.0V:

Start-up Time:

Storage Temperature:

Sub-Harmonics:

Ageing:

Environmental:

10.0MHz to 30.0MHz

+2.8V±5%, +3.3V±5%

or +5.0VDC ±10%

True sine wave

10kΩ//10pF

±25ppm, ±50ppm or ±100ppm*

1.0V p-p typical

<-25dBc (

1.0mA

1.5mA

1.2mA

2ms typical

-55° to +125°C

None

±5ppm/year maximum

RoHS Compliant standard. (Non-

compliant versions are available.

)

*

PART NUMBERING

Example:

3HSR43G-B-25.000-X

SOLDER TEMPERATURE PROFILE

Supply Voltage

28 = 2.8 Volts

3 = 3.3 Volts

5 = 5.0 Volts

Series Designation HSR43

RoHS

G = Compliant

Blank = Non-compliant

Stability

A = ±25ppm 0° to +70°C

B = ±50ppm 0° to +70°C

C = ±100ppm 0° to +70°C

D = ±25ppm -40° to +85°C

E = ±50ppm -40° to +85°C

F = ±100ppm -40° to +85°C

Frequency (MHz)

Customer-Specific Code

(

)

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
