319-001
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot
Low Profile - Rotatable Coupling
319 F S 001 M 16 06-6 T
319
CONNECTOR
DESIGNATORS
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Shrink Boot (Table IV -
Omit for None)
Shield Length (1 inch increments:
Minimum 6 inches)
Cable Entry (Table IV)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S

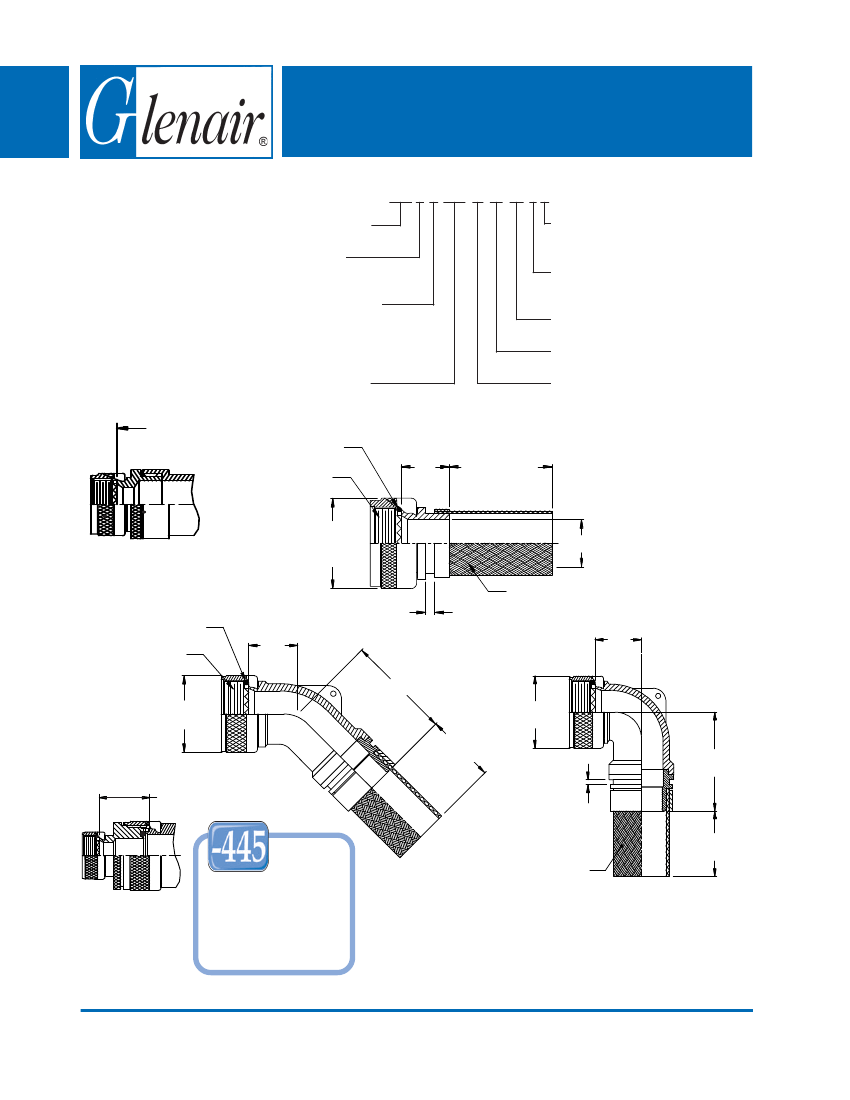

ROTATABLE
COUPLING
1.75
(44.5)
Max
O-Ring
A Thread
(Table I)
C
(Table I)
1.0
(25.4)
Shield
Length
(Approx.)
Cable Entry
STYLE 2
(STRAIGHT
See Note 5)
O-Ring
A Thread
(Table I)
C (Table I)
E
(Table
III)
Single Layer Shield
.140/.130 (Tinned Copper)
G
(Table
III)
F (Table III)
C (Table I)
Shield
Length
H (Table III)
.88 (22.4)
Max
Now Available
with the “NESTOR”
.140/.130
(3.6/3.3) Typ.
Single Layer Shield
(Tinned Copper)
Shield
Length
STYLE 2
(45° & 90°
See Note 5)
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling.
Add “-445” to Specify
This AS85049 Style “N”
Coupling Interface.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 319 - Page 2
with Optional Shrink Boot
Low Profile - Rotatable Coupling
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
TABLE III: DIMENSIONS
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.710 (43.4)
1.770 (45.0)
1.830 (46.5)
1.920 (48.8)
2.030 (51.6)
2.220 (56.4)
2.220 (56.4)
2.370 (60.2)
2.370 (60.2)
2.420 (61.5)
2.520 (64.0)
2.610 (66.3)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.730 (43.9)
1.850 (47.0)
1.870 (47.5)
1.940 (49.3)
2.030 (51.6)
2.200 (55.9)
2.200 (55.9)
2.310 (58.7)
2.310 (58.7)
2.480 (63.0)
2.730 (69.3)
2.730 (69.3)
TABLE IV: CABLE ENTRY/SHRINK BOOT
Dash
Cable
Shrink
No.
Entry
Boot *
01
.188 (4.8)
n/a
02
.250 (6.4)
n/a
03
.312 (7.9)
770-001S103
04
.375 (9.5)
770-001S103
05
.438 (11.1)
770-001S103
06
.500 (12.7)
770-001S104
07
.562 (14.3)
770-001S104
08
.625 (15.9)
770-001S104
09
.688 (17.5)
770-001S105
10
.750 (19.1)
770-001S105
11
.812 (20.6)
770-001S105
12
.875 (22.2)
770-001S106
13
.938 (23.8)
770-001S106
14
1.000 (25.4)
770-001S106
15
1.250 (31.8)
770-001S107
16
1.500 (38.1)
770-001S108
17
1.750 (44.5)
n/a
18
2.000 (50.8)
n/a
19
1.125 (28.6)
n/a
20
1.375 (34.9)
n/a
21
1.625 (41.3)
n/a
22
1.062 (27.0)
n/a
23
1.188 (30.2)
n/a
24
1.875 (47.6)
n/a
1. Cable Entry or range is defined as the
accomodation range for the wire
bundle or cable. Dimensions shown
are not intended for inspection
criteria.
2. See Shrink Boot Reference Informa-
tion (page 40).
3. Metric dimensions (mm) are indicated
in parentheses.
4. O-Ring not supplied with Connector
Designator A.
5. When maximum entry (page 21) is
exceeded, Style 2 will be supplied.
Dimensions E, F, G, & H will not
apply. Please consult factory.
GLENAIR
SYMBOL
B
M
NF
TABLE II - STANDARD FINISHES
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
See Back Cover for Complete Finish Information
and Additional Finish Options
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 319 - Page 3
