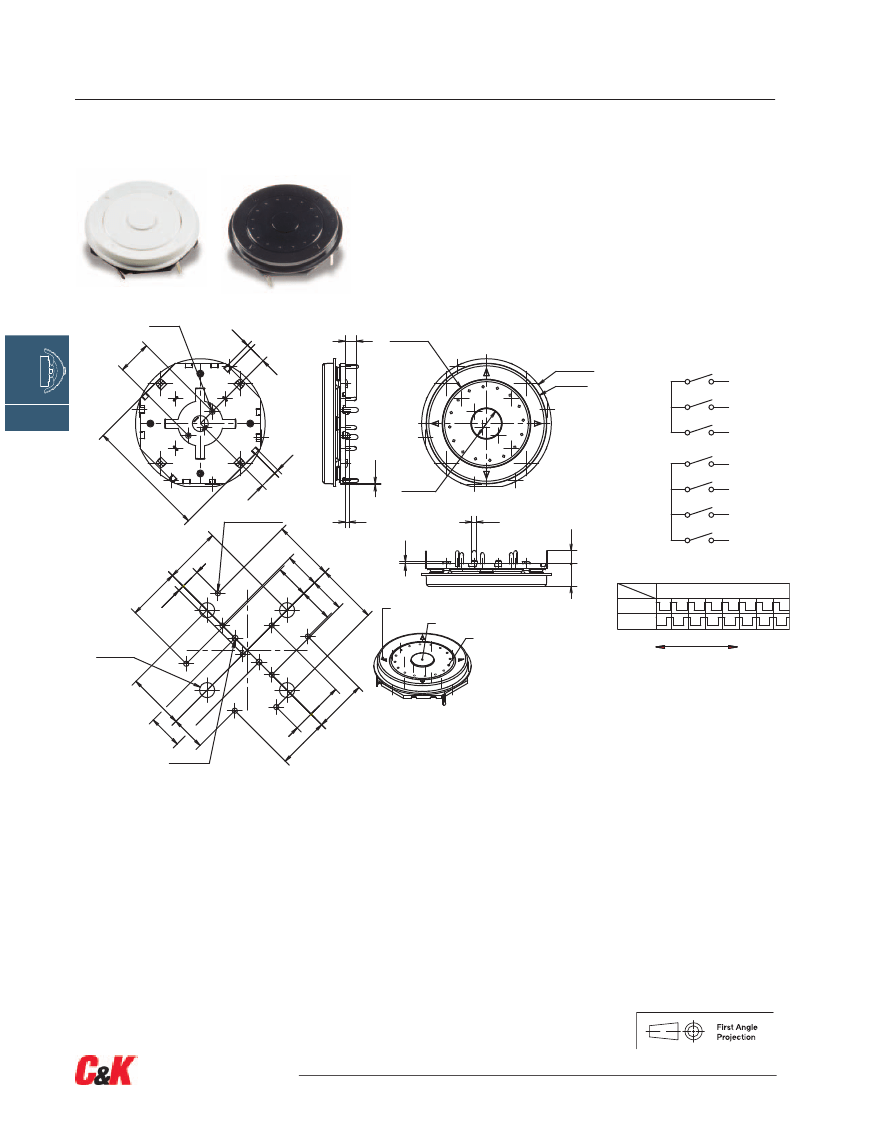

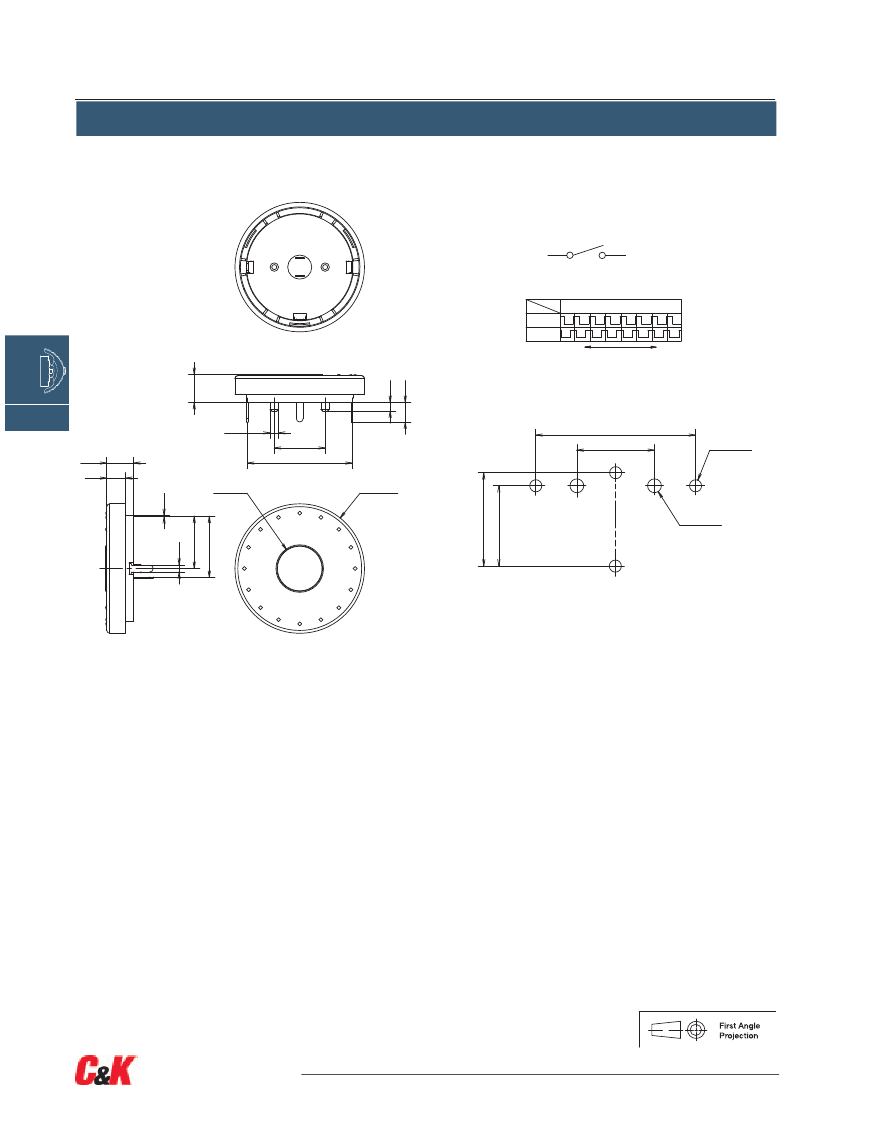

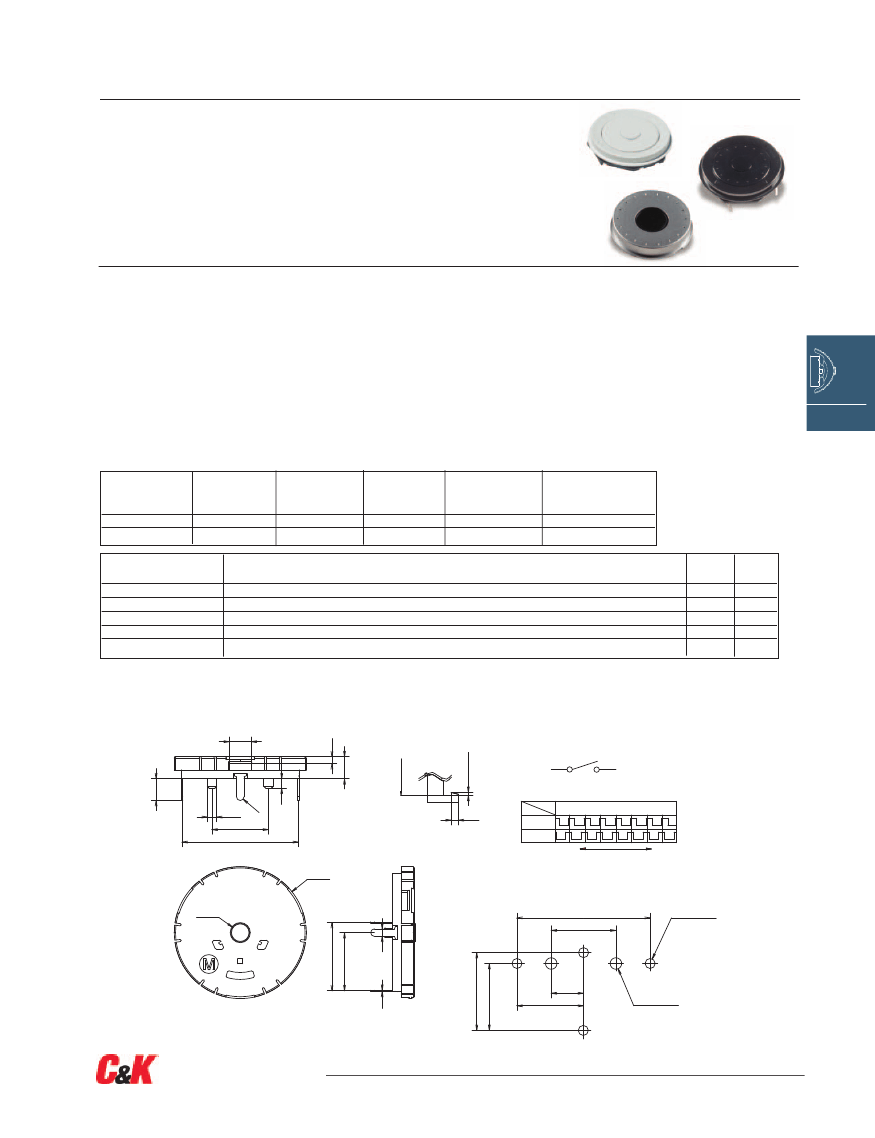

TSW Series
3 or 7 Function Tact and Scroll Wheel
Features/Benefits
•
Compact and slim
•
Multiple function in one
component (rotary, select)
•
Easy installation
•
Through hole termination
•
Integrated decoration (B type)
Typical Applications
•
Remote controls
•
Desk phones
•
Keyboards
•
Printers
•
Entertainment systems
•
White goods
Environmental
OPERATING TEMPERATURE: 0˚C / 40˚C
STORAGE TEMPERATURE: -40˚C / 70˚C
VIBRATION RESISTANCE: 10 ~ 55 Hz, displacement 0.75mm (p-p)
SHOCK RESISTANCE: Destruction 1,000 m/s
2
(approx. 100G) max.
WAVE SOLDERING: Max. 260˚C for 5 seconds
HAND SOLDERING: Max. 260˚C for 5 seconds
Operation Characteristics
OPERATING FORCE: See chart below
24 detent - 12 pulses/360˚
Specifications
INITIAL CONTACT RESISTANCE: Max. 300mΩ
INSULATION RESISTANCE: Min. 100 MΩ (100 VDC)
RATING: 1mA 10 VDC
LIFE CYCLE: See chart below
OPERATING FREQUENCY:
Rotation - Max. 30 operations per minute
Push - Max. 120 operations per minute
Depression - Max. 300 gf
Designation
TSWA
TSWB
Number of
Circuits
3
5
Rotation
Actuation
Force
Max. 60g - cm
Max. 50g - cm
Push
Actuation
Force
220g ± 50g
Max 300g
C
Navigation
Cycle Life
Rotation
(per direction)
1,000K cycles
1,000K cycles
Cycle
Life
Push
1,000K cycles
1,000K cycles
Part Number
TSWA-3N-C LFS
TSWA-3N-CB11 LFS
TSWA-3N-CD23 LFS
TSWB-3N-CB111 LFS
TSWB-3N-CB222 LFS
Description
Base switch with jog and select, no decoration
Base switch with jog and select, white central button, white dial
Base switch with jog and select, black central button, grey dial
Central select with jog and 4 directions, white central button, dial & direction ring
Central select with jog and 4 directions, black central button, dial & direction ring
Tray
80
65
30
30
30
Box
160
130
60
60
60

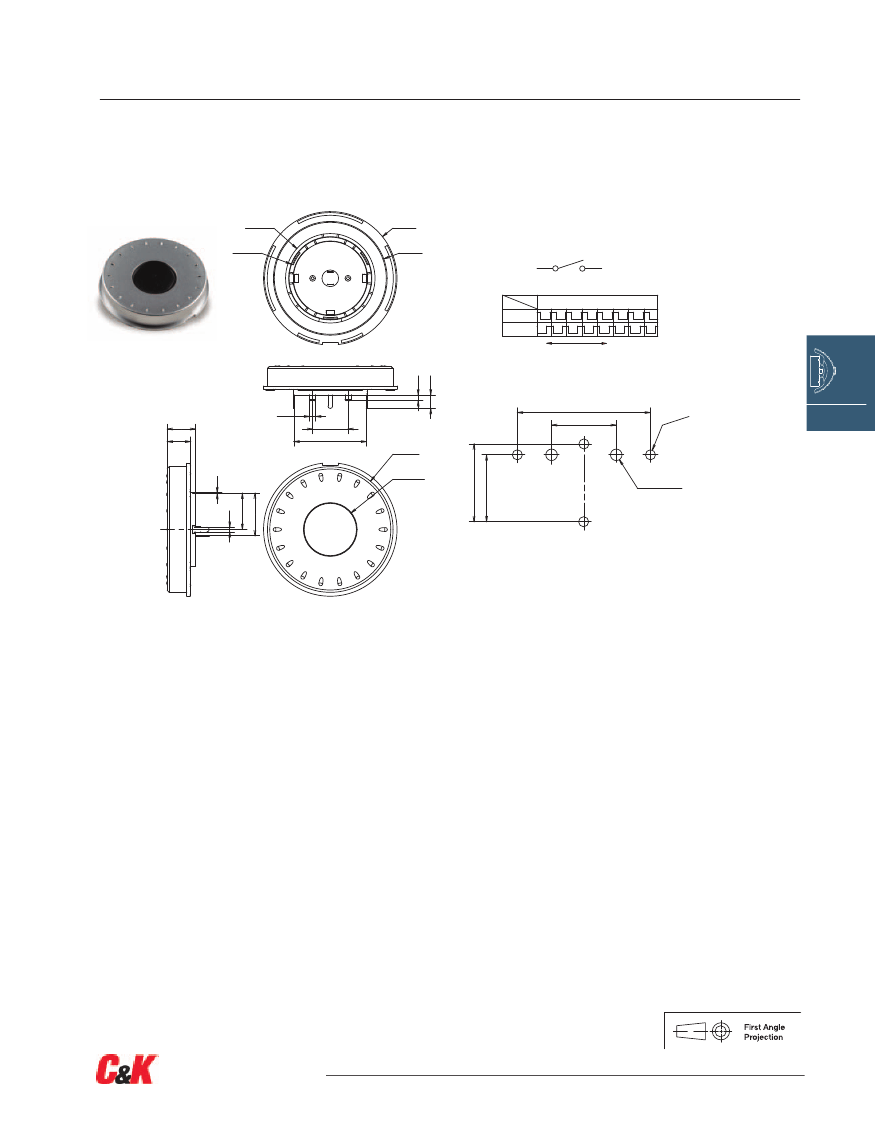

TSWA-3N-C LFS
Base switch with jog and select, no decoration
CONTACT CONFIGURATION
1,1
COVER DESIGN GUIDELINE
00.5-0.10
3,5
21.0
Push
COM
NO
3,5
3,5
COM
1,5
B
ø1,5
R0
,6
A
1.00
Rotation output waveform
ANGLE
CONTACT
-90˚
-60˚
-30˚
0˚
30˚
60˚
90˚
9
18,52
A-Com
B-Com
ON
OFF
ON
OFF
Numbers of detent : 24
Pulse/Rotation : 12 pulse/360˚
ø21
CW
CCW
PCB LAYOUT / COMPONENT SIDE
ø3
NO
18,52
9
10,87
1,2
NO
COM
10,83
9,31
B
0,2
4,50
9,26
B
A
+0.05
4x ø 1,3 0
9,3
+0.05
2x ø 1,6 0
19 july 12
Dimensions are shown: mm
Specifications and dimensions subject to change
C-3
www.ck-components.com
TSW Series
3 or 7 Function Tact and Scroll Wheel
TSWA-3N-CB11 LFS
Base switch with jog and select, white central button, white dial
CONTACT CONFIGURATION
Push
COM
NO
Rotation output waveform
ANGLE
CONTACT
-90˚ -60˚ -30˚
0˚
30˚
60˚
90˚
A-Com
B-Com
ON
OFF
ON
OFF
CW
CCW
Numbers of detent : 24
4,95
3,5
1,5
Pulse/Rotation : 12 pulse/360˚
C
Navigation
4,75
3,3
0,2
COM
ø1,5
9
B
A
PCB LAYOUT / COMPONENT SIDE
18,52
9
NO
ø 22,9
10,83
4x ø 1,3
18,52
ø 8,1
A
9,26
COM
2x ø 1,6
B
9,26
10,83
1,2
B
NO
19 july 12
Dimensions are shown: mm
Specifications and dimensions subject to change
C-4
www.ck-components.com
TSW Series
3 or 7 Function Tact and Scroll Wheel
TSWA-3N-CD23 LFS
Base switch with jog and select, black central button, grey dial
ø
22,8
ø
21,2
ø
34
CONTACT CONFIGURATION
ø
29
Push
COM
NO
Rotation output waveform
ANGLE
CONTACT
A-Com
B-Com
ON
OFF
ON
OFF
-90˚
-60˚
-30˚
0˚
30˚
60˚
90˚
CW
CCW
Numbers of detent : 24
Pulse/Rotation : 12 pulse/360˚
1,5
3,5
PCB LAYOUT / COMPONENT SIDE
18,52
9
NO
0 +0,05
4x
ø
1,3
COM
ÿ1,5
7,25
6
9
B
A
C
Navigation
18,52
ø
32
A
0,2
9,26
ø
13,5
10,83
COM
2x
ø
1,6
+0,05
0
B
9,26
10,83
1,2
B
NO
19 july 12
Dimensions are shown: mm
Specifications and dimensions subject to change
C-5
www.ck-components.com
TSW Series
3 or 7 Function Tact and Scroll Wheel
TSWB-3N-CB111 LFS
TSWB-3N-CB222 LFS
Central select with jog and 4 directions, white central button, dial & direction ring
Central select with jog and 4 directions, black central button, dial & direction ring
ø1,5
2
1,
3
ø22,9
S4
ELECTRICAL FUNCTION
ø34,4
ø32
COM .A
9
6
4,
S4
B
COM A
S1
S5
A
S2
COM B
4,
6
32
S1
A
C
Navigation
S3
S5
S1
S3
B
1,
2
0,2
COM .B
S2
S3
ø8,1
+0,05
0
,
16
S2
1,2
3,5
S4
S5
8x
ø1,4
PCB LAYOUT
COMPONENT SIDE
15
1
0,5
16 26
9,
87
8,
Rotational Output Waveform
6
,1
16
ANGLE
CONTACT
A-COM A
B-COM A
ON
OFF
ON
OFF
,9
7
1,
57
5,
2
9,
S4
B
COM A
S3
S1
S5
A
S2
COM B
5,
2
07
9,
13
-90˚
-60˚
-30˚
0˚
30˚
60˚
90˚
26
87
8,
6
DIRECTION
SELECT
ROTATION
4x
ø4
CW
Numbers of detent : 24
CCW
Pulse/Rotation : 12 pulse/360˚
26
9,
13
,6
7
13
,9
7
15
9
2x
ø1,6
19 july 12
Dimensions are shown: mm
Specifications and dimensions subject to change
C-6
www.ck-components.com
