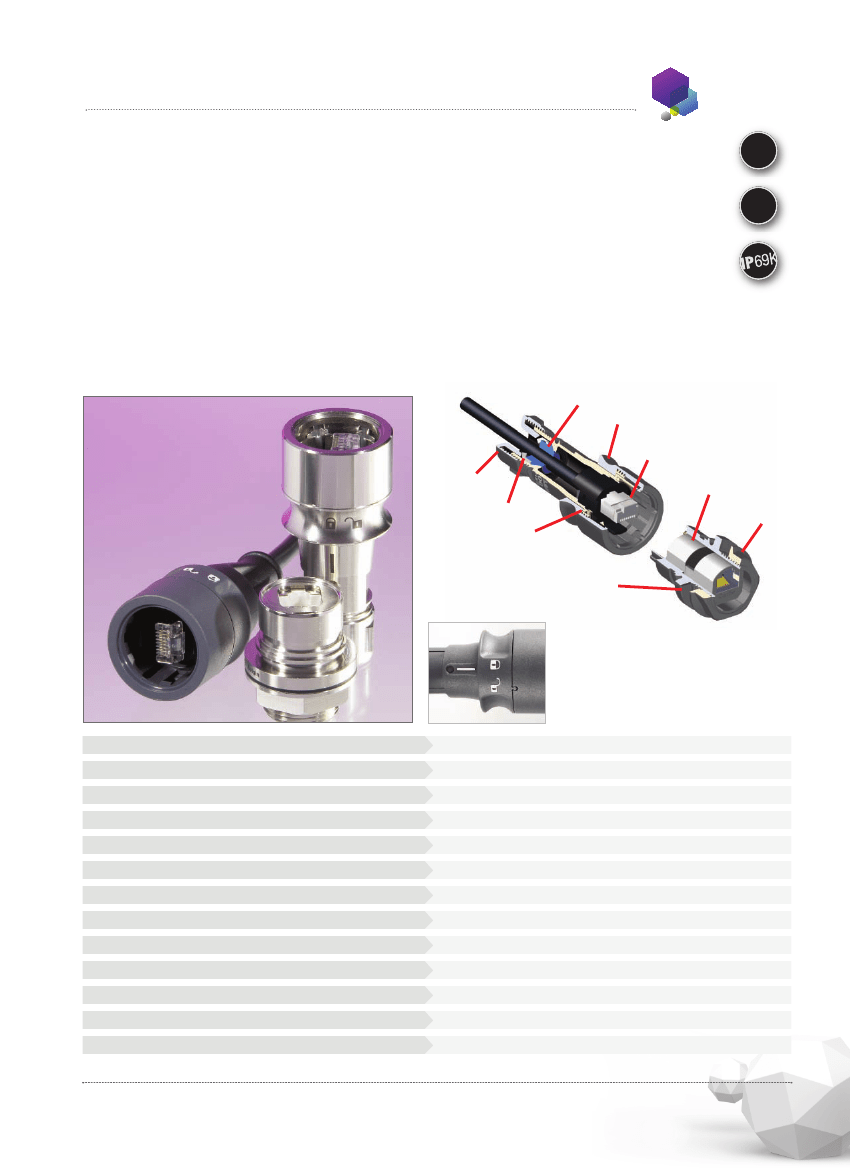

6000 Series Buccaneer
®
Robust, instant connections for harsh environments
6000 Series Buccaneer - circular connectors that combine the ease of use of a push/pull coupling
mechanism with proven environmental sealing. Available with metal or plastic bodies, the range
supports Ethernet and USB data interfaces.
Designed and independently tested to IP66, IP68 & IP69K standards, they are ideal for applications
where ingress of dust and water must be avoided and where ease of connection, space and
appearance are important considerations.
bulgin
a brand of Elektron Technology
IP
66
IP
68
For Data — Ethernet
THERMO-PLASTIC & METAL VERSIONS
Cable Gland
Push/Pull
Locking Ring
Standard RJ45
Gland Nut
Gland Cage
O-Ring Seal
Sealed Ethernet Coupler
Retaining
Nut
Panel
Gasket
Push-pull latching system*
30˚ twist locking*
IP66, IP68 and IP69K when mated
Independent sealing tests
Cat 5e compliant
PUR jacket on cable
Shielded system
Cat 5e shielded coupler
Visual mating indication
Rewireable flex connector
Earth lead version of panel adaptor on plastic connector
Metal connector grounded to cable screen
Sealed through panel Ethernet
*patent applied for
w :
elektron-bulgin.com
Secure, instant latching. Quick connector mating and release
Prevents accidental un-mating
Suitable for a wide range of dust and water borne environments
IP Ratings independently verified
Data rate up to 100MHz
Good chemical resistance, flame retardant
High noise immunity and EMI protection
Maintains shielding
Alignment indicator reduces risk of damage during mating
Ability to ‘field’ terminate
Continuous screening of panel mount connector
Continuous screening of panel mount connector
Prevent water ingress into equipment
Page 1 of 7

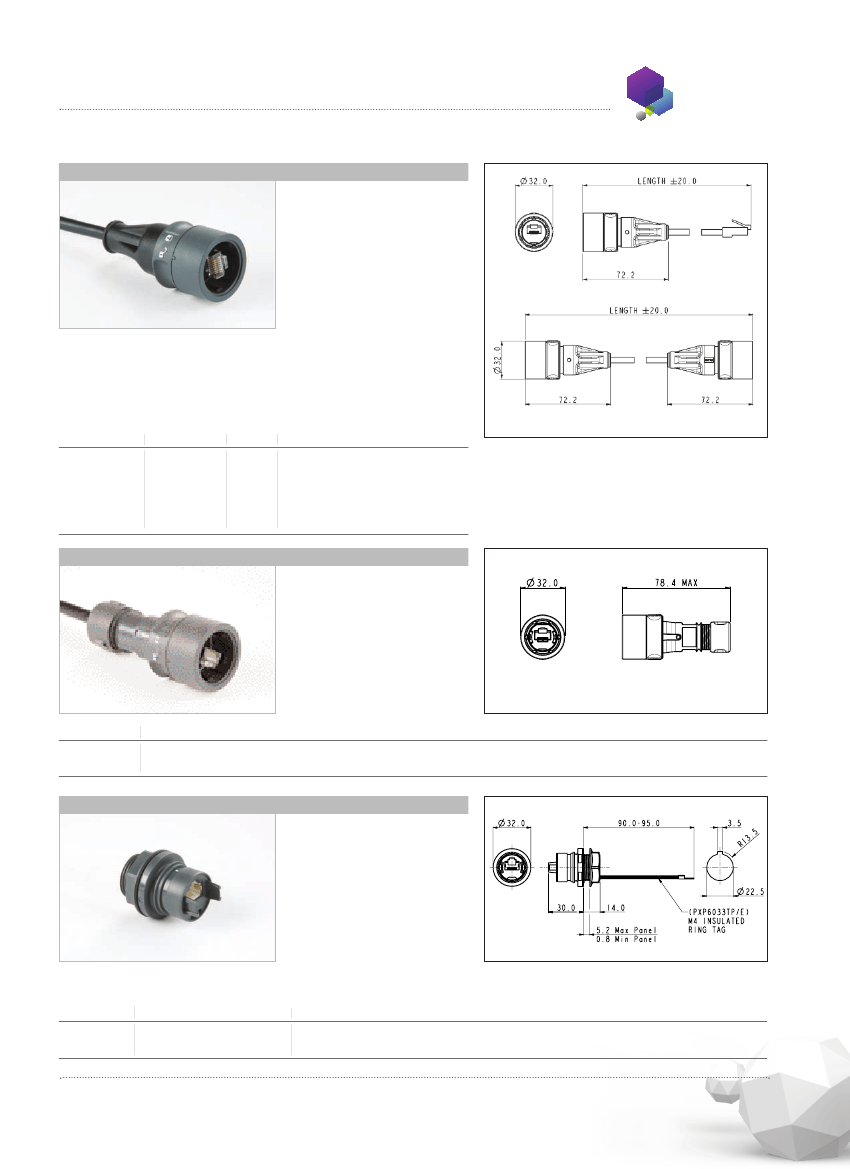

6000 Series Buccaneer
®
Ethernet – Thermo-plastic version
PATCH CORD FLEX CONNECTOR - PUR JACKET CABLE
Mates with PXP6033TP type
panel mounting connectors
30˚ twist locking
Overmoulded patchcords with
IP rated connector
Supplied with shielded RJ45
plug
Single or double end terminated
Standard lengths: 2m, 3m & 5m
S-FTP cable construction
PUR jacket cable
Wiring configuration to 568-B
Exceeds EIA/TIA Cat 5e
bulgin
a brand of Elektron Technology
PXP6037- single ended
PXP6037
PXP6038 - double ended
Part no.
PXP6037/2M00
PXP6037/3M00
PXP6037/5M00
PXP6038/2M00
PXP6038/3M00
PXP6038/5M00
Type
Single ended
Single ended
Single ended
Double ended
Double ended
Double ended
Length
2m
3m
5m
2m
3m
5m
Description
IP RJ Buccaneer to Shielded RJ45
IP RJ Buccaneer to Shielded RJ45
IP RJ Buccaneer to Shielded RJ45
IP RJ Buccaneer to IP68 RJ Buccaneer
IP RJ Buccaneer to IP68 RJ Buccaneer
IP RJ Buccaneer to IP68 RJ Buccaneer
RE-WIREABLE FLEX CONNECTOR
Mates with PXP6033TP type
panel mounting connectors
30˚ twist locking
Supplied with shielded RJ45
plug
Two versions:
for PUR jacket cable (Cat 5e)
for other cable sizes from
3.5 to 8mm dia.
Description
Cable glands optimised for PUR jacket cable to maintain Cat 5e performance
Suitable for use with cables from
4.0
to
7.0mm
diameter
PXP6034
Part no.
PXP6034/A
PXP6034/B
FRONT PANEL MOUNTING CONNECTOR
Sealed through panel
Cat 5e shielded coupler
Mates with all plastic flex
connectors
Standard RJ45 patchcord can
be plugged into rear
Version with earth wire available
Single hole fixing
Complete with panel sealing
gasket
PXP6033TP
Part no.
PXP6033TP
PXP6033TP/E
Description
Cat 5e coupler
Cat 5e coupler + earth wire
Fixing
Front panel mounted - sealed through panel
Front panel mounted - sealed through panel
w :
elektron-bulgin.com
Page 2 of 7
6000 Series Buccaneer
®
Ethernet – Thermo-plastic version
PART NO SYSTEM
bulgin
a brand of Elektron Technology
PXP / xxxx xx / x
Plastic Connector Designation
Series
6
= 6000 Series
Body Styles
033
= Panel
034
= Re-wireable Flex
037
= Patchcord (Single Ended)
038
= Patchcord (Double Ended)
Panel Sealing
TP
= through panel sealing (for use with PXP6033 panel body only)
Blank
= not applicable
Characteristics
E
= Earth lead (for use with PXP6033 plastic panel body only)
A
= Glanding for PUR cable (for use with PXP6034 re-wireable flex only)
B
= Glanding for 3.5 to 8mm cables (for use with PXP6034 re-wireable flex only)
2M00
= 2 metre cable length (for use with PXP6037 and PXP6038 patchcords only)
3M00
= 3 metre cable length (for use with PXP6037 and PXP6038 patchcords only)
5M00
= 5 metre cable length (for use with PXP6037 and PXP6038 patchcords only)
Examples:
PXP6033TP/E= Panel mounted coupler, sealed through panel with earth lead
PXP6037/2M00= Patchcord with one sealed end, 2 metres long
w :
elektron-bulgin.com
Page 3 of 7

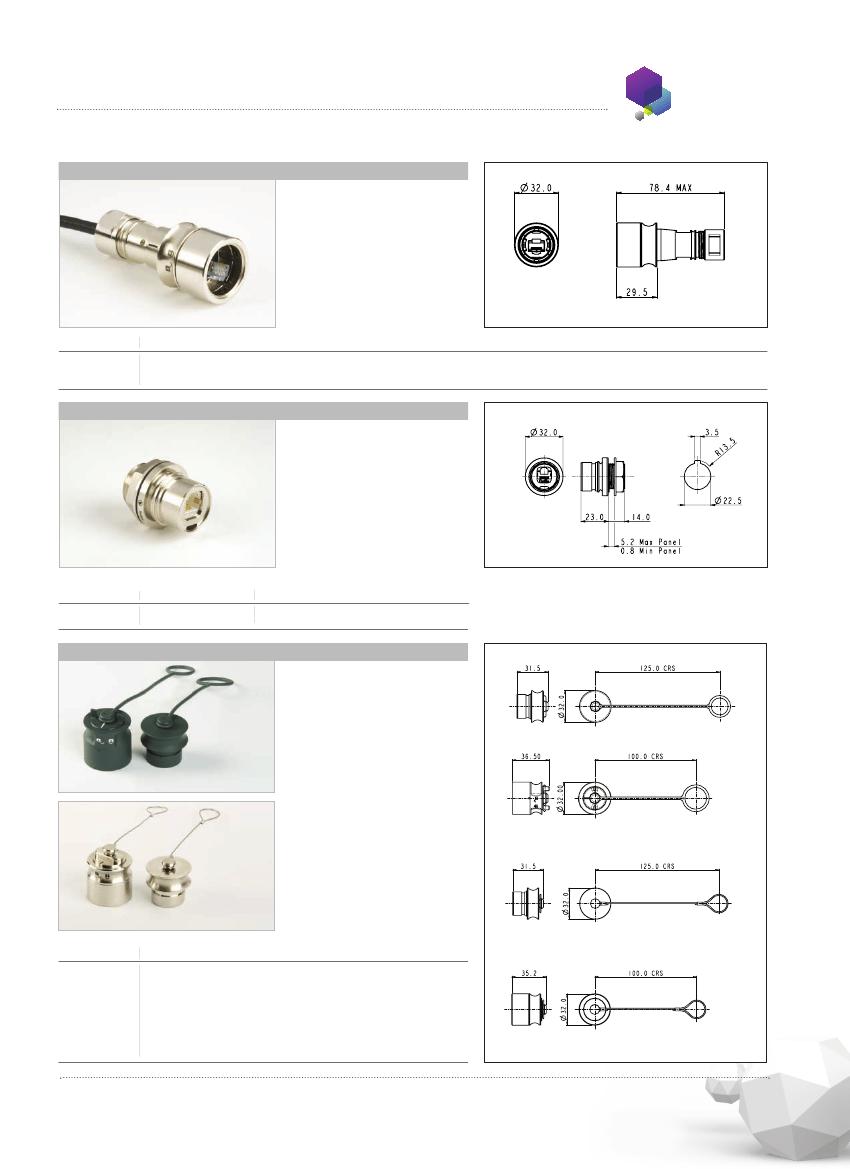

6000 Series Buccaneer
®
Ethernet – Metal version
RE-WIREABLE FLEX CONNECTOR
Mates with PXM6033TP type
panel mounting connectors
30˚ twist locking
Supplied with shielded RJ45
plug
Two versions:
for PUR jacket cable (Cat 5e)
for other cable sizes from
3.5 to 8mm dia.
Description
Cable glands optimised for PUR jacket cable to maintain Cat 5e performance
Suitable for use with cables from
4.0
to
7.0mm
diameter
bulgin
a brand of Elektron Technology
PXM6034
Part no.
PXM6034/A
PXM6034/B
FRONT PANEL MOUNTING CONNECTOR
Sealed through panel
Cat 5e shielded coupler
Mates with PXM6034 type flex
connectors
Standard RJ45 patchcord can
be plugged into rear
Connector shell ground to cable
screen
Single hole fixing
Complete with panel sealing gasket
Description
Cat 5e coupler
PXM6033
Part no.
PXM6033TP
Fixing
Front panel mounted - sealed through panel
ACCESSORIES FOR ETHERNET CONNECTORS
Sealing caps to maintain IP
rating when connectors are not
in use
Plastic connectors
PXP6081 for cable connectors
PXP6034, PXP6037 & PXP6038
PXP6083 for front panel mount
connectors PXP6033, with 30˚
twist lock
Metal connectors
PXM6081 for cable connectors
PXM6034
PXM6083 for front panel mount
connectors
PXP6081
PXP6083
PXP6081
PXP6083
PXM6083
Part No.
PXP6081
PXP6083
PXM6081
PXM6083
14151
14199
14150
PXM6081
PXM6081
Description
Sealing Cap for plastic Flex cable connectors
Sealing Cap for plastic front panel mounting connector
Sealing Cap for metal Flex cable connectors
Sealing Cap for metal front panel mounting connector
Hand crimp tooling + die set
PUR Jacket cable - 50m reel
Replacement shielded RJ45
PXM6083
w :
elektron-bulgin.com
Page 4 of 7
6000 Series Buccaneer
®
Ethernet – Metal version
PART NO SYSTEM
bulgin
a brand of Elektron Technology
PXM / xxxx xx / x
Metal Connector Designation
Series
6
= 6000 Series
Body Styles
033
= Panel
034
= Re-wireable Flex
Panel Sealing
TP
= through panel sealing (for use with PXM6033 panel body only)
Blank
= not applicable
Characteristics
A
= Glanding for PUR cable
B
= Glanding for 3.5 to 8mm cables (for use with PXM6034 re-wireable flex only)
Examples:
PXM6034/A = Flex re-wireable connector for use with PUR cable
PXM6033TP = Panel mounted coupler, through panel sealed
w :
elektron-bulgin.com
Page 5 of 7
