IDH-DB/DC12: Descriptionhead adapter DB series; CategoryTools and equipment; File Size231KB，2 Pages; ManufacturerJST

Download Datasheet View All

IDH-DB/DC12 Overview

head adapter DB series

Preview

Download Datasheet

View All

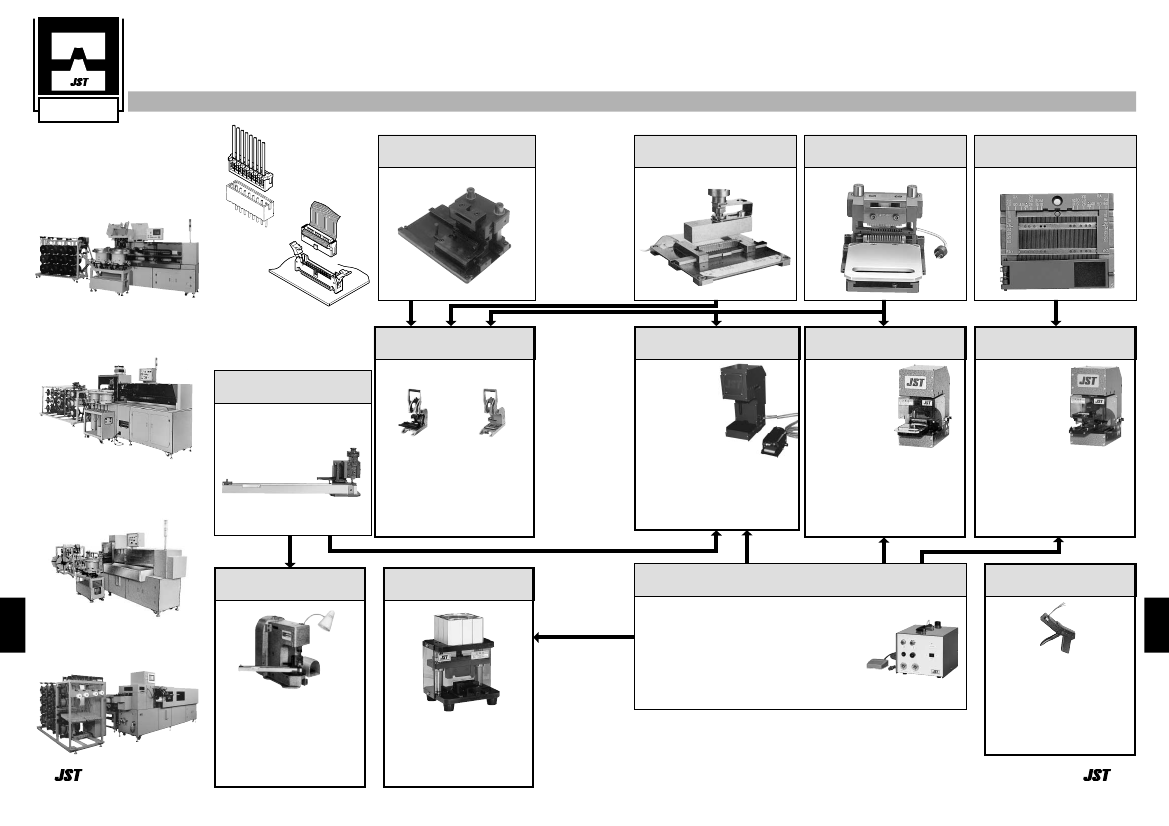

APPLICATION

TOOLING

5-B

ID tools and machines

The arrow mark indocates the press that is applicable to the applicator.

ID tools and machines

ID applicator

for 1.27mm(.050") pitch ribbon cables

FP series

ID applicator

for discrete wires and jumper wires

H2 series

ID applicator

for 1.27mm(.050") pitch ribbon cables

HID series

ID applicator

for discrete wires and jumper wires

H2A series

Auto. ID machines for discrete wires

BCD-M5BP

Auto. ID machines for shielded wires

SCD-M15B

ID applicator

for discrete wires

MKD-LP

Hand press

HPD-M2A

HPD-M2A-HID

Pneumatic press

AP-2H

Pneumatic press

AP-2

Pneumatic press

AP-2D

Pneumatic press for

1.27mm(.050") ribbon cable

connectors. Operation is

easy and safe as the

connector and cable can be

set while the sliding

applicator is drawn out of

the terminating section.

Versatile press applicable

to various ID applicators.

Versatile press applicable to

various ID applicators.

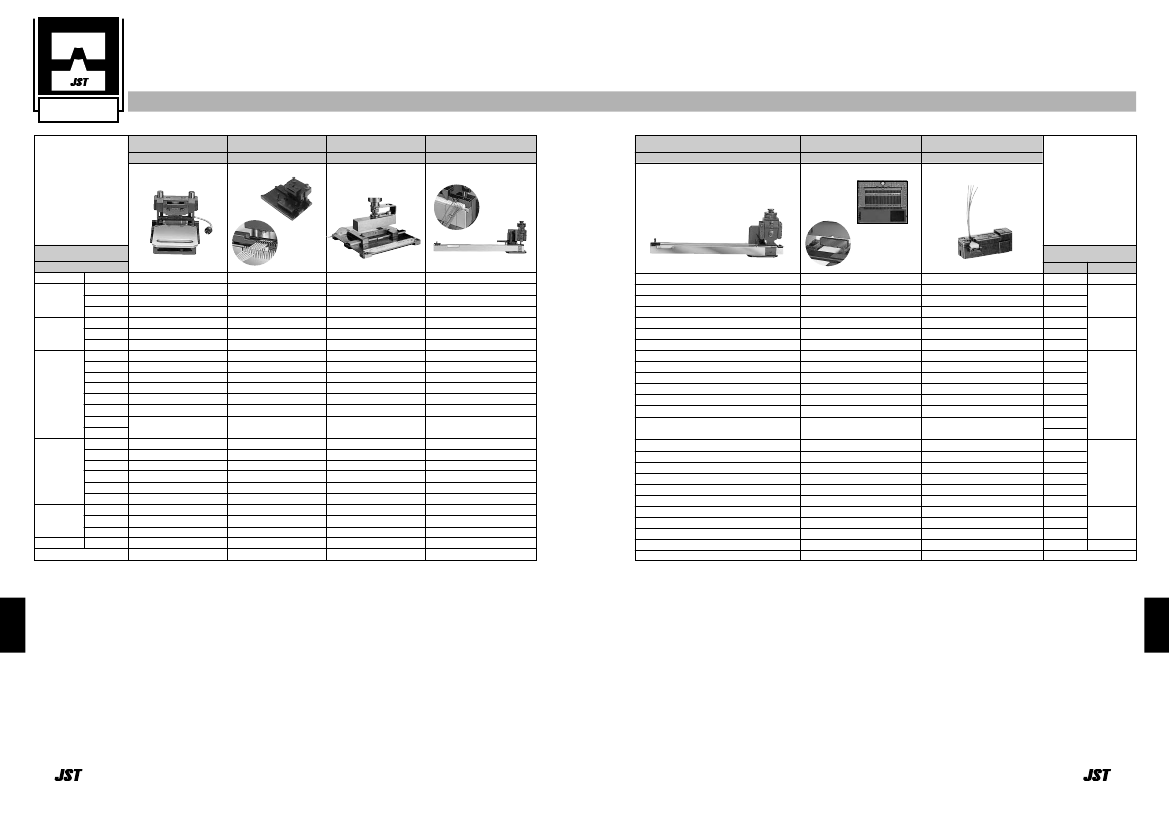

Specifications

• Dimensions: (W x L x H)130 x 280 x 383mm

(5.1" x 11.0" x 15.1")

• Weight: Approx. 7kg(15 lb)

• Dimensions: (W x L x H)

184 x 302 x 491mm

(7.2" x 11.9" x 19.3")

• Weight: Approx. 30kg(66 lb)

• Air pressure : 490 to 690 kPa (5 to 7 kgf/sq.cm)

• Strokes: 50 max./minute

• Pressure output: Approx. 7.5kN (Approx. 760 kgf)when

air pressure is 490 kPa (5 kgf/sq.cm)

• Operation method: Air-operated foot valve

• Dies: Applicator replacement

Specifications

• Dimensions: (W x L x H)141 x 252 x 301mm

(5.6" x 9.9" x 11.9")

• Weight: Approx. 16kg(35lb)

• Air pressure: 490 to 690 kPa (5 to 7 kgf/sq.cm)

• Strokes: 50 max./minute

• Pressure output: Approx. 3.8kN (390 kgf)

when air pressure is 490 kPa (5 kgf/sq.cm)

• Operation method: Air-operated foot valve

• Dies: Applicator replacement

Specifications

• Dimensions: (W x L x H)141 x 252 x 301mm

(5.6" x 9.9" x 11.9")

• Weight: Approx. 16kg(35lb)

• Air pressure: 490 to 686 kPa (5 to 7 kgf/sq.cm)

• Strokes: 50 max./minute

• Applicable connectors: JST's RA, RC & RX connectors

• Pressure output: Approx. 3.8kN (Approx. 390 kgf)

when air pressure is 490 kPa (5 kgf/sq.cm)

• Operation method: Air-operated foot valve

• Dies: Applicator replacement

Auto. ID machines for 2.5 mm (.098")

& 2.0 mm (.079") pitch jumper wires

RCD-M9BE

Note: The difference between the HPD-M2A and

the HPD-M2A-HID is the main shaft.

HPD-M2A is for the H2A series applicators

HPD-M2A-HID is for the HID series

applicators

Note: For the HR connectors, please use AP-2H

press that provides bigger pressure output.

Pneumatic press

MKD-LP+AP-K2N

Pneumatic press

MP-2A

Optional: Control unit for pneumatic presses

MP-CU

The filter regulator & pressure switch help to make reliable operation even

under the air condition is not stable. Light and compact.

Pistol tool

for discrete wires and jumper wires

IDB-12

<Made in

Germany>

Auto. ID machines for multi-harnesses

CAM-M12B

Note: MKD-LP applicators are not applicable

to the connectors with glass-filled nylon

housings i.e. 12 to 15-circuit DD/DS

connectors and 13 to 16-circuit KR

connectors.

Specifications

• Dimensions: (WXLXH)95X515X203mm

(3.7"X20.3"X8.0")

• Weight: Approx. 6.5kg(14lb)

• Applicable press: AP-K2N

• Applicable connectors: JST'S connectors

for discrete wires.

Specifications

• Dimensions: (W x L x H)200 x 300 x 230mm(7.9" x 11.8" x 9.1")

• Weight: Approx. 5kg(11 lb)

• Power source: 100/115/220/240V AC, single-phase, 50/60 Hz

• Air pressure: 490 to 686 kPa (5 to 7 kgf/sq.cm)

• Accessories: Foot switch, power cord

Specifications

• Dimensions: (W x L x H)23 x 135 x 175mm

(.9" x 5.3" x 6.9")

• Weight: 270g(1lb)

• Dies: Head adaptor (IDH series)

replacement

• Compact, light and maintenance free. No

inspection or lubrication is necessary.

Simple and compact pneumatic press without

electrically controlled unit.

Specifications

• Dimensions: (WXLXH)180X150X250mm

(7.1"X5.9"X9.8")

• Weight: Approx. 10kg(22lb)

• Air pressure: 490 to 690kPa (5 to 7kgf/sq.cm)

• Dies: Dies-Main body integrated

• Strokes: 50 max./minute
