Bulletin No. TMPT/RN-E
Drawing No. LP0719
Released 08/13
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

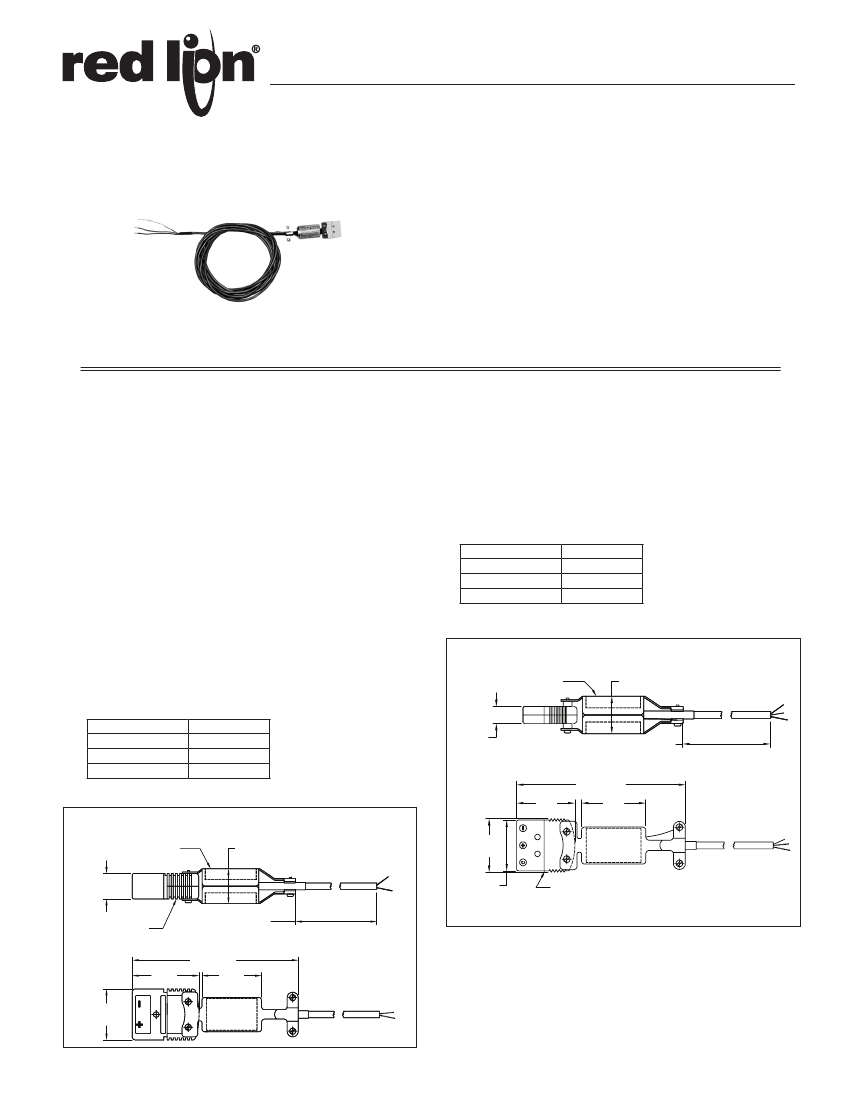

MODELS TMPT AND TMPTR - THERMOCOUPLE OR RTD CONNECTOR WITH
BUILT IN 4-20 mA TEMPERATURE TRANSMITTER
HIGH ACCURACY, REPEATABILITY AND STABILITY
CONNECTOR DESIGN CONVERTS INPUT SIGNAL TO A
STANDARD 2-WIRE, 4-20 mA OUTPUT
PROVIDES “OPEN SENSOR WIRE” SIGNAL INDICATION
ENCAPSULATED HOUSING
COMPENSATES FOR LONG LEAD WIRES
FACTORY CALIBRATED, NO ADJUSTMENTS REQUIRED
MODELS FOR J, K, T (UNGROUNDED) THERMOCOUPLES AND
100 OHM, 0.00385 3-WIRE RTD'S
GENERAL DESCRIPTION
The model TMPT's internal circuitry conditions the non-linear millivolt
output of a thermocouple, across a specified temperature range, and retransmits
it as a standard 2-wire 4–20 mA analog output. The TMPTR also provides a
2-wire 4–20 mA output by conditioning the resistive change of a 100Ω, 0.00385
RTD sensor and transmitting it as a 4–20 mA output.
TMPTR SPECIFICATIONS
SPECIFICATIONS
TMPT SPECIFICATIONS
1.
SUPPLY VOLTAGE:
9 to 24 VDC @ 30 mA
2.
OUTPUT:
4 to 20 mA
3.
TEMPERATURE RANGE:
See Ordering Information
4.
ACCURACY:
± 0.5% of full scale millivolt input @ 23º C plus the non-
linearity of the thermocouple type (note that the TMPT does not compensate
for thermocouple non-linearity)
5.
TEMPERATURE COEFFICIENT:
± 0.002 mA/ºC
6.
MAX LOOP LOAD:
(Ω) = (V supply - 9 V)/0.02 A
7.
TRANSMITTER OPERATING TEMPERATURE:
-40º to 85ºC
8.
AGENCY APPROVAL:
CE
9.
RESPONSE TIME:
120 msec (0 to 63% FS)
10.
THERMOCOUPLE JUNCTION:
Ungrounded
11.
INPUT CONNECTION:
Standard size female connector mates with both
standard and miniature male connectors.
12.
CABLE CONNECTIONS:
10 foot 2-wire shielded cable
WIRE COLOR CODE
FUNCTION
1.
SUPPLY VOLTAGE:
9 to 24 VDC @ 30 mA
2.
OUTPUT:
4 to 20 mA
3.
TEMPERATURE RANGE:
2 – 569º C (36 – 1056º F)
4.
INPUT:
3 wire, PT100 (α = 0.00385)
5.
OPEN SENSOR WIRE INDICATION:
Leg 1: Open = 27 mA
Leg 2: Open = 2.2 mA
Leg 3: Open = 2.2 mA
6.
INPUT CONNECTION:
3 prong minature connector mates with
TMPCNM09
7.
CABLE CONNECTIONS:
10 foot 2-wire shielded cable
WIRE COLOR CODE
FUNCTION
RED
BLACK
WHITE
+VDC
OUTPUT
SHIELD
* Max cable run is determined by max loop load and wire resistance (
≈1000ft).
DIMENSIONS In inches (mm)
TRANSMITTER MODULE
ENCLOSED IN
S.S. HOUSING
0.75 (19.1)
RED
BLACK
WHITE
+VDC
OUTPUT
SHIELD
0.31
(7.9)
2-WIRE SHIELDED CABLE
10 FT
3.13 (79.4)
1.06
(27.0)
1.19
(30.2)
* Max cable run is determined by max loop load and wire resistance (
≈1000ft).
DIMENSIONS In inches (mm)
TRANSMITTER MODULE
ENCLOSED IN
S.S. HOUSING
0.50
(12.7)
2-CONDUCTOR
SHIELDED CABLE
10 FT
3.25 (82.6)
1.19
(30.2)
0.75 (19.1)
0.97
(24.6)
THREE-PRONG
MINIATURE
RTD CONNECTOR
0.94 (23.8)
UNIVERSAL
THERMOCOUPLE
CONNECTOR
1.31
(33.3)
1.0
(25.4)
1
WIRING CONNECTION
EXTERNAL POWER
COMM
+VDC
RED
BLACK
WHITE
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
TC
ANSI TYPE
TEMPERATURE
RANGE
PART NUMBER
K
-18 to 1093 °C
(0 to 2000
°F)
-18 to 538 °C
(0 to 1000
°F)
-18 to 121 °C
(0 to 250
°F)
-18 to 399 °C
(0 to 750
°F)
-18 to 121 °C
(0 to 250
°F)
-18 to 538 °C
(0 to 1000
°F)
2 to 569
°C
(36 to 1056
°F)
TMPTRN01
TMPTRN02
TMPTRN03
TMPTRN04
TMPTRN05
TMPTRN06
TMPTRN07
TMPT
}
TC
or
RTD
K
TC TRANSMITTER
WITH FEMALE
CONNECTOR
T
T
J
J
TMPTR
RTD TRANSMITTER
WITH FEMALE
CONNECTOR
-
TMPT
COMM.
CURRENT
MAX
MIN
TOT
8.8.8.8.8
C
SP1
DSP
SP2
PAR
F1
SP3
F2
SP4
RST
PROCESS METER
Covered by US and Foreign Patents.
A
ccessories
MODEL TMPCN - QUICK DISCONNECT STANDARD CONNECTORS
GENERAL DESCRIPTION
Standard Connectors are for use with the Standard Quick Disconnect TC
Probes. They are available in both male and female termination, and include a
“write on label” for easy identification. The female standard connector is a
universal connector, meaning it can be used to terminate male versions of both
the standard and miniature connector.
DIMENSIONS In inches (mm)
0.10 DIA.
(2.5)
SPECIFICATIONS
1.31
(33.3)
0.47
(11.9)
1.
CONNECTOR BODY MATERIAL:
Glass Filled Nylon, for temperature
ranges of -29 to 220º C. (-20 to 428 °F)
2.
CONNECTOR BODY COLOR:
ANSI color coded
3.
WIRE GAGE:
Accepts stranded or solid wire up to 14 AWG
4.
WIRE TERMINATION:
Combination Phillips/Slot Screws
0.59
(15.0)
0.16
(4.1)
0.19
(4.8)
0.44
(11.2)
1.0 (25.4)
0.31 (7.9)
0.5
(12.7)
0.44 (11.2)
FRONT & REAR VIEW OF FEMALE
0.50
(12.7)
MALE AND FEMALE HAVE
THE SAME BODY DIMENSIONS
0.22 (5.6) WIRE ACCESS
HOLE
ORDERING INFORMATION
DESCRIPTION
TYPE
TERMINATION
PART NUMBER
K
MALE
FEMALE
MALE
FEMALE
MALE
FEMALE
MALE
FEMALE
TMPCNS01
TMPCNS02
TMPCNS03
TMPCNS04
TMPCNS05
TMPCNS06
TMPCNS07
TMPCNS08
T
STANDARD
CONNECTOR
E
J
2
MODEL TMPCN - QUICK DISCONNECT MINIATURE CONNECTORS
GENERAL DESCRIPTION
Miniature Connectors are for use with the Miniature Quick Disconnect TC
Probes. They are available in both male and female termination, and include a
“write on label” for easy identification.
SPECIFICATIONS
1.
CONNECTOR BODY MATERIAL:
Glass Filled Nylon, for temperature
ranges of -29 to 220º C. (-20 to 428 °F)
2.
CONNECTOR BODY COLOR:
ANSI color coded
3.
WIRE GAGE:
Accepts stranded or solid wire up to 20 AWG
4.
WIRE TERMINATION:
Combination Phillips/Slot Screws
DIMENSIONS In inches (mm)
0.10
(2.5) DIA.
0.19
(4.8)
0.81
(20.6)
0.194 (4.9) WIRE HOLE
ORDERING INFORMATION
DESCRIPTION
TYPE
TERMINATION
PART NUMBER
K
MALE
FEMALE
MALE
FEMALE
MALE
FEMALE
MALE
FEMALE
TMPCNM01
TMPCNM02
TMPCNM03
TMPCNM04
TMPCNM05
TMPCNM06
TMPCNM07
TMPCNM08
0.09
(2.3)
0.13
(3.3)
0.31
(7.9)
0.50
(12.7)
0.28
(7.1)
1.00
(25.4)
0.03 (0.8)
0.13 (3.3)
0.31 (7.9)
T
MINIATURE
CONNECTOR
E
0.66
(16.8)
FEMALE
MALE
J
MODEL TMPCN - RTD PROBE CONNECTORS
GENERAL DESCRIPTION
RTD Mini Connectors are for use with RTD probes. They are miniature size,
and are available in both male and female termination.
DIMENSIONS In inches (mm)
MALE
0.13 DIA. TYP.
(3.3)
0.23
(5.8)
G
+
–
FEMALE
0.19 (4.93) WIRE
ACCESS HOLE
1.06
(26.9)
SPECIFICATIONS
1.
CONNECTOR BODY MATERIAL:
Glass Filled Nylon, for temperature
ranges of -29 to 220 ºC.
2.
CONNECTOR BODY COLOR:
White
3.
WIRE GAGE:
Accepts stranded or solid wire up to 20 AWG
4.
WIRE TERMINATION:
Combination Phillips/Slot Screws
5.
CONNECTOR ENDS:
Copper
0.92
(23.4)
0.09
(2.3)
0.31
(7.9)
0.13
(3.3)
0.31
(7.9)
0.50
(12.7)
0.03
(0.8)
0.31
(7.9)
0.44
(11.2)
0.13
(3.3)
–
+
G
0.31
(7.9)
0.92
(23.4)
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
TYPE
TERMINATION
PART NUMBER
TMPCN
RTD Miniature Male Connector
RTD Miniature Female Connector
U
U
Male
Female
TMPCNM09
TMPCNM10
3
