ILD620GB-X001 datasheet, PDF - EEWORLD Datasheet

ILD620GB-X001: DescriptionAC Input-Transistor Output Optocoupler, 2-Element, 5300V Isolation, DIP-8; CategoryLED optoelectronic/LED photoelectric; File Size244KB，4 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

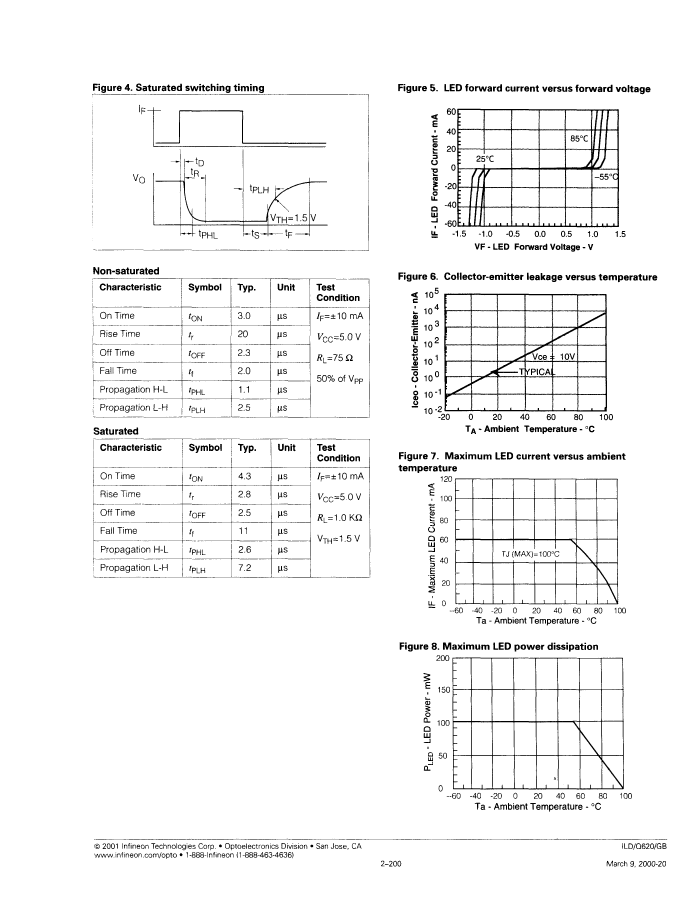

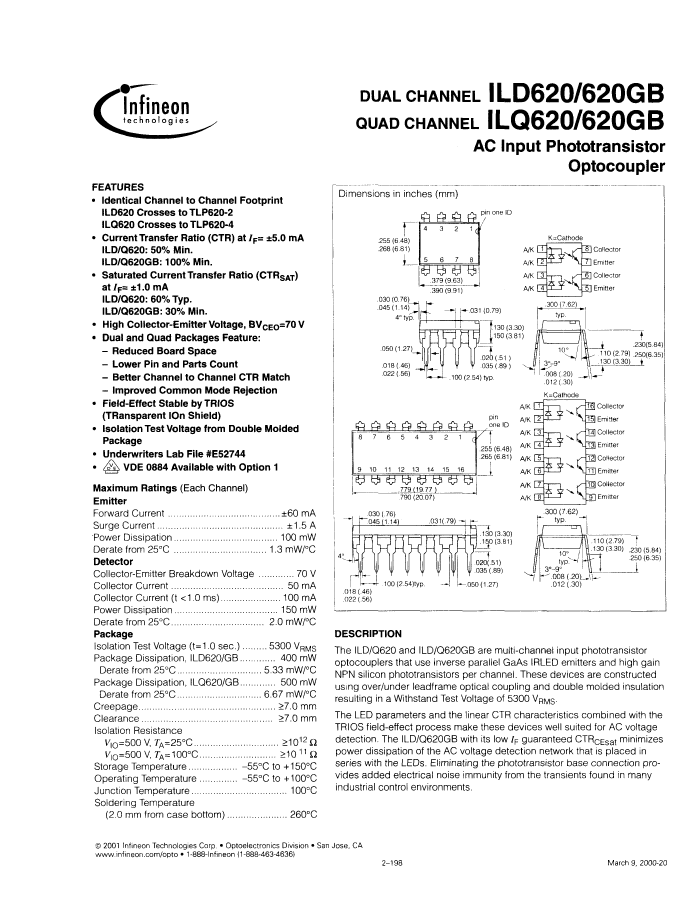

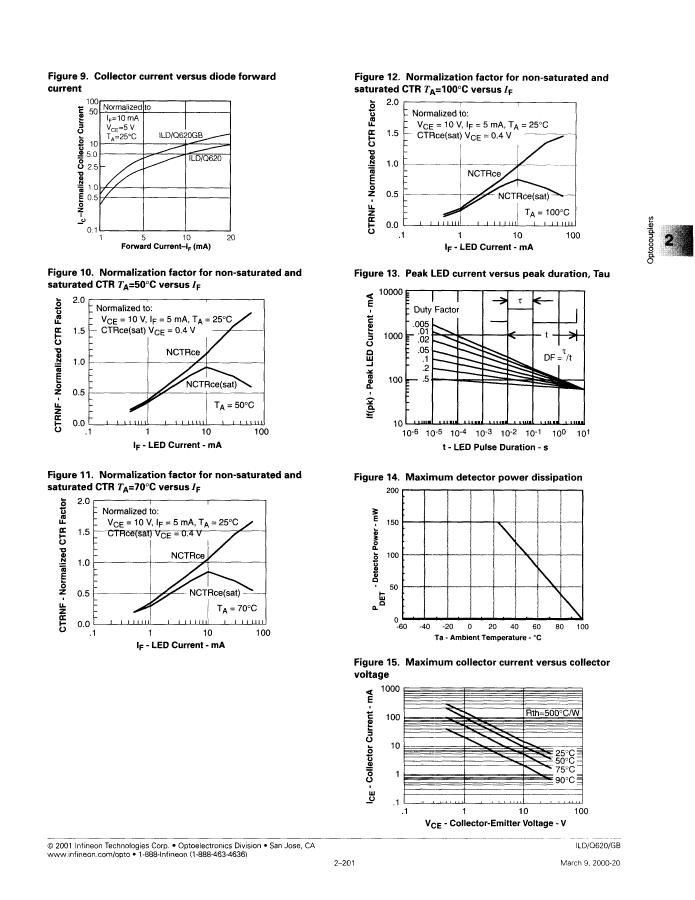

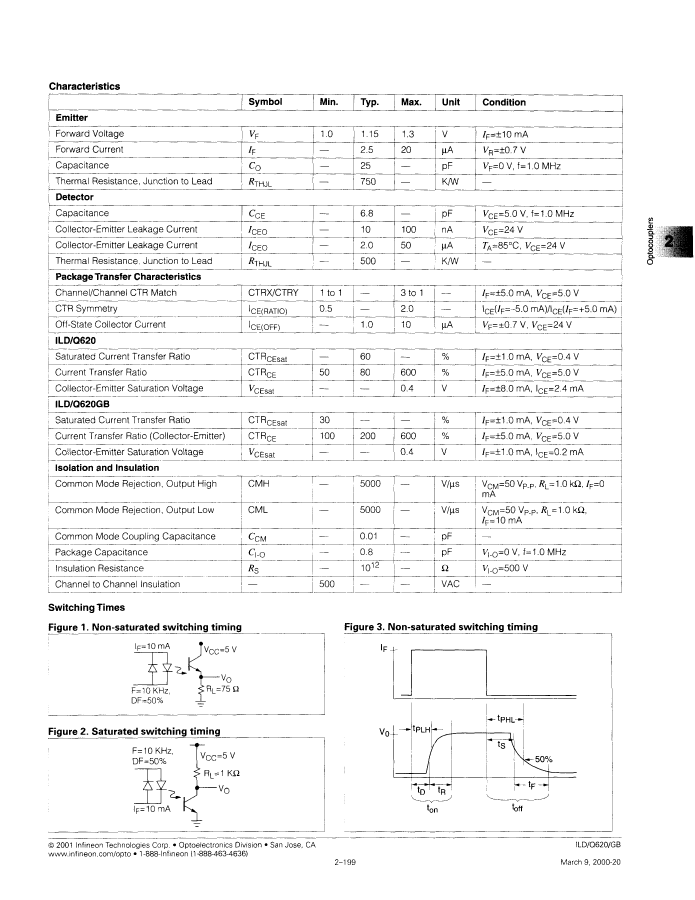

ILD620GB-X001 Overview

AC Input-Transistor Output Optocoupler, 2-Element, 5300V Isolation, DIP-8

Parameter Name	Attribute value
Maker	Infineon
package instruction	DIP-8
Reach Compliance Code	unknown
Other features	VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	70 V
Configuration	SEPARATE, 2 CHANNELS
Nominal current transfer ratio	200%
Maximum dark power	100 nA
Maximum forward current	0.06 A
Maximum insulation voltage	5300 V
Number of components	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches	1

	ILD620GB-X001	ILD620-X001	ILQ620GB-X001	ILQ620-X001
Description	AC Input-Transistor Output Optocoupler, 2-Element, 5300V Isolation, DIP-8	AC Input-Transistor Output Optocoupler, 2-Element, 5300V Isolation, DIP-8	AC Input-Transistor Output Optocoupler, 4-Element, 5300V Isolation, DIP-16	AC Input-Transistor Output Optocoupler, 4-Element, 5300V Isolation, DIP-16
Maker	Infineon	Infineon	Infineon	Infineon
package instruction	DIP-8	DIP-8	DIP-16	DIP-16
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	VDE APPROVED	VDE APPROVED	VDE APPROVED	VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	70 V	70 V	70 V	70 V
Configuration	SEPARATE, 2 CHANNELS	SEPARATE, 2 CHANNELS	SEPARATE, 4 CHANNELS	SEPARATE, 4 CHANNELS
Nominal current transfer ratio	200%	80%	200%	80%
Maximum dark power	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.06 A	0.06 A	0.06 A	0.06 A
Maximum insulation voltage	5300 V	5300 V	5300 V	5300 V
Number of components	2	2	4	4
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches	1	1	1	1
