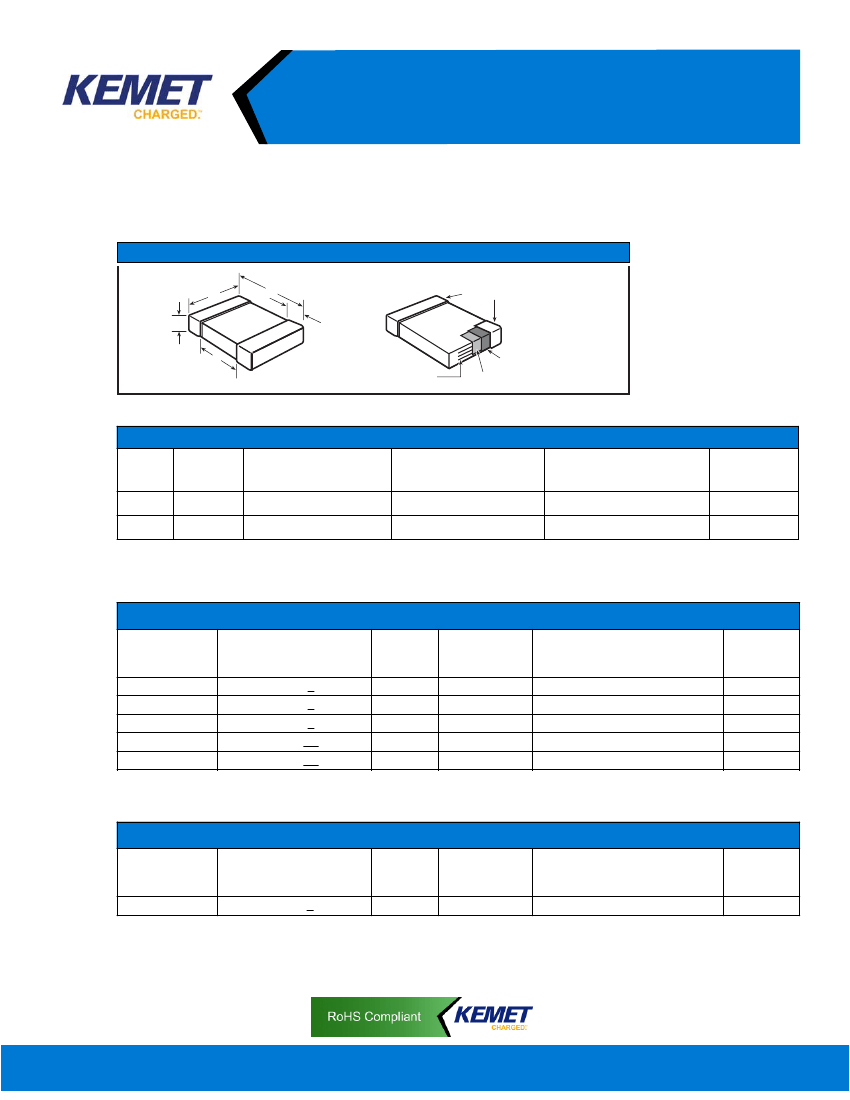

Product Bulletin
Surface Mount Ceramic Chip Capacitors – Low Profile MLCC
Outline Drawing
W
T
S
ELECTRODES
L
B
NICKEL PLATE
CONDUCTIVE METALLIZATION
TIN PLATE
Dimensions – Millimeters (Inches)
EIA Size
Code
0805
1206
Metric Size
Code
2012
3216
L
Length
2.0 (.079) ± 0.2 (.008)
3.2 (.126) ± 0.2 (.008)
W
Width
1.25 (.049) ± 0.2 (.008)
1.6 (.063) ± 0.2 (.008)
B
Bandwidth
0.5 (.02) ± 0.25 (.010)
0.5 (.02) ± 0.25 (.010)
S
Separation
-
-
See Capacitance Value Table for thickness dimension.
Capacitance Values - X5R Dielectric
Capacitance
Value (μF)
KEMET Part Number
Voltage
Capacitance
Tolerance
Thickness
Qty
7" Reel
4,000
4,000
4,000
4,000
4,000
4.7
C0805L475(1)9PAC
10.0
C0805L106(1)9PAC
10.0
C0805L106(1)8PAC
1.0
C1206L105(1)3PAC
4.7
C1206L475(1)4PAC
(1) To complete KEMET part number insert K for
6.3
±10%, ±20%
0.85 (.033) ± 0.1 (.004)
6.3
±10%, ±20%
0.85 (.033) ± 0.1 (.004)
10
±10%, ±20%
0.85 (.033) ± 0.1 (.004)
25
±10%, ±20%
0.78 (.031) ± 0.1 (.004)
16
±10%, ±20%
0.90 (.035) ± 0.1(.004)
±10% or M for ±20% capacitance tolerance.
Capacitance Values - X7R Dielectric
Capacitance
Value (μF)
1.0
KEMET Part Number
C0805L105(1)8RAC
Voltage
10
Capacitance
Tolerance
±10%, ±20%
Thickness
0.78 (.031) ± 0.1 (.004)
Qty
7" Reel
4,000
(1) To complete KEMET part number insert K for ±10% or M for ±20% capacitance tolerance.
F9078C 08/07
Capacitor Ordering Information
C 0805
Style
C - Ceramic
Size Code
See dimension table
Specification
L - Low Profile Ceramic Chip
L
475
K
9
P
A
C
End Metallization
C = Standard (Tin-plate
nickel barrier)
Failure Rate Level
A = Not Applicable
Capacitance Code, pF
First two digits represent significant figures.
Third digit specifies number of zeros. 100 pF = 101.
(Use “9” for 1.0 through 9.9 pF)
(Use “8” for 0.1 through .99 pF)
Capacitance Tolerance
K = ± 10%
M = ±20%
Temperature Characteristic
Designated by Capacitance
Change Over Temperature Range
R = X7R (±15%) (-55°C +125°C)
P = X5R (±15%) (-55°C +85°C)
9 = 6.3V
3 = 25V
8 = 10V
Voltage
4 = 16V
Electrical Parameters - X5R Dielectric
As detailed in the KEMET Surface Mount Catalog F3102 for X5R, with following specific requirements
based on room temperature (25°C) parameters:
• Operating Range: -55°C to +85°C, with no-bias capacitance shift limited to ± 15% over that range.
• Insulation Resistance (IR) measured after 2 minutes at rated voltage @ 25°C: Limit is 500
megohm microfarads or 10000MΩ, whichever is less.
• Capacitance and Dissipation Factor (DF) measured at the following conditions. DF Limit is 10%.
1 kHz and 1 Vrms.
Electrical Parameters - X7R Dielectric
As detailed in the KEMET Surface Mount Catalog F3102 for X7R, with following specific requirements
based on room temperature (25°C) parameters:
• Operating Range: -55°C to +125°C, with no-bias capacitance shift limited to ± 15% over that range.
• Insulation Resistance (IR) measured after 2 minutes at rated voltage @ 25°C: Limit is 500
megohm microfarads or 10000MΩ, whichever is less.
• Capacitance and Dissipation Factor (DF) measured at the following conditions. DF Limit is 5%.
1 kHz and 1 Vrms.
Soldering Process
These components are suitable for reflow only. All parts incorporate the standard KEMET barrier layer of pure
nickel, with an overplate of pure tin to provide excellent solderability as well as resistance to leaching.
Marking
These chips will be supplied unmarked.
In general, the information in the KEMET Surface Mount catalog F3102 applies to these
capacitors. The information in this bulletin supplements that in the catalog.
