DM74AS10 Triple 3-Input NAND Gate
April 1984
Revised March 2000
DM74AS10
Triple 3-Input NAND Gate
General Description
This device contains three independent gates, each of
which performs the logic NAND function.
Features
s
Switching specifications at 50 pF
s
Switching specifications guaranteed over full
temperature and V
CC
range
s
Advanced oxide-isolated, ion-implanted Schottky
TTL process
s
Functionally and pin for pin compatible with Schottky,
low power Schottky, and advanced low power Schottky
TTL counterpart
s
Improved AC performance over Schottky, low power
Schottky, and advanced low power Schottky counter-
parts
Ordering Code:
Order Number
DM74AS10M
DM74AS10N
Package Number
M14A
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Function Table
Y
=
ABC
Inputs
A
X
X
L
H
B
X
L
X
H
C
L
X
X
H
Output
Y
H
H
H
L
H
=
HIGH Logic Level
L
=
LOW Logic Level
X
=
Either LOW or HIGH Logic Level
© 2000 Fairchild Semiconductor Corporation
DS006274
www.fairchildsemi.com
DM74AS10
Absolute Maximum Ratings
(Note 1)
Supply Voltage
Input Voltage
Operating Free Air Temperature Range
Storage Temperature Range
Typical
θ
JA
N Package
M Package
84.0°C/W
114.0°C/W
7V
7V
0°C to
+70°C
−65°C
to
+150°C
Note 1:
Note: The “Absolute Maximum Ratings” are those values beyond
which the safety of the device cannot be guaranteed. The device should not
be operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Current
LOW Level Output Current
Free Air Operating Temperature
0
Parameter
Min
4.5
2
0.8
−2
20
70
Nom
5
Max
5.5
Units
V
V
V
mA
mA
°C
Electrical Characteristics
over recommended operating free air temperature range. All typical values are measured at V
CC
=
5V, T
A
=
25°C.
Symbol
V
IK
V
OH
V
OL
I
I
I
IH
I
IL
I
O
I
CC
Parameter
Input Clamp Voltage
HIGH Level
Output Voltage
LOW Level
Output Voltage
HIGH Level Input Current
LOW Level Input Current
Output Drive Current
Supply Current
I
OH
= −2
mA
V
CC
=
4.5V to 5.5V
V
CC
=
4.5V
I
OL
=
20 mA
V
CC
=
5.5V, V
IH
=
2.7V
V
CC
=
5.5V, V
IL
=
0.4V
V
CC
=
5.5V, V
O
=
2.25V
V
CC
=
5.5V
Outputs HIGH
Outputs LOW
−30
1.5
8.1
Conditions
V
CC
=
4.5V, I
I
= −18
mA
V
CC
−
2
0.35
0.5
0.1
20
−0.5
−112
2.4
13
Min
Typ
Max
−1.2
Units
V
V
V
mA
µA
mA
mA
mA
mA
Input Current @ Max Input Voltage V
CC
=
5.5V, V
IH
=
7V
Switching Characteristics
over recommended operating free air temperature range
Symbol
t
PLH
t
PHL
Parameter
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
R
L
=
500Ω
C
L
=
50 pF
Conditions
V
CC
=
4.5V to 5.5V
Min
1
1
Max
4.5
4.5
Units
ns
ns
www.fairchildsemi.com
2
DM74AS10
Physical Dimensions
inches (millimeters) unless otherwise noted

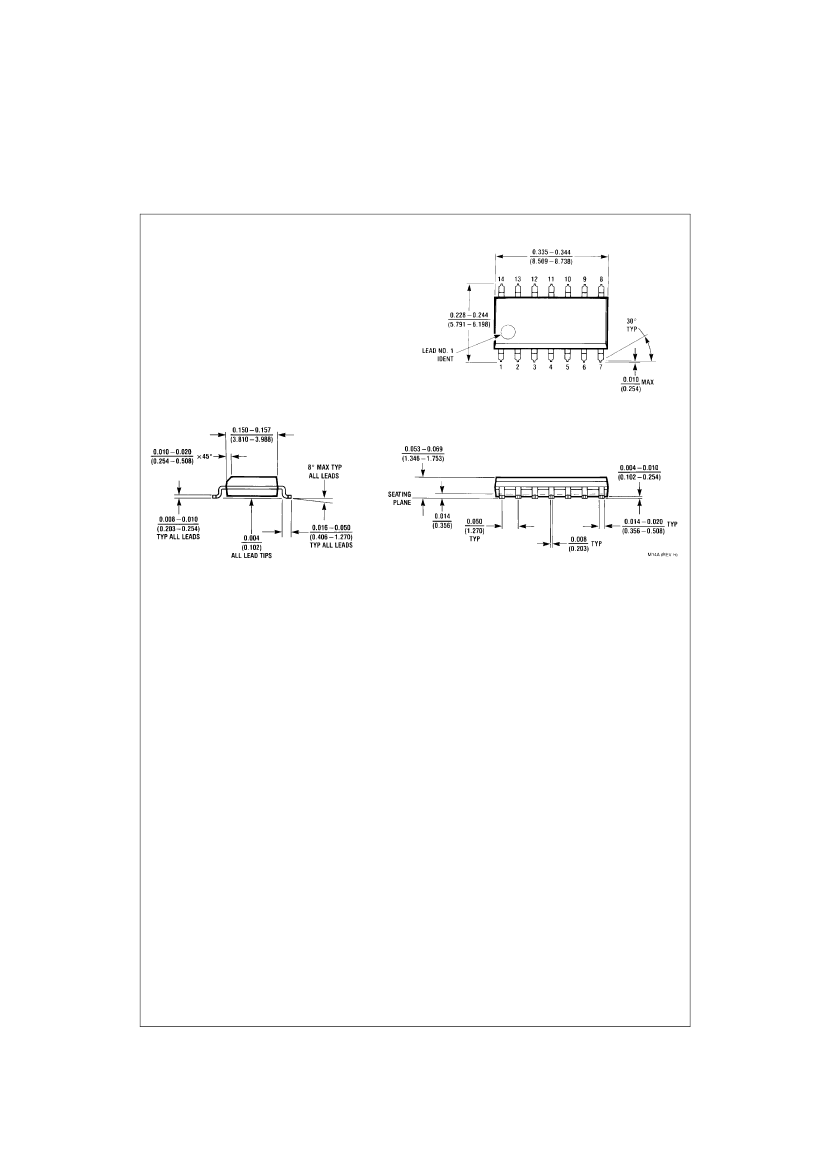

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M14A
3
www.fairchildsemi.com
DM74AS10 Triple 3-Input NAND Gate
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N14A
