351-875-1161N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 351-875-1161N

351-875-1161N: DescriptionRF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

351-875-1161N Overview

RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack

351-875-1161N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-142; RG-400
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	35
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

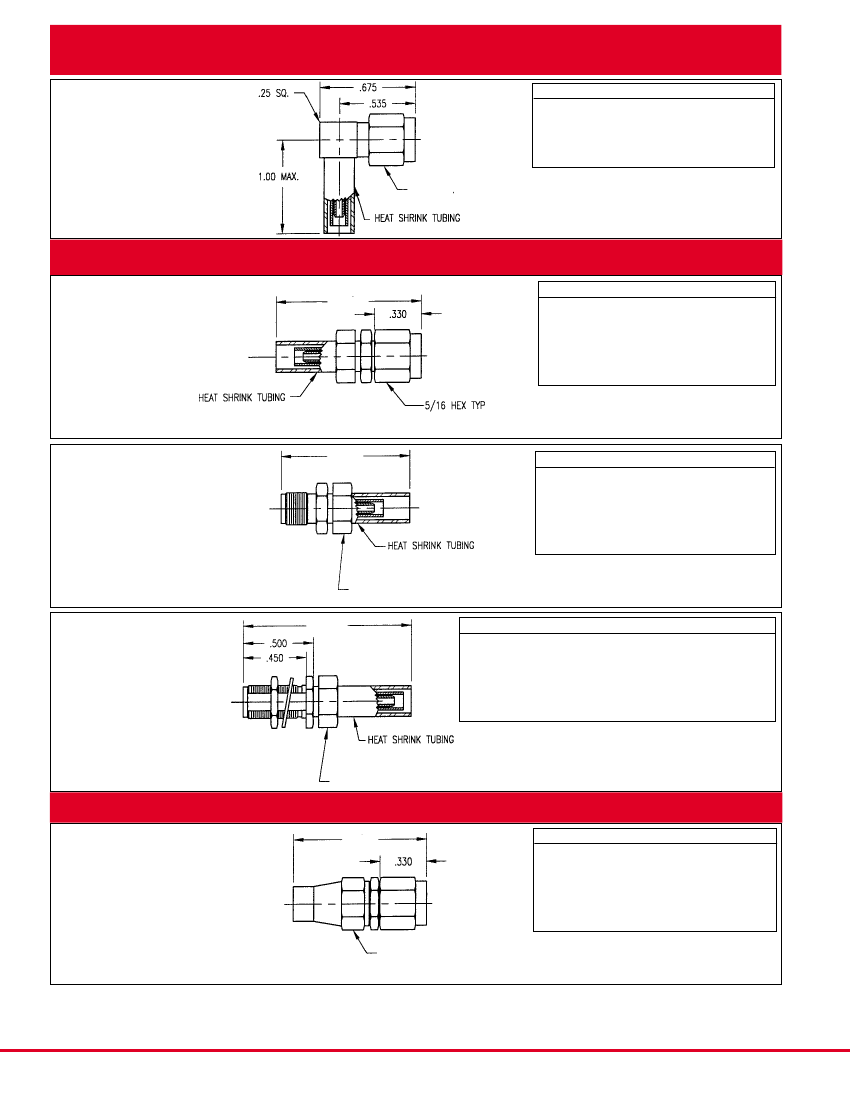

SMA Brass:

Right Angle

Plug

Crimp Flexible Cable

Part Number

352-900-0630H

352-900-0631H

352-900-1160H

352-900-1161H

5/16 HEX

Cable

RG-316

RG-316 double shielded

RG-303, 141

RG-142, 400

• See page 109 for cable assembly procedures: 9-05

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

SMA Brass:

Straight Plug

Captive Contact

Crimp/Clamp Flexible Cable

1.03

Part Number

350-800-0360H

350-800-0630H

350-800-0631H

350-800-1160H

350-800-1161H

Cable

RG-178

RG-316

RG-316 double shielded

RG-303, 141

RG-142, 400

• See page 103 for cable assembly procedures: 8-01

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Straight Jack

Captive Contact

.91

Part Number

351-800-0360H

351-800-0630H

351-800-0631H

351-800-1160H

351-800-1161H

Cable

RG-178

RG-316

RG-316 double shielded

RG-303, 141

RG-142, 400

5/16 HEX TYP

1.19

• See page 103 for cable assembly procedures: 8-01

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Straight Jack

Bulkhead Mount

Captive Contact

Part Number

351-875-0360H

351-875-0630H

351-875-0631H

351-875-1160H

351-875-1161H

Cable

Mounting Hole

RG-178

No. 075

RG-316

No. 075

RG-316 double shielded

No. 075

RG-303, 141

No. 075

RG-142, 400

No. 075

5/16 HEX TYP

• See page 103 for cable assembly procedures: 8-01

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

SMA Brass:

Straight Plug

Captive Contact

Clamp, Flexible Cable

.94

Part Number

350-700-0360H

350-700-0630H

350-700-0631H

350-700-1070H

350-700-1161H

5/16 HEX TYP

Cable

RG-178

RG-316

RG-316 double shielded

RG-180

RG-142, 400

• See page 97 for cable assembly procedures: 7-01

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Note: Dimensions shown in inches.

Winchester/Retconn

RF/18

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950• Internet: http://www.litton-wed.com

351-875-1161N Related Products

	351-875-1161N	351-800-1161N	352-900-1160N	352-900-0631N	351-875-1160N	351-800-0631N	CR1206G-3K32FICECC40401-008	351-800-1160N
Description	RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack	RF SMA Connector, Female, Cable Mount, Crimp Terminal, Jack	RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug	RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack	RF SMA Connector, Female, Cable Mount, Crimp Terminal, Jack	RESISTOR, METAL GLAZE/THICK FILM, 0.25W, 1%, 100ppm, 3320ohm, SURFACE MOUNT, 1206, CHIP, LEAD FREE	RF SMA Connector, Female, Cable Mount, Crimp Terminal, Jack
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	compliant	unknown
Other features	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-142; RG-400	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-142; RG-400	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-303; RG-141	STANDARD: MIL-C-39012, APPLICABLE CABLE: RG-316	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-303; RG-141	STANDARD: MIL-C-39012, APPLICABLE CABLE: RG-316	-	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-303; RG-141
Body/casing type	JACK	JACK	PLUG	PLUG	JACK	JACK	-	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	-	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	-	RF SMA CONNECTOR
Contact point gender	FEMALE	FEMALE	MALE	MALE	FEMALE	FEMALE	-	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	-	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	-	NO
Filter function	NO	NO	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	NO	NO	-	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	-	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES	YES	YES	YES	YES	YES	-	YES
Manufacturer's serial number	35	35	35	35	35	35	-	35
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	-	CABLE
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	-	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Panel mounting	YES	NO	NO	NO	YES	NO	-	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	-	CRIMP
Base Number Matches	1	1	1	1	1	1	-	1
