IMC-0805-0127.0NH+/-2%

Description
General Fixed Inductor, 1 ELEMENT, 0.027 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD
CategoryPassive components    inductor
File Size35KB，2 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

IMC-0805-0127.0NH+/-2% Overview

General Fixed Inductor, 1 ELEMENT, 0.027 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD

IMC-0805-0127.0NH+/-2% Parametric

Parameter NameAttribute value
MakerVishay
Reach Compliance Codeunknown
ECCN codeEAR99
core materialCERAMIC
DC Resistance0.12 Ω
Nominal inductance(L)0.027 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberIMC-0805-01
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Minimum quality factor (at nominal inductance)60
Maximum rated current0.6 A
self resonant frequency2600 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsQ MEASURED AT 500 MHZ
surface mountYES
Terminal surfaceTIN
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency250 MHz
Tolerance2%
Base Number Matches1

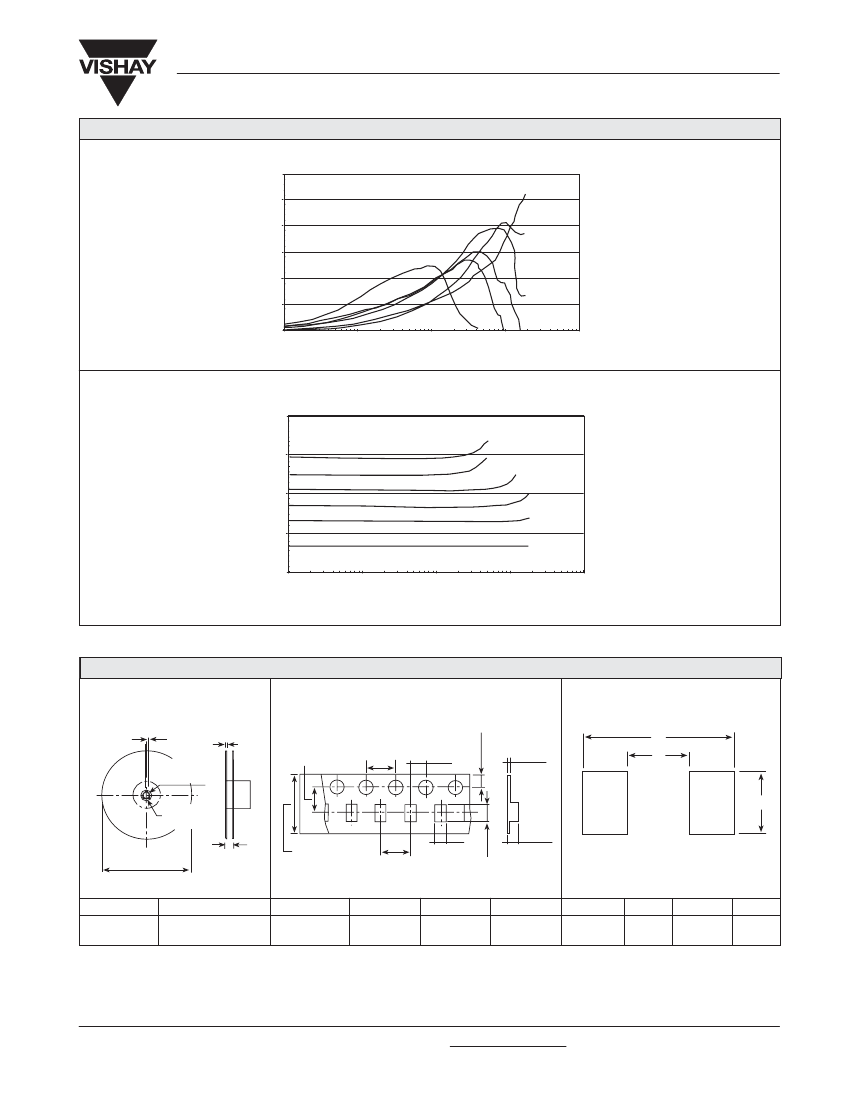

Preview

Download Datasheet

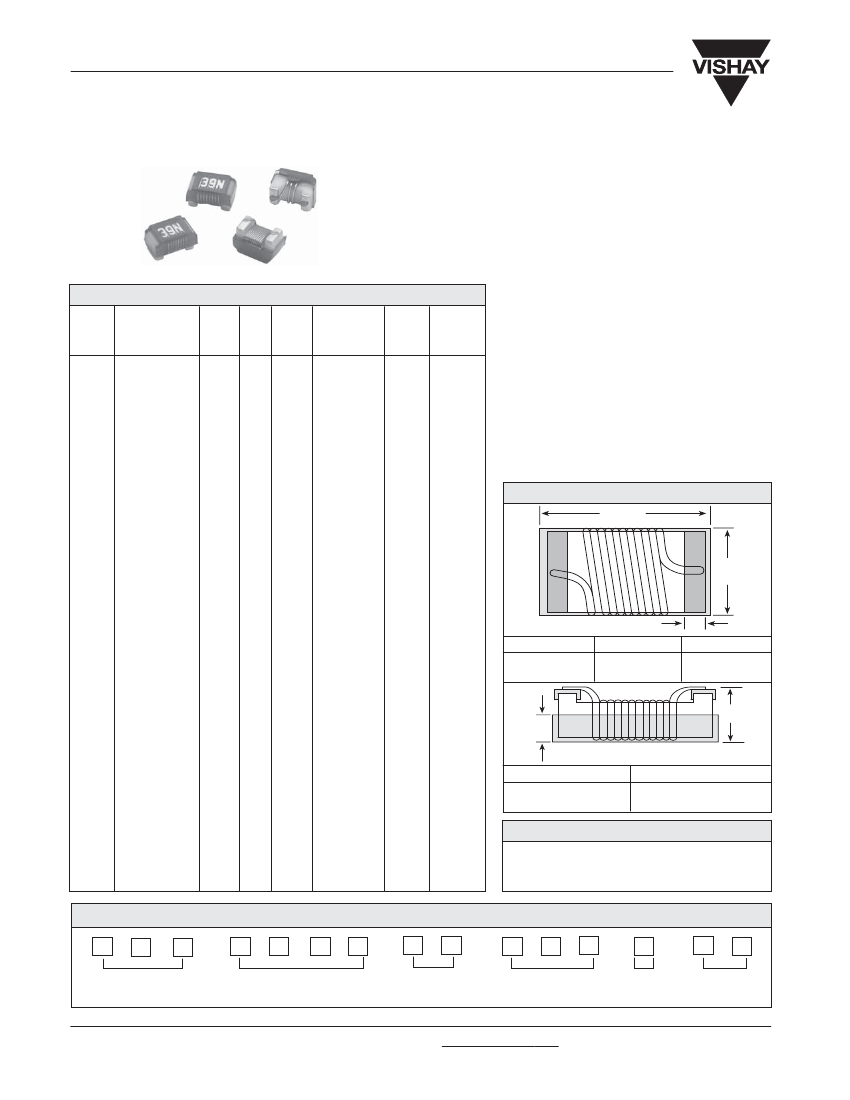

IMC-0805-01
Vishay Dale
High Frequency, Surface Mount Inductor
FEATURES
High self-resonant frequency values.
High Q values at higher frequencies.
Wirewound construction.
Tape and reel packaging for automatic handling, 2000/
reel.
•
Compatible with vapor phase and infrared reflow
soldering.
•
•
•
•
STANDARD ELECTRICAL SPECIFICATIONS
IND.
(nH)
2.2
2.7
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10,000
TEST
TEST
SELF-
RATED
FREQ.
FREQ. RESONANT DCR
DC
L
Q
Q
FREQ. MIN. MAX. CURRENT
(MHz) MIN. (MHz)
(MHz)
(Ohms)
(mA)
250
50
1000
6000
0.06
600
250
35
1000
6000
0.08
600
250
60
1000
6000
0.06
600
250
60
1000
5800
0.06
600
250
60
1000
5800
0.08
600
250
60
1000
5500
0.06
600
250
60
1000
5500
0.06
600
250
60
500
4800
0.08
600
250
60
500
4100
0.08
600
250
60
500
3600
0.08
600
250
60
500
3400
0.08
600
250
60
500
3300
0.10
600
250
60
500
2600
0.12
600
250
60
500
2400
0.15
500
250
60
500
2100
0.18
500
200
60
500
1700
0.15
500
200
60
500
1600
0.25
500
200
60
500
1450
0.27
500
150
60
500
1350
0.32
500
150
60
500
1200
0.43
500
150
50
250
1100
0.48
500
100
50
250
950
0.67
400
100
50
250
900
0.85
350
100
50
250
860
1.10
300
100
45
250
850
1.46
250
100
45
250
800
1.65
200
100
45
250
780
2.20
170
25
45
100
750
0.99
330
25
45
100
730
1.08
300
25
35
100
650
1.20
280
25
35
100
550
2.21
150
25
35
50
480
2.50
120
7.96
15
7.96
220
0.85
400
7.96
15
7.96
200
1.00
350
7.96
15
7.96
120
1.05
350
7.96
15
7.96
100
1.15
320
7.96
15
7.96
100
1.25
320
7.96
15
7.96
70
1.45
300
7.96
15
7.96
60
1.60
270
7.96
15
7.96
50
1.75
270
7.96
15
7.96
45
1.95
230
7.96
15
7.96
45
2.15
230
7.96
15
7.96
40
2.95
150
7.96
10
7.96
40
3.15
150
ELECTRICAL SPECIFICATIONS
Inductance Range:
2.2nH to 10,000nH.
Inductance Tolerance:
0.3nH for 2.2 - 4.7nH
±
5% for 5.6nH to 10,000nH.
Temperature Range:
- 40°C to 125°C.
Core Material:
Ceramic for 2.2nH to 390nH
Ferrite for 470nH to 10,000nH.
TOL.
±
0.3nH, 0.2nH
±
0.3nH, 0.2nH
±
0.3nH, 0.2nH
±
0.3nH, 0.2nH
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
±
5%, 2%
TEST EQUIPMENT
• Inductance and Q measured on HP4286A (2.2nH
- 390nH) and HP4285A (470nH - 10,000nH).
• SRF measured on HP8753E.
• DCR measured on HP4338B.
DIMENSIONS
in inches [millimeters]
L
W
S
L
0.079
±
0.008
[2.00
±
0.2]
W
0.050
±
0.008
[1.25
±
0.2]
S
0.016
±
0.008
[0.40
±
0.2]
T
U
U
0.2
[0.5]
T
0.048
±
0.008
[1.20
±
0.2]
DESCRIPTION
IMC-0805-01
MODEL
10nH
INDUCTANCE
VALUE
±
5%
INDUCTANCE
TOLERANCE
SAP PART NUMBERING GUIDELINES (INTERNAL)
I
M
C
0
8
SIZE
0
5
R
K
1
0
N
J
TOL.
0
1
SERIES
PRODUCT FAMILY
PACKAGE
CODE
INDUCTANCE
VALUE
See the end of this data book for conversion tables
www.vishay.com
52
For technical questions, contact Magnetics@vishay.com
Document Number 34115
Revision 16-May-03
