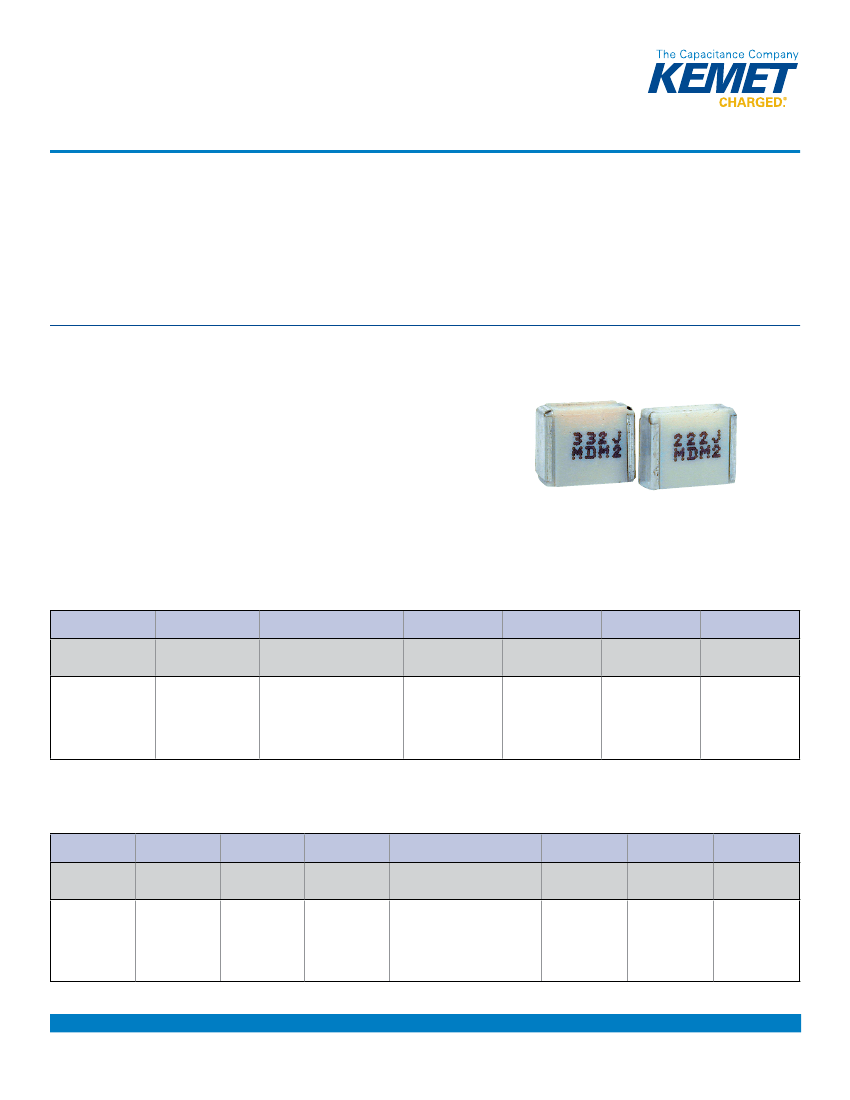

General Purpose, High Stability and AC Line EMI Suppression
SPC Series Encapsulated Double Metallized,
Size 2824 – 6560, 100 – 630 VDC
Overview
Film capacitor for surface mounting. Double sided metallized
film as electrode. Plain polyethylene sulfide (PPS) as dielectric.
Rugged box encapsulation in self-extinguishing material meeting
the requirements of UL 94 V–0.
Applications
The SPC Series is designed for high frequency coupling and
decoupling as well as general high speed applications requiring
high dV/dt such as pulse operation in switched-mode power
supply (SMPS).
Benefits
•
•
•
•
•
•
•
•
Rated voltage: 100 – 630 VDC
Rated voltage: 63 – 350 VAC
Capacitance range: 0.00047 – 0.68 µF
EIA size: 2824 – 6560
Capacitance tolerance: ±2%, ±2.5%, ±5%, ±10%
Climatic category: 55/125/56
RoHS Compliant and lead-free terminations
Operating temperature range of -55˚C to +125˚C
Legacy Part Number System
SPC
Series
Double Metallized
PPS
7.3
Chip Length (mm)
7.3
10.2
12.7
16.5
471
Capacitance Code (pF)
First two digits indicate the
two most significant digits
of the capacitance value in
picofarads. The third digit is
the number of following zeros.
K
Capacitance
Tolerance
G = ±2%
H = ±2.5%
J = ±5%
K = ±10%
100
Rated Voltage
(VDC)
100
250
400
630
K31
Size Code
See Dimension
Table
TR12
Packaging Code
See Ordering
Options Table
New KEMET Part Number System
F
Capacitor Class
F = Film
127
Series
Double
Metallized PPS
S
Chip Size
S = 2824
W = 4036
Y = 5045
Z = 6560
G
Size Code
See Dimension
Table
471
Capacitance Code (pF)
First two digits indicate the
two most significant digits
of the capacitance value in
picofarads. The third digit is
the number of following zeros.
K
Capacitance
Tolerance
G = ±2%
R = ±2.5%
J = ±5%
K = ±10%
100
Rated Voltage
(VDC)
100
250
400
630
V
Packaging Code
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3084_SPC • 4/4/2013
1
Film Surface Mount Capacitors – General Purpose, High Stability and AC Line EMI Suppression
SPC Series, Encapsulated Double Metallized, Size 2824 – 6560, 100 – 630 VDC
Ordering Options Table
Chip Size
(EIA)
2824
Packaging Type
Standard Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
V
A
TR12
BULK
KEMET
Packaging
Code
Legacy
Packaging
Code
4036
Tape & Reel (Horizontal Orientation Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
TR16
BULK
TV24
5045
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
TR24
BULK
TV24
6560
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
V
A
Y
TR24
BULK
TV44
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3084_SPC • 4/4/2013
2
Film Surface Mount Capacitors – General Purpose, High Stability and AC Line EMI Suppression
SPC Series, Encapsulated Double Metallized, Size 2824 – 6560, 100 – 630 VDC
Dimensions – Millimeters
F
H
B
L
F
KEMET
Size Code
SG
SL
SP
ST
WP
YR
ZS
Legacy
Size Code
K31
K33
K35
K37
A31
B31
C31
Chip Size
(EIA)
2824
2824
2824
2824
4036
5045
6560
B
Nominal
6.0
6.0
6.0
6.0
9.1
11.5
15
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
2.5
3.0
3.5
4.5
5.5
6.5
7.0
H
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
7.3
7.3
7.3
7.3
10.2
12.7
16.5
L
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
0.5
0.5
0.5
0.5
0.5
0.5
0.5
F
Tolerance
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Environmental Compliance
All KEMET surface mount capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3084_SPC • 4/4/2013
3
Film Surface Mount Capacitors – General Purpose, High Stability and AC Line EMI Suppression
SPC Series, Encapsulated Double Metallized, Size 2824 – 6560, 100 – 630 VDC

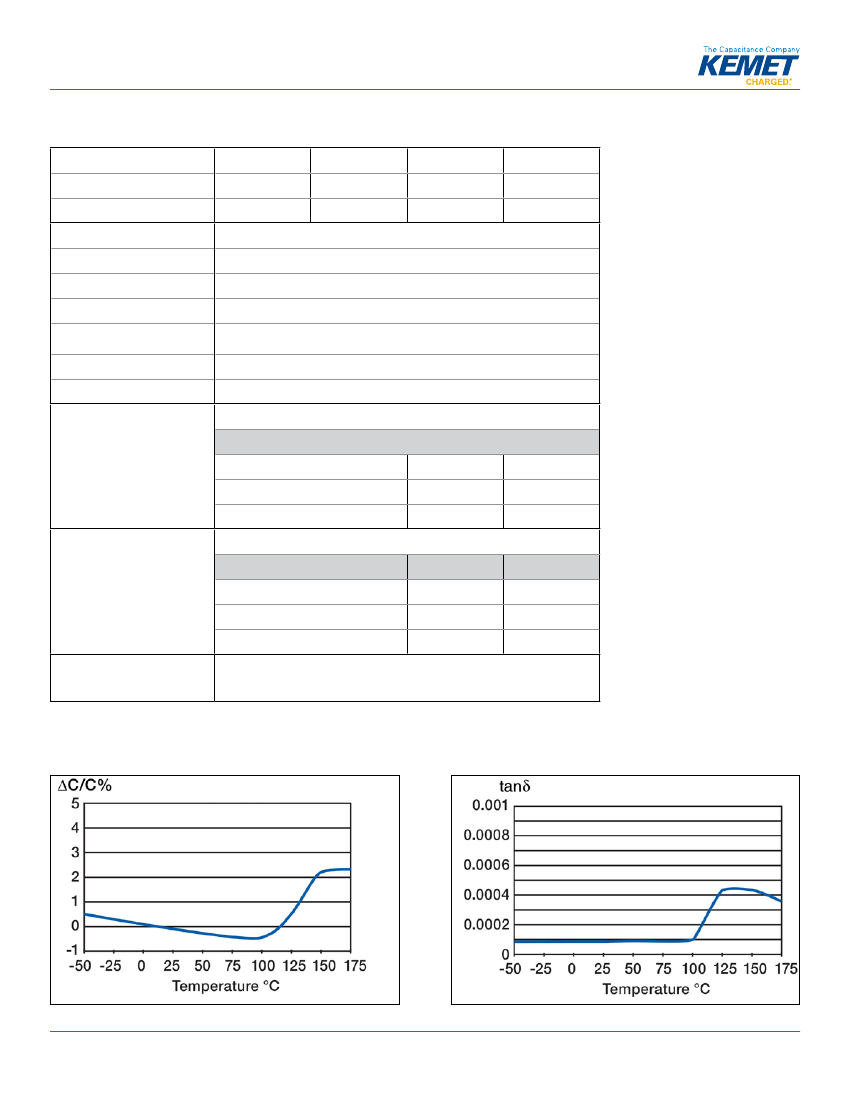

Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (μF)
Chip Size (EIA)
Capacitance Tolerance
Category Temperature Range
Rated Temperature
Voltage Derating
Climatic Category
Test Voltage
100
63
0.00047 – 0.68
2824 – 6560
±2%, ±2.5%, ±5%, ±10%
-55°C to +125°C
+100°C
The rated voltage should be decreased with 1.25%/°C from +100°C to +125°C
and 1.5%/°C from +125°C to 175°C
55/125/56
1.6 x V
R
, 60 seconds
Measured at +20°C According to IEC 60384–19
Minimum Value Between Terminals
Insulation Resistance
V
R
≤ 100
V
R
> 100
C ≤ 0.33 μF
50,000 MΩ
100,000 MΩ
Maximum Values at +23°C
C ≤ 0.1 μF
Dissipation Factor
1 kHz
10 kHz
100 kHz
Pulse Rise Time
0.10%
0.15%
0.20%
0.1 < C < 0.68 μF
0.10%
0.15%
0.40%
C > 0.33 μF
16,500 MΩ • μF
250
160
0.00047 – 0.33
400
250
0.00047 – 0.15
630
350
0.00047 – 0.10
The capacitors can withstand an unlimited number of pulses with a dV/dt
according to Table 1. For voltages (V) lower than the rated voltage (V
R
), the
specified dV/dt can be multiplied by V
R
/V.
Capacitance vs. Temperature
Dissipation Factor vs. Temperature
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3084_SPC • 4/4/2013
4
Film Surface Mount Capacitors – General Purpose, High Stability and AC Line EMI Suppression
SPC Series, Encapsulated Double Metallized, Size 2824 – 6560, 100 – 630 VDC
Table 1 – Ratings & Part Number Reference
VDC
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
400
400
400
400
400
400
400
400
400
400
400
400
400
VAC
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
250
250
250
250
250
250
250
250
250
250
250
250
250
Capacitance
Value (µF)
0.00047
0.00068
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
0.022
0.033
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.47
0.68
0.00047
0.00068
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.00047
0.00068
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.0068
0.010
0.015
0.022
0.033
Size Code
(New/Legacy)
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SL/K33
SP/K35
ST/K37
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
YR/B31
YR/B31
ZS/C31
ZS/C31
ZS/C31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SL/K33
SP/K35
ST/K37
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
YR/B31
YR/B31
ZS/C31
ZS/C31
ZS/C31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SL/K33
SP/K35
ST/K37
WP/A31
WP/A31
WP/A31
WP/A31
YR/B31
Dimensions in mm
B
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
11.5
11.5
15.0
15.0
15.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
9.1
9.1
9.1
9.1
9.1
9.1
11.5
11.5
15.0
15.0
15.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
9.1
9.1
9.1
9.1
11.5
H
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.0
3.5
4.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
6.5
6.5
7.0
7.0
7.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.0
3.5
4.5
5.5
5.5
5.5
5.5
5.5
5.5
6.5
6.5
7.0
7.0
7.0
2.5
2.5
2.5
2.5
2.5
3.0
3.5
4.5
5.5
5.5
5.5
5.5
6.5
L
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
12.7
12.7
16.5
16.5
16.5
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
10.2
10.2
10.2
10.2
10.2
10.2
12.7
12.7
16.5
16.5
16.5
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
10.2
10.2
10.2
10.2
12.7
Chip
Size
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
4036
4036
4036
4036
4036
4036
4036
4036
5045
5045
6560
6560
6560
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
4036
4036
4036
4036
4036
4036
5045
5045
6560
6560
6560
2824
2824
2824
2824
2824
2824
2824
2824
4036
4036
4036
4036
5045
dV/dt
(V/μs)
800
800
800
800
800
800
800
800
800
800
800
800
600
600
600
600
600
600
600
600
400
400
150
150
150
1200
1200
1200
1200
1200
1200
1200
1200
1200
1200
1000
1000
1000
1000
1000
1000
700
700
350
350
350
1600
1600
1600
1600
1600
1600
1600
1600
1300
1300
1300
1300
900
New
KEMET
Part Number
F127SG471(1)100(2)
F127SG681(1)100(2)
F127SG102(1)100(2)
F127SG152(1)100(2)
F127SG222(1)100(2)
F127SG332(1)100(2)
F127SG472(1)100(2)
F127SG682(1)100(2)
F127SG103(1)100(2)
F127SL153(1)100(2)
F127SP223(1)100(2)
F127ST333(1)100(2)
F127WP682(1)100(2)
F127WP103(1)100(2)
F127WP153(1)100(2)
F127WP223(1)100(2)
F127WP333(1)100(2)
F127WP473(1)100(2)
F127WP683(1)100(2)
F127WP104(1)100(2)
F127YR154(1)100(2)
F127YR224(1)100(2)
F127ZS334(1)100(2)
F127ZS474(1)100(2)
F127ZS684(1)100(2)
F127SG471(1)250(2)
F127SG681(1)250(2)
F127SG102(1)250(2)
F127SG152(1)250(2)
F127SG222(1)250(2)
F127SG332(1)250(2)
F127SG472(1)250(2)
F127SL682(1)250(2)
F127SP103(1)250(2)
F127ST153(1)250(2)
F127WP682(1)250(2)
F127WP103(1)250(2)
F127WP153(1)250(2)
F127WP223(1)250(2)
F127WP333(1)250(2)
F127WP473(1)250(2)
F127YR683(1)250(2)
F127YR104(1)250(2)
F127ZS154(1)250(2)
F127ZS224(1)250(2)
F127ZS334(1)250(2)
F127SG471(1)400(2)
F127SG681(1)400(2)
F127SG102(1)400(2)
F127SG152(1)400(2)
F127SG222(1)400(2)
F127SL332(1)400(2)
F127SP472(1)400(2)
F127ST682(1)400(2)
F127WP682(1)400(2)
F127WP103(1)400(2)
F127WP153(1)400(2)
F127WP223(1)400(2)
F127YR333(1)400(2)
Legacy Part
Number
SPC7.3471(1)100K31(2)
SPC7.3681(1)100K31(2)
SPC7.3102(1)100K31(2)
SPC7.3152(1)100K31(2)
SPC7.3222(1)100K31(2)
SPC7.3332(1)100K31(2)
SPC7.3472(1)100K31(2)
SPC7.3682(1)100K31(2)
SPC7.3103(1)100K31(2)
SPC7.3153(1)100K33(2)
SPC7.3223(1)100K35(2)
SPC7.3333(1)100K37(2)
SPC10.2682(1)100A31(2)
SPC10.2103(1)100A31(2)
SPC10.2153(1)100A31(2)
SPC10.2223(1)100A31(2)
SPC10.2333(1)100A31(2)
SPC10.2473(1)100A31(2)
SPC10.2683(1)100A31(2)
SPC10.2104(1)100A31(2)
SPC12.7154(1)100B31(2)
SPC12.7224(1)100B31(2)
SPC16.5334(1)100C31(2)
SPC16.5474(1)100C31(2)
SPC16.5684(1)100C31(2)
SPC7.3471(1)250K31(2)
SPC7.3681(1)250K31(2)
SPC7.3102(1)250K31(2)
SPC7.3152(1)250K31(2)
SPC7.3222(1)250K31(2)
SPC7.3332(1)250K31(2)
SPC7.3472(1)250K31(2)
SPC7.3682(1)250K33(2)
SPC7.3103(1)250K35(2)
SPC7.3153(1)250K37(2)
SPC10.2682(1)250A31(2)
SPC10.2103(1)250A31(2)
SPC10.2153(1)250A31(2)
SPC10.2223(1)250A31(2)
SPC10.2333(1)250A31(2)
SPC10.2473(1)250A31(2)
SPC12.7683(1)250B31(2)
SPC12.7104(1)250B31(2)
SPC16.5154(1)250C31(2)
SPC16.5224(1)250C31(2)
SPC16.5334(1)250C31(2)
SPC7.3471(1)400K31(2)
SPC7.3681(1)400K31(2)
SPC7.3102(1)400K31(2)
SPC7.3152(1)400K31(2)
SPC7.3222(1)400K31(2)
SPC7.3332(1)400K33(2)
SPC7.3472(1)400K35(2)
SPC7.3682(1)400K37(2)
SPC10.2682(1)400A31(2)
SPC10.2103(1)400A31(2)
SPC10.2153(1)400A31(2)
SPC10.2223(1)400A31(2)
SPC12.7333(1)400B31(2)
VDC
VAC
Capacitance
Value (µF)
Size Code
(New/Legacy)
B (mm)
H (mm)
L (mm)
Chip Size
dV/dt
(V/μs)
New KEMET
Part Number
Legacy Part Number
(1) G = ±2%, R = ±2.5% (Legacy code = H), J = ±5%, K = ±10%.
(2) Insert ordering code for lead type and packaging. See Ordering Options Table for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3084_SPC • 4/4/2013
5
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
