IM80C35IJL datasheet, PDF - EEWORLD Datasheet

IM80C35IJL: DescriptionMicrocontroller, 8-Bit, 8048 CPU, 6MHz, CMOS, CDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size721KB，12 Pages; ManufacturerGeneral Electric Solid State

Download Datasheet Parametric Compare View All

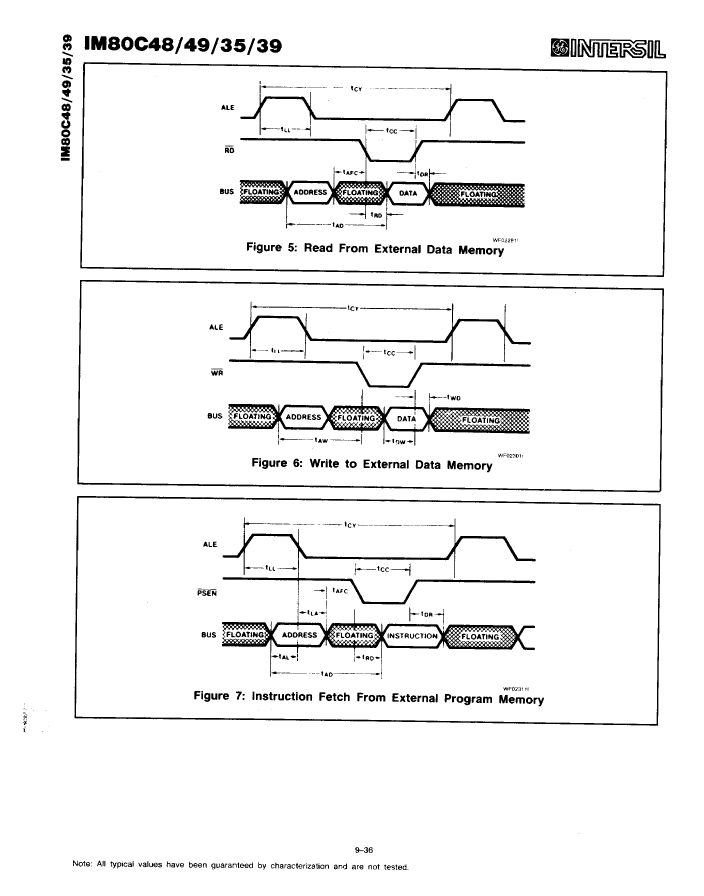

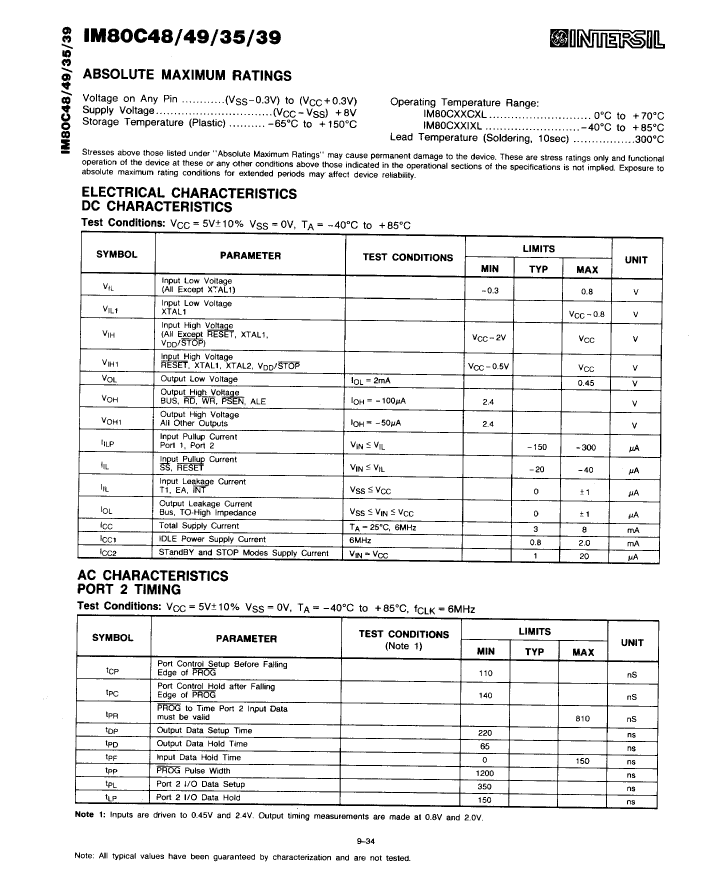

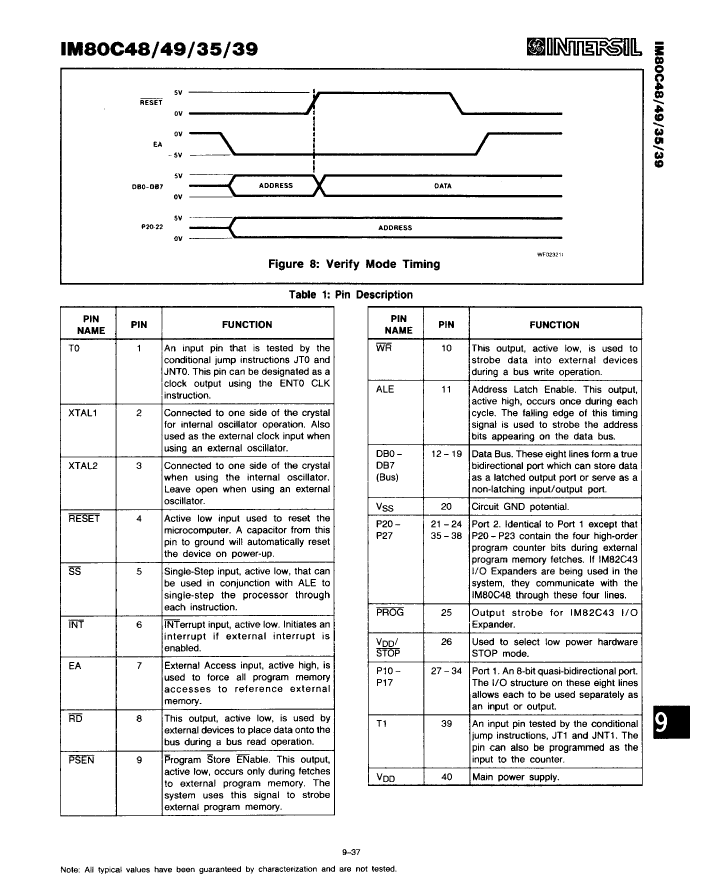

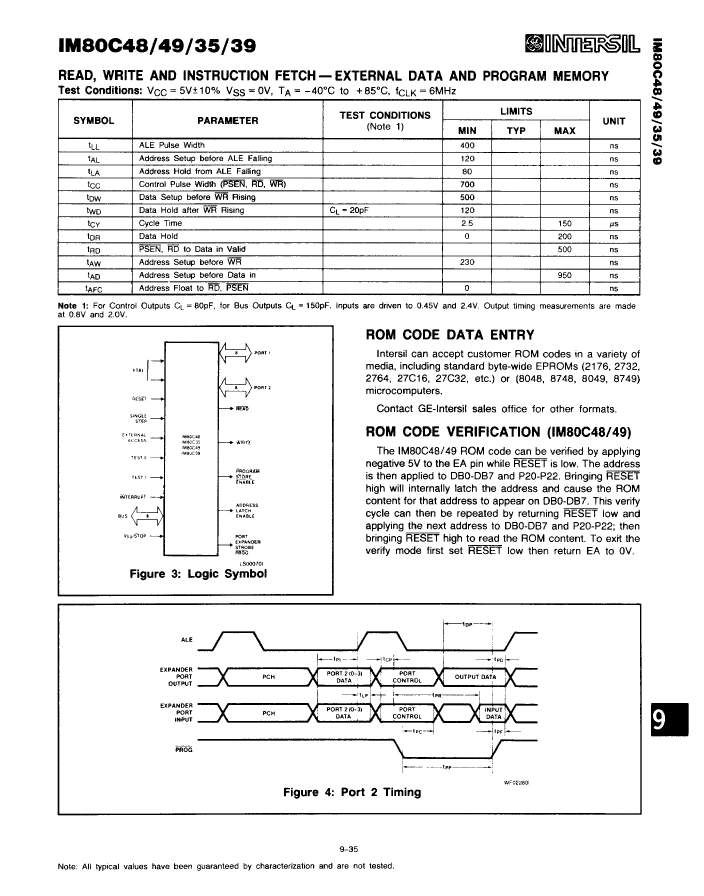

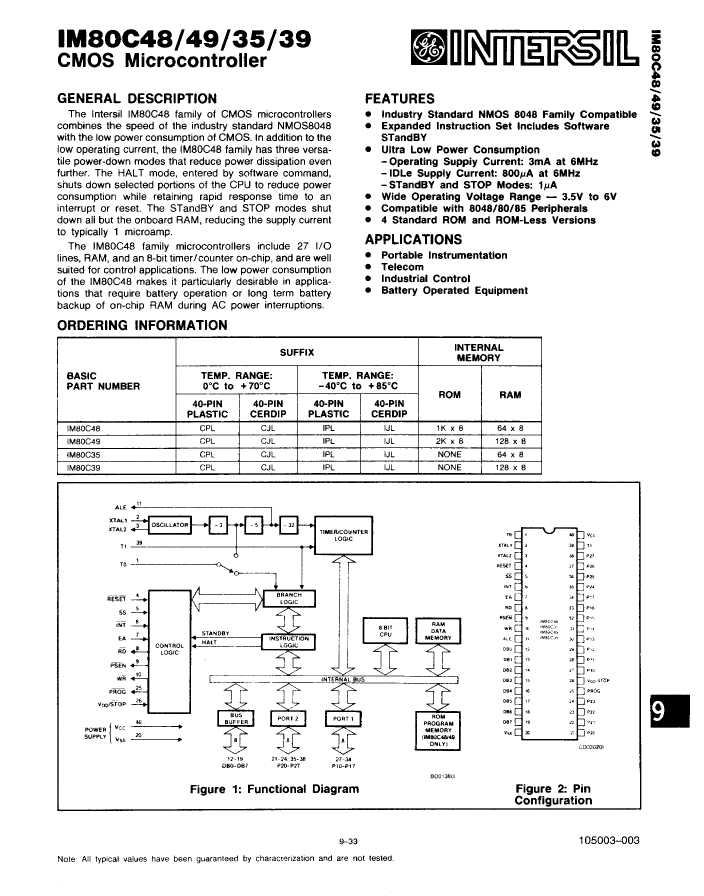

IM80C35IJL Overview

Microcontroller, 8-Bit, 8048 CPU, 6MHz, CMOS, CDIP40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	General Electric Solid State
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
bit size	8
CPU series	8048
JESD-30 code	R-XDIP-T40
JESD-609 code	e0
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	64
rom(word)	0
speed	6 MHz
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	IM80C35IJL	IM80C35CPL	IM80C35IPL	IM80C35/D
Description	Microcontroller, 8-Bit, 8048 CPU, 6MHz, CMOS, CDIP40	Microcontroller, 8-Bit, 8048 CPU, 6MHz, CMOS, PDIP40	Microcontroller, 8-Bit, 8048 CPU, 6MHz, CMOS, PDIP40	Microcontroller, 8-Bit, 8048 CPU, CMOS
Maker	General Electric Solid State	General Electric Solid State	General Electric Solid State	General Electric Solid State
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	, DIE OR CHIP
Reach Compliance Code	unknown	unknown	unknown	unknown
bit size	8	8	8	8
CPU series	8048	8048	8048	8048
Maximum operating temperature	85 °C	70 °C	85 °C	25 °C
Minimum operating temperature	-40 °C	-	-40 °C	25 °C
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIE OR CHIP
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	64	64	64	64
Nominal supply voltage	5 V	5 V	5 V	5 V
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	OTHER
Base Number Matches	1	1	1	1
Is it Rohs certified?	incompatible	incompatible	incompatible	-
JESD-30 code	R-XDIP-T40	R-PDIP-T40	R-PDIP-T40	-
JESD-609 code	e0	e0	e0	-
Number of terminals	40	40	40	-
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	DIP	DIP	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	IN-LINE	-
speed	6 MHz	6 MHz	6 MHz	-
surface mount	NO	NO	NO	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	-
