510-93-261-19-000002: Descriptionsocket soldertail 261-pga; CategoryThe connector; File Size624KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet View All

510-93-261-19-000002 Overview

socket soldertail 261-pga

Preview

Download Datasheet

View All

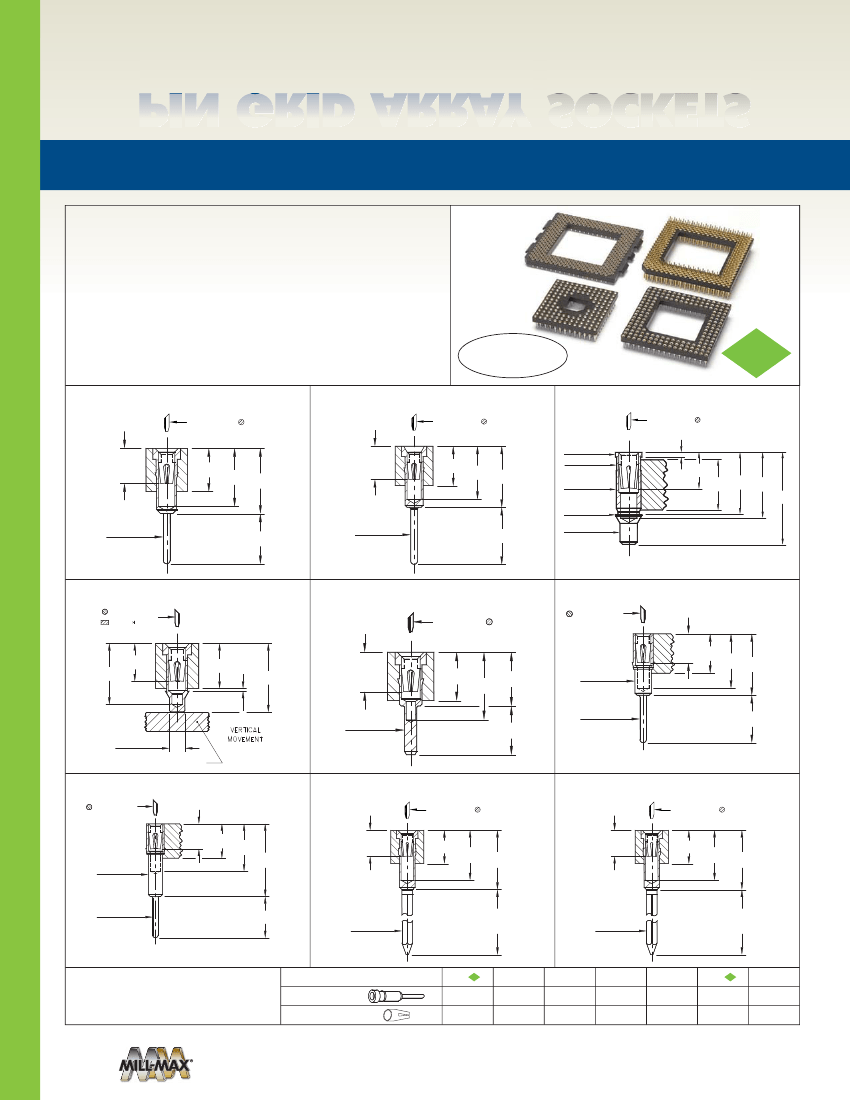

PIN GRID ARRAY

SOCKETS

SERIES 510,511,513,514,515,518,522,523 • .100” AND INTERSTITIAL GRID •

SURFACE MOUNT, THROUGH-HOLE AND WIREWRAP

•

Series 510, 511, 514, 515, 522 and 523 PGA sockets are available

on .100” centers

•

Series 513 and 518 PGA sockets are available for Interstitial patterns

•

Choice of three low force clips to cover all applications

•

High temperature PCT polyester insulator material suitable for all

forms of soldering including lead-free

•

For Electrical, Mechanical and Environmental Data, see page 137 for

details

XX=Plating Code

See Below

RoHS - 2

2011/65/EU

SERIES 510

(Standard Solder Tail)

.015-.025

SERIES 511

(Long Solder Tail)

.015-.025

SERIES 513

(SMT Receptacle)

.015-.025

.010

.058 DIA.

.053 DIA.

.095

.103

.110

.146

.150

.165

.054 DIA.

.058 DIA.

.083

.110 .135 .145

.200

.020 DIA.

.039 DIA.

.125

.170

Interstitial Patterns Only

SERIES 514

(SMT Receptacle)

.015-.025

.010 .018

SERIES 515

(Low Profile Solder Tail)

.015-.025

SERIES 518

(Solder Tail No, Heatsink Tabs)

.015-.025

.083

.096

.147

.110

.166

.110

.096

.145 .165

.110

.151

.122

.046 DIA.

.008

.030 DIA.

P.C.B.

.020 DIA.

.030 DIA.

.100, .125, or .145

.108

Interstitial Patterns Only

SERIES 518

(Solder Tail w/ Heatsink Tabs)

PAGE 138 | IC SOCKETS / TO SOCKETS

.015-.025

SERIES 522

(2 Level Wrapost)

.015-.025

SERIES 523

(3 Level Wrapost)

.015-.025

.083

.110

.145

.165

.093

.110

.162

.193

.093

.110

.162

.193

.046 DIA.

.020 DIA.

.080 or .115

.025

SQUARE

2 LEVEL

L=.370

.025

SQUARE

3 LEVEL

L=.510

Interstitial Patterns Only

Visit www.mill-max.com/pga

to configure a formal part number

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

13

10

”

Au

30

”

Au

91

10

”

Au

93

30

”

Au

99

100

”

Sn/Pb

43

200

”

Sn

30

”

Au

200

”

Sn/Pb 200

”

Sn/Pb 200

”

Sn/Pb

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
