BYM07-xxx, EGL34x
www.vishay.com
Vishay General Semiconductor
Surface Mount Glass Passivated Ultrafast Rectifier
FEATURES
• Superectifier structure for high reliability condition
• Cavity-free glass-passivated junction
• Ideal for automated placement
• Ultrafast reverse recovery time
• Low switching losses, high efficiency
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
Superectifier
®
GL34 (DO-213AA)
• AEC-Q101 qualified
- Automotive ordering code: base P/NHE3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, automotive and telecommunication.
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
J
max.
Package
Diode variation
0.5 A
50 V to 400 V
10 A
50 ns
1.25 V, 1.35 V
175 °C
GL34 (DO-213AA)
Single
MECHANICAL DATA
Case:
GL34 (DO-213AA), molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
(“X” denotes revision code e.g. A, B, ...)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
two bands indicate cathode end - 1
st
band
denotes device type and 2
nd
band denotes repetitive peak
reverse voltage rating
MAXIMUM RATINGS RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Fast efficient device: 1
st
band is green
Polarity color bands (2
nd
band)
Maximum repetitive peak reverse
voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified
current at T
T
= 75 °C
Peak forward surge current 8.3 ms single
half sine-wave superimposed
on rated load
Maximum full load reverse current, full
cycle average at T
A
= 55 °C
Operating junction and storage
temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
R(AV)
T
J
, T
STG
SYMBOL BYM07-50 BYM07-100 BYM07-150 BYM07-200 BYM07-300 BYM07-400 UNIT
EGL34A
Gray
50
35
50
EGL34B
Red
100
70
100
EGL34C
Pink
150
105
150
0.5
10
50
-65 to +175
EGL34D
Orange
200
140
200
EGL34F
Brown
300
210
300
EGL34G
Yellow
400
280
400
V
V
V
A
A
μA
°C
Revision: 25-Aug-17
Document Number: 88580
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYM07-xxx, EGL34x
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum DC reverse
current at rated DC
blocking voltage
Maximum
instantaneous forward
voltage
Max. reverse
recovery time
Typical junction
capacitance
BYM07-50 BYM07-100 BYM07-150 BYM07-200 BYM07-300 BYM07-400
TEST
SYMBOL
UNIT
CONDITIONS
EGL34A
EGL34B
EGL34C
EGL34D
EGL34F
EGL34G
T
A
= 25 °C
T
A
= 125 °C
0.5 A
I
F
= 0.5 A,
I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
V
F (1)
1.25
5.0
I
R (1)
50
1.35
V
μA
t
rr
C
J
50
7.0
ns
pF
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum thermal resistance
SYMBOL
R
JA
(1)
R
JT
(2)
BYM07-50 BYM07-100 BYM07-150 BYM07-200 BYM07-300 BYM07-400
EGL34A
EGL34B
EGL34C
150
70
EGL34D
EGL34F
EGL34G
UNIT
°C/W
Notes
Thermal resistance from junction to ambient, 0.24" x 0.24" (6.0 mm x 6.0 mm) copper pads to each terminal
(2)
Thermal resistance from junction to terminal, 0.24" x 0.24" (6.0 mm x 6.0 mm) copper pads to each terminal
(1)
ORDERING INFORMATION
(Example)
PREFERRED P/N
EGL34D-E3/98
EGL34D-E3/83
EGL34DHE3_A/I
(1)
(1)
UNIT WEIGHT (g)
0.036
0.036
0.036
PREFERRED PACKAGE CODE
98
83
I
BASE QUANTITY
2500
9000
9000
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
13" diameter plastic tape and reel
Note
AEC-Q101 qualified

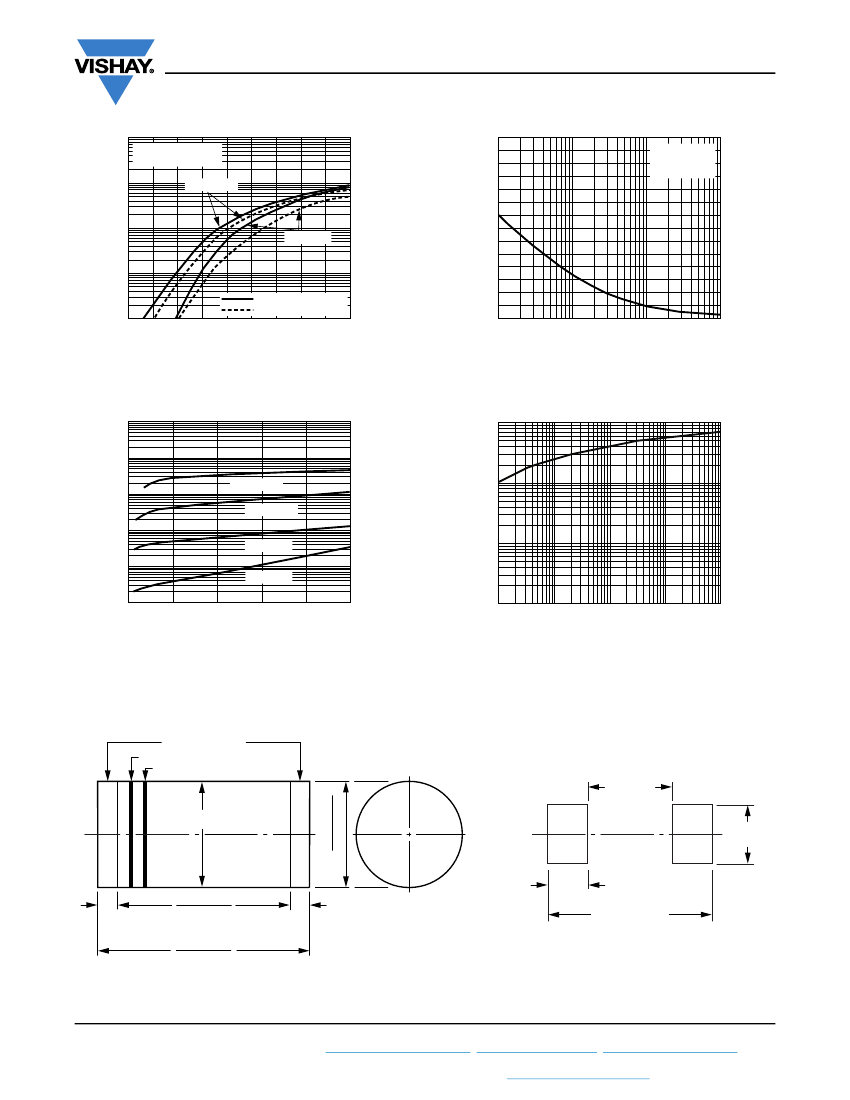

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
C
unless otherwise noted)
Average Forward Rectified Current (A)
0.5
12
Peak Forward Surge Current (A)
0.4
10
T
J
= T
J
Max.
8.3 ms Single Half Sine-Wave
8
0.3
6
0.2
Resistive or Inductive Load
0.1
4
2
0
0
25
50
75
100
125
150
175
0
1
10
100
Terminal Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 25-Aug-17
Document Number: 88580
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYM07-xxx, EGL34x
www.vishay.com
Vishay General Semiconductor
35
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
100
Instantaneous Forward Current (A)
Pulse Width = 300 µs
1 % Duty Cycle
10
T
J
= 150 °C
30
Junction Capacitance (pF)
25
20
15
10
5
0
1
T
J
= 25 °C
0.1
EGL34A thru EGL34D
EGL34F and EGL34G
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
0.1
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
100
100
10
T
J
= 150 °C
1
T
J
= 125 °C
0.1
T
J
= 75 °C
0.01
T
J
= 25 °C
0.001
0
20
40
60
80
100
Transient Thermal Impedance (°C/W)
Instantaneous Reverse Leakage
Current (µA)
10
1
0.1
0.01
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
t - Pulse Duration (s)
Fig. 4 - Typical Reverse Characteristics
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
GL34
(DO-213AA)
Solderable
Ends
1 BAND
2
nd
BAND
0.066 (1.676)
0.060 (1.524)
st
Mounting Pad Layout
0.079 (2.0)
MAX.
D2
0.079 (2.0)
MIN.
D1 =
0.049 (1.25)
MIN.
0.022 (0.559)
0.016 (0.406)
D2 = D1
0.145 (3.683)
0.131 (3.327)
+0
- 0.008 (0.20)
0.177 (4.5) REF.
1
st
band denotes type and polarity
2
nd
band denotes voltage type
Revision: 25-Aug-17
Document Number: 88580
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
