FEATURES AND SPECIFICATIONS
Features and Benefits
n
n
n
n
Sizes 6 to 72 circuits
Holds wires for secure, reliable contact
Modular construction reduces inventory
High flammability rating
Electrical
Voltage: 300 V
Maximum Current: 17.5 Amp
Insulation Resistance: >5,000 Megaohms
5.08mm (.200”) Pitch
Beau Eurostyle®
Medium Profile, Three Level
Terminal Block
39880
Modular
Mechanical
Max. Tightening Torque: 5 in. lbs, .56 Nm
Operating Temperature: 110
o
C
Wire Strip Length: 1/4” or 6mm
Reference Information
UL :
CSA:
File No. E48521
Guide No. XCFR2
File No. 025562
Physical
Insulator: Polyamide, UL94 V-0, black
Screws: Bronze
Screw Plating: Nickel
Contacts: Copper Alloy
Contact Plating: Tin
Pressure Clamp: Brass
Pressure Clamp Plating: Nickel
Wire Range: 14 to 26 AWG, 1.5 to 0.2mm
2
29.9
1.18”

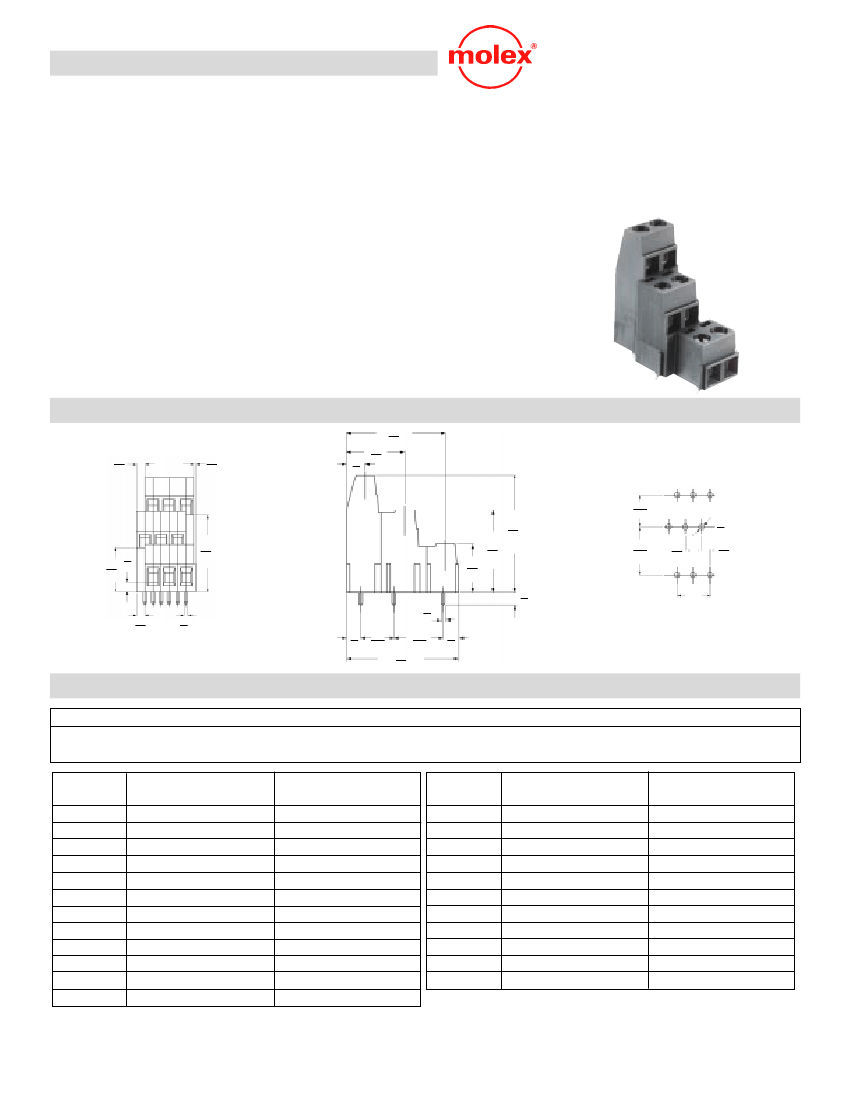

CATALOG DRAWING (FOR REFERENCE ONLY)
2.54
.10”
C
0.50
.197”
17.7
5.5 .697”
.217”
10.16
.400”
35.6
1.40”
3.4
13.8 .134”
.543”
24.2
.953”
14.8
.5834”
3.8
.150”
A
25.2
.992”
15.24
.600”
5.08
.200”
Diameter
1.4
.055”
2.54
.10”
2.54
.10”
1.0
.039”
0.8
.031”
3.8
.15”
10.16
.400”
33.7
1.33”
15.24
.600”
4.5
.177”
ORDERING INFORMATION AND DIMENSIONS
Order # (Engineering #)
Replace XX with # of circuits, 06-72
Tin Plated
39880-09XX (8832XX)
# of
Circuits
6
9
12
15
18
21
24
27
30
33
36
39
A
in
.20
.40
.60
.80
1.00
1.20
1.40
1.60
1.80
2.00
2.20
2.40
mm
5.1
10.2
15.2
20.3
25.4
30.5
35.6
40.6
45.7
50.8
55.9
61.0
in
.42
.62
.82
1.02
1.22
1.42
1.62
1.82
2.02
2.22
2.42
2.62
C
mm
10.2
15.2
20.3
25.4
30.5
35.6
40.6
45.7
50.8
55.9
61.0
66.0
# of
Circuits
42
45
48
51
54
57
60
63
66
69
72
A
in
2.60
2.80
3.00
3.20
3.40
3.60
3.80
4.00
4.20
4.40
4.60
mm
66.0
71.1
76.2
81.3
86.4
91.4
96.5
101.6
106.7
111.8
116.8
in
2.82
3.02
3.22
3.42
3.62
3.82
4.02
4.22
4.42
4.62
4.82
C
mm
71.1
76.2
81.3
86.4
91.4
96.5
101.6
106.7
111.8
116.8
121.9
*Consult facotry for sequential numbering option
