3004-623-11 datasheet, PDF - EEWORLD Datasheet

3004-623-11: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Polarized Lck, Receptacle; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerSingatron Enterprises Co

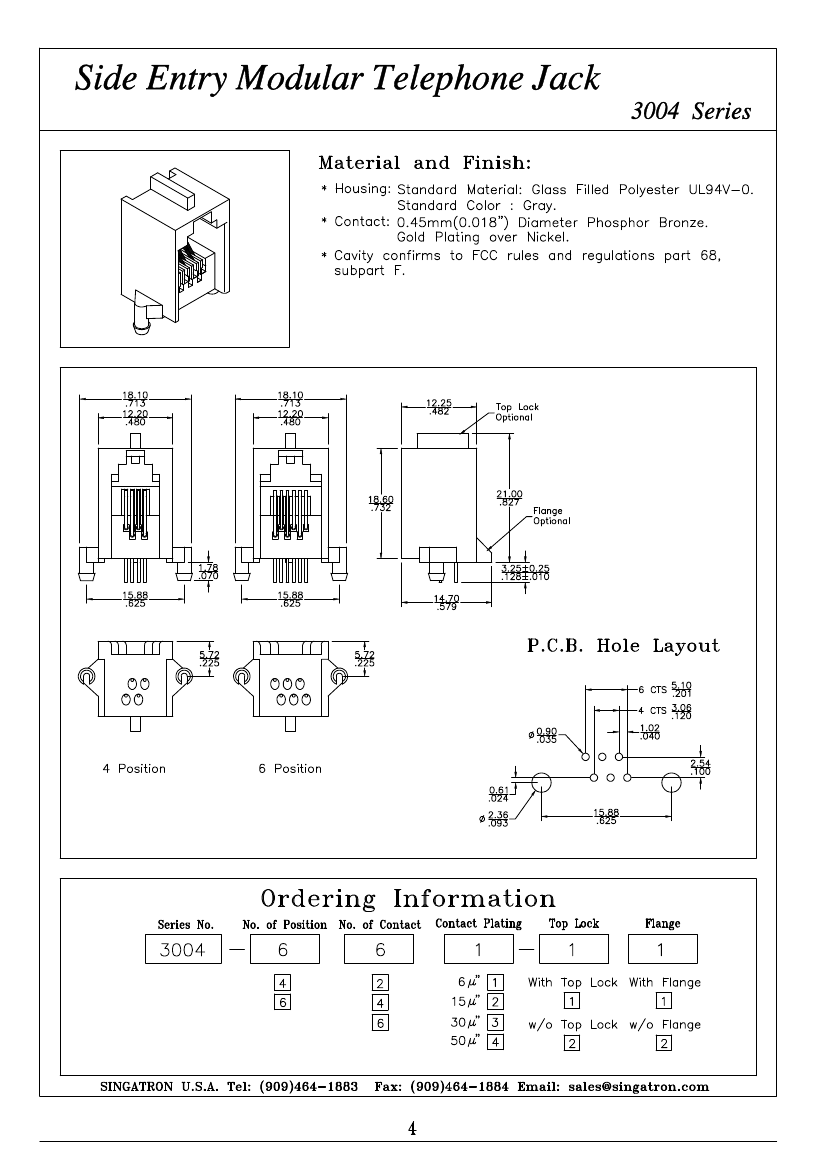

Download Datasheet Parametric View All

3004-623-11 Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Polarized Lck, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH FLANGE
Board mount options	PEG
body width	0.827 inch
subject depth	0.579 inch
body length	0.713 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	3004
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1
