multiplexer. The differential data path makes the device
ideal for multiplexing low skew clock or other skew
sensitive signals. Multiple V
BB
pins are provided to ease
AC coupling input signals.
The device features both individual and common select
inputs to address both data path and random logic
applications.
The differential inputs have special circuitry which
ensures device stability under open input conditions.
When both differential inputs are left open the D input
will pull down to V
EE
, the /D input will bias around V
CC
/2
forcing the Q output LOW.
PIN NAMES
Pin
D0
a
–D1
a
D0
b
–D1
b
SEL0–SEL1
COM_SEL
Q
0
–Q
1
/Q
0
–/Q
1
Input Data a
Input Data b
Individual Select Input
Common Select Input
True Outputs
Inverted Outputs
Function
TRUTH TABLE
SEL
H
L
Data
a
b
M9999-031306
hbwhelp@micrel.com or (408) 955-1690
Rev.: H
Amendment: /0
1
1
Issue Date: March 2006
Micrel, Inc.
SY100EL56V
PACKAGE/ORDERING INFORMATION
Ordering Information
(1)
D
0a
1
D
0a
2
V
BB0
3
D
0b
4
D
0b
5
D
1a
6
D
1a
7
20
V
CC
Part Number
SY100EL56VZC
SY100EL56VZCTR
(2)
SY100EL56VZI
SY100EL56VZITR
(2)
SY100EL56VZG
(3)
SY100EL56VZGTR
(2, 3)
Package
Type
Z20-1
Z20-1
Z20-1
Z20-1
Z20-1
Z20-1
Operating
Range
Commercial
Commercial
Industrial
Industrial
Industrial
Industrial
Package
Marking
SY100EL56VZC
SY100EL56VZC
SY100EL56VZI
SY100EL56VZI
SY100EL56VZG with
Pb-Free bar-line indicator
SY100EL56VZG with
Pb-Free bar-line indicator
Lead
Finish
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Pb-Free
NiPdAu
Pb-Free
NiPdAu
19
Q
0
18
Q
0
17
16
15
14
SEL0
COM_SEL
SEL1
V
CC
V
BB1
8
D
1b
9
13
Q
1
12
Q
1
11
D
1b
10
V
EE
Notes:
1. Contact factory for die availability. Dice are guaranteed at T
A
= 25°C, DC Electricals only.
2. Tape and Reel.
3. Pb-Free package is recommended for new designs.
20-Pin Wide SOIC (Z20-1)
PRODUCT/PROCESS INFORMATION
Process:
ESD Rating:
Bipolar
Per Mil Std. 883 Human Body Model,
>1.5kV (all pins).
M9999-031306
hbwhelp@micrel.com or (408) 955-1690
2
Micrel, Inc.
SY100EL56V
ABSOLUTE MAXIMUM RATINGS
(1)
Symbol
V
CC
V
EE
V
IN
I
OUT
T
LEAD
T
A
T
store
θ
JA
θ
JC
ESD
Note 1.
Rating
Power Supply Voltage (V
EE
= 0)
Power Supply Voltage (V
CC
= 0)
Input Voltage (V
CC
= 0V, V
IN
not more negative than V
EE
)
Input Voltage (V
EE
= 0V, V
IN
not more positive than V
CC
)
Output Current
Lead Temperature (soldering, 20sec.)
Operating Temperature Range
Storage Temperature Range
Thermal Resistance (Junction-to-Ambient)
Thermal Resistance (Junction-to-Case)
Mil Std. 883 Human Body Model, All Pins
–Still Air
–500lfpm
–Continuous
–Surge
Value
+6.0 to 0
–6.0 to 0
–6.0 to 0
+6.0 to 0
50
100
+260
–40 to +85
–65 to +150
160
109
39
>1.5k
Unit
V
V
V
V
mA
°C
°C
°C
°C/W
°C/W
°C/W
V
Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is not
implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum ratlng conditions
for extended periods may affect device reliability.
DC ELECTRICAL CHARACTERISTICS
(1)
V
EE
=V
EE
(Min) to V
EE
(Max); V
CC
= GND
T
A
= -40
°
C
Symbol
I
EE
V
BB
I
IH
I
IL
Parameter
Power Supply Current
Output Reference
Voltage
Input HIGH Current
Input LOW Current
Dn
Dn
V
PP
(DC)
Note 1.
Note 2.
T
A
= 0
°
C
Min.
—
Typ.
20
—
—
—
—
—
Max.
24
24
—
T
A
= +25
°
C
Min.
Typ.
20
—
—
—
—
—
Max.
24
—
T
A
= +85˚C
Min.
Typ.
20
—
—
—
—
—
Max.
24
–1.26
150
—
—
—
mV
Unit
mA
V
µA
µA
Min.
—
–1.38
—
0.5
–600
50
Typ.
20
—
—
—
—
—
Max.
–1.26 –1.38
150
—
—
—
—
0.5
–600
50
–1.26 –1.38
150
—
—
—
—
0.5
–600
50
–1.26 –1.38
150
—
—
—
—
0.5
–600
50
Input Sensitivity
(2)
Parametric values specifed at: 100EL56V Series: (–3.0V to –3.8V) or (–4.2V to –5.5V).
Differential input voltage required to obtain a full ECL swing on the outputs.
M9999-031306
hbwhelp@micrel.com or (408) 955-1690
3
Micrel, Inc.
SY100EL56V
AC ELECTRICAL CHARACTERISTICS
V
EE
=V
EE
(Min) to V
EE
(Max); V
CC
= GND
T
A
= -40
°
C
Symbol
t
PD
Parameter
Propagation
Delay
to Output
D (Diff)
D (SE)
SEL
COM_SEL
Min.
340
290
430
430
—
—
150
Typ.
—
—
—
—
40
—
—
Max.
540
590
730
730
80
100
1000
Min.
350
300
440
440
—
—
150
T
A
= 0
°
C
Typ.
—
—
—
—
40
—
—
Max.
550
600
740
740
80
100
1000
T
A
= +25
°
C
Min.
360
310
440
440
—
—
150
Typ.
—
—
—
—
40
—
—
Max.
560
610
740
740
80
100
1000
T
A
= +85˚C
Min.
380
330
450
450
—
—
150
Typ.
—
—
—
—
40
—
—
Max. Unit
580
630
750
750
80
100
1000
ps
t
SKEW
Within Device Skew
(1)
Duty Cycle Skew
(2)
ps
ps
mV
V
V
PP
(AC) Minimum Input Swing
(3)
V
CMR
Common Mode Range
V
EE
= –3.0V to –3.8V
(4)
V
PP
< 500mV
V
PP
≥
500mV
V
EE
= –4.2V to –5.5V
(5)
V
PP
< 500mV
V
PP
≥
500mV
t
r
t
f
Note 1.
Note 2.
Note 3.
Note 4.
–2.0
–1.8
–3.2
–3.0
200
—
—
—
—
—
–0.4
–0.4
–0.4
–0.4
540
–2.1
–1.9
–3.3
–3.1
200
—
—
—
—
—
–0.4
–0.4
–0.4
–0.4
540
–2.1
–1.9
–3.3
–3.1
200
—
—
—
—
—
–0.4
–0.4
–0.4
–0.4
540
–2.1
–1.9
–3.3
–3.1
200
—
—
—
—
—
–0.4
–0.4
–0.4
–0.4
540
ps
Output Rise/Fall Times Q
(20% –80%)
Within device skew is defined as identical transitions on similar paths through a device.
Duty cycle skew is defined only for differential operation when the delays are measured from the cross point of the inputs to the cross point of
the outputs.
Minimum input swing for which AC parameters are guaranteed.
The CMR range is referenced to the most positive side of the differential input signal. Normal operation is obtained if the HIGH level falls
within the specified range and the peak-to-peak voltage lies between V
PP
(min) and 1V. The lower end of the CMR range varies 1:1 with V
EE
.
The numbers in the spec table assume a nominal V
EE
= –3.3V. Note for PECL operation, the V
CMR
(min) will be fixed at 3.3V – |V
CMR
(min)|.
The CMR range is referenced to the most positive side of the differential input signal. Normal operation is obtained if the HIGH level falls
within the specified range and the peak-to-peak voltage lies between V
PP
(min) and 1V. The lower end of the CMR range varies 1:1 with V
EE
.
The numbers in the spec table assume a nominal V
EE
= –4.5V. Note for PECL operation, the V
CMR
(min) will be fixed at 5.0V – |V
CMR
(min)|.
Note 5.
M9999-031306
hbwhelp@micrel.com or (408) 955-1690
4
Micrel, Inc.
SY100EL56V

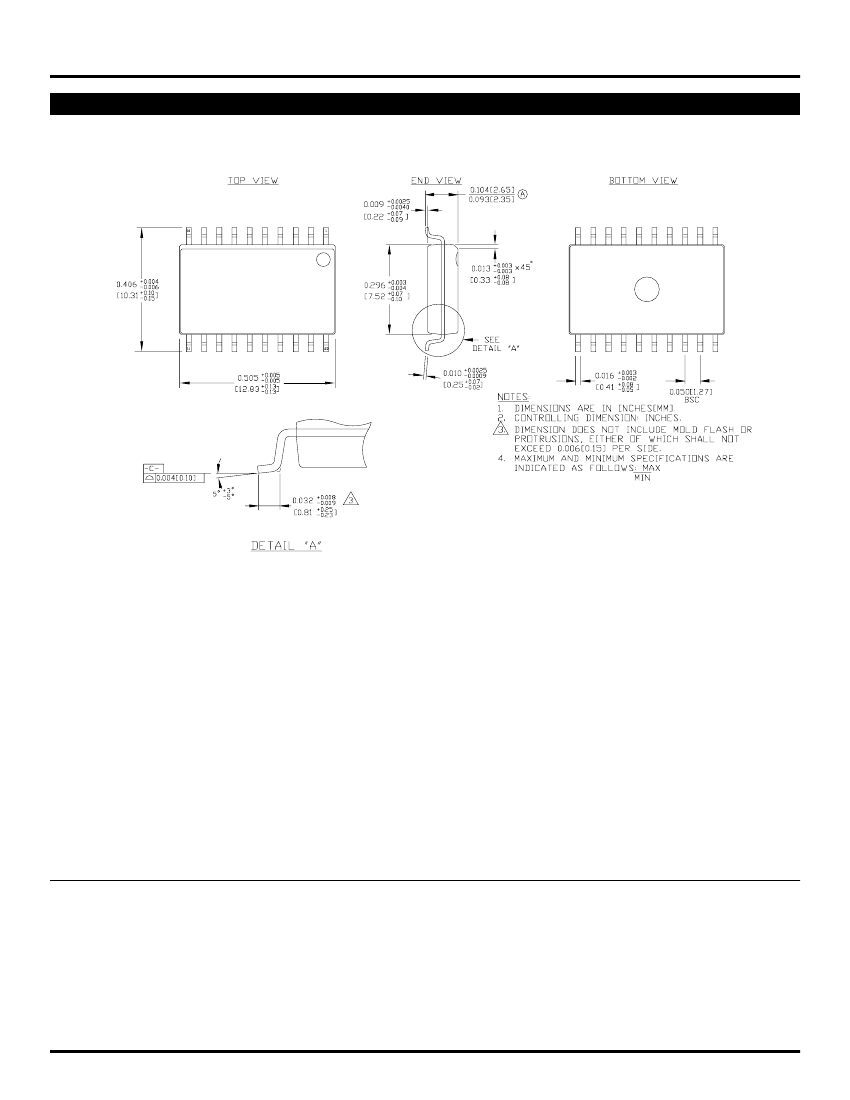

20-PIN SOIC .300" WIDE (Z20-1)
Rev. 03
Package Notes:
Note 1.
Package meets Level 1 moisture sensitivity.
MICREL, INC. 2180 FORTUNE DRIVE SAN JOSE, CA 95131
TEL
USA
+ 1 (408) 944-0800
FAX
+ 1 (408) 474-1000
WEB
http://www.micrel.com
The information furnished by Micrel in this datasheet is believed to be accurate and reliable. However, no responsibility is assumed by Micrel for its use.
Micrel reserves the right to change circuitry and specifications at any time without notification to the customer.
Micrel Products are not designed or authorized for use as components in life support appliances, devices or systems where malfunction of a product can
reasonably be expected to result in personal injury. Life support devices or systems are devices or systems that (a) are intended for surgical implant into
the body or (b) support or sustain life, and whose failure to perform can be reasonably expected to result in a significant injury to the user. A Purchaser’s
use or sale of Micrel Products for use in life support appliances, devices or systems is at Purchaser’s own risk and Purchaser agrees to fully indemnify
Micrel for any damages resulting from such use or sale.
